Example for Configuring IPv6 PIM-SM in the ASM Model

Networking Requirements

In Figure 1, the shared network segment is connected to the Internet. HostA and HostB want to receive multicast data from Source.

In this scenario, to avoid loops, ensure that all connected interfaces have STP disabled and connected interfaces are removed from VLAN 1. If STP is enabled and VLANIF interfaces of switches are used to construct a Layer 3 ring network, an interface on the network will be blocked. As a result, Layer 3 services on the network cannot run normally.

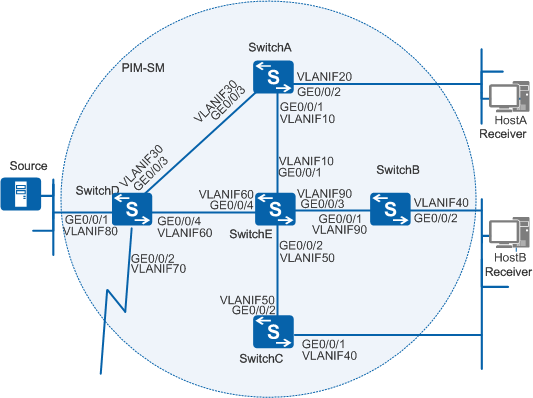

Figure 1 Network diagram for configuring IPv6 PIM-SM in the ASM model

Switch	VLANIF Interface	IPv6 Address
SwitchA	VLANIF10	FC00:0:0:2001::1/64
	VLANIF20	FC00:0:0:3001::1/64
	VLANIF30	FC00:0:0:2002::1/64
SwitchB	VLANIF40	FC00:0:0:4001::1/64
SwitchB	VLANIF90	FC00:0:0:2003::1/64
SwitchC	VLANIF40	FC00:0:0:4001::2/64
SwitchC	VLANIF50	FC00:0:0:2004::1/64
SwitchD	VLANIF30	FC00:0:0:2002::2/64
	VLANIF60	FC00:0:0:2005::1/64
	VLANIF70	FC00:0:0:6001::1/64
	VLANIF80	FC00:0:0:5001::1/64
SwitchE	VLANIF10	FC00:0:0:2001::2/64
	VLANIF50	FC00:0:0:2004::2/64
	VLANIF60	FC00:0:0:2005::2/64
	VLANIF90	FC00:0:0:2003::2/64

Configuration Roadmap

Configure the IPv6 PIM-SM protocol on the switches to enable them to provide the any-source multicast (ASM) service for user hosts on the network. Then all the hosts in a multicast group can receive multicast data sent from any sources to this group.

Configure an IPv6 address for each interface and an IPv6 unicast routing protocol. IPv6 PIM is an intra-domain multicast routing protocol that depends on IPv6 unicast routing protocols.
Enable the IPv6 multicast function on all switches to provide IPv6 multicast services. Before configuring IPv6 PIM-SM, you must enable the IPv6 multicast function.
Enable IPv6 PIM-SM on all interfaces. You can configure other IPv6 PIM-SM functions only after IPv6 PIM-SM is enabled.
Enable Multicast Listener Discovery (MLD) on interfaces that connect the switch and hosts. A receiver joins and leaves a multicast group by sending MLD messages. The leaf switches maintain the multicast member relationship through MLD.

If both IPv6 PIM-SM and MLD need to be configured on interfaces that connect the switch and hosts, you must configure IPv6 PIM-SM first, and then configure MLD.
Enable IPv6 PIM silent on interfaces that connect the switch and hosts to prevent malicious hosts from sending forged Hello packets. In this manner, the security of IPv6 PIM-SM domain is ensured.

If the user host network segment connects to multiple switches, do not enable IPv6 PIM silent on interfaces that connect these switches and user hosts. For example, IPv6 PIM silent cannot be enabled on SwitchB and SwitchC in the figure.
Configure the rendezvous point (RP). In IPv6 PIM-SM domain, RP is essential in providing ASM services and helps forward multicast data. You are advised to configure RP on switches that have more multicast flows. For example, you can configure RP on SwitchE in the figure.
Configure the bootstrap router (BSR) boundary on interfaces connected to the Internet. The Bootstrap message cannot pass through the BSR boundary; therefore, the BSR serves only this IPv6 PIM-SM domain. In this manner, multicast services are controlled effectively.

Procedure

Configure an IPv6 address for each interface and an IPv6 unicast routing protocol.

# Configure the IPv6 address and mask for each interface shown in Figure 1, and configure Open Shortest Path First version 3 (OSPFv3) on each switch to ensure that switches can communicate at the network layer and dynamically update routes using the IPv6 unicast routing protocol. The configurations of SwitchB, SwitchC, SwitchD, and SwitchE are similar to the configuration of SwitchA, and are not provided here.

[SwitchA] ipv6
[SwitchA] ospfv3 100
[SwitchA-ospfv3-100] router-id 1.1.1.1
[SwitchA-ospfv3-100] quit
[SwitchA] vlan batch 10 20 30
[SwitchA] interface vlanif 10
[SwitchA-Vlanif10] ipv6 enable
[SwitchA-Vlanif10] ipv6 address fc00:0:0:2001::1 64
[SwitchA-Vlanif10] ospfv3 100 area 0
[SwitchA-Vlanif10] quit
[SwitchA] interface vlanif 20
[SwitchA-Vlanif20] ipv6 enable
[SwitchA-Vlanif20] ipv6 address fc00:0:0:3001::1 64
[SwitchA-Vlanif20] ospfv3 100 area 0
[SwitchA-Vlanif20] quit
[SwitchA] interface vlanif 30
[SwitchA-Vlanif30] ipv6 enable
[SwitchA-Vlanif30] ipv6 address fc00:0:0:2002::1 64
[SwitchA-Vlanif30] ospfv3 100 area 0
[SwitchA-Vlanif30] quit
[SwitchA] interface gigabitethernet0/0/1
[SwitchA-GigabitEthernet0/0/1] port link-type trunk
[SwitchA-GigabitEthernet0/0/1] port trunk allow-pass vlan 10
[SwitchA-GigabitEthernet0/0/1] quit
[SwitchA] interface gigabitethernet0/0/2
[SwitchA-GigabitEthernet0/0/2] port link-type hybrid
[SwitchA-GigabitEthernet0/0/2] port hybrid untagged vlan 20
[SwitchA-GigabitEthernet0/0/2] port hybrid pvid vlan 20
[SwitchA-GigabitEthernet0/0/2] quit
[SwitchA] interface gigabitethernet0/0/3
[SwitchA-GigabitEthernet0/0/3] port link-type trunk
[SwitchA-GigabitEthernet0/0/3] port trunk allow-pass vlan 30
[SwitchA-GigabitEthernet0/0/3] quit

Enable multicast, and enable IPv6 PIM-SM on all interfaces.

# Enable IPv6 multicast on all switches and IPv6 PIM-SM on all interfaces. The configurations of SwitchB, SwitchC, SwitchD, and SwitchE are similar to the configuration of SwitchA, and are not provided here.

[SwitchA] multicast ipv6 routing-enable
[SwitchA] interface vlanif 10
[SwitchA-Vlanif10] pim ipv6 sm
[SwitchA-Vlanif10] quit
[SwitchA] interface vlanif 20
[SwitchA-Vlanif20] pim ipv6 sm
[SwitchA-Vlanif20] quit
[SwitchA] interface vlanif 30
[SwitchA-Vlanif30] pim ipv6 sm
[SwitchA-Vlanif30] quit

Enable MLD on interfaces that connect the switch and hosts.
# Enable MLD on interfaces that connect SwitchA and user hosts. The configuration of SwitchB and SwitchC are similar to the configuration of SwitchA, and are not provided here.
```
[SwitchA] interface vlanif 20
[SwitchA-Vlanif20] mld enable
```
Enable IPv6 PIM silent on interfaces on SwitchA.
```
[SwitchA-Vlanif20] pim ipv6 silent
```

Configure the RP.

# Configure the C-RP on SwitchE and specify the group address range served by the C-RP.

[SwitchE] acl ipv6 number 2001
[SwitchE-acl6-basic-2001] rule permit source ff0e::1 64
[SwitchE-acl6-basic-2001] quit
[SwitchE] pim-ipv6
[SwitchE-pim6] c-rp fc00:0:0:2005::2 group-policy 2001

# Configure a C-BSR on SwitchE.

[SwitchE-pim6] c-bsr fc00:0:0:2005::2
[SwitchE-pim6] quit

Configure the BSR boundary on interfaces that connect SwitchD to the Internet.

[SwitchD] interface vlanif 70
[SwitchD-Vlanif70] pim ipv6 bsr-boundary
[SwitchD-Vlanif70] quit

Verify the configuration.

# Run the display pim ipv6 interface command to check the IPv6 PIM configuration and status. In this example, the IPv6 PIM information on SwitchC is displayed as follows:

<SwitchC> display pim ipv6 interface
VPN-Instance: public net
 Interface           State NbrCnt HelloInt   DR-Pri     DR-Address
 Vlanif40           up    1      30         1          FE80::25C:FF:F205:32(local)
 Vlanif50           up    1      30         1          FE80::200:FF:FE00:10(local)

# Run the display pim ipv6 bsr-info command to check information about the BSR selection on the switch. For example, BSR information on SwitchA and SwitchE is displayed as follows (C-BSR information is also displayed on SwitchE).

<SwitchA> display pim ipv6 bsr-info
VPN-Instance: public net
 Elected AdminScoped BSR Count: 0
 Elected BSR Address: FC00:0:0:2005::2
     Priority: 0
     Hash mask length: 126
     State: Accept Preferred
     Scope: Not scoped
     Uptime: 01:40:40
     Expires: 00:01:42
     C-RP Count: 1

<SwitchE> display pim ipv6 bsr-info
VPN-Instance: public net
 Elected AdminScoped BSR Count: 0
 Elected BSR Address: FC00:0:0:2005::2
     Priority: 0
     Hash mask length: 126
     State: Elected
     Scope: Not scoped
     Uptime: 00:00:18
     Next BSR message scheduled at :00:01:42
     C-RP Count: 1
 Candidate AdminScoped BSR Count: 0
 Candidate BSR Address: FC00:0:0:2005::2
     Priority: 0
     Hash mask length: 126
     State:Elected
     Scope: Not scoped
     Wait to be BSR: 0

# Run the display pim ipv6 rp-info command to check the RP information on SwitchA. In this example, the RP information on SwitchA is displayed as follows:

<SwitchA> display pim ipv6 rp-info
VPN-Instance: public net
 PIM-SM BSR RP Number:1
 Group/MaskLen: FF0E::/64
     RP: FC00:0:0:2005::2
     Priority: 192
     Uptime: 00:05:19
     Expires: 00:02:11

# Run the display pim ipv6 routing-table command to view the IPv6 PIM multicast routing table. Multicast source S (FC00:0:0:5001::5/64) sends multicast packets to multicast groups FF0E::1/64 and FF0E::2/64. HostA needs to receive data sent to group FF0E::1, and HostB needs to receive data sent to group FF0E::2.

By default, after the receiver's DR receives the first multicast data, an SPT switchover is performed and (S, G) routing entries are created. Therefore, (S, G) routing entries displayed on the switch are (S, G) entries after the SPT switchover.

<SwitchA> display pim ipv6 routing-table
VPN-Instance: public net
 Total 1 (*, G) entry; 1 (S, G) entry

 (*, FF0E::1)
     RP: FC00:0:0:2005::2
     Protocol: pim-sm, Flag: WC
     UpTime: 00:02:15
     Upstream interface: Vlanif10
         Upstream neighbor: FE80::9D62:0:FDC5:2
         RPF prime neighbor: FE80::9D62:0:FDC5:2
     Downstream interface(s) information:
     Total number of downstreams: 1
         1: Vlanif20
             Protocol: mld, UpTime: 00:02:15, Expires:  -

(FC00:0:0:5001::5, FF0E::1)
     RP: FC00:0:0:2005::2
     Protocol: pim-sm, Flag: SPT ACT
     UpTime: 00:00:11
     Upstream interface: Vlanif30
         Upstream neighbor: FE80::A01:10C:1
         RPF prime neighbor: FE80::A01:10C:1
     Downstream interface(s) information:
     Total number of downstreams: 1
         1: Vlanif20
             Protocol: pim-sm, UpTime: 00:00:11, Expires: -

<SwitchB> display pim ipv6 routing-table
VPN-Instance: public net
 Total 1 (*, G) entry; 1 (S, G) entries

 (*, FF0E::2)
     RP: FC00:0:0:2005::2
     Protocol: pim-sm, Flag: WC
     UpTime: 00:14:44
     Upstream interface: Vlanif90
         Upstream neighbor: FE80::33FE:0:852C:2
         RPF prime neighbor: FE80::33FE:0:852C:2
     Downstream interface(s) information: None

(FC00:0:0:5001::5, FF0E::2)
     RP: FC00:0:0:2005::2
     Protocol: pim-sm, Flag: ACT
     UpTime: 00:2:42
     Upstream interface: Vlanif90
         Upstream neighbor: FE80::A11:110C:11
         RPF prime neighbor: FE80::A11:110C:11
     Downstream interface(s) information: None

<SwitchC> display pim ipv6 routing-table
VPN-Instance: public net
 Total 1 (*, G) entry; 1 (S, G) entry

(*, FF0E::2)
     RP: FC00:0:0:2005::2
     Protocol: pim-sm, Flag: WC
     UpTime: 00:2:42
     Upstream interface: Vlanif50
         Upstream neighbor: FE80::71FE:11:21
         RPF prime neighbor: FE80::71FE:11:21
     Downstream interface(s) information:
     Total number of downstreams: 1
         1: Vlanif40
             Protocol: mld, UpTime: 00:13:46, Expires: -

(FC00:0:0:5001::5, FF0E::2)
     RP: FC00:0:0:2005::2
     Protocol: pim-sm, Flag: SPT ACT
     UpTime: 00:2:42
     Upstream interface: Vlanif50
         Upstream neighbor: FE80::71FE:11:21
         RPF prime neighbor: FE80::71FE:11:21
     Downstream interface(s) information:
     Total number of downstreams: 1
         1: Vlanif40
             Protocol: pim-sm, UpTime: 00:13:46, Expires: -

<SwitchD> display pim ipv6 routing-table
VPN-Instance: public net
 Total 0 (*, G) entry; 2 (S, G) entry
 (FC00:0:0:5001::5, FF0E::1)
     RP: FC00:0:0:2005::2
     Protocol: pim-sm, Flag: SPT LOC ACT
     UpTime: 00:16:56
     Upstream interface: Vlanif80
         Upstream neighbor: NULL
         RPF prime neighbor: NULL
     Downstream interface(s) information:
     Total number of downstreams: 1
         1: Vlanif30
             Protocol: pim-sm, UpTime: 00:16:56, Expires: 00:02:34
 (FC00:0:0:5001::5, FF0E::2)
     RP: FC00:0:0:2005::2
     Protocol: pim-sm, Flag: SPT LOC ACT
     UpTime: 00:02:54
     Upstream interface: Vlanif80
         Upstream neighbor: NULL
         RPF prime neighbor: NULL
     Downstream interface(s) information:
     Total number of downstreams: 1
            1: Vlanif60
             Protocol: pim-sm, UpTime: 00:02:54, Expires: 00:02:36

<SwitchE> display pim ipv6 routing-table
VPN-Instance: public net
 Total 2 (*, G) entry; 2 (S, G) entry

 (*, FF0E::1)
     RP: FC00:0:0:2005::2(local)
     Protocol: pim-sm, Flag: WC
     UpTime: 00:02:15
     Upstream interface: Register
         Upstream neighbor: NULL
         RPF prime neighbor: NULL
     Downstream interface(s) information:
     Total number of downstreams: 1
         1: Vlanif10
             Protocol: pim-sm, UpTime: 00:02:15, Expires:  -

 (FC00:0:0:5001::5, FF0E::1)
     RP: FC00:0:0:2005::2(local)
     Protocol: pim-sm, Flag: RPT ACT
     UpTime: 00:16:56
     Upstream interface: Register
         Upstream neighbor: NULL
         RPF prime neighbor: NULL
     Downstream interface(s) information: NULL

 (*, FF0E::2)
     RP: FC00:0:0:2005::2(local)
     Protocol: pim-sm, Flag: WC
     UpTime: 00:02:15
     Upstream interface: Register
         Upstream neighbor: NULL
         RPF prime neighbor: NULL
     Downstream interface(s) information:
     Total number of downstreams: 2
         1: Vlanif90
             Protocol: pim-sm, UpTime: 00:02:15, Expires:  -
         2: Vlanif50
             Protocol: pim-sm, UpTime: 00:02:15, Expires:  -
 (FC00:0:0:5001::5, FF0E::2)
     RP: FC00:0:0:2004::2(local)
     Protocol: pim-sm, Flag: SPT ACT
     UpTime: 00:02:54
     Upstream interface: Vlanif60
         Upstream neighbor: FE80::659:10C:3
         RPF prime neighbor: FE80::659:10C:3
     Downstream interface(s) information:
     Total number of downstreams: 1
         1: Vlanif90
             Protocol: pim-sm, UpTime: 00:02:15, Expires:  -
         2: Vlanif50
             Protocol: pim-sm, UpTime: 00:02:15, Expires:  -

Configuration Files

SwitchA configuration file

#
sysname SwitchA
#
ipv6
#
vlan batch 10 20 30
#
 multicast ipv6 routing-enable
#
ospfv3 100
 router-id 1.1.1.1
#
interface Vlanif10
 ipv6 enable
 ipv6 address FC00:0:0:2001::1/64
 ospfv3 100 area 0.0.0.0
 pim ipv6 sm
#
interface Vlanif20
 ipv6 enable
 ipv6 address FC00:0:0:3001::1/64
 ospfv3 100 area 0.0.0.0
 pim ipv6 silent
 pim ipv6 sm
 mld enable
#
interface Vlanif30
 ipv6 enable
 ipv6 address FC00:0:0:2002::1/64
 ospfv3 100 area 0.0.0.0
 pim ipv6 sm
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 10
#
interface GigabitEthernet0/0/2
 port link-type hybrid
 port hybrid pvid vlan 20
 port hybrid untagged vlan 20
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 10
#
return

SwitchB configuration file

#
 sysname SwitchB
#
ipv6
#
vlan batch 40 90
#
 multicast ipv6 routing-enable
#
ospfv3 100
 router-id 2.2.2.2
#
interface Vlanif40
 ipv6 enable
 ipv6 address FC00:0:0:4001::1/64
 ospfv3 100 area 0.0.0.0
 pim ipv6 sm
 mld enable
#
interface Vlanif90
 ipv6 enable
 ipv6 address FC00:0:0:2003::1/64
 ospfv3 100 area 0.0.0.0
 pim ipv6 sm
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 90
#
interface GigabitEthernet0/0/2
 port link-type hybrid
 port hybrid pvid vlan 40
 port hybrid untagged vlan 40
#
return

SwitchC configuration file

#
 sysname SwitchC
#
ipv6
#
vlan batch 40 50
#
 multicast ipv6 routing-enable
#
ospfv3 100
 router-id 3.3.3.3
#
interface Vlanif40
 ipv6 enable
 ipv6 address FC00:0:0:4001::2/64
 ospfv3 100 area 0.0.0.0
 pim ipv6 sm
 mld enable
#
interface Vlanif50
 ipv6 enable
 ipv6 address FC00:0:0:2004::1/64
 ospfv3 100 area 0.0.0.0
 pim ipv6 sm
#
interface GigabitEthernet0/0/1
 port link-type hybrid
 port hybrid pvid vlan 40
 port hybrid untagged vlan 40
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 50
#
return

SwitchD configuration file

#
 sysname SwitchD
#
ipv6
#
vlan batch 30 60 70 80
#
 multicast ipv6 routing-enable
#
ospfv3 100
 router-id 4.4.4.4
#
interface Vlanif30
 ipv6 enable
 ipv6 address FC00:0:0:2002::2/64
 ospfv3 100 area 0.0.0.0
 pim ipv6 sm
#
interface Vlanif60
 ipv6 enable
 ipv6 address FC00:0:0:2005::1/64
 ospfv3 100 area 0.0.0.0
 pim ipv6 sm
#
interface Vlanif70
 ipv6 enable
 ipv6 address FC00:0:0:6001::1/64
 ospfv3 100 area 0.0.0.0
 pim ipv6 bsr-boundary
 pim ipv6 sm
#
interface Vlanif80
 ipv6 enable
 ipv6 address FC00:0:0:5001::1/64
 ospfv3 100 area 0.0.0.0
 pim ipv6 sm
#
interface GigabitEthernet0/0/1
 port link-type hybrid
 port hybrid pvid vlan 80
 port hybrid untagged vlan 80
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 70
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 30
#
interface GigabitEthernet0/0/4
 port link-type trunk
 port trunk allow-pass vlan 60
#
return

SwitchE configuration file

#
 sysname SwitchE
#
ipv6
#
vlan batch 10 50 60 90
#
 multicast ipv6 routing-enable
#
acl ipv6 number 2001
 rule 0 permit source FF0E::/64
#
ospfv3 100
 router-id 5.5.5.5
#
interface Vlanif10
 ipv6 enable
 ipv6 address FC00:0:0:2001::2/64
 ospfv3 100 area 0.0.0.0
 pim ipv6 sm
#
interface Vlanif50
 ipv6 enable
 ipv6 address FC00:0:0:2004::2/64
 ospfv3 100 area 0.0.0.0
 pim ipv6 sm
#
interface Vlanif60
 ipv6 enable
 ipv6 address FC00:0:0:2005::2/64
 ospfv3 100 area 0.0.0.0
 pim ipv6 sm
#
interface Vlanif90
 ipv6 enable
 ipv6 address FC00:0:0:2003::2/64
 ospfv3 100 area 0.0.0.0
 pim ipv6 sm
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 10
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 50
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 90
#
interface GigabitEthernet0/0/4
 port link-type trunk
 port trunk allow-pass vlan 60
#
pim-ipv6
 c-bsr FC00:0:0:2005::2
 c-rp FC00:0:0:2005::2 group-policy 2001
#
return
