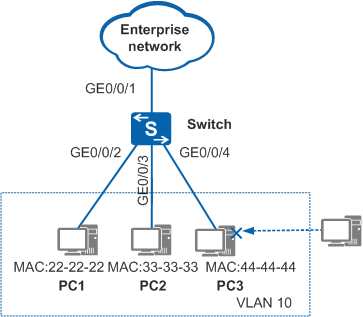

Configuring MAC Address-based VLAN Assignment

Procedure

1. Run system-view

   The system view is displayed.

2. Run vlan vlan-id

   A VLAN is created and the VLAN view is displayed. If the specified VLAN has been created, the VLAN view is directly displayed.

   The VLAN ID is in the range from 1 to 4094. If VLANs need to be created in a batch, run the vlan batch { vlan-id1 [ to vlan-id2 ] } &<1-10> command. Then run the vlan vlan-id command to enter the view of a specified VLAN.



   The vlan configuration command completes the VLAN configurations before the VLAN is created. The vlan configuration command only enters the VLAN configuration view. Neither the corresponding VLAN nor configurations in the VLAN take effect. To make configurations in the VLAN take effect, create the VLAN using the vlan command.

3. Run mac-vlan mac-address mac-address [ mac-address-mask | mac-address-mask-length ] [ priority priority ]

   A MAC address is associated with a VLAN.



   When the mac-vlan mac-address command with the same MAC address specified is executed multiple times, MAC-VLAN entries take effect according to the longest match principle. On the S5720-EI, S6720-EI, and S6720S-EI, MAC-VLAN entries take effect according to the longest match principle only when the subnet mask has 47 bits or less than 47 bits. A MAC-VLAN entry with a 48-bit subnet mask has the lowest priority.

   • The MAC address is input in an H-H-H format, where each H is a hexadecimal number composed of 1 to 4 alphanumeric characters, such as 00e0 and fc01. If you enter less than four alphanumeric characters, 0s are added before the input digits. For example, if e0 is entered, 00e0 is displayed. The MAC address cannot be all Fs, all 0s, or a multicast MAC address.

   • If a MAC-VLAN entry with a mask is specified (excluding a 48-bit mask or mask with all Fs), the priority cannot be changed normally. To change the priority, run the undo mac-vlan mac-address command to delete the MAC-VLAN entry and then run the mac-vlan mac-address command to change the priority.

   • priority specifies the 802.1p priority of a MAC address-based VLAN. The value is in the range from 0 to 7. A larger value indicates a higher priority. The default value is 0. After the 802.1p priority of a MAC address-based VLAN is specified, the switch forwards high-priority frames first during network congestion.

4. Run quit

   Return to the system view.

5. Configure attributes for the Ethernet interface.

   1. Run interface interface-type interface-number

      The view of the interface that allows the MAC address-based VLAN is displayed.

   2. Run port link-type hybrid

      The interface is configured as a hybrid interface.

      On access and trunk interfaces, MAC address-based VLAN assignment can be used only when the MAC address-based VLAN is the same as the PVID. It is recommended that MAC address-based VLAN assignment be configured on hybrid interfaces.

   3. Run port hybrid untagged vlan { { vlan-id1 [ to vlan-id2 ] } &<1-10> | all }

      The hybrid interface is configured to allow the MAC address-based VLAN.

6. (Optional) Run vlan precedence mac-vlan

   The device is configured to preferentially use MAC address-based VLAN assignment.

   By default, the device preferentially uses MAC address-based VLAN assignment.



   Only the S5720-EI, S5720I-SI, S5720S-SI, S5720-SI, S5735-S, S5735S-S, S5735-S-I, S5730S-EI, S5730-SI, S6720-EI, S6720-LI, S6720S-EI, S6720S-LI, S6720S-SI, and S6720-SI support the vlan precedence command.

   S5720I-SI, S5720S-SI, S5720-SI, S5735-S, S5735S-S, S5735-S-I, S5730S-EI, S5730-SI, S6720-LI, S6720S-LI, S6720S-SI, and S6720-SI supports the vlan precedence command only in the system view. Other switches support the vlan precedence command only in the interface view.

   On the S5720-EI, S6720-EI, and S6720S-EI, if both a subnet VLAN and MAC VLAN with a mask are configured, the MAC VLAN with a mask is matched first regardless of whether the vlan precedence command is used.

7. Run mac-vlan enable

   MAC address-based VLAN assignment is enabled.

   By default, MAC address-based VLAN assignment is disabled.



   MAC address-based VLAN assignment cannot be used with the MUX VLAN and MAC address authentication on the same interface.

   On the S2720-EI, S5720-HI, S5720I-SI, S5720-LI, S5735-L, S5735S-L, S5735S-L-M, S5720S-LI, S5720S-SI, S5720-SI, S5735-S, S5735S-S, S5735-S-I, S5730-HI, S5730S-EI, S5730-SI, S5731-H, S5731-S, S5731S-H, S5731S-S, S5732-H, S6720-HI, S6720-LI, S6720S-LI, S6720S-SI, S6720-SI, S6730-H, S6730S-H, S6730-S, and S6730S-S, MAC address-based VLAN assignment is invalid for packets with a VLAN ID of 0, regardless of whether the mask of the MAC VLAN is specified. On other models, MAC address-based VLAN assignment is invalid for packets with the VLAN ID of 0 only when the mask of the MAC VLAN is specified.
