Example for Configuring STA Blacklist and Whitelist

Configuration Process

You need to configure and maintain WLAN features and functions in different profiles. These WLAN profiles include regulatory domain profile, radio profile, VAP profile, AP system profile, AP wired port profile, WIDS profile, WDS profile, and Mesh profile. When configuring WLAN services, you need to set related parameters in the WLAN profiles and bind the profiles to the AP group or APs. Then the configuration is automatically delivered to and takes effect on the APs. WLAN profiles can reference one another; therefore, you need to know the relationships among the profiles before configuring them. For details about the profile relationships and their basic configuration procedure, see WLAN Service Configuration Procedure.

Networking Requirements

As shown in Figure 1, the AC and AP are connected through access switch SwitchA. An enterprise provides a WLAN with the SSID wlan-net for management personnel to access the enterprise network. STAs automatically obtain IP addresses.

The WLAN with a small number of management personnel can use the STA whitelist. MAC addresses of management personnel's wireless terminals can be added to a STA whitelist, preventing other employees from accessing the WLAN.

The management personnel found that some unauthorized STAs are online. To prevent this situation, management personnel can add MAC addresses of the STAs to a blacklist to prevent these STAs from accessing the WLAN. STAs that are not in the blacklist can access the WLAN.

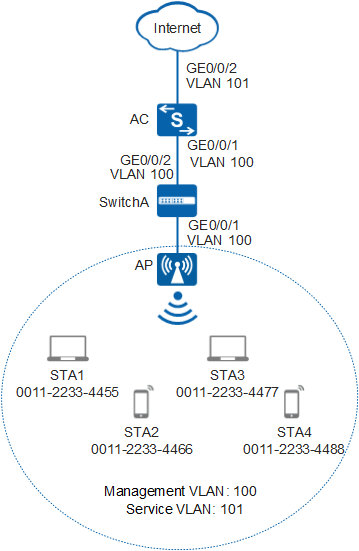

Figure 1 Networking diagram for configuring the STA blacklist and whitelist

Configuration Roadmap

Configure WLAN basic services so that STAs can access the WLAN.
Configure a STA whitelist. Add MAC addresses of management personnel's wireless terminals to the whitelist. To prevent configuration impacts on other VAPs, configure the STA whitelist for a VAP, instead of an AP.
Configure a STA blacklist for an AP. Add MAC addresses of some STAs to the blacklist to prevent the STAs from associating with the AP, ensuing WLAN network security.

The STA whitelist and blacklist cannot be configured simultaneously for a VAP or an AP, that is, the STA whitelist and blacklist cannot take effect at the same time in a VAP profile or an AP system profile.

**Table 1** Data planning
Item	Data
DHCP server	The AC functions as a DHCP server to assign IP addresses to the STAs and AP.
IP address pool for the AP	10.23.100.2-10.23.100.254/24
IP address pool for STAs	10.23.101.2-10.23.101.254/24
AC's source interface address	VLANIF 100: 10.23.100.1/24
STA whitelist profile	Name: sta-whitelist STAs added to the STA whitelist: STA1 and STA2
STA blacklist profile	Name: sta-blacklist STAs added to the STA blacklist: STA3 and STA4
AP system profile	Name: wlan-system Referenced profile: STA blacklist profile sta-blacklist
AP group	Name: ap-group1 Referenced profile: VAP profile wlan-vap, AP system profile wlan-system, and regulatory domain profile domain1
Regulatory domain profile	Name: domain1 Country code: CN
SSID profile	Name: wlan-ssid SSID name: wlan-net
Security profile	Name: wlan-security Security policy: open system authentication
VAP profile	Name: wlan-vap Forwarding mode: tunnel forwarding Service VLAN: VLAN 101 Referenced profile: SSID profile wlan-ssid, security profile wlan-security, and STA whitelist profile sta-whitelist

Configuration Notes

No ACK mechanism is provided for multicast packet transmission on air interfaces. In addition, wireless links are unstable. To ensure stable transmission of multicast packets, they are usually sent at low rates. If a large number of such multicast packets are sent from the network side, the air interfaces may be congested. You are advised to configure multicast packet suppression to reduce impact of a large number of low-rate multicast packets on the wireless network. Exercise caution when configuring the rate limit; otherwise, the multicast services may be affected.
- In direct forwarding mode, you are advised to configure multicast packet suppression on switch interfaces connected to APs.
- In tunnel forwarding mode, you are advised to configure multicast packet suppression in traffic profiles of the AC.
For details on how to configure traffic suppression, see How Do I Configure Multicast Packet Suppression to Reduce Impact of a Large Number of Low-Rate Multicast Packets on the Wireless Network?.
Configure port isolation on the interfaces of the device directly connected to APs. If port isolation is not configured and direct forwarding is used, a large number of unnecessary broadcast packets may be generated in the VLAN, blocking the network and degrading user experience.
In tunnel forwarding mode, the management VLAN and service VLAN cannot be the same. Only packets from the management VLAN are transmitted between the AC and APs. Packets from the service VLAN are not allowed between the AC and APs.

Procedure

Set the NAC mode to unified on the AC so that users can connect to the network properly.
```
<HUAWEI> system-view
[HUAWEI] authentication unified-mode
```
If the NAC mode is changed from traditional to unified, the unified mode takes effect after you save the configuration and restart the device.

Configure SwitchA and the AC so that the AP and AC can transmit CAPWAP packets.

# Add GE0/0/1 that connects SwitchA to the AP to management VLAN 100 and add GE0/0/2 that connects SwitchA to the AC to the same VLAN.

<HUAWEI> system-view
[HUAWEI] sysname SwitchA
[SwitchA] vlan batch 100
[SwitchA] interface gigabitethernet 0/0/1
[SwitchA-GigabitEthernet0/0/1] port link-type trunk
[SwitchA-GigabitEthernet0/0/1] port trunk pvid vlan 100
[SwitchA-GigabitEthernet0/0/1] port trunk allow-pass vlan 100
[SwitchA-GigabitEthernet0/0/1] quit
[SwitchA] interface gigabitethernet 0/0/2
[SwitchA-GigabitEthernet0/0/2] port link-type trunk
[SwitchA-GigabitEthernet0/0/2] port trunk allow-pass vlan 100
[SwitchA-GigabitEthernet0/0/2] quit

# Add GE0/0/1 that connects the AC to SwitchA to VLAN 100.

[HUAWEI] sysname AC
[AC] vlan batch 100 101
[AC] interface gigabitethernet 0/0/1
[AC-GigabitEthernet0/0/1] port link-type trunk
[AC-GigabitEthernet0/0/1] port trunk allow-pass vlan 100
[AC-GigabitEthernet0/0/1] quit

Configure the AC to communicate with the upstream device.

Configure AC uplink interfaces to transparently transmit packets of service VLANs as required and communicate with the upstream device.

# Add AC uplink interface GE0/0/2 to service VLAN 101.
```
[AC] interface gigabitethernet 0/0/2
[AC-GigabitEthernet0/0/2] port link-type trunk
[AC-GigabitEthernet0/0/2] port trunk allow-pass vlan 101
[AC-GigabitEthernet0/0/2] quit
```
Configure the AC as a DHCP server to allocate IP addresses to STAs and the AP.
# Configure the AC as the DHCP server to allocate an IP address to the AP from the IP address pool on VLANIF 100, and allocate IP addresses to STAs from the IP address pool on VLANIF 101.
Configure the DNS server as required. The common methods are as follows:
- In interface address pool scenarios, run the dhcp server dns-list ip-address &<1-8> command in the VLANIF interface view.
- In global address pool scenarios, run the dns-list ip-address &<1-8> command in the IP address pool view.
```
[AC] dhcp enable
[AC] interface vlanif 100
[AC-Vlanif100] ip address 10.23.100.1 24
[AC-Vlanif100] dhcp select interface
[AC-Vlanif100] quit
[AC] interface vlanif 101
[AC-Vlanif101] ip address 10.23.101.1 24
[AC-Vlanif101] dhcp select interface
[AC-Vlanif101] quit
```

Configure the AP to go online.

# Create an AP group and add the AP to the AP group.

[AC] wlan
[AC-wlan-view] ap-group name ap-group1
[AC-wlan-ap-group-ap-group1] quit

# Create a regulatory domain profile, configure the AC country code in the profile, and apply the profile to the AP group.

[AC-wlan-view] regulatory-domain-profile name domain1
[AC-wlan-regulate-domain-domain1] country-code cn
[AC-wlan-regulate-domain-domain1] quit
[AC-wlan-view] ap-group name ap-group1
[AC-wlan-ap-group-ap-group1] regulatory-domain-profile domain1
Warning: Modifying the country code will clear channel, power and antenna gain configurations of the radio and reset the AP. Continue?[Y/N]:y
[AC-wlan-ap-group-ap-group1] quit
[AC-wlan-view] quit

# Configure the AC's source interface.

[AC] capwap source interface vlanif 100

# Import the AP offline on the AC and add the AP to AP group ap-group1. Assume that the AP's MAC address is 60de-4476-e360. Configure a name for the AP based on the AP's deployment location, so that you can know where the AP is deployed from its name. For example, name the AP area_1 if it is deployed in Area 1.

The default AP authentication mode is MAC address authentication. If the default settings are retained, you do not need to run the ap auth-mode mac-auth command.

In this example, the AP5030DN is used and has two radios: radio 0 (2.4 GHz radio) and radio 1 (5 GHz radio).

[AC] wlan
[AC-wlan-view] ap auth-mode mac-auth
[AC-wlan-view] ap-id 0 ap-mac 60de-4476-e360
[AC-wlan-ap-0] ap-name area_1
Warning: This operation may cause AP reset. Continue? [Y/N]:y
[AC-wlan-ap-0] ap-group ap-group1
Warning: This operation may cause AP reset. If the country code changes, it will clear channel, power and antenna gain configuration s of the radio, Whether to continue? [Y/N]:y
[AC-wlan-ap-0] quit

# After the AP is powered on, run the display ap all command to check the AP state. If the State field is displayed as nor, the AP goes online normally.

[AC-wlan-view] display ap all

Total AP information:
nor  : normal          [1]
Extrainfo : Extra information
P  : insufficient power supply
--------------------------------------------------------------------------------------------------
ID   MAC            Name   Group     IP            Type            State STA Uptime      ExtraInfo
--------------------------------------------------------------------------------------------------
0    60de-4476-e360 area_1 ap-group1 10.23.100.254 AP5030DN        nor   0   10S         -
--------------------------------------------------------------------------------------------------
Total: 1

Configure a STA whitelist in a VAP profile.

# Create the STA whitelist profile sta-whitelist and add MAC addresses of STA1 and STA2 to the whitelist.

[AC-wlan-view] sta-whitelist-profile name sta-whitelist
[AC-wlan-whitelist-prof-sta-whitelist] sta-mac 0011-2233-4455
[AC-wlan-whitelist-prof-sta-whitelist] sta-mac 0011-2233-4466
[AC-wlan-whitelist-prof-sta-whitelist] quit

# Create the VAP profile wlan-vap and bind the STA whitelist profile to the VAP profile.

[AC-wlan-view] vap-profile name wlan-vap
[AC-wlan-vap-prof-wlan-vap] sta-access-mode whitelist sta-whitelist
[AC-wlan-vap-prof-wlan-vap] quit

Configure a global STA blacklist.

# Create the STA blacklist profile sta-blacklist and add MAC addresses of STA3 and STA4 to the blacklist.

[AC-wlan-view] sta-blacklist-profile name sta-blacklist
[AC-wlan-blacklist-prof-sta-blacklist] sta-mac 0011-2233-4477
[AC-wlan-blacklist-prof-sta-blacklist] sta-mac 0011-2233-4488
[AC-wlan-blacklist-prof-sta-blacklist] quit

# Create the AP system profile wlan-system and bind the STA blacklist profile to the AP system profile.

[AC-wlan-view] ap-system-profile name wlan-system
[AC-wlan-ap-system-prof-wlan-system] sta-access-mode blacklist sta-blacklist
[AC-wlan-ap-system-prof-wlan-system] quit

Configure WLAN service parameters.

# Create the security profile wlan-security.

[AC-wlan-view] security-profile name wlan-security
[AC-wlan-sec-prof-wlan-security] quit

# Create the SSID profile wlan-ssid and set the SSID name to wlan-net.

[AC-wlan-view] ssid-profile name wlan-ssid
[AC-wlan-ssid-prof-wlan-ssid] ssid wlan-net
[AC-wlan-ssid-prof-wlan-ssid] quit

# In the VAP profile wlan-vap, set the data forwarding mode and service VLAN, and bind the security profile and SSID profile to the VAP profile.

[AC-wlan-view] vap-profile name wlan-vap
[AC-wlan-vap-prof-wlan-vap] forward-mode tunnel
[AC-wlan-vap-prof-wlan-vap] service-vlan vlan-id 101
[AC-wlan-vap-prof-wlan-vap] security-profile wlan-security
[AC-wlan-vap-prof-wlan-vap] ssid-profile wlan-ssid
[AC-wlan-vap-prof-wlan-vap] quit

# Bind the VAP profile wlan-vap and AP system profile wlan-system to the AP group.

[AC-wlan-view] ap-group name ap-group1
[AC-wlan-ap-group-ap-group1] vap-profile wlan-vap wlan 1 radio 0
[AC-wlan-ap-group-ap-group1] vap-profile wlan-vap wlan 1 radio 1
[AC-wlan-ap-group-ap-group1] ap-system-profile wlan-system
[AC-wlan-ap-group-ap-group1] quit

Set channels and power for the AP radios.

Automatic channel and power calibration functions are enabled by default. The manual channel and power configurations take effect only when these two functions are disabled. The channel and power configuration for the AP radios in this example is for reference only. In actual scenarios, configure channels and power for AP radios based on country codes of APs and network planning results.

# Disable automatic channel and power calibration functions of radio 0, and configure the channel and power for radio 0.

[AC-wlan-view] ap-id 0
[AC-wlan-ap-0] radio 0
[AC-wlan-radio-0/0] calibrate auto-channel-select disable
[AC-wlan-radio-0/0] calibrate auto-txpower-select disable
[AC-wlan-radio-0/0] channel 20mhz 6
Warning: This action may cause service interruption. Continue?[Y/N]y
[AC-wlan-radio-0/0] eirp 127
[AC-wlan-radio-0/0] quit

# Disable automatic channel and power calibration functions of radio 1, and configure the channel and power for radio 1.

[AC-wlan-ap-0] radio 1
[AC-wlan-radio-0/1] calibrate auto-channel-select disable
[AC-wlan-radio-0/1] calibrate auto-txpower-select disable
[AC-wlan-radio-0/1] channel 20mhz 149
Warning: This action may cause service interruption. Continue?[Y/N]y
[AC-wlan-radio-0/1] eirp 127
[AC-wlan-radio-0/1] quit
[AC-wlan-ap-0] quit

Verify the configuration.
The WLAN with SSID wlan-net is available for STAs connected to the AP.

STA1 and STA2 can connect to the WLAN. STA3 and STA4 cannot connect to the WLAN.

Configuration Files

SwitchA configuration file

#
sysname SwitchA
#
vlan batch 100
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk pvid vlan 100
 port trunk allow-pass vlan 100
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 100
#
return

AC configuration file

#
 sysname AC
#
vlan batch 100 to 101
#
dhcp enable
#
interface Vlanif100
 ip address 10.23.100.1 255.255.255.0
 dhcp select interface
#
interface Vlanif101
 ip address 10.23.101.1 255.255.255.0
 dhcp select interface
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 100
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 101
#
capwap source interface vlanif100
#
wlan
 security-profile name wlan-security
 sta-blacklist-profile name sta-blacklist
  sta-mac 0011-2233-4477
  sta-mac 0011-2233-4488
 sta-whitelist-profile name sta-whitelist
  sta-mac 0011-2233-4455
  sta-mac 0011-2233-4466
 ssid-profile name wlan-ssid
  ssid wlan-net
 vap-profile name wlan-vap
  forward-mode tunnel
  service-vlan vlan-id 101
  sta-access-mode whitelist sta-whitelist
  ssid-profile wlan-ssid
  security-profile wlan-security
 regulatory-domain-profile name domain1
 ap-system-profile name wlan-system
  sta-access-mode blacklist sta-blacklist
 ap-group name ap-group1
  ap-system-profile wlan-system
  regulatory-domain-profile domain1
  radio 0
   vap-profile wlan-vap wlan 1
  radio 1
   vap-profile wlan-vap wlan 1
 ap-id 0 type-id 19 ap-mac 60de-4476-e360 ap-sn 210235554710CB000042
  ap-name area_1
  ap-group ap-group1
  radio 0
   channel 20mhz 6
   eirp 127
   calibrate auto-channel-select disable
   calibrate auto-txpower-select disable
  radio 1
   channel 20mhz 149
   eirp 127
   calibrate auto-channel-select disable
   calibrate auto-txpower-select disable
#
return
