Power status
Context
For a non-PoE device that provides only internal power modules, the Power status section is not displayed on the Monitor page. If the device does not support PoE power supply, total available PoE power and total PoE output power are not displayed in the Power status section.
Procedure
- Click Monitoring to open the Monitoring page, and click
on
the left of Interface Bandwidth Utilization, Log, Alarm,

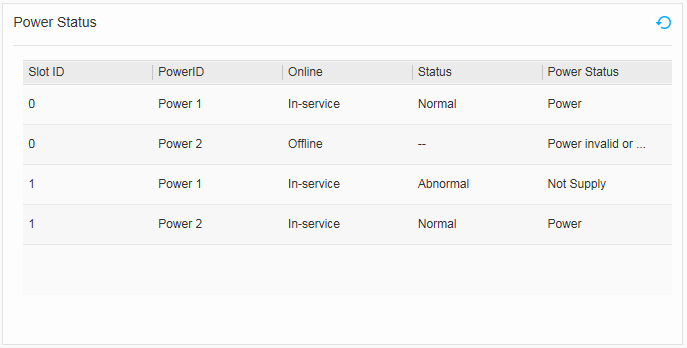

etc. The Power Status is displayed,
as shown in Figure 1.
For S5720-HI, S5730-HI, S5731-H, S5731S-H, S5732-H, S6730-H, S6730S-H, and S6720-HI, choose in the NAC unified mode.
