Interface ACL

Procedure

1. Choose Configuration > Security Services > ACL Reference and click the Interface ACL tab, as shown in Figure 1.
   Figure 1 Interface ACL



2. Select a port to be configured. Perform the following operations as required in the port area:
   • Click a port icon. To deselect the port, click the port icon again.
   • Drag the cursor to select consecutive ports in a batch.
   • Click multiple port icons to select these ports, and click a port icon again to deselect the port.
   • Select a slot where a panel is located. All ports on the panel are selected.

3. Configure the inbound and outbound ACL numbers.
   1. Click New.
   2. In the dialog box that is displayed, select an ACL number and click OK, as shown in Figure 2.

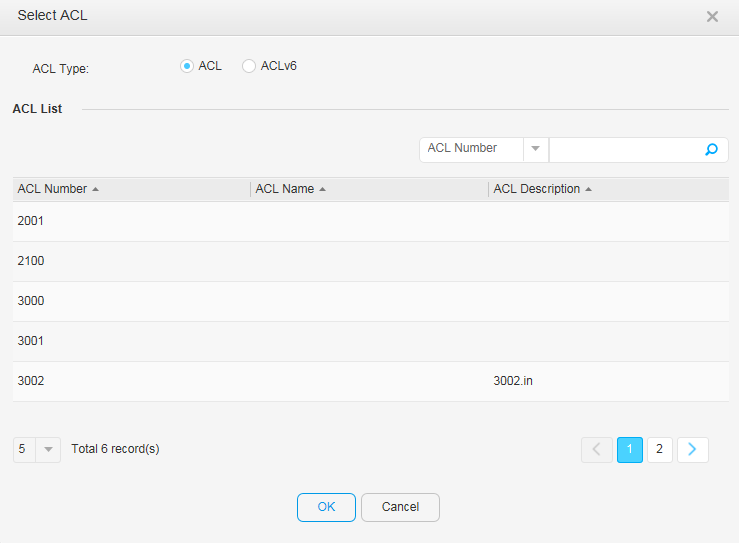

      Figure 2 Select ACL



4. After setting the parameters, click Apply.
