MST Region Configuration

Procedure

• Configure an MST region.
  1. Choose Configuration > Advanced Services > STP > MST Region Configuration to access the MST Region Configuration page, as shown in Figure 1.

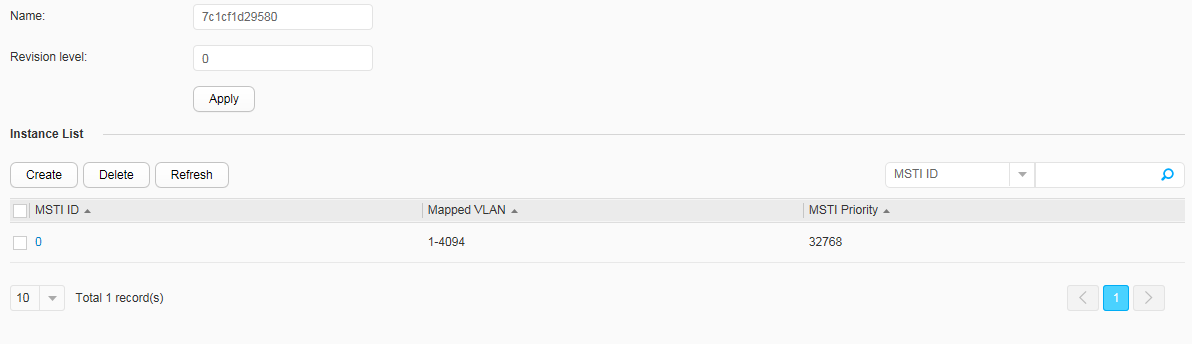

     Figure 1 MST Region Configuration page



     Table 1 describes the parameters on the MST Region Configuration page.

     Table 1 Description of parameters on the MSTP Region Configuration page

     Parameter	Description
     Name	Enter the name of an MST region.
     Revision level	Enter the MSTP revision level. The MST region name, VLAN mapping table, and MSTP revision level identify the MST region that the switch belongs to.

  2. Set parameters and click Apply.
• Create an MSTI list.
  1. Choose Configuration > Advanced Services > STP > MST Region Configuration to access the MST Region Configuration page, as shown in Figure 1.
  2. Click Create to access the Create MSTI page, as shown in Figure 2.

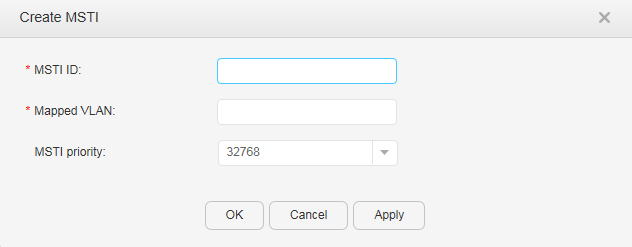

     Figure 2 Create MSTI page



     Table 2 describes the parameters on the Create MSTI page.

     Table 2 Description of parameters on the Create MSTI page

     Parameter	Description
     MSTI ID	Enter the ID of the MSTI.
     Mapped VLAN	Enter the range of VLAN IDs mapping to a specified MSTI.
     MSTI priority	Select the priority of the device in the specified MSTI.

  3. Set parameters and click OK.
• Delete an MSTI.
  1. Choose Configuration > Advanced Services > STP > MST Region Configuration to access the MST Region Configuration page.
  2. Select an MSTI to be deleted and click Delete. In the dialog box that is displayed, click OK.
• Refresh an MSTI list.
  1. Choose Configuration > Advanced Services > STP > MST Region Configuration to access the MST Region Configuration page.
  2. Click Refresh to refresh the MSTI list.
