Bidirectional Isolation

Procedure

• Create bidirectional isolation.
  1. Choose Configuration > Security Services > Port Isolation and click the Bidirectional Isolation tab.
  2. Click Create to create bidirectional isolation, as shown in Figure 1.

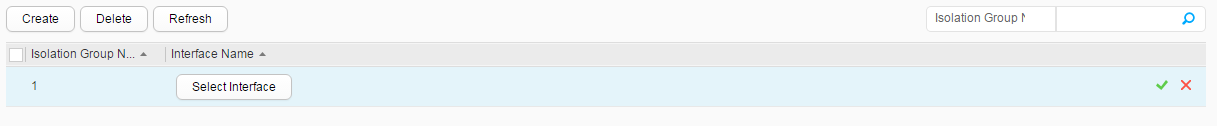

     Figure 1 Create bidirectional isolation



  3. Click Select Interface to select the interface where bidirectional isolation needs to be configured, and click OK.
  4. Click to complete the configuration.
• Delete bidirectional isolation.
  1. Choose Configuration > Security Services > Port Isolation and click the Bidirectional Isolation tab.
  2. Select the isolation group that you want to delete and click Delete. The system asks you whether to delete the group.
  3. Click OK.
