Hotspot2.0 Profile

Procedure

• Create a Hotspot2.0 profile.
  1. Choose Configuration > Wireless Services > Profile > Wireless Service > Hotspot2.0 Profile. The Hotspot2.0 Profile List page is displayed.
  2. Click Create. The Create Hotspot2.0 Profile page is displayed.
  3. Enter the name of the new Hotspot2.0 profile in Profile name.

     To copy all parameters from another profile to the new profile, select the name of the profile in Copy parameters from other profiles. If None is selected, parameters are not copied from another profile.

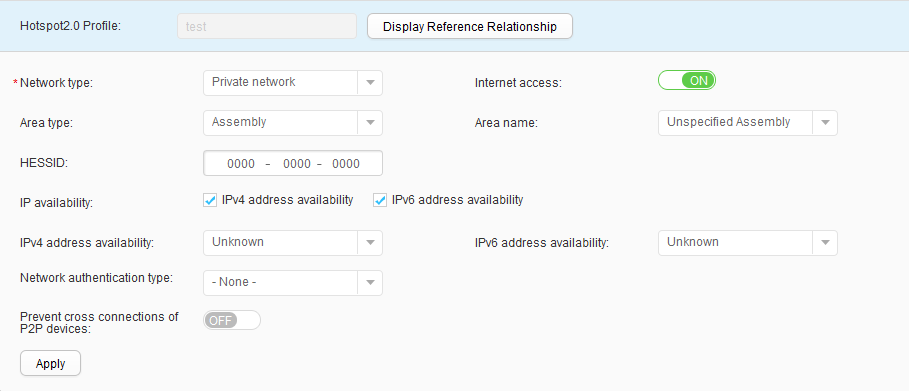

  4. Click OK. The parameter setting page of the new Hotspot2.0 profile is displayed.





  5. Set parameters for creating a Hotspot2.0 profile. For description of the parameters, see Table 1.

     Table 1 Parameters for creating a Hotspot2.0 profile

     Parameter	Description
     Hotspot2.0 Profile	Name of the Hotspot2.0 profile, which cannot be modified.
     Network type	Type of a Hotspot2.0 network.
     Internet access	Whether a Hotspot2.0 network supports Internet access.
     Area type	Venue type of a Hotspot2.0 network.
     Area name	Venue name of a Hotspot2.0 network.
     HESSID	Homogenous Extended Service Set Identifier (HESSID) of a Hotspot2.0 network.
     IP availability	Available type of an IP address on a Hotspot2.0 network. When user terminals connect to a Hotspot2.0 network, Hotspot2.0 can transfer available IPv4/IPv6 address types as ANQP parameters to the user terminals through APs. In this way, the user terminals can know the IP address types they can obtain after connecting to the network.
     IPv4 address availability	Available type of an IPv4 address on a Hotspot2.0 network.
     IPv6 address availability	Available type of an IPv6 address on a Hotspot2.0 network.
     Network authentication type	Network authentication type of a Hotspot2.0 network.
     Prevent cross connections of P2P devices	Whether a Hotspot2.0 network allows for P2P device cross connections.

  6. Click Apply.
• Modify a Hotspot2.0 profile.
  1. Choose Configuration > Wireless Services > Profile > Wireless Service > Hotspot2.0 Profile. The Hotspot2.0 Profile List page is displayed.
  2. Click the name of the Hotspot2.0 profile that you want to modify. The Hotspot2.0 Profile page is displayed.
  3. Modify parameters for the Hotspot2.0 profile. For description of the parameters, see Table 1.
  4. Click Apply.
• Delete a Hotspot2.0 profile.
  1. Choose Configuration > Wireless Services > Profile > Wireless Service > Hotspot2.0 Profile. The Hotspot2.0 Profile List page is displayed.
  2. Select the profile that you want to delete and click Delete. In the Confirm dialog box that is displayed, click OK.
• Display the profile reference relationship.
  1. Choose Configuration > Wireless Services > Profile > Wireless Service > Hotspot2.0 Profile. The Hotspot2.0 Profile List page is displayed.
  2. Select the profile of which you want to display the reference relationship and click Display Reference Relationship. The system displays the types and names of the objects that reference the profile.


     Click Hide Reference Relationship. The system hides the displayed results.
