Installing the Cabinet

Placing the cabinet.
1. Place the cabinet on the specified position, and align the installation holes of the cabinet with the holes on the floor.
2. Fix the spring washer, flat washer and insulation tube on the expansion bolt. Insert them into the holes and tighten the four expansion bolts a bit, but do not fasten them.
3. Lift one side of the cabinet and insert the insulation plate under the cabinet. Insert another insulation plate under the other side of the cabinet. Ensure that the gaps properly lock the expansion bolts.

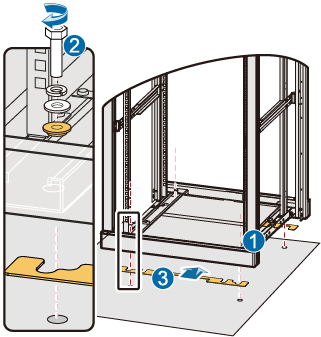

  Figure 1 Placing the cabinet
