Positioning Cabinet Stands Side by Side (for Installation of Two or More Cabinets)

Procedure

1. Use plumb lines to position the first cabinet stand. Ensure that the outline of the stand is in alignment with the cabinet outline drawn on the floor, as shown in Figure 1.
   Figure 1 Positioning the first cabinet stand



2. Install supporting brackets on both ends of each stand. See callout 1 in Figure 2.
3. Connect the stands with combination plates. See callout 2 in Figure 2.
4. Place the cabinet stand in the planned position.
5. Mark the mounting hole positions. See callout 3 in Figure 2.

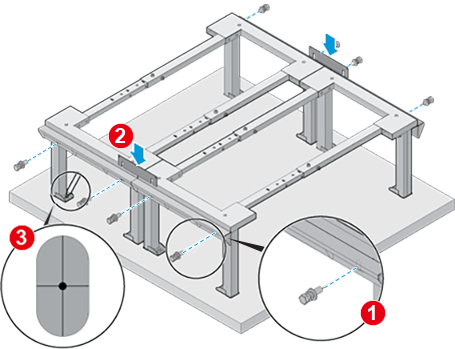

   Figure 2 Positioning cabinet stands side by side
