Placing the Cabinet

Pay attention to the following points when placing a cabinet:

Expansion bolts have insulation washers. Install all insulation parts correctly to ensure that the cabinet is insulated from the ground before cables are connected.
To reduce the stress between expansion bolts and the cabinet, fix the expansion bolts on diagonal lines.

Place the cabinet on the cabinet stand and align mounting holes on the cabinet with the mounting holes on the cabinet stand.
Take insulation washers from the expansion bolt package, and put them on the four M12x80 bolts, as shown in Figure 1.
Put the bolts into the expansion sleeves underground and tighten the bolts, as shown in Figure 1. Do not tighten the bolts completely; leave some space.

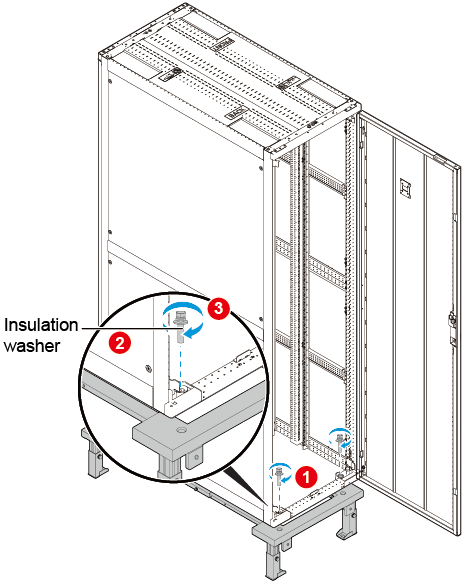

Figure 1 Placing the cabinet
