Example for Configuring IPv6 Static Multicast for PPPoE Access Users

This section provides an example for configuring IPv6 Static Multicast for PPPoE Access Users.

Networking Requirements

On the network shown in Figure 1, the user PC supports the PPPoE access mode. Configure static multicast to allow the PC user to receive the traffic of specific multicast programs without sending join messages.

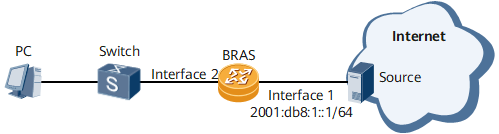

Figure 1 Configuring static multicast for PPPoE access users

Interface 1 and interface 2 in this example stand for GE 0/1/0 and GE 0/1/1.1, respectively.

Configuration Roadmap

The configuration roadmap is as follows:

Configure AAA schemes.
Configure a local IPv6 prefix pool.
Configure a local IPv6 address pool and bind the local IPv6 prefix pool to the local address pool.
Configure an AAA domain and bind it to the IPv6 address pool.
Configure the PPPoE user access service:
1. Configure a VT interface.
2. Binding the VT interface to an interface.
3. Bind a sub-interface to a VLAN.
4. Configure a BAS interface and specify a user access type for the interface.
Configure a multicast replication mode. Multicast replication by multicast VLAN is used as an example.
Configure basic multicast functions:
1. Enable IPv6 multicast routing.
2. Enable IPv6 PIM-SM on the interfaces of the BRAS.
3. Enable MLD on the BRAS interface connected to the user.
Configure static multicast:
1. Configure multicast program lists in the AAA view.
2. Configure a multicast profile in the AAA view.
3. Bind the multicast profile to the AAA domain.

Data Preparation

Local prefix pool, address prefix, and prefix length parameters
Local address pool parameters
Authentication and accounting schemes
User domain parameters
VT interface number
BAS interface parameters

Procedure

Configure AAA schemes.

# Configure an authentication scheme.

<HUAWEI> system-view
[HUAWEI] sysname BRAS
[*HUAWEI] commit
[~BRAS] aaa
[*BRAS-aaa] authentication-scheme none
[*BRAS-aaa-authen-none] authentication-mode none
[*BRAS-aaa-authen-none] quit
[*BRAS-aaa] commit

# Configure an accounting scheme.

[~BRAS-aaa] accounting-scheme none
[*BRAS-aaa-accounting-none] accounting-mode none
[*BRAS-aaa-accounting-none] quit
[*BRAS-aaa] quit
[*BRAS] commit

Configure a local IPv6 prefix pool.

[~BRAS] ipv6 prefix huawei local
[~BRAS-ipv6-prefix-ipv6] prefix 2001::db8:1::/64
[~BRAS-ipv6-prefix-ipv6] quit

Configure a local IPv6 address pool and bind the local IPv6 prefix pool to the local address pool.

[~BRAS] ipv6 pool pool-name bas local
[~BRAS-ipv6-pool-ipv6] prefix ipv6
[~BRAS-ipv6-pool-ipv6] quit

Configure a domain and bind the local address pool to the domain.

[~BRAS] aaa
[*BRAS-aaa] domain wdomain
[*BRAS-aaa-domain-wdomain] authentication-scheme none
[*BRAS-aaa-domain-wdomain] accounting-scheme none
[*BRAS-aaa-domain-wdomain] ipv6-pool pool-name
[*BRAS-aaa-domain-wdomain] quit
[*BRAS-aaa] quit
[*BRAS] commit

Configure a VT.

[~BRAS] interface virtual-template 100
[*BRAS-Virtual-Template100] ppp authentication-mode chap
[*BRAS-Virtual-Template100] quit
[*BRAS] commit

Bind a sub-interface to a VLAN and specify a VT interface for the sub-interface.

[~BRAS] interface gigabitethernet 0/1/1.1
[*BRAS-GigabitEthernet0/1/1.1] commit
[*BRAS-GigabitEthernet0/1/1.1] user-vlan 133
[*BRAS-GigabitEthernet0/1/1.1-vlan-133-133] quit
[*BRAS-GigabitEthernet0/1/1.1] pppoe-server bind virtual-template 100
[*BRAS-GigabitEthernet0/1/1.1] commit

Configure a BAS interface and specify a user access type for the interface.

[~BRAS-GigabitEthernet0/1/1.1] bas
[~BRAS-GigabitEthernet0/1/1.1-bas] access-type layer2-subscriber default-domain authentication wdomain
[*BRAS-GigabitEthernet0/1/1.1-bas] quit
[*BRAS-GigabitEthernet0/1/1.1] quit
[*BRAS] commit

Enable multicast replication by multicast VLAN on a BAS interface.

[~BRAS] interface gigabitethernet 0/1/1.1
[~BRAS-GigabitEthernet0/1/1.1] multicast user-aggregation vlan 81
[*BRAS-GigabitEthernet0/1/1.1] commit
[~BRAS-GigabitEthernet0/1/1.1] quit

Configure basic multicast functions.

[~BRAS] multicast ipv6 routing-enable
[*BRAS] interface gigabitethernet 0/1/0
[*BRAS-GigabitEthernet0/1/0] ipv6 enable
[*BRAS-GigabitEthernet0/1/0] ipv6 address 2001:db8:1::1/64
[*BRAS-GigabitEthernet0/1/0] pim ipv6 sm
[*BRAS-GigabitEthernet0/1/0] quit
[*BRAS] commit
[~BRAS] interface gigabitethernet 0/1/1.1
[~BRAS-GigabitEthernet0/1/1.1] ipv6 enable
[*BRAS-GigabitEthernet0/1/1.1] ipv6 address auto link-local
[*BRAS-GigabitEthernet0/1/1.1] pim ipv6 sm
[*BRAS-GigabitEthernet0/1/1.1] mld enable
[*BRAS-GigabitEthernet0/1/1.1] quit
[*BRAS] commit

Configure IPv6 multicast.

# Configure IPv6 multicast program lists.

[~BRAS] aaa
[~BRAS-aaa] multicast-list  ipv6 list1 group-ipv6-address FF1E::1
[~BRAS-aaa] multicast-list  ipv6 list2 group-ipv6-address FF1E::2

# Configure a multicast profile.

[~BRAS-aaa] multicast-profile ipv6 name1
[~BRAS-aaa-mprofile-profile1] multicast-list ipv6  listname1 static
[~BRAS-aaa-mprofile-profile1] multicast-list ipv6  listname2 static
[~BRAS-aaa-mprofile-profile1] quit

# Bind the multicast profile to the AAA domain.

[~BRAS-aaa] domain wdomain
[~BRAS-aaa-domain-wdomain] multicast-profile ipv6 name1
[~BRAS-aaa-domain-wdomain] quit

Verify the configuration.

Run the display multicast-profile ipv6 command to check information about a specified or all multicast profiles.

# Check information about all multicast profiles.

[~BRAS] display multicast-profile ipv6
---------------------------------------------------------------------
Index      Multicast-profile-name-ipv6                 IfAuthentic
---------------------------------------------------------------------
    0      name1                                       Yes
   ---------------------------------------------------------------------
Total: 1

# Check multicast program lists bound to a specified multicast profile.

[~BRAS] display multicast-profile ipv6 name1
 Profile-name-ipv6                   : name1
 If-authentic                        : Yes
 Static multicast-list-name-ipv6     : listname1
 Static multicast-list-name-ipv6     : listname2

Run the display multicast-list ipv6 command to check information about a specified or all IPv6 multicast program lists.

# Check information about all IPv6 multicast program lists.

[~BRAS] display multicast-list ipv6
Total: 2
---------------------------------------------------------------------
Multicast-list ipv6 name : listname1
Index                    : 0
Source IPv6/prefix       : FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF/128
Group IPv6/prefix        : FF1E::1/128
Multicast-list ipv6 name : listname2
Index                    : 1
Source IPv6/prefix       : FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF/128
Group IPv6/prefix        : FF1E::2/128
---------------------------------------------------------------------

# Check information about a specified IPv6 multicast program list.

[~BRAS] display multicast-list ipv6 listname1
---------------------------------------------------------------------
Multicast-list ipv6 name  : listname1
Index                     : 0
Source IPv6/prefix        : FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF:FFFF/128
Group IPv6/prefix         : FF1E::1/128
---------------------------------------------------------------------

# Run the display access-user domain wdomain command to check information about users that have gone online. The command output shows that the user with the user ID 65 has gone online in PPPoE mode.

[~BRAS] display  access-user domain wdomain
------------------------------------------------------------------------------
UserID  Username                Interface      IP address       MAC
          Vlan          IPv6 address             Access type
------------------------------------------------------------------------------
65      spirent33@wdomain       GE0/1/1.1      -                00-e0-fc-12-34-56
          133/-         2001::db8:1::10:CC00:200:27E9   PPPoE
------------------------------------------------------------------------------
Normal users                       : 1
RUI Local users                    : 0
RUI Remote users                   : 0
Total users                        : 1

# Run the display multicast user-id command to check the multicast group that a specified user has joined.

[~BRAS] display multicast user-id 65
User information:
User ID             :65
User IPv6 address   :2001::db8:1::10:CC00:200:27E9
Gateway IPv6 address:FE80::200:14FF:FE00:571
BRAS interface      :GigabitEthernet0/1/1.1
User MAC-address    :00-e0-fc-12-34-56
MAX program list    :4
User VLAN           :VLAN 133

User static program:
Group IP           Source IP          Flag
FF1E::1            ::                 Active
FF1E::2            ::                 Active

Total:1

Configuration Files

#
sysname BRAS
#
multicast ipv6 routing-enable
#
aaa
 multicast-list ipv6  listname1 index 0 group-ipv6-address FF1E::1
 multicast-list ipv6  listname2 index 1 group-ipv6-address FF1E::2
 multicast-profile ipv6 name1
  multicast-list  ipv6 list-index 0 1 static
#
 authentication-scheme none
  authentication-mode none
#
 accounting-scheme none
  accounting-mode none
#
 domain wdomain
  authentication-scheme none
  accounting-scheme none
  ipv6-pool poolname
  multicast-profile ipv6 name1
#
interface Virtual-Template100
 ppp authentication-mode chap
#
interface GigabitEthernet0/1/0
 ipv6 enable
 ipv6 address 2001:db8:1::1/64
 pim ipv6 sm
#
interface GigabitEthernet0/1/1.1
 ipv6 enable
 ipv6 address auto link-local
 user-vlan 133
 pppoe-server bind Virtual-Template 100
 pim ipv6 sm
 mld enable
 multicast user-aggregation vlan 81
 bas
 #
  access-type layer2-subscriber default-domain authentication wdomain
#
ipv6 prefix huawei local
 prefix 2001::db8:1::/64
#
ipv6 pool pool-name bas local
 prefix ipv6
#
return
