Example for Configuring BOD
This section provides an example for configuring BOD. You can learn about the configuration process based on the BOD networking diagram. This example covers networking requirements, configuration roadmap, data preparation, configuration procedure, and configuration files.
Networking Requirements
As shown in Figure 1, the networking requirements are as follows:
The basic value-added service policy for users in domain isp1 is to implement RADIUS charging and allow users in this domain to access network segment 192.168.100.0/24.
The IP address and port number of the RADIUS authentication server are 10.10.10.2 and 1812, respectively. The IP address and port number of the RADIUS accounting server are 10.10.10.2 and 1813, respectively. The default values are used for other parameters.
- The IP address and port number of the Diameter server are 10.10.10.3 and 3288, respectively.

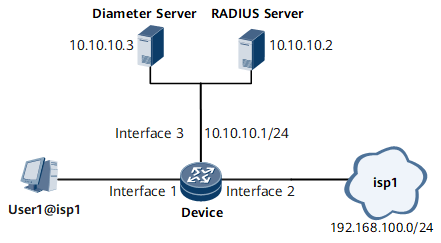

Networking Diagram
Configuration Roadmap
- Configure an authentication scheme and an accounting scheme.
- Configure a RADIUS server group.
- Configure an address pool.
- Configure a policy server.
- Configure a value-added service accounting mode.
- Configure a QoS profile.
- Configure a BOD service policy.
- Configure an AAA domain.
- Configure interfaces.
Data Preparation
To complete the configuration, you need the following data:
- Authentication scheme name and authentication mode
- Accounting scheme name and accounting mode
- RADIUS server group name, and IP addresses and port numbers of the RADIUS authentication server and accounting server
- Address pool name, gateway address, server group name, and IP addresses on different network segments
- BOD traffic policy
- QoS profile and BOD service template
- Domain name
- Interface parameters
Configuration Procedure
Configure AAA.
# Configure an authentication scheme.
<HUAWEI> system-view [~HUAWEI] aaa [~HUAWEI-aaa] authentication-scheme auth1 [*HUAWEI-aaa-authen-auth1] authentication-mode radius [*HUAWEI-aaa-authen-auth1] commit [~HUAWEI-aaa-authen-auth1] quit
# Configure an accounting scheme.
[~HUAWEI-aaa] accounting-scheme acct1 [*HUAWEI-aaa-accounting-acct1] accounting-mode radius [*HUAWEI-aaa-accounting-acct1] commit [~HUAWEI-aaa-accounting-acct1] quit [~HUAWEI-aaa] quit
# Configure a RADIUS server group.
[~HUAWEI] radius-server group group1 [*HUAWEI-radius-group1] radius-server authentication 10.10.10.2 1812 [*HUAWEI-radius-group1] radius-server accounting 10.10.10.2 1813 [*HUAWEI-radius-group1] radius-server shared-key-cipher huawei [*HUAWEI-radius-group1] commit [~HUAWEI-radius-group1] quit
Configure an address pool.
[~HUAWEI] ip pool pool1 bas local [~HUAWEI-ip-pool-pool1] gateway 172.16.100.1 24 [*HUAWEI-ip-pool-pool1] commit [~HUAWEI-ip-pool-pool1] section 0 172.16.100.2 172.16.100.200 [*HUAWEI-ip-pool-pool1] commit [~HUAWEI-ip-pool-pool1] quit
Enable the value-added service function.
[~HUAWEI] value-added-service enable [*HUAWEI] commit
Configure value-added service policies.
# Configure a policy server.
[~HUAWEI] diameter enable [~HUAWEI] diameter-local huawei interface GigabitEthernet 0/1/32 host test107 realm huawei.com product NetEngine 8000 F [~HUAWEI] diameter-peer huawei ip 10.10.10.3 port 3288 host pcrf realm huawei.com [~HUAWEI] diameter-server group huawei [~HUAWEI-diameter-group-huawei] diameter-link local huawei peer huawei client-port 4097 weight 5 [*HUAWEI-diameter-group-huawei] commit [~HUAWEI-diameter-group-huawei] quit
Configure a value-added service accounting mode.
[~HUAWEI] aaa [~HUAWEI-aaa] domain isp1 [*HUAWEI-aaa-domain-isp1] radius-server group group1 [~HUAWEI-aaa-domain-isp1] value-added-service account-type radius group1 [*HUAWEI-aaa-domain-isp1] commit [~HUAWEI-aaa-domain-isp1] quit [~HUAWEI-aaa] quit
Configure a QoS profile.
# Configure a QoS profile named qos-prof1.
[~HUAWEI] qos-profile qos-prof1 [*HUAWEI-qos-qos-prof1] car cir 5000 inbound [*HUAWEI-qos-qos-prof1] car cir 5000 outbound [*HUAWEI-qos-qos-prof1] commit [~HUAWEI-qos-qos-prof1] quit
Configure a BOD service policy named bod1.
[~HUAWEI] value-added-service policy bod1 bod [~HUAWEI-bod1] accounting-scheme acct1 [~HUAWEI-bod1] qos-profile qos-prof1 [*HUAWEI-qos-profile-qos-prof1] commit [~HUAWEI-qos-profile-qos-prof1] quit [~HUAWEI-bod1] quit
Configure an AAA domain named isp1.
# Configure an AAA domain named isp1.
[~HUAWEI] aaa [~HUAWEI-aaa] domain isp1
# Configure an authentication scheme in the domain.
[~HUAWEI-aaa-domain-isp1] authentication-scheme auth1
# Configure an accounting scheme in the domain.
[~HUAWEI-aaa-domain-isp1] accounting-scheme acct1
# Configure a RADIUS group named group1 in the domain.
[~HUAWEI-aaa-domain-isp1] radius-server group group1
# Configure an accounting type in the domain.
[~HUAWEI-aaa-domain-isp1] value-added-service account-type radius group1
# Configure a Diameter group named huawei in the domain.
[~HUAWEI-aaa-domain-isp1] diameter-server group huawei
# Configure an address pool in the domain.
[~HUAWEI-aaa-domain-isp1] ip-pool pool1 [*HUAWEI-aaa-domain-isp1] commit [~HUAWEI-aaa-domain-isp1] quit [~HUAWEI-aaa] quit
Configure interfaces.
# Create a virtual template (VT).
[~HUAWEI] interface Virtual-Template 1 [*HUAWEI-Virtual-Template1] commit [~HUAWEI-Virtual-Template1] quit
# Configure a BAS interface.
[~HUAWEI] interface GigabitEthernet 0/1/26 [~HUAWEI-GigabitEthernet0/1/26] pppoe-server bind virtual-template 1 [*HUAWEI-GigabitEthernet0/1/26] commit [~HUAWEI-GigabitEthernet0/1/26] bas [*HUAWEI-GigabitEthernet0/1/26-bas] commit [~HUAWEI-GigabitEthernet0/1/26] quit
# Configure an upstream interface.
[~HUAWEI] interface GigabitEthernet 0/1/28.1 [~HUAWEI-GigabitEthernet0/1/28.1] vlan-type dot1q 1 [*HUAWEI-GigabitEthernet0/1/28.1] commit [~HUAWEI-GigabitEthernet0/1/28.1] ip address 192.168.100.1 255.255.255.0 [*HUAWEI-GigabitEthernet0/1/28.1] commit [~HUAWEI-GigabitEthernet0/1/28.1] quit
# Configure the interface that is connected to both the RADIUS and Diameter servers.
[~HUAWEI] interface GigabitEthernet 0/1/32 [~HUAWEI-GigabitEthernet0/1/32] ip address 10.10.10.1 255.255.255.0 [*HUAWEI-GigabitEthernet0/1/32] commit
Verify the configuration.
Run the display value-added-service policy command to check value-added service policy information.
<HUAWEI> display value-added-service policy ------------------------------------------------------------------ Index Service Policy Name Used Num Type User Num ------------------------------------------------------------------ 1 bod1 1 BOD 1 ------------------------------------------------------------------ Total 2,2 printedRun the display value-added-service user command to check value-added service information.
<HUAWEI> display value-added-service user user-id 168 bod ------------------------------------------------------------------------- Bod user service table: Service user id : 168 Service type : Diameter user bod Service policy : bod1 Account method : Radius Account start time : 2016-11-22 13:10:32 Normal-server-group : -- Flow up packets(high,low) : (0,0) Flow up bytes(high,low) : (0,0) Flow down packets(high,low) : (0,0) Flow down bytes(high,low) : (0,0) IPV6 Flow up packets(high,low) : (0,0) IPV6 Flow up bytes(high,low) : (0,0) IPV6 Flow down packets(high,low) : (0,0) IPV6 Flow down bytes(high,low) : (0,0) Up committed information rate <kbps> : 5000 Up Peak information rate <kbps> : No limit Up committed burst size <bytes> : - Up Peak burst size <bytes> : - Down committed information rate <kbps> : 5000 Down Peak information rate <kbps> : No limit Down committed burst size <bytes> : - Down Peak burst size <bytes> : -Run the display diameter-group bind-info command to check the bindings between AAA domains and Diameter server groups.
<HUAWEI> display diameter-group bind-info ----------------------------------------------------------------------------- | Domain Name | Diameter Group Name | ----------------------------------------------------------------------------- | isp1 | huawei | -----------------------------------------------------------------------------Run the display diameter configuration command to check Diameter-related configuration.
<HUAWEI> display diameter-group bind-info -- Diameter Configuration --------------------------------------------------- Diameter function is Enabled Diameter Gx use XML data dictionary Diameter predefined-rule support-type edsg is Disabled Diameter GX application version is R940 ----------------------------------------------------------------------------- -- Diameter local information ----------------------------------------------- Diameter local number : 1 ----------------------------------------------------------------------------- | Local index : 0 | Local name : abc | Local interface name : GigabitEthernet0/1/0 | Local IP Address : 10.137.83.222 | Local IPv6 Address : 2000::3 | Local host name : nanjing222 | Local realm name : huawei | Local product name : testa ----------------------------------------------------------------------------- -- Diameter peer information ----------------------------------------------- Diameter peer number : 1 ----------------------------------------------------------------------------- | Peer index : 0 | Peer name : peer | Peer IPv4 address : 10.137.83.56 | Peer port : 3868 | Peer host name : pcrf.huawei.com | Peer realm name : huawei.com ----------------------------------------------------------------------------- -- Diameter server group Configuration -------------------------------------- Diameter server group number : 1 ----------------------------------------------------------------------------- | Group index : 0 | Group name : test | Group active state : Active | Group Reference number : 1 ----------------------------------------------------------------------------- | Connection group number : 1 ----------------------------------------------------------------------------- || Connection group index : 0 || Local index : 0 || Local name : abc || Local interface name : GigabitEthernet0/1/0 || Local IP Address : 10.137.83.222 || Local host name : nanjing222 || Local realm name : huawei || Local product name : testa || Peer index : 0 || Peer name : peer || Peer IPv4 address : 10.137.83.56 || Peer port : 3868 || Peer host name : pcrf.huawei.com || Peer realm name : huawei.com ----------------------------------------------------------------------------- || Connection number : 1 ----------------------------------------------------------------------------- |||Connection index : 0 |||Client port : 3896 |||Link State : Up ----------------------------------------------------------------------------- | Total connection number : 1 -----------------------------------------------------------------------------
Configuration Files
# sysname HUAWEI # value-added-service enable # diameter enable # diameter-local huawei interface GigabitEthernet0/1/32 host test107 realm huawei.com product NetEngine 8000 F # diameter-peer huawei ip 10.10.10.3 port 3288 host pcrf realm huawei.com # radius-server group group1 radius-server shared-key-cipher %^%#x*CgITP4C~;q,*+DEW'JBWe#)"Q&|7bX]b:Y<{w'%^%# radius-server authentication 10.10.10.2 1812 weight 0 radius-server accounting 10.10.10.2 1813 weight 0 # diameter-server group huawei diameter-link local huawei peer huawei client-port 4097 weight 5 # ip pool pool1 bas local gateway 172.16.100.1 255.255.255.0 section 0 172.16.100.2 172.16.100.200 # dot1x-template 1 # aaa authentication-scheme auth1 # authorization-scheme default # accounting-scheme acct1 # domain isp1 authentication-scheme auth1 accounting-scheme acct1 ip-pool pool1 diameter-server group huawei value-added-service account-type radius group1 radius-server group group1 # value-added-service policy bod1 bod accounting-scheme acct1 qos-profile qos-prof1 car cir 5000 cbs 935000 green pass red discard inbound car cir 5000 cbs 935000 green pass red discard outbound # interface Virtual-Template1 ppp authentication-mode auto # interface GigabitEthernet0/1/28.1 vlan-type dot1q 1 ip address 192.168.100.1 255.255.255.0 # interface GigabitEthernet0/1/32 undo shutdown ip address 10.10.10.1 255.255.255.0 # interface GigabitEthernet0/1/26 pppoe-server bind Virtual-Template 1 undo shutdown bas # access-type layer2-subscriber # # return
