Example for Configuring L2TP Dual-Device Hot Backup

This section provides an example for configuring L2TP dual-device hot backup.

Networking Requirements

L2TP tunnels can be used to provide enterprise access services and wholesale services, which are carriers' critical services. L2TP tunnels therefore must have high reliability. In addition to BRAS user information backup, L2TP dual-device hot backup must be configured on the master and backup routers for high reliability.

On the network shown in Figure 1, users log in to LAC1 and LAC2 through a LAN switch (LSW). The two LACs run VRRP to determine the master/backup status. Basic user access functions are configured on the LACs so that the users go online through the master device. Each of LACs sets up an L2TP tunnel with the LNS. To allow rapid service restoration without the need of re-dialing up if a fault occurs on the access or network side, L2TP dual-device hot backup needs to be configured on LAC1 and LAC2.

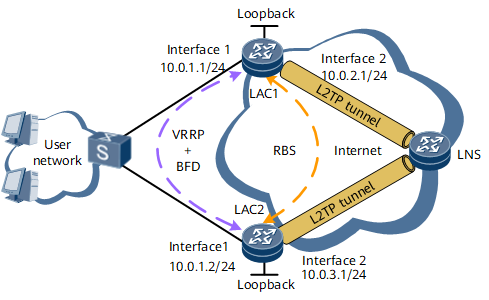

Figure 1 L2TP dual-device hot backup

Interfaces 1 and 2 in this example represent GE 0/1/0 and GE 0/1/8, respectively.



Device Name

Interface Name

IP Address

LAC1

GE0/1/0.2

10.0.1.1/24 (IP address of the interface running VRRP)

LAC1

GE0/1/8

10.0.2.1/24

LAC1

Loopback1

7.7.7.7/32 (source IP address for LAC1 to establish a tunnel)

LAC1

Loopback2

8.8.8.8/32 (source IP address for LAC2 to establish a tunnel)

LAC1

Loopback3

10.0.0.1/32 (IP address of the data backup channel between LACs)

LAC2

GE0/1/0.2

10.0.1.2/24 (IP address of the interface running VRRP)

LAC2

GE0/1/8

10.0.3.1/24

LAC2

Loopback1

7.7.7.7/32 (source IP address for LAC1 to establish a tunnel)

LAC2

Loopback2

8.8.8.8/32 (source IP address for LAC2 to establish a tunnel)

LAC2

Loopback3

10.0.0.2/32 (IP address of the data backup channel between LACs)

Configuration Roadmap

The configuration roadmap is as follows:

  1. Configure routes to ensure IP connectivity between devices and a routing policy on LAC1 and LAC2. For details, see HUAWEI NetEngine 8000 F Series Router Configuration Guide - IP Routing.

  2. Configure basic user access functions and ensure that the two LACs have the same configuration. For details, see HUAWEI NetEngine 8000 F Series Router Configuration Guide - User Access.

  3. Configure each of LACs to set up an L2TP tunnel with the LNS.

  4. Establish a multi-node backup platform. Configure an RBS on the network side of LAC1 and LAC2. LAC1 is the master, and LAC2 is the backup device.

  5. Configure a VRRP group on the access side of LAC1 and LAC2 to determine the master/backup status. Create a BFD session, and configure the VRRP group to track the BFD session.

  6. Configure an RBP for backing up BRAS user information and L2TP services.

  7. Bind the RBP to the interface from which users go online.

This example provides the configuration of LAC1. The configuration of LAC2 is similar to the configuration of LAC1. For configuration details, see Configuration Files in this section.

Data Preparation

To complete the configuration, you need the following data:

  • VRRP parameters such as a VRID and a preemption delay

  • BFD parameters such as the local and remote discriminators and expected minimum interval at which BFD packets are sent and received

  • Interface IP addresses of LAC1 and LAC2

  • Backup ID, which is used together with an RBS to identify the RBP to which the users belong

  • User access parameters

  • L2TP group parameters such as an authentication password and an interval at which Hello packets are sent

Procedure

  1. Assign an IP address to each loopback interface and configure a VT interface and a BAS interface.

    <Device> system-view
[*Device] sysname LAC1
[~Device] commit

    # Assign an IP address to a loopback interface directly connecting LAC1 to the LNS so that the route to the loopback interface can be advertised.

    [~LAC1] interface loopback1
[*LAC1-loopback1] ip address 7.7.7.7 32
[*LAC1-loopback1] commit
[~LAC1-loopback1] quit

    # Assign an IP address to a loopback interface directly connecting LAC1 to the LAC2 so that the route to the loopback interface can be advertised.

    [~LAC1] interface loopback2
[*LAC1-loopback2] ip address 8.8.8.8 32
[*LAC1-loopback2] commit
[~LAC1-loopback2] quit

    # Configure VT interface 1.

    [~LAC1] interface virtual-template 1
[*LAC1-Virtual-Template1] ppp authentication-mode chap
[*LAC1-Virtual-Template1] commit
[LAC1-Virtual-Template1] quit

    # Bind VT interface 1 to GE 1/0/0.1 and configure a user VLAN.

    [~LAC1] interface gigabitethernet 0/1/0.1
[*LAC1-GigabitEthernet0/1/0.1] pppoe-server bind virtual-template 1
[*LAC1-GigabitEthernet0/1/0.1] user-vlan 1 100
[*LAC1-GigabitEthernet0/1/0.1-vlan-1-100] commit
[*LAC1-GigabitEthernet0/1/0.1-vlan-1-100] quit

    # Configure a BAS interface.

    [~LAC1-GigabitEthernet0/1/0.1] bas
[*LAC1-GigabitEthernet0/1/0.1-bas] access-type layer2-subscriber
[*LAC1-GigabitEthernet0/1/0.1-bas] authentication-method ppp
[*LAC1-GigabitEthernet0/1/0.1-bas] commit
[~LAC1-GigabitEthernet0/1/0.1-bas] quit
[~LAC1-GigabitEthernet0/1/0.1] quit

  2. Set up an L2TP tunnel between LAC1 and the LNS.

    In the dual-device hot backup scenario, run the set l2tp tunnel base-id base-id command on one of the LACs to set a base value for generating an L2TP tunnel ID. The other LAC uses the default base value 0. The settings ensure to a certain extent that tunnel IDs are unique on the devices that back up each other.

    # Assign an IP address to a loopback interface directly connecting LAC1 to the LNS so that the route to the loopback interface can be advertised.

    [~LAC1] interface gigabitethernet 0/1/8
[*LAC1-GigabitEthernet0/1/8] ip address 10.0.2.1 255.255.255.0
[*LAC1-GigabitEthernet0/1/8] commit
[~LAC1-GigabitEthernet0/1/8] quit

    # Configure an L2TP group and its attributes.

    [~LAC1] l2tp enable
[*LAC1] l2tp-group lac1
[*LAC1-l2tp-lac1] tunnel name lac1
[*LAC1-l2tp-lac1] start l2tp ip 3.3.3.3
[*LAC1-l2tp-lac1] tunnel authentication
[*LAC1-l2tp-lac1] tunnel password cipher Huawei-123
[*LAC1-l2tp-lac1] tunnel source loopback1 rui
[*LAC1-l2tp-lac1] tunnel timer hello 200
[*LAC1-l2tp-lac1] commit
[~LAC1-l2tp-lac1] quit

    # Configure a RADIUS server group.

    [~LAC1] radius-server group radius1
[*LAC1-radius-radius1] radius-server authentication 10.1.20.1 1812
[*LAC1-radius-radius1] radius-server accounting 10.1.20.1 1813
[*LAC1-radius-radius1] radius-server shared-key itellin
[*LAC1-radius-radius1] commit
[~LAC1-radius-radius1] quit

    # Configure a domain to which the users belong.

    [~LAC1] aaa
[~LAC1-aaa] domain domain1
[*LAC1-aaa-domain-domain1] l2tp-group lac1
[*LAC1-aaa-domain-domain1] radius-server group radius1
[*LAC1-aaa-domain-domain1] authentication-scheme default1
[*LAC1-aaa-domain-domain1] accounting-scheme default1
[*LAC1-aaa-domain-domain1] commit
[~LAC1-aaa-domain-domain1] quit
[~LAC1-aaa] quit

  3. Configure a VRRP group on the access side of LAC1 and LAC2 to determine the master/backup status. Create a BFD session, and configure the VRRP group to track the BFD session.

    # Configure a VRRP-link-BFD session to rapidly detect faults in interfaces or links for triggering a master/backup VRRP switchover.

    [~LAC1] bfd
[*LAC1-bfd] commit
[~LAC1-bfd] bfd-acc bind peer-ip 10.0.1.2
[*LAC1-bfd-session-bfd-acc] discriminator local 1
[*LAC1-bfd-session-bfd-acc] discriminator remote 1
[*LAC1-bfd-session-bfd-acc] commit
[~LAC1-bfd-session-bfd-acc] quit

    # Configure a VRRP-peer-BFD session to rapidly detect network-side faults.

    [~LAC1] bfd bfd-net bind peer-ip 10.0.0.2
[*LAC1-bfd-session-bfd-net] discriminator local 3
[*LAC1-bfd-session-bfd-net] discriminator remote 3
[*LAC1-bfd-session-bfd-net] commit
[~LAC1-bfd-session-bfd-net] quit

    # Configure a VRRP group on GE 1/0/0.2, and configure the VRRP group to track the BFD session and a network-side interface. Enable the original master VRRP device to preempt the Master state after 30 minutes.

    [~LAC1] interface gigabitethernet 0/1/0.2
[*LAC1-GigabitEthernet0/1/0.2] vlan-type dot1q 200
[*LAC1-GigabitEthernet0/1/0.2] ip address 10.0.1.1 255.255.255.0
[*LAC1-GigabitEthernet0/1/0.2] vrrp vrid 1 virtual-ip 10.0.1.100
[*LAC1-GigabitEthernet0/1/0.2] admin-vrrp vrid 1
[*LAC1-GigabitEthernet0/1/0.2] vrrp vrid 1 priority 120
[*LAC1-GigabitEthernet0/1/0.2] vrrp vrid 1 preempt-mode timer delay 1800
[*LAC1-GigabitEthernet0/1/0.2] vrrp vrid 1 track bfd-session 1 link
[*LAC1-GigabitEthernet0/1/0.2] vrrp vrid 1 track bfd-session 1 peer
[*LAC1-GigabitEthernet0/1/0.2] vrrp vrid 1 track interface gigabitethernet 0/1/8 reduced 50
[*LAC1-GigabitEthernet0/1/0.2] vrrp recover-delay 20
[*LAC1-GigabitEthernet0/1/0.2] commit
[~LAC1-GigabitEthernet0/1/0.2] quit

  4. Configure an RBS and an RBP.

    # Configure an IP address needed by an RBS.

    [~LAC1] interface loopback3
[*LAC1-loopback3] ip address 10.0.0.1 32
[*LAC1-loopback3] commit
[~LAC1-loopback3] quit

    # Configure an RBS.

    [~LAC1] remote-backup-service s1
[*LAC1-rm-backup-srv-s1] peer 10.0.0.2 source 10.0.0.1 port 4500
[*LAC1-rm-backup-srv-s1] commit
[~LAC1-rm-backup-srv-s1] quit

    # Configure an RBP for backing up BRAS user information and L2TP services.

    [~LAC1] remote-backup-profile p1
[*LAC1-rm-backup-prf-p1] peer-backup hot
[*LAC1-rm-backup-prf-p1] vrrp-id 1 interface gigabitethernet 0/1/0.2
[*LAC1-rm-backup-prf-p1] backup-id 10 remote-backup-service s1
[*LAC1-rm-backup-prf-p1] service-type bras
[*LAC1-rm-backup-prf-p1] service-type l2tp
[*LAC1-rm-backup-prf-p1] commit
[~LAC1-rm-backup-prf-p1] quit

    # Bind the RBP to the interface from which users go online.

    [~LAC1] interface gigabitethernet 0/1/0.1
[*LAC1-GigabitEthernet0/1/0.1] remote-backup-profile p1
[*LAC1-GigabitEthernet0/1/0.1] commit
[~LAC1-GigabitEthernet0/1/0.1] quit

  5. Configure a policy to filter OSPF routes to be advertised.

    # Configure a policy to filter OSPF routes to be advertised on LAC1.

    [~LAC1] system-view
[*LAC1-ospf-1] ospf 1
[*LAC1-ospf-1] preference 100
[*LAC1-ospf-1] default cost inherit-metric
[*LAC1-ospf-1] import-route direct
[*LAC1-ospf-1] area 0.0.0.0
[*LAC1-ospf-1-area-0.0.0.0] network 10.0.0.0 0.0.0.255
[*LAC1-ospf-1-area-0.0.0.0] network 10.0.2.0 0.0.0.255
[*LAC1-ospf-1-area-0.0.0.0] network 10.0.3.0 0.0.0.255
[*LAC1-ospf-1-area-0.0.0.0] commit

  6. Verify the configuration.

    After completing the configurations, run the display vrrp command on each LAC to view the master and backup VRRP status. LAC1 is in the Master state; its BFD session is UP; the preemption delay is 1800. LAC2 is in the Backup state.

    <lac1> display vrrp
  Eth-Trunk1.2 | Virtual Router 1
    State : Master
    Virtual IP : 10.0.1.100
    Master IP : 10.0.1.1
    Local IP : 10.0.1.1
    PriorityRun : 120
    PriorityConfig : 120
    MasterPriority : 120
    Preempt : YES   Delay Time : 1800s
    Hold Multiplier : 4
    TimerRun : 5 s
    TimerConfig : 5 s
    Auth Type : NONE
    Virtual Mac : 00e0-fc12-3456
    Check TTL : YES
    Config type : admin-vrrp
    Track IF : GigabitEthernet0/1/8   Priority reduced : 100
    IF State : UP
    Config track link-bfd down-number : 0
    Track BFD : 1  type: link
    BFD-session state : UP
    Track BFD : 3  type: peer
    BFD-session state : UP
    Create time : 2000-05-11 17:38:16
    Last change time : 2000-05-13 12:58:20
<lac2> display vrrp
  Eth-Trunk1.2 | Virtual Router 1
    State : Backup
    Virtual IP : 10.0.1.100
    Master IP : 10.0.1.1
    Local IP : 10.0.1.1
    PriorityRun : 100
    PriorityConfig : 100
    MasterPriority : 120
    Preempt : YES   Delay Time : 0s
    Hold Multiplier : 4
    TimerRun : 5 s
    TimerConfig : 5 s
    Auth Type : NONE
    Virtual Mac : 00e0-fc12-3456
    Check TTL : YES
    Config type : admin-vrrp
    Config track link-bfd down-number : 0
    Track BFD : 1  type: link
    BFD-session state : UP
    Track BFD : 3  type: peer
    BFD-session state : UP
    Create time : 2011-08-02 16:13:43
    Last change time : 2011-08-04 12:01:58

    After successfully configuring L2TP dual-device hot backup, run the display remote-backup-profile command on each LAC. The RBS type is bras l2tp; LAC1 is in the Master state; LAC2 is in the Slave state.

    <lac1> display remote-backup-profile p1
 -----------------------------------------------
 Profile-Index         : 0x800
 Profile-Name         : p1
 Service              : bras l2tp
 Remote-backup-service : s1
 Backup-ID            : 10
 track protocol         : VRRP
 VRRP-ID              : 1
 VRRP-Interface         : Gigabitethernet 0/1/0.2
 Interface            :
                     Gigabitethernet 0/1/0.1
 State                : Master
 Peer State            : Slave
 Backup mode         : hot
 Slot-Number          : --
 Card-Number          : --
 Port-Number          : --
 Traffic threshold       : --
 Traffic interval         : 1(minutes)
<lac2> display remote-backup-profile p1
 -----------------------------------------------
 Profile-Index        : 0x800
 Profile-Name         : p1
 Service              : bras l2tp
 Remote-backup-service: s1
 Backup-ID            : 10
 track protocol       : VRRP
 VRRP-ID              : 1
 VRRP-Interface       : Gigabitethernet 0/1/0.2
 Interface            :
                        Gigabitethernet 0/1/0.1
 State                : Slave
 Peer State           : Master
 Backup mode          : hot
 Slot-Number          : --
 Card-Number          : --
 Port-Number          : --
 Traffic threshold    : --
 Traffic interval     : 1(minutes)

Configuration Files

  • LAC1 configuration file

    #
sysname LAC1
#
radius-server group radius1
 radius-server authentication 10.1.20.1 1812
 radius-server accounting 10.1.20.1 1813
 radius-server shared-key itellin
#
 peer-backup route-cost auto-advertising
#
aaa
 local-user a password cipher %^%#knf^-3(!.J6L])YX0t>~M0[B*y7=d!y/iuOS@9-X%^%#
 local-user a service-type ftp
 local-user a ftp-directory cfcard:
 local-user b password cipher %^%#s3=!HY9:#;<oNUWE%MO@SYnaFYKQ(.gD=[&>s*l"%^%#
 local-user b service-type ftp
 local-user c password cipher %^%#pAX[0k.N/"7!&E.8/W^OD-x//CRf'DHjM`9T%g:5%^%#
 local-user c service-type ftp
 authentication-scheme default1
  authentication-mode radius local
 #
 domain domain1
  l2tp-group lac1
  radius-server group radius1
  authentication-scheme default1
  accounting-scheme default1
 #
remote-backup-service s1
 peer 10.0.0.2 source 10.0.0.1 port 4500
#
remote-backup-profile p1
 service-type bras
 service-type l2tp
 peer-backup hot
 vrrp-id 1 interface gigabitethernet 0/1/0.2
 backup-id 10 remote-backup-service s1
#
interface virtual-template 1
 ppp authentication-mode chap
#
interface GigabitEthernetGigabitEthernet0/0/0
 speed auto
 duplex auto
 undo shutdown
 ip address 10.1.3.242 255.255.0.0
#
interface GigabitEthernet 0/1/0.1
 pppoe-server bind virtual-template 1
 user-vlan 1 100
 remote-backup-profile p1
 #
 bas
  access-type layer2-subscriber
  authentication-method ppp
 #
#
interface gigabitethernet 0/1/0.2
 vlan-type dot1q 200
 ip address 10.0.1.1 255.255.255.0
 vrrp vrid 1 virtual-ip 10.0.1.100
 admin-vrrp vrid 1
 vrrp vrid 1 priority 120
 vrrp vrid 1 preempt-mode timer delay 1800
 vrrp vrid 1 track bfd-session 1 link
 vrrp vrid 1 track bfd-session 3 peer
 vrrp vrid 1 track interface gigabitethernet 0/1/8 reduced 50
 vrrp recover-delay 20
#
interface gigabitethernet 0/1/8
 ip address 10.0.2.1 255.255.255.0
 quit
#
interface LoopBack1
 ip address 7.7.7.7 255.255.255.255
#
interface LoopBack2
 ip address 8.8.8.8 255.255.255.255
#
interface LoopBack3
 ip address 10.0.0.1 255.255.255.255
#
l2tp enable
l2tp-group lac1
 tunnel name lac1
 start l2tp ip 3.3.3.3
 tunnel authentication
 tunnel password cipher %^%#pAX[0k.N/"7!&E.8/W^OD-x//CRf'DHjM`9T%g:5%^%#
 tunnel source loopback1 rui
 tunnel timer hello 200
#
bfd bfd-net bind peer-ip 10.0.0.2
 discriminator local 3
 discriminator remote 3
 commit
#
ospf 1
 preference 100
 default cost inherit-metric
 import-route direct
 area 0.0.0.0
  network 10.0.0.0 0.0.0.255
  network 10.0.2.0 0.0.0.255
  network 10.0.3.0 0.0.0.255
#

  • LAC2 configuration file

    #
sysname LAC2
#
radius-server group radius1
 radius-server authentication 10.1.20.1 1812
 radius-server accounting 10.1.20.1 1813
 radius-server shared-key itellin
#
 peer-backup route-cost auto-advertising
#
aaa
 local-user a password cipher %^%#knf^-3(!.J6L])YX0t>~M0[B*y7=d!y/iuOS@9-X%^%#
 local-user a service-type ftp
 local-user a ftp-directory cfcard:
 local-user b password cipher %^%#s3=!HY9:#;<oNUWE%MO@SYnaFYKQ(.gD=[&>s*l"%^%#
 local-user b service-type ftp
 local-user c password cipher %^%#pAX[0k.N/"7!&E.8/W^OD-x//CRf'DHjM`9T%g:5%^%#
 local-user c service-type ftp
 authentication-scheme default1
  authentication-mode radius local
 #
 domain domain1
  l2tp-group lac1
  radius-server group radius1
  authentication-scheme default1
  accounting-scheme default1
 #
remote-backup-service s1
 peer 10.0.0.1 source 10.0.0.2 port 4500
#
remote-backup-profile p1
 service-type bras
 service-type l2tp
 peer-backup hot
 vrrp-id 1 interface gigabitethernet 0/1/0.2
 backup-id 10 remote-backup-service s1
#
interface virtual-template 1
 ppp authentication-mode chap
#
interface GigabitEthernet GigabitEthernet0/0/0
 speed auto
 duplex auto
 undo shutdown
 ip address 10.1.3.241 255.255.0.0
#
interface GigabitEthernet 0/1/0.1
 pppoe-server bind virtual-template 1
 user-vlan 1 100
 remote-backup-profile p1
 #
 bas
  access-type layer2-subscriber
  #
#
interface gigabitethernet 0/1/0.2
 vlan-type dot1q 200
 ip address 10.0.1.2 255.255.255.0
 vrrp vrid 1 virtual-ip 10.0.1.100
 admin-vrrp vrid 1
 vrrp vrid 1 preempt-mode timer delay 300
 vrrp vrid 1 track bfd-session 1 peer
 vrrp recover-delay 20
#
interface gigabitethernet 0/1/8
 ip address 10.0.2.2 255.255.255.0
 quit
#
interface LoopBack1
 ip address 7.7.7.7 255.255.255.255
#
interface LoopBack2
 ip address 8.8.8.8 255.255.255.255
#
interface LoopBack3
 ip address 10.0.0.2 255.255.255.255
#
l2tp enable
l2tp-group lac1
 tunnel name lac1
 start l2tp ip 3.3.3.3
 tunnel authentication
 tunnel password cipher %^%#pAX[0k.N/"7!&E.8/W^OD-x//CRf'DHjM`9T%g:5%^%#
 tunnel source loopback2 rui
 tunnel timer hello 200
#
bfd bfd-net bind peer-ip 10.0.0.1
 discriminator local 3
 discriminator remote 3
 commit
#
ospf 1
  default cost inherit-metric
  import-route direct
 preference 100
 area 0.0.0.0
  network 10.0.0.0 0.0.0.255
  network 10.0.2.0 0.0.0.255
  network 10.0.3.0 0.0.0.255
#
Parent Topic: Configuration Examples
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
