Example for Assigning IPv6 Prefixes to Users from the User-side Delegation Address Pool

This section provides an example for assigning IPv6 prefixes to users from the user-side delegation address pool.

Networking Requirements

The CPE obtains IPv6 addresses and prefixes from the NetEngine 8000 F in NDRA+IA_PD mode, and the IPv6 addresses of the LAN users connected to the CPE are generated based on the prefixes and interface IDs.

On the network shown in Figure 1:

  • The NetEngine 8000 F functions as a delegating router to assign IPv6 prefixes to a requesting router.

  • The requesting router resides in the domain named isp1 and is connected to the delegating router through GE 0/1/1. PPP authentication is used for PPPoE users.

  • RADIUS authentication and accounting are used.

  • The IP address of the RADIUS server is 10.6.55.55, the authentication port number is 1550, the accounting port number is 1551, the standard RADIUS protocol is used, and the key is it-is-my-secret1.

  • The IP address of the DNS server is 2001:db8:1::1.

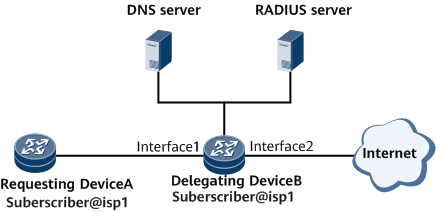

Figure 1 Network diagram of assigning IPv6 prefixes from the user-side delegation address pool

In this example, interface1 and interface2 represent GE 0/1/0 and GE 0/1/1, respectively.


Configuration Roadmap

The configuration roadmap is as follows:

  1. Configure a VT.
  2. Configure AAA schemes.
  3. Configure a RADIUS server group.
  4. Configure a prefix pool, an address pool, and the binding between the prefix pool and address pool. Specify the DNS server address in the address pool.
  5. Configure a domain named isp1.
  6. Configure a DUID for the DHCPv6 server.
  7. Configure interfaces.

Data Preparation

To complete the configuration, you need the following data:

  • Authentication scheme name and authentication mode
  • Accounting scheme name and accounting mode
  • RADIUS server group name, and IP addresses and port numbers of the RADIUS authentication and accounting servers
  • Names, address prefixes, and assignable prefix lengths of the local IPv6 prefix pool and IPv6 delegation prefix pool
  • Names of the user-side local IPv6 address pool and user-side IPv6 delegation address pool
  • Domain name
  • Parameters of the BAS interface

Procedure

  1. Configure DeviceB.

    # Configure a VT.

    <Device> system-view
[~Device] interface Virtual-Template 1
[*Device-Virtual-Template1] ppp authentication-mode pap
[*Device-Virtual-Template1] commit
[~Device-Virtual-Template1] quit

  2. Configure AAA schemes.

    # Configure an authentication scheme.

    [~Device] aaa
[~Device-aaa] authentication-scheme auth1
[*Device-aaa-authen-auth1] authentication-mode radius
[*Device-aaa-authen-auth1] commit
[~Device-aaa-authen-auth1] quit

    # Configure an accounting scheme.

    [~Device-aaa] accounting-scheme acct1
[*Device-aaa-accounting-acct1] accounting-mode radius
[*Device-aaa-accounting-acct1] commit
[~Device-aaa-accounting-acct1] quit
[~Device-aaa] quit

  3. Configure a RADIUS server group.

    [~Device] radius-server group rd1
[*Device-radius-rd1] radius-server authentication 10.6.55.55 1550
[*Device-radius-rd1] radius-server accounting 10.6.55.55 1551
[*Device-radius-rd1] radius-server type standard
[*Device-radius-rd1] commit
[~Device-radius-rd1] radius-server shared-key-cipher it-is-my-secret1
[*Device-radius-rd1] commit
[~Device-radius-rd1] quit

  4. Configure a local prefix pool.

    [~Device] ipv6 prefix pre1 local
[*Device-ipv6-prefix-pre1] prefix 2001:db8::/64
[*Device-ipv6-prefix-pre1] commit
[~Device-ipv6-prefix-pre1] quit

  5. Configure a user-side local address pool.

    [~Device] ipv6 pool pool1 bas local
[*Device-ipv6-pool-pool1] prefix pre1
[*Device-ipv6-pool-pool1] dns-server 2001:db8:1::1
[*Device-ipv6-pool-pool1] commit
[~Device-ipv6-pool-pool1] quit

  6. Configure a delegation prefix pool.

    [~Device] ipv6 prefix pre2 delegation
[*Device-ipv6-prefix-pre2] prefix 2001:db8::/62 delegating-prefix-length 63
[*Device-ipv6-prefix-pre2] commit
[~Device-ipv6-prefix-pre2] quit

  7. Configure a user-side delegation address pool.

    [~Device] ipv6 pool pool2 bas delegation
[*Device-ipv6-pool-pool2] prefix pre2
[*Device-ipv6-pool-pool2] dns-server 2001:db8:1::1
[*Device-ipv6-pool-pool2] commit
[~Device-ipv6-pool-pool2] quit

  8. Configure a domain named isp1.

    [~Device] aaa
[~Device-aaa] domain isp1
[*Device-aaa-domain-isp1] authentication-scheme auth1
[*Device-aaa-domain-isp1] accounting-scheme acct1
[*Device-aaa-domain-isp1] radius-server group rd1
[*Device-aaa-domain-isp1] commit
[~Device-aaa-domain-isp1] ipv6-pool pool1
[*Device-aaa-domain-isp1] ipv6-pool pool2
[*Device-aaa-domain-isp1] commit
[~Device-aaa-domain-isp1] quit
[~Device-aaa] quit

  9. Configure a DUID for the DHCPv6 server.

    [~Device] dhcpv6 duid llt
[*Device] commit

  10. Configure interfaces.

    # Configure a BAS interface.

    [~Device] interface GigabitEthernet 0/1/1.1
[*Device-GigabitEthernet0/1/1.1] commit
[*Device-GigabitEthernet0/1/1.1] user-vlan 1 20
[*Device-GigabitEthernet0/1/1.1] commit
[~Device-GigabitEthernet0/1/1.1-vlan-1-20] quit
[~Device-GigabitEthernet0/1/1.1] bas
[~Device-GigabitEthernet0/1/1.1-bas] access-type layer2-subscriber default-domain authentication isp1
[*Device-GigabitEthernet0/1/1.1-bas] authentication-method-ipv6 ppp
[*Device-GigabitEthernet0/1/1.1-bas] commit
[~Device-GigabitEthernet0/1/1.1-bas] quit

    # Bind the VT to the interface.

    [~Device-GigabitEthernet0/1/1.1] pppoe-server bind virtual-template 1
[*Device-GigabitEthernet0/1/1.1] commit

    # Enable IPv6 on the interface.

    [~Device-GigabitEthernet0/1/1.1] ipv6 enable
[*Device-GigabitEthernet0/1/1.1] ipv6 address auto link-local
[*Device-GigabitEthernet0/1/1.1] commit
[~Device-GigabitEthernet0/1/1] quit

    # Configure an upstream interface.

    [~Device] interface GigabitEthernet 0/1/2
[~Device-GigabitEthernet0/1/2] ipv6 enable
[*Device-GigabitEthernet0/1/2] ipv6 address auto link-local
[*Device-GigabitEthernet0/1/2] ipv6 address 2001::db8/64 eui-64
[*Device-GigabitEthernet0/1/2] commit
[~Device-GigabitEthernet0/1/2] quit

  11. Verify the configuration.

    # Check information about the prefix pool named pre1. The command output shows that the prefix pool is a local prefix pool and the prefix address is 2001:db8::/64.

    [~Device] display ipv6 prefix pre1
 -------------------------------------------------------------
 Prefix Name        : pre1
 Prefix Index       : 4
 Prefix constant index: -
 Prefix Type        : LOCAL
 Prefix Address     : 2001:db8::
 Prefix Length      : 64
 Reserved Type      : NONE
 Valid Lifetime     : 3 Days 0 Hours 0 Minutes
 Preferred Lifetime: 2 Days 0 Hours 0 Minutes
 IfLocked            : Unlocked
 Vpn instance       : -
 Conflict address   : -
 Free Prefix Count  : 262144
 Used Prefix Count  : 0
 Reserved Prefix Count: 0
 -------------------------------------------------------------

    # Check information about the prefix pool named pre2. The command output shows that the prefix pool is a delegation prefix pool and the prefix address is 2001:db8::/62.

    [~Device] display ipv6 prefix pre2
 -------------------------------------------------------------
 Prefix Name        : pre2
 Prefix Index       : 5
 Prefix constant index: -
 Prefix Type        : DELEGATION
 Prefix Address     : 2001:db8::
 Prefix Length      : 62
 Valid Lifetime     : 3 Days 0 Hours 0 Minutes
 Preferred Lifetime : 2 Days 0 Hours 0 Minutes
 IfLocked           : Unlocked
 Vpn instance       : -
 PD Prefix Len      : 64
 PD Prefix/C-DUID   : -
 slaac-unshare-only : FALSE
 Conflict address   : -
 Free Prefix Count  : 4
 Used Prefix Count  : 0
 Binded Prefix Count (Free): 0
 Binded Prefix Count (Used): 0
 Reserved Prefix Count: 0
 -------------------------------------------------------------

    # Check information about the address pool named pool1. The command output shows that the address pool is a user-side local address pool and has been bound to the local prefix pool pre1.

    [~Device] display ipv6 pool pool1
 ----------------------------------------------------------------------
 Pool name          : pool1
 Pool No            : 4
  Pool-constant-index :-
 Pool type          : BAS LOCAL
 Preference         : 0
 Renew time         : 50
 Rebind time        : 80
 Status              : UNLOCKED
 Refresh interval   : 0 Days 0 Hours 0 Minutes
 Used by domain     : 1
 Dhcpv6 Unicast     : disable
 Dhcpv6 rapid-commit: disable
 Dns list             : -
 Dns server master  : 2001:db8:2::2
 Dns server slave   : -
 AFTR name          : -
 ----------------------------------------------------------------------
 Prefix-Name                      Prefix-Type
 ----------------------------------------------------------------------
 pre1                               LOCAL
----------------------------------------------------------------------

    # Check information about the address pool named pool2. The command output shows that the address pool is a user-side delegation address pool and has been bound to the local prefix pool named pre2.

    [~Device] display ipv6 pool pool2
----------------------------------------------------------------------
 Pool name          : pool2
 Pool No            : 5
  Pool-constant-index :-
 Pool type          : BAS DELEGATION
 Preference         : 255
 Renew time         : 50
 Rebind time        : 80
 Status              : UNLOCKED
 Refresh interval   : 0 Days 0 Hours 0 Minutes
 Used by domain     : 0
 Dhcpv6 Unicast     : disable
 Dhcpv6 rapid-commit: disable
 Dns list            : -
 Dns server master  : -
 Dns server slave   : -
 AFTR name          : -
 ----------------------------------------------------------------------
 Prefix-Name                      Prefix-Type
 ----------------------------------------------------------------------
 pre2                               DELEGATION
----------------------------------------------------------------------

    Check configurations of the domain isp1. The command output shows that the domain is bound to IPv6 address pools pool1 and pool2.

    [~Device] display domain isp1
------------------------------------------------------------------------------
  Domain-name                     : isp1
  Domain-state                    : Active
  Authentication-scheme-name      : auth1
  Accounting-scheme-name          : acct1
  Authorization-scheme-name       :
  Primary-DNS-IP-address          : -
  Second-DNS-IP-address           : -
  Web-server-URL-parameter        : No
  Slave Web-IP-address            : -
  Slave Web-URL                   : -
  Slave Web-auth-server           : -
  Slave Web-auth-state            : -
  Portal-server-URL-parameter     : No
  Primary-NBNS-IP-address         : -
  Second-NBNS-IP-address          : -
  User-group-name                 : -
  Idle-data-attribute (time,flow) : 0, 60
  Install-BOD-Count               : 0
  Report-VSM-User-Count           : 0
  Value-added-service             : default
  User-access-limit               : 279552
  Online-number                   : 0
  Web-IP-address                  : -
  Web-URL                         : -
  Portal-server-IP                : -
  Portal-URL                      : -
  Portal-force-times              : 2
  PPPoE-user-URL                  : Disable
  IPUser-ReAuth-Time(second)      : 300
  mscg-name-portal-key            : -
  Portal-user-first-url-key       : -
  Ancp auto qos adapt             : Disable
  RADIUS-server-template          : rd1
  Two-acct-template               : -
  HWTACACS-server-template        : -
  Bill Flow                       : Disable
  Tunnel-acct-2867                : Disabled
  Flow Statistic:
  Flow-Statistic-Up               : Yes
  Flow-Statistic-Down             : Yes
  Source-IP-route                 : Disable
  IP-warning-threshold            : -
  IPv6-warning-threshold          : -
  Multicast Forwarding            : Yes
  Multicast Virtual               : No
  Multicast-profile ipv6          : -
  Max-multilist num               : 4
  Multicast-profile               : -
  IPv6-Pool-name                  : pool1
  IPv6-Pool-name                  : pool2
  Quota-out                     : Offline
  Service-type                    : -
  User-basic-service-ip-type      : -/-/-
  PPP-ipv6-address-protocol       : Ndra
  IPv6-information-protocol       : Stateless dhcpv6
  IPv6-PPP-assign-interfaceid     : Disable
  Trigger-packet-wait-delay       : 60s
  Peer-backup                     : enable
  ------------------------------------------------------------------------------

Configuration Files

  • Device configuration file

    #
sysname Device
#
dhcpv6 duid 006735f300188253a56a
#
radius-server group rd1
 radius-server authentication 10.6.55.55 1550 weight 0
 radius-server accounting 10.6.55.55 1551 weight 0
 radius-server shared-key-cipher %^%#vS%796FO7%C~pB%CR=q;j}gSCqR-X6+P!.DYI@)%^%#
#
interface Virtual-Template1
 ppp authentication-mode pap
#
ipv6 prefix pre1 local
 constant-index 23
 prefix 2001:DB8::/64
#
ipv6 prefix pre2 delegation
 prefix 2001:DB8::/62 delegating-prefix-length 63
#
ipv6 pool pool1 bas local
prefix pre1
#
ipv6 pool pool2 bas delegation
 prefix pre2
dns-server 2001:db8:1::1
#
dhcpv6 duid 006735f300188253a56a
#
aaa
authentication-scheme auth1
 authentication-mode radius
accounting-scheme acct1
 accounting-mode radius
#
domain isp1
 authentication-scheme auth1
 accounting-scheme acct1
 radius-server group rd1
 ipv6-pool pool1
 ipv6-pool pool2
#
interface GigabitEthernet0/1/1.1
 ipv6 enable
 ipv6 address auto link-local
 user-vlan 1 20
 pppoe-server bind Virtual-Template 5
 bas
 #
  access-type layer2-subscriber default-domain authentication isp1
 #
#
interface GigabitEthernet0/1/2
 ipv6 enable
 ipv6 address 2001::DB8/64 eui-64
 ipv6 address auto link-local
#
return
Parent Topic: Configuration Examples for IPv6 Address Management
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
Next topic >
