Example for Configuring User Access in L2TP over IPsec Scenarios

This section provides an example for configuring user access in L2TP over IPsec scenarios.

Networking Requirements

In Figure 1, the headquarters has branches in other cities. It is required that the headquarters provide L2TP access services for branch users and allow access of any user in a branch. In addition, when a branch accesses the headquarters, data must be encrypted to prevent data theft. The branch user (PC1) is connected to the PSTN through a modem and accesses the LAC (DeviceA). The LAC is connected to the LNS (DeviceB) at the headquarters through the WAN. The L2TP tunnel between the LAC and LNS runs over an IPsec IKE tunnel. The data packet transmission process is as follows: The LAC performs L2TP encapsulation and then IPsec encapsulation on the data packets. The encapsulated data is transmitted to the LNS at the headquarters through the L2TP over IPsec tunnel. After receiving the packet, the LNS at the headquarters restores the data in the packets based on the configured IPsec policy.

The device requirements are as follows:

  • DeviceA (LAC) can initiate IKE negotiation with the LNS and go online through PPP dial-up.
  • DeviceB (LNS side) can perform IKE negotiation with the LAC, receive PPP requests, and assign an IP address to DeviceA.

In this example, IPsec is configured in IKE mode. The encapsulation mode is tunnel mode, the authentication algorithm is SHA2-256, the encryption algorithm is AES-CBC 256, and the integrity algorithm is HMAC-SHA2-256.

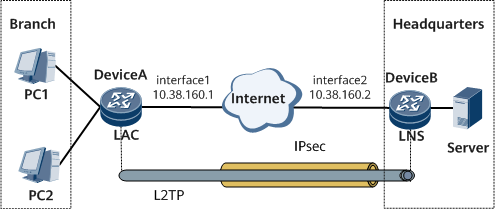

Figure 1 Networking diagram for configuring L2TP over IPsec

In this example, interface1 and interface2 represent GE 0/1/0 and GE 0/1/0, respectively.


Configuration Roadmap

The configuration roadmap is as follows:

  1. Configure IP addresses for device interfaces.
  2. Configure an IPsec tunnel. Details are as follows:
    • Configure an ACL rule group to define the data flows to be protected.
    • Configure an IKE proposal and an IKE peer.
    • Configure an IPsec proposal and an IPsec policy.
    • Configure a static route for IPsec traffic diversion.
  3. Configure an L2TP tunnel between devices. Details are as follows:
    • Configure an L2TP connection.
    • Configure a tunnel authentication mode.
    • Configure a username and a password.
  4. Configure user access.

Data Preparation

To complete the configuration, you need the following data:

  • Usernames, domain names, and passwords of the LAC and LNS (The username, domain name, and password of the LAC must be the same as those of the LNS.)

  • Protocol, tunnel authentication mode (CHAP is used in this example), and tunnel password used by the LNS, local name and remote name of the LNS

  • VT number

  • L2TP group number

  • IDs, address ranges, and address masks of remote address pools

  • Loopback address

Procedure

  1. Create a dial-up network on the user side to receive the addresses assigned by the LNS server. In the dialup terminal window that is displayed, enter the username vpdnuser@huawei.com and password Hello. (The username and password have been registered on the LNS.)
  2. Configure IP addresses for interfaces.

    # Configure the LAC.

    <Device> system-view
[~Device] sysname DeviceA
[*Device] commit
[~DeviceA] interface gigabitethernet 0/1/0
[*DeviceA-Gigabitethernet0/1/0] ip address 10.38.160.1 255.255.0.0
[*DeviceA-Gigabitethernet0/1/0] commit
[~DeviceA-Gigabitethernet0/1/0] quit
[~DeviceA] interface LoopBack1
[*DeviceA-LoopBack1] ip address 10.0.0.1 255.255.255.255
[*DeviceA-LoopBack1] commit
[~DeviceA-LoopBack1] quit

    # Configure the LNS.

    <Device> system-view
[~Device] sysname DeviceB
[*Device] commit
[~DeviceB] interface gigabitethernet 0/1/0
[*DeviceB-Gigabitethernet0/1/0] ip address 10.38.160.2 255.255.255.0
[*DeviceB-Gigabitethernet0/1/0] commit
[~DeviceB-Gigabitethernet0/1/0] quit
[~DeviceB] interface LoopBack2
[*DeviceB-LoopBack2] ip address 10.0.0.2 255.255.255.255
[*DeviceB-LoopBack2] commit
[~DeviceB-LoopBack2] quit
[~DeviceB] lns-group group1
[*DeviceB-lns-group-group1] bind slot 1
[*DeviceB-lns-group-group1] bind source Loopback2
[*DeviceB-lns-group-group1] commit
[~DeviceB-lns-group-group1] quit

  3. Configure an IPsec tunnel. The configuration of the LNS is similar to the configuration of the LAC. For details, see Configuration Files.

    # Configure an ACL rule group to define the data flows to be protected.

    [~DeviceA] acl number 3011
[*DeviceA-acl4-advance-3011] rule 5 permit ip source 10.0.0.1 0 destination 10.0.0.2 0
[*DeviceA-acl4-advance-3011] rule 10 permit ip source 10.0.0.2 0 destination 10.0.0.1 0
[*DeviceA-acl4-advance-3011] commit
[~DeviceA-acl4-advance-3011] quit

    # Configure an IKE proposal and an IKE peer.

    [~DeviceA] ike proposal 11
[*DeviceA-ike-proposal-11] encryption-algorithm aes-cbc 256
[*DeviceA-ike-proposal-11] dh group14
[*DeviceA-ike-proposal-11] authentication-algorithm sha2-256
[*DeviceA-ike-proposal-11] integrity-algorithm hmac-sha2-256
[*DeviceA-ike-proposal-11] commit
[~DeviceA-ike-proposal-11] quit
[~DeviceA] ike peer l2tp
[*DeviceA-ike-peer-l2tp] pre-shared-key cipher huawei_123
[*DeviceA-ike-peer-l2tp] undo version 2
[*DeviceA-ike-peer-l2tp] ike-proposal 11
[*DeviceA-ike-peer-l2tp] remote-address 10.255.255.2
[*DeviceA-ike-peer-l2tp] commit
[~DeviceA-ike-peer-l2tp] quit

    # Configure an IPsec tunnel.

    [~DeviceA] ike v1 enable
[*DeviceA] service-location 11
[*DeviceA-service-location-11] location follow-forwarding-mode
[*DeviceA-service-location-11] commit
[~DeviceA-service-location-11] quit
[~DeviceA] service-instance-group 11
[*DeviceA-service-instance-group-11] service-location 11
[*DeviceA-service-instance-group-11] commit
[~DeviceA-service-instance-group-11] quit
[~DeviceA] ipsec proposal l2tp
[*DeviceA-ipsec-proposal-l2tp] esp authentication-algorithm sha2-256
[*DeviceA-ipsec-proposal-l2tp] esp encryption-algorithm aes 256
[*DeviceA-ipsec-proposal-l2tp] commit
[~DeviceA-ipsec-proposal-l2tp] quit
[~DeviceA] ipsec policy l2tp 10 isakmp
[*DeviceA-ipsec-policy-isakmp-l2tp-10] security acl 3011
[*DeviceA-ipsec-policy-isakmp-l2tp-10] ike-peer l2tp
[*DeviceA-ipsec-policy-isakmp-l2tp-10] proposal l2tp
[*DeviceA-ipsec-policy-isakmp-l2tp-10] commit
[~DeviceA-ipsec-policy-isakmp-l2tp-10] quit
[~DeviceA] interface Tunnel11
[*DeviceA-Tunnel11] ip address 10.255.255.1 255.255.255.255
[*DeviceA-Tunnel11] tunnel-protocol ipsec
[*DeviceA-Tunnel11] ipsec policy l2tp service-instance-group 11
[*DeviceA-Tunnel11] commit
[~DeviceA-Tunnel11] quit

    # Configure a static route to divert IPsec traffic.

    [~DeviceA] ip route-static 10.0.0.2 255.255.255.255 Tunnel11 10.255.255.2
[*DeviceA] ip route-static 10.255.255.2 255.255.255.255 10.38.160.2
[*DeviceA] commit

  4. Configure an L2TP tunnel on the LAC.

    # Enable basic L2TP functions.

    [~DeviceA] l2tp enable
[*DeviceA] l2tp-group 1
[*DeviceA-l2tp-1] tunnel name LAC
[*DeviceA-l2tp-1] start l2tp ip 10.0.0.2
[*DeviceA-l2tp-1] tunnel source LoopBack1
[*DeviceA-l2tp-1] commit

    # Configure a tunnel authentication mode and set the tunnel authentication password.

    [~DeviceA-l2tp-1] tunnel authentication
[*DeviceA-l2tp-1] tunnel password cipher huawei_123
[*DeviceA-l2tp-1] commit
[~DeviceA-l2tp-1] quit

    # Set the username and password. The username and password on the LAC must be the same as those on the LNS.

    [~DeviceA] local-aaa-server
[~DeviceA-local-aaa-server] user vpdnuser@huawei.com password cipher huawei_123 authentication-type p
[~DeviceA-local-aaa-server] quit

  5. Configure user access on the LAC.

    # Configure a user access domain.

    [~DeviceA] aaa
[~DeviceA-aaa] authentication-scheme auth1
[*DeviceA-aaa-authen-auth1] authentication-mode local
[*DeviceA-aaa-authen-auth1] commit
[~DeviceA-aaa-authen-auth1] quit
[~DeviceA-aaa] accounting-scheme default0
[*DeviceA-aaa-accounting-default0] accounting-mode none
[*DeviceA-aaa-accounting-default0] commit
[~DeviceA-aaa-accounting-default0] quit
[~DeviceA-aaa] domain huawei.com
[*DeviceA-aaa-domain-huawei.com] authentication-scheme auth1
[*DeviceA-aaa-domain-huawei.com] accounting-scheme default0
[*DeviceA-aaa-domain-huawei.com] l2tp-group 1
[*DeviceA-aaa-domain-huawei.com] commit
[~DeviceA-aaa-domain-huawei.com] quit
[~DeviceA-aaa] quit
    # Configure a VT.
    [~DeviceA] interface virtual-template 1
[*DeviceA-Virtual-Template1] ppp authentication-mode chap
[*DeviceA-Virtual-Template1] commit
[~DeviceA-Virtual-Template1] quit
    # Bind VT1 to GE0/1/8.100.
    [~DeviceA] interface gigabitethernet 0/1/8.100
[*DeviceA-GigabitEthernet0/1/8.100] pppoe-server bind virtual-template 1
[*DeviceA-GigabitEthernet0/1/8.100] commit
[~DeviceA-GigabitEthernet0/1/8.100] user-vlan 1 100
[~DeviceA-GigabitEthernet0/1/8.100-vlan-1-100] quit
    # Configure a BAS interface.
    [~DeviceA-GigabitEthernet0/1/8.100] bas
[*DeviceA-GigabitEthernet0/1/8.100-bas] access-type layer2-subscriber default-domain authentication huawei.com
[*DeviceA-GigabitEthernet0/1/8.100-bas] authentication-method ppp
[*DeviceA-GigabitEthernet0/1/8.100-bas] commit
[~DeviceA-GigabitEthernet0/1/8.100-bas] quit
[~DeviceA-GigabitEthernet0/1/8.100] quit

  6. Configure an L2TP tunnel on the LNS.

    # Enable basic L2TP functions.

    [~DeviceB] l2tp enable
[*DeviceB] l2tp-group 1
[*DeviceB-l2tp-1] tunnel name LNS
[*DeviceB-l2tp-1] allow l2tp virtual-template 1 remote LAC
[*DeviceB-l2tp-1] commit

    # Configure a tunnel authentication mode and set the tunnel authentication password.

    [~DeviceB-l2tp-1] tunnel authentication
[*DeviceB-l2tp-1] tunnel password cipher huawei_123
[*DeviceB-l2tp-1] commit
[~DeviceB-l2tp-1] quit

    # Configure the device to perform mandatory CHAP authentication.

    [~DeviceB-l2tp-1] mandatory-chap
[*DeviceB-l2tp-1] commit
[~DeviceB-l2tp-1] quit

    # Set the username and password. The username and password on the LAC must be the same as those on the LNS.

    [~DeviceB] local-aaa-server
[~DeviceB-local-aaa-server] user vpdnuser@huawei.com password cipher huawei_123 authentication-type p
[~DeviceB-local-aaa-server] quit

  7. Configure user access on the LNS.

    # Configure a local IPv4 address pool.

    [~DeviceB] ip pool pppoe-pool bas local
[*DeviceB-ip-pool-pppoe-pool] gateway 192.168.1.1 255.255.0.0
[*DeviceB-ip-pool-pppoe-pool] section 0 192.168.1.1 192.168.255.255
[*DeviceB-ip-pool-pppoe-pool] commit
[~DeviceB-ip-pool-pppoe-pool] quit

    # Configure a user access domain.

    [~DeviceB] aaa
[~DeviceB-aaa] authentication-scheme auth1
[*DeviceB-aaa-authen-auth1] authentication-mode local
[*DeviceB-aaa-authen-auth1] commit
[~DeviceB-aaa-authen-auth1] quit
[~DeviceB-aaa] accounting-scheme default0
[*DeviceB-aaa-accounting-default0] accounting-mode none
[*DeviceB-aaa-accounting-default0] commit
[~DeviceB-aaa-accounting-default0] quit
[~DeviceB-aaa] domain huawei.com
[*DeviceB-aaa-domain-huawei.com] authentication-scheme auth1
[*DeviceB-aaa-domain-huawei.com] accounting-scheme default0
[*DeviceB-aaa-domain-huawei.com] ip-pool pppoe-pool
[*DeviceB-aaa-domain-huawei.com] commit
[~DeviceB-aaa-domain-huawei.com] quit
[~DeviceB-aaa] quit

  8. Verifying the Configurations

    # After the configuration is completed and users go online, run the display l2tp tunnel command on the LAC and LNS to view the tunnel establishment status. The command output on the LNS is used as an example. If the command output contains information about the LAC and LNS, the L2TP tunnel is successfully established.

    [~DeviceB] display l2tp tunnel
---------------------------------------------------------
-----------tunnel information in LAC---------------------
 Total 0, printed 0
---------------------------------------------------------
-----------tunnel information in LNS---------------------
The tunnel information of board 1
 LocalTID RemoteTID RemoteAddress    Port   Sessions RemoteName
---------------------------------------------------------
 13921    7958      10.0.0.1    1701     1       LAC
---------------------------------------------------------
Total 1,1 printed from slot 2

Configuration Files

DeviceA configuration file

#
 sysname DeviceA
#
 l2tp enable
#
ike v1 enable
#
service-location 11
 location follow-forwarding-mode
#
service-instance-group 11
 service-location 11
#
acl number 3011
 rule 5 permit ip source 10.0.0.1 0 destination 10.0.0.2 0
 rule 10 permit ip source 10.0.0.2 0 destination 10.0.0.1 0
#
ike proposal 11
 encryption-algorithm aes-cbc 256
 dh group14
 authentication-algorithm sha2-256
 integrity-algorithm hmac-sha2-256
#
ike peer l2tp
 pre-shared-key cipher %^%#P.To1S*u;<{B/a~F5BtGne*F*r3dU-9Wyv5v7+@/%^%#
 undo version 2
 ike-proposal 11
 remote-address 10.255.255.2
#
ipsec proposal l2tp
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes 256
#
ipsec policy l2tp 10 isakmp
 security acl 3011
 ike-peer l2tp
 proposal l2tp
#
interface Virtual-Template1
 ppp authentication-mode chap
#
interface GigabitEthernet0/1/0
 undo shutdown
 ip address 10.38.160.1 255.255.255.0
 undo dcn
#
interface GigabitEthernet0/1/8.100
 pppoe-server bind Virtual-Template 1
 undo shutdown
 user-vlan 1 100
 bas
  access-type layer2-subscriber default-domain authentication huawei.com
  authentication-method ppp
#
interface LoopBack1
 ip address 10.0.0.1 255.255.255.255
#
interface Tunnel11
 ip address 10.255.255.1 255.255.255.255
 tunnel-protocol ipsec
 ipsec policy l2tp service-instance-group 11
#
ip route-static 10.0.0.2 255.255.255.255 Tunnel11  10.255.255.2
ip route-static  10.255.255.2 255.255.255.255 10.38.160.2
#
l2tp-group 1
 tunnel password cipher %@%##!!!!!!!!!"!!!!"!!!!(!!!!1];16qfZ81fv"uMoKKZ.1k"`AO!X2K2N.b~'NB^V!!!!!!!!!!1!!!!o/4J(q"J1F.!K9%M!6x8%@%#
 tunnel name LAC
 start l2tp ip 10.0.0.2
 tunnel source LoopBack1
#
local-aaa-server
 user vpdnuser@huawei.com password cipher %@%##!!!!!!!!!"!!!!"!!!!(!!!!1];16qfZ81wtNj:ej5XU>Jf_<1a"!)dspWPNxp5I!!!!!!!!!!1!!!!*M%{F9=pQ/,YelLM6Ad;%@%#
 authentication-type p
#
aaa
 accounting-scheme auth1
  accounting-mode none
 authentication-scheme default0
  authentication-mode none
 domain huawei.com
  authentication-scheme auth1
  accounting-scheme default0
#
return

DeviceB configuration file

#
sysname DeviceB
#
l2tp enable
#
ike v1 enable
#
service-location 11
 location follow-forwarding-mode
#
service-instance-group 11
 service-location 11
#
acl number 3011
 rule 5 permit ip source 10.0.0.2 0 destination 10.0.0.1 0
 rule 10 permit ip source 10.0.0.1 0 destination 10.0.0.2 0
#
ike proposal 11
 encryption-algorithm aes-cbc 256
 dh group14
 authentication-algorithm sha2-256
 integrity-algorithm hmac-sha2-256
#
ike peer l2tp
 pre-shared-key cipher %^%#=!7vTqO+M;/c3#O/k44*7i(lHZ/.tK/d$]Bw#-F/%^%#
 undo version 2
 ike-proposal 11
 remote-address 10.255.255.1
#
ipsec proposal l2tp
 esp authentication-algorithm sha2-256
 esp encryption-algorithm aes 256
#
ipsec policy-template temp11 1
 security acl 3011
 ike-peer l2tp
 proposal l2tp
#
ipsec policy l2tp 10 isakmp template temp11
#
interface Gigabitethernet0/1/0
 undo shutdown
 ip address 10.38.160.2 255.255.255.0
 undo dcn
#
interface Virtual-Template1
 ppp authentication-mode chap
#
interface LoopBack2
 ip address 10.0.0.2 255.255.255.255
#
interface Tunnel11
 ip address 10.255.255.2 255.255.255.255
 tunnel-protocol ipsec
 ipsec policy l2tp service-instance-group 11
#
ip route-static 10.0.0.1 255.255.255.255 Tunnel11 10.255.255.1
ip route-static 10.255.255.1 255.255.255.255 10.38.160.1
#
l2tp-group 1
 mandatory-chap
 allow l2tp virtual-template 1 remote LAC
 tunnel password cipher %@%##!!!!!!!!!"!!!!"!!!!(!!!!1];16qfZ81fv"uMoKKZ.1k"`AO!X2K2N.b~'NB^V!!!!!!!!!!1!!!!o/4J(q"J1F.!K9%M!6x8%@%#
 tunnel name LNS
#
lns-group group1
 bind slot 1
 bind source LoopBack2
#
ip pool pppoe-pool bas local
 gateway 192.168.1.1 255.255.0.0
 section 0 192.168.1.1 192.168.255.255
#
local-aaa-server
 user vpdnuser@huawei.com password cipher %@%##!!!!!!!!!"!!!!#!!!!(!!!!JMi&5#;qTW7C9)&16~.M{sv*SzKjgN>0b[,G:tb%!!!!!!!!!!1!!!!E'QA>XV7kJ+tIm3UL=c=%@%#
 authentication-type p
#
aaa
 authentication-scheme auth1
  authentication-mode local
 authentication-scheme default0
  authentication-mode none
 domain huawei.com
  authentication-scheme auth1
  accounting-scheme default0
  ip-pool pppoe-pool
#
return
Parent Topic: Configuration Examples for L2TP Access
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
