Example for Configuring an EVPN L3VPNv6 H-VPN

This section describes an example for configuring an EVPN L3VPNv6 H-VPN.

Networking Requirements

At present, an IP bearer network uses L2VPN and L3VPN (HVPN) to carry Layer 2 and Layer 3 services, respectively. The protocols used in this scenario are complex. EVPN can carry both Layer 2 and Layer 3 services. To simplify service bearer protocols, many IP bearer networks are evolving to support EVPN. Specifically, L3VPNv6 HVPN, which carries Layer 3 IPv6 services, needs to evolve to EVPN L3VPNv6 HVPN. On the network shown in Figure 1, the UPE and SPE are connected at the access layer, and the SPE and NPE are connected at the aggregation layer. An IGP is deployed at the access layer and aggregation layer to allow service communication between the two layers, and EVPN L3VPNv6 H-VPN is deployed to allow E2E network communication. On the EVPN L3VPNv6 H-VPN network, the UPE functions as a RR client to receive specific routes reflected by the SPE functioning as an RR. This mechanism facilitates route management and traffic control.

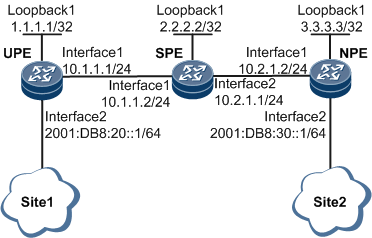

Figure 1 EVPN L3VPNv6 H-VPN networking

Interfaces 1 and 2 in this example represent GE 0/1/0 and GE 0/1/8, respectively.



Configuration Roadmap

The configuration roadmap is as follows:

  1. Deploy an IGP between the UPE and SPE and between the SPE and NPE. In this example, deploy OSPF between the UPE and SPE and IS-IS between the SPE and NPE.

  2. Configure MPLS LDP on the UPE, SPE, and NPE.

  3. Create a VPN instance on the UPE and NPE.

  4. Configure access-side interfaces on the UPE and NPE and bind the VPN instance to these interfaces.

  5. Establish BGP EVPN peer relationships between the UPE and SPE and between the SPE and NPE.

  6. On the SPE, configure the UPE as an RR client to receive BGP EVPN routes. Configure the SPE to advertise BGP EVPN routes to a BGP EVPN peer, and change the next hop.

Data Preparation

To complete the configuration, you need the following data:

  • MPLS LSR IDs of the UPE, SPE, and NPE: 1.1.1.1, 2.2.2.2, and 3.3.3.3

  • VPN instance name: vpn1; RD of the VPN instance: 100:1

  • VPN target of the VPN instance: 2:2

Procedure

  1. Assign an IP address to each device interface, including the loopback interfaces.

    For details about how to configure IP addresses and masks of interfaces, see Configuration Files in this section.

  2. Deploy an IGP between the UPE and SPE and between the SPE and NPE. In this example, OSPF runs between the UPE and SPE, and IS-IS runs between the SPE and NPE.

    For details, see Configuration Files in this section.

  3. Configure MPLS LDP on the UPE, SPE, and NPE.

    For details, see Configuration Files in this section.

  4. Create a VPN instance on the UPE and NPE.

    # Configure the UPE.

    [~UPE] ip vpn-instance vpn1
[*UPE-vpn-instance-vpn1] ipv6-family
[*UPE-vpn-instance-vpn1-af-ipv6] route-distinguisher 100:1
[*UPE-vpn-instance-vpn1-af-ipv6] vpn-target 2:2 both evpn
[*UPE-vpn-instance-vpn1-af-ipv6] evpn mpls routing-enable
[*UPE-vpn-instance-vpn1-af-ipv6] quit
[*UPE-vpn-instance-vpn1] quit
[*UPE] commit

    # Configure the NPE.

    [~NPE] ip vpn-instance vpn1
[*NPE-vpn-instance-vpn1] ipv6-family
[*NPE-vpn-instance-vpn1-af-ipv6] route-distinguisher 100:1
[*NPE-vpn-instance-vpn1-af-ipv6] vpn-target 2:2 both evpn
[*NPE-vpn-instance-vpn1-af-ipv6] evpn mpls routing-enable
[*NPE-vpn-instance-vpn1-af-ipv6] quit
[*NPE-vpn-instance-vpn1] quit
[*NPE] commit

  5. Configure access-side interfaces on the UPE and NPE and bind the VPN instance to these interfaces.

    # Configure the UPE.

    [~UPE] interface GigabitEthernet 0/1/8
[*UPE-GigabitEthernet0/1/8] ip binding vpn-instance vpn1
[*UPE-GigabitEthernet0/1/8] ipv6 enable
[*UPE-GigabitEthernet0/1/8] ipv6 address 2001:DB8:20::1 64
[*UPE-GigabitEthernet0/1/8] quit
[*UPE] commit

    # Configure the NPE.

    [~NPE] interface GigabitEthernet 0/1/8
[*NPE-GigabitEthernet0/1/8] ip binding vpn-instance vpn1
[*NPE-GigabitEthernet0/1/8] ipv6 enable
[*NPE-GigabitEthernet0/1/8] ipv6 address 2001:DB8:30::1 64
[*NPE-GigabitEthernet0/1/8] quit
[*NPE] commit

  6. Establish BGP EVPN peer relationships between the UPE and SPE and between the SPE and NPE.

    # Configure the UPE.

    [~UPE] bgp 100
[*UPE-bgp] peer 2.2.2.2 as-number 100
[*UPE-bgp] peer 2.2.2.2 connect-interface LoopBack1
[*UPE-bgp] l2vpn-family evpn
[*UPE-bgp-af-evpn] peer 2.2.2.2 enable
[*UPE-bgp-af-evpn] quit
[*UPE-bgp] ipv6-family vpn-instance vpn1
[*UPE-bgp-6-vpn1] advertise l2vpn evpn
[*UPE-bgp-6-vpn1] import-route direct
[*UPE-bgp-6-vpn1] quit
[*UPE-bgp] quit
[*UPE] commit

    # Configure the SPE.

    [~SPE] bgp 100
[*SPE-bgp] peer 1.1.1.1 as-number 100
[*SPE-bgp] peer 1.1.1.1 connect-interface LoopBack1
[*SPE-bgp] peer 3.3.3.3 as-number 100
[*SPE-bgp] peer 3.3.3.3 connect-interface LoopBack1
[*SPE-bgp] l2vpn-family evpn
[*SPE-bgp-af-evpn] peer 1.1.1.1 enable
[*SPE-bgp-af-evpn] peer 3.3.3.3 enable
[*SPE-bgp-af-evpn] quit
[*SPE-bgp] quit
[*SPE] commit

    # Configure the NPE.

    [~NPE] bgp 100
[*NPE-bgp] peer 2.2.2.2 as-number 100
[*NPE-bgp] peer 2.2.2.2 connect-interface LoopBack1
[*NPE-bgp] l2vpn-family evpn
[*NPE-bgp-af-evpn] peer 2.2.2.2 enable
[*NPE-bgp-af-evpn] quit
[*NPE-bgp] ipv6-family vpn-instance vpn1
[*NPE-bgp-6-vpn1] advertise l2vpn evpn
[*NPE-bgp-6-vpn1] import-route direct
[*NPE-bgp-6-vpn1] quit
[*NPE-bgp] quit
[*NPE] commit

  7. On the SPE, configure the UPE as an RR client to receive BGP EVPN routes. Configure the SPE to advertise BGP EVPN routes to a BGP EVPN peer, and change the next hop.

    # Configure the SPE.

    [~SPE] bgp 100
[*SPE-bgp] l2vpn-family evpn
[*SPE-bgp-af-evpn] peer 1.1.1.1 reflect-client
[*SPE-bgp-af-evpn] peer 1.1.1.1 next-hop-local
[*SPE-bgp-af-evpn] peer 3.3.3.3 reflect-client
[*SPE-bgp-af-evpn] peer 3.3.3.3 next-hop-local
[*SPE-bgp-af-evpn] quit
[*SPE-bgp] quit
[*SPE] commit

  8. Verify the configuration.

    After completing the configurations, run the display bgp evpn all routing-table command on the NPE and UPE to view the EVPN routes received from the peer device. The following example uses the command output on the NPE.

    [~NPE] display bgp evpn all routing-table
 Local AS number : 100

 BGP Local router ID is 10.2.1.2
 Status codes: * - valid, > - best, d - damped, x - best external, a - add path,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete


 EVPN address family:
 Number of Ip Prefix Routes: 2
 Route Distinguisher: 100:1
       Network(EthTagId/IpPrefix/IpPrefixLen)                 NextHop
 *>i   0:[2001:DB8:20::]:64                                   2.2.2.2
 *>    0:[2001:DB8:30::]:64                                   0.0.0.0

    Run the display ipv6 routing-table vpn-instance vpn1 command on the NPE and UPE to view the VPN routes received from the peer device. The following example uses the command output on the NPE.

    [~NPE] display ipv6 routing-table vpn-instance vpn1
Routing Table : vpn1
         Destinations : 4        Routes : 4

Destination  : 2001:DB8:20::                           PrefixLength : 64
NextHop      : ::FFFF:2.2.2.2                          Preference   : 255
Cost         : 0                                       Protocol     : IBGP
RelayNextHop : ::FFFF:10.2.1.1                         TunnelID     : 0x0000000001004c4b42
Interface    : GigabitEthernet0/1/0                    Flags        : RD

Destination  : 2001:DB8:30::                           PrefixLength : 64
NextHop      : 2001:DB8:30::1                          Preference   : 0
Cost         : 0                                       Protocol     : Direct
RelayNextHop : ::                                      TunnelID     : 0x0
Interface    : GigabitEthernet0/1/8                    Flags        : D

Destination  : 2001:DB8:30::1                          PrefixLength : 128
NextHop      : ::1                                     Preference   : 0
Cost         : 0                                       Protocol     : Direct
RelayNextHop : ::                                      TunnelID     : 0x0
Interface    : GigabitEthernet0/1/8                    Flags        : D

Destination  : FE80::                                  PrefixLength : 10
NextHop      : ::                                      Preference   : 0
Cost         : 0                                       Protocol     : Direct
RelayNextHop : ::                                      TunnelID     : 0x0
Interface    : NULL0                                   Flags        : DB

Configuration Files

  • UPE configuration file

    #
sysname UPE
#
ip vpn-instance vpn1
 ipv6-family
  route-distinguisher 100:1
  apply-label per-instance
  vpn-target 2:2 export-extcommunity evpn
  vpn-target 2:2 import-extcommunity evpn
  evpn mpls routing-enable
#
mpls lsr-id 1.1.1.1
#
mpls
#
mpls ldp
#
interface GigabitEthernet0/1/0
 undo shutdown
 ip address 10.1.1.1 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/8
 undo shutdown
 ip binding vpn-instance vpn1
 ipv6 enable
 ipv6 address 2001:DB8:20::1/64
#
interface LoopBack1
 ip address 1.1.1.1 255.255.255.255
#
bgp 100
 peer 2.2.2.2 as-number 100
 peer 2.2.2.2 connect-interface LoopBack1
 #
 ipv4-family unicast
  undo synchronization
  peer 2.2.2.2 enable
 #
 ipv6-family vpn-instance vpn1
  import-route direct
  advertise l2vpn evpn
 #
 l2vpn-family evpn
  undo policy vpn-target
  peer 2.2.2.2 enable
#
ospf 1
 area 0.0.0.0
  network 1.1.1.1 0.0.0.0
  network 10.1.1.0 0.0.0.255
#
return

  • SPE configuration file

    #
sysname SPE
#
mpls lsr-id 2.2.2.2
#
mpls
#
mpls ldp
#
isis 1
 network-entity 10.0000.0000.0002.00
#
interface GigabitEthernet0/1/0
 undo shutdown
 ip address 10.1.1.2 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/8
 undo shutdown
 ip address 10.2.1.1 255.255.255.0
 isis enable 1
 mpls
 mpls ldp
#
interface LoopBack1
 ip address 2.2.2.2 255.255.255.255
 isis enable 1
#
bgp 100
 peer 1.1.1.1 as-number 100
 peer 1.1.1.1 connect-interface LoopBack1
 peer 3.3.3.3 as-number 100
 peer 3.3.3.3 connect-interface LoopBack1
 #
 ipv4-family unicast
  undo synchronization
  peer 1.1.1.1 enable
  peer 3.3.3.3 enable
 #
 l2vpn-family evpn
  undo policy vpn-target
  peer 1.1.1.1 enable
  peer 1.1.1.1 reflect-client
  peer 1.1.1.1 next-hop-local
  peer 3.3.3.3 enable
  peer 3.3.3.3 reflect-client
  peer 3.3.3.3 next-hop-local
#
ospf 1
 area 0.0.0.0
  network 2.2.2.2 0.0.0.0
  network 10.1.1.0 0.0.0.255
#
return

  • NPE configuration file

    #
sysname NPE
#
ip vpn-instance vpn1
 ipv6-family
  route-distinguisher 100:1
  apply-label per-instance
  vpn-target 2:2 export-extcommunity evpn
  vpn-target 2:2 import-extcommunity evpn
  evpn mpls routing-enable
#
mpls lsr-id 3.3.3.3
#
mpls
#
mpls ldp
#
isis 1
 network-entity 10.0000.0000.0003.00
#
interface GigabitEthernet0/1/8
 undo shutdown
 ip binding vpn-instance vpn1
 ipv6 enable
 ipv6 address 2001:DB8:30::1/64
#
interface GigabitEthernet0/1/0
 undo shutdown
 ip address 10.2.1.2 255.255.255.0
 isis enable 1
 mpls
 mpls ldp
#
interface LoopBack1
 ip address 3.3.3.3 255.255.255.255
 isis enable 1
#
bgp 100
 peer 2.2.2.2 as-number 100
 peer 2.2.2.2 connect-interface LoopBack1
 #
 ipv4-family unicast
  undo synchronization
  peer 2.2.2.2 enable
 #
 ipv6-family vpn-instance vpn1
  import-route direct
  advertise l2vpn evpn
 #
 l2vpn-family evpn
  undo policy vpn-target
  peer 2.2.2.2 enable
#
return
