Load Balancing Between VLANs

As shown in Figure 1, if you need to enable access links to work concurrently to save link resources, deploy load balancing at the VLAN level. Two VRRP groups need to be deployed. One VRRP group allows some VLAN users to go online from the NetEngine 8000 F on the left side, and the other VRRP group allows other VLAN users to go online from the NetEngine 8000 F on the right side.

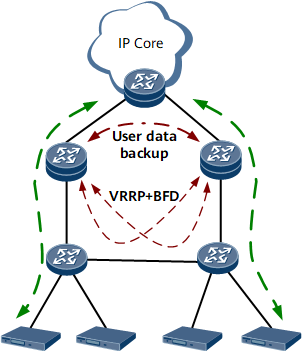

Figure 1 Deployment of VLAN-level load balancing
