Power-on Check

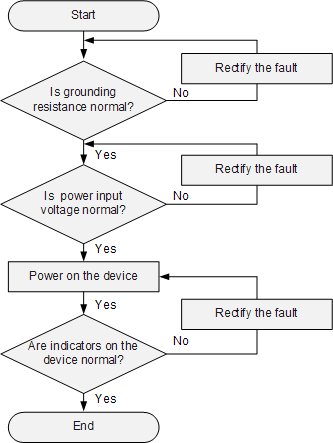

Power-on Check Flowchart
The normal input voltage of the DC power supply system ranges from -40 V DC to -72 V DC. The normal input voltage of the AC power supply system ranges from 90 V AC to 290 V AC.
Indicator description
Item |
Indicator |
Color |
Status Description |
|---|---|---|---|
Working status indicator |
STAT |
Green |
Steady on The device is working properly. |
Red |
Steady on An alarm is generated. |
||
Green |
Blinking The card is being registered. |
||
Orange |
Blinking The password and configuration on the card are being cleared. |
||
- |
Off The system is not powered on or registered. |
||
Power module |
STAT |
Green |
Steady on The power module is working properly. |
Green |
Blinking (1 Hz) The power module is in the standby state, or the power module has been powered on but is not installed in the system. |
||
Green |
Blinking (4 Hz) The system program is being loaded. |
||
Green |
Off The power module is not powered on or there is no power input. |
||
Red |
Steady on The power module encounters a hardware fault. |
||
Fan module |
STAT |
Green |
steady The board is working properly |
Red |
steady The fan module is faulty |
||
Green |
off The fan module is not powered on or encounters a hardware error |
