500 W AC PoE Power Module

Product Support

Table 1 lists the switch models supporting a 500 W AC PoE power modules.

**Table 1** Product support for a 500 W AC PoE power module
Power Module Name	Product Support
W0PSA5000 (purplish grey)	S2700-26TP-PWR-EI, S2700-52P-PWR-EI, S2710-52P-PWR-SI S5700-28C-PWR-EI, S5700-52C-PWR-EI, S5700-28C-PWR-SI, S5700-52C-PWR-SI, S5700-24TP-PWR-SI, S5700-48TP-PWR-SI, S5710-28C-PWR-LI, S5710-52C-PWR-LI S6700-24-EI, S6700-48-EI
PAC-500WA-BE (black)	S5720-28X-PWR-SI-AC, S5720-28X-PWR-SI-DC, S5720-52X-PWR-SI-AC, S5720-52X-PWR-SI-DC, S5720-36C-PWR-EI-AC, S5720-36C-PWR-EI-DC, S5720-56C-PWR-EI-DC, S5720-56C-PWR-EI-AC, S5730-48C-PWR-SI-AC, S5730S-48C-PWR-EI, S5730-68C-PWR-SI-AC, S5730-68C-PWR-SI, S5730S-68C-PWR-EI, S5730-36C-PWH-HI, S5730-44C-PWH-HI, S5730-60C-PWH-HI, S5730-68C-PWH-HI

Appearance

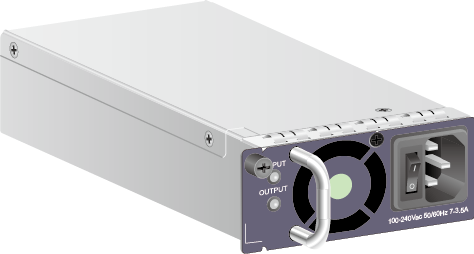

Figure 1 Appearance of a 500 W AC PoE power module (W0PSA5000)

Figure 2 Appearance of a 500 W AC PoE power module (PAC-500WA-BE)

Function

Table 2 describes the functions of a 500 W AC PoE power module.

**Table 2** Functions of a 500 W AC PoE power module
Function	Description
PoE power supply	Complying with IEEE 802.3af and IEEE 802.3at, the PoE power module is able to remotely provide power for the devices of different vendors. IEEE 802.3af supports a maximum of 15.4 W power and IEEE 802.3at supports a maximum of 30 W power.
Input protection	Input overcurrent and undervoltage protection is provided.
Output protection	Output undervoltage, overvoltage, overcurrent, and short-circuit protection is provided.
Overtemperature protection	-
Surge protection	-
Hot swapping	Supported

When a power module enters overtemperature protection state, take measures to lower the ambient temperature. The power module can automatically start supplying power again when the temperature falls within the normal range.

The 500 W AC power supply on the S6700-EI is a PoE power supply. However, it can only be used as a system power supply on the S6700-EI and cannot provide PoE function.

Panel Description

Figure 3 Panel of a 500 W AC PoE power module (W0PSA5000)

Figure 4 Panel of a 500 W AC PoE power module (PAC-500WA-BE)

1. Power status indicator	2. Handle	3. Fan	4. Switch
5. AC power socket	6. Captive screw	-	-

Table 3 describes indicators on a 500 W AC PoE power module panel.

**Table 3** Description of indicators on a 500 W AC PoE power module panel
Indicator	Color	Description
INPUT	-	Off: The power module receives no input power.
	Green	Steady on: The AC input power is in the normal range.
	Red	Steady on: The AC input power is out of range, for example, undervoltage or overvoltage.
OUTPUT	-	Off: The power module has no output power.
	Green	Steady on: The AC output power is in the normal range.
	Red	Steady on: The power output is out of range. Abnormal power fan operation Output overvoltage Output overcurrent Short circuit Overtemperature

Specifications

Table 4 describes technical specifications of a 500 W AC PoE power module.

**Table 4** Technical specifications of a 500 W AC PoE power module
Item	Description
Dimensions (H x W x D)	40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.)
Weight	1.06 kg (2.34 lb)
Rated input voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum input voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum input current	7 A to 3.5 A
Maximum output current	+12 V: 10 A -53.5 V: 7.11 A
Maximum output power	+12 V: 120 W -53.5 V: 380 W (PoE: 369.6 W)
Part number	W0PSA5000: 02130879 PAC-500WA-BE: 02311BXV
