600 W AC Power Module (PAC-600WA-B)

Product Support

Table 1 lists the switch models supporting a 600 W AC power module.

**Table 1** Product support for a 600 W AC power module
Power Module Name	Product Support
PAC-600WA-B	S5720-56C-HI-AC, S5720-32C-HI-24S-AC, S5730-60C-HI-48S, S5730-68C-HI-48S S6720-C-EI series

Appearance

Figure 1 Appearance of a 600 W AC power module

Function

Table 2 describes the functions of a 600 W AC power module.

**Table 2** Functions of a 600 W AC power module
Function		Description
Input protection	Input undervoltage protection	In this protection state, the power module stops supplying power. When the input voltage restores to the normal range, the power module automatically resumes power supply.
Input protection	Input overcurrent protection	In this protection state, the power module stops supplying power and cannot automatically start supplying power again when the input current restores to the normal range.
Output protection	Output overvoltage protection	In this protection state, the power module stops supplying power intermittently. When the system recovers from output overvoltage, the power module automatically resumes power supply.
	Output overcurrent protection	In this protection state, the power module supplies power intermittently. When the output current is within a range, the power module automatically resumes power supply.
	Output short-circuit protection	In this protection state, the power module supplies power intermittently. When the short circuit is removed, the power module automatically resumes power supply.
Overtemperature protection		When the temperature of the power module exceeds a specified threshold, the power module stops supplying power. When the temperature falls into the normal range, the power module automatically resumes power supply.
Hot swapping		Supported

When a power module enters overtemperature protection state, take measures to lower the ambient temperature. The power module can automatically start supplying power again when the temperature falls within the normal range.

Panel

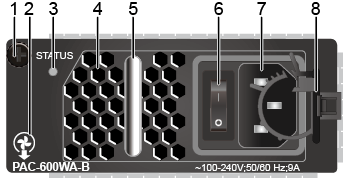

Figure 2 Panel of a 600 W AC power module

1. Captive screw	2. Airflow flag (air out)	3. Indicator	4. Fan air vent
5. Handle	6. Power switch	7. AC power socket	8. AC power cable locking strap

Table 3 describes the indicator on the 600 W AC power module panel.

**Table 3** Description of the indicator on the 600 W AC power module panel
Indicator	Color	Description
STATUS: running status indicator	Green	Off: The power input is abnormal (for example, no input, overvoltage, or undervoltage) or the power output is abnormal (for example, overvoltage, overcurrent, short-circuit, or overtemperature). Steady on: The power module is working normally.

Specifications

Table 4 lists specifications of a 600 W AC power module.

**Table 4** Specifications of a 600 W AC power module
Item	Description
Dimensions (H x W x D)	40 mm x 100 mm x 205 mm (1.6 in. x 3.9 in. x 8.1 in.)
Weight	1 kg (2.20 lb)
Rated input voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum input voltage	90 V AC to 290 V AC, 45 Hz to 65 Hz
Maximum input current	9 A
Maximum output current	50 A
Rated output voltage	12 V
Rated output power	600 W
Part number	02310PMH
