(Optional) Configuring CDP-Compatible LLDP

Context

LLDP is compatible with protocols of other manufacturers. As shown in Figure 1, the NMS needs to obtain topology about Huawei device SwitchA and non-Huawei device SwitchB. CDP-compatible LLDP can be enabled on SwitchA so that SwitchA can receive and resolve CDP packets from SwitchB. In this way, SwitchA can obtain status information of SwitchB, and the NMS can obtain the topology information.

CDP refers to Cisco Discovery Protocol and is the Cisco proprietary link layer discovery protocol.

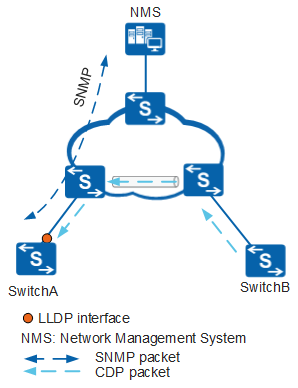

Figure 1 Networking diagram of LLDP

Procedure

  1. Run system-view

    The system view is displayed.

  2. Run interface interface-type interface-number

    The interface view is displayed.

  3. Run lldp compliance cdp receive

    CDP-compatible LLDP is enabled.

    By default, CDP-compatible LLDP is disabled.

Parent Topic: Configuring Basic LLDP Functions
