What Can I Do If Observing Ports Are Insufficient?

The numbers of observing ports on a device and in 1:N mirroring are limited. If many devices need to be monitored, but the number of required observing ports exceeds the upper limit, you can solve the problem using either of the following methods:

• Configure remote mirroring to broadcast packets copied on a mirrored port in a VLAN through a remote observing port.



  • In this method, if multiple internal loopback interfaces are configured, prevent loops by ensuring that these loopback interfaces are each added to a different VLAN.
  • Ensure that no other interface is added in trunk mode to the VLAN where internal loopback interfaces reside, so as to prevent traffic from being broadcast within the VLAN.

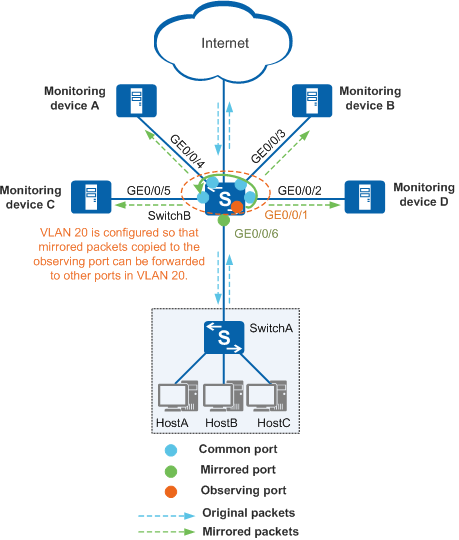

  Figure 1 Connecting to multiple monitoring devices through internal loopback



  As shown in Figure 1, network administrators need to copy packets on a mirrored port to four monitoring devices, but less than four observing ports can be configured on SwitchB. Perform the following configurations to solve this problem.

  1. Configure remote port mirroring.

     <SwitchB> system-view
     [SwitchB] observe-port 1 interface gigabitethernet0/0/1 vlan 20   //Configure a remote observing port. VLAN 20 is the VLAN in which packets copied from a mirrored port are broadcast.
     [SwitchB] interface gigabitethernet0/0/6
     [SwitchB-GigabitEthernet0/0/6] port-mirroring to observe-port 1 both   //Copy inbound and outbound packets on the mirrored port to the remote observing port on which internal loopback is configured.
     [SwitchB-GigabitEthernet0/0/6] quit

  2. Configure internal loopback.

     [SwitchB] vlan batch 20   //VLAN 20 is only used for internal loopback forwarding. Do not configure other services in VLAN 20.
     [SwitchB] interface gigabitethernet0/0/1
     [SwitchB-GigabitEthernet0/0/1] mac-address learning disable   //Disable the dynamic MAC address learning function to prevent the internal loopback port from learning the MAC addresses of packets other than mirrored packets, so that such packets will not be looped in the device. In addition, the configuration conserves MAC address entry.
     [SwitchB-GigabitEthernet0/0/1] stp disable   //Disable STP to prevent the internal loopback port from being blocked when it receives packets sent by itself.
     [SwitchB-GigabitEthernet0/0/1] port link-type access
     [SwitchB-GigabitEthernet0/0/1] port default vlan 20   //Add GE0/0/1 to VLAN 20.
     [SwitchB-GigabitEthernet0/0/1] loopback internal   //Configure the remote observing port as an internal loopback port.
     [SwitchB-GigabitEthernet0/0/1] quit
     [SwitchB] interface gigabitethernet0/0/2
     [SwitchB-GigabitEthernet0/0/2] port link-type access
     [SwitchB-GigabitEthernet0/0/2] port default vlan 20   //Add GE 0/0/2 to VLAN 20.
     [SwitchB-GigabitEthernet0/0/2] quit
     [SwitchB] interface gigabitethernet0/0/3
     [SwitchB-GigabitEthernet0/0/3] port link-type access
     [SwitchB-GigabitEthernet0/0/3] port default vlan 20   //Add GE 0/0/3 to VLAN 20.
     [SwitchB-GigabitEthernet0/0/3] quit
     [SwitchB] interface gigabitethernet0/0/4
     [SwitchB-GigabitEthernet0/0/4] port link-type access
     [SwitchB-GigabitEthernet0/0/4] port default vlan 20   //Add GE0/0/4 to VLAN 20.
     [SwitchB-GigabitEthernet0/0/4] quit
     [SwitchB] interface gigabitethernet0/0/5
     [SwitchB-GigabitEthernet0/0/5] port link-type access
     [SwitchB-GigabitEthernet0/0/5] port default vlan 20   //Add GE0/0/5 to VLAN 20.
     [SwitchB-GigabitEthernet0/0/5] quit

• Configure remote mirroring for VLAN broadcast through an intermediate Layer 2 device.

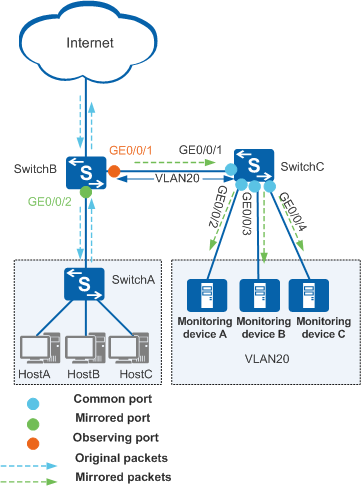

  Figure 2 Connecting to multiple monitoring devices through an intermediate Layer 2 device



  As shown in Figure 2, network administrators need to copy packets on a mirrored port to three monitoring devices, but less than three observing ports can be configured on SwitchB. Perform the following configurations to solve this problem.

  1. Configure remote port mirroring on SwitchB.

     <SwitchB> system-view
     [SwitchB] observe-port 1 interface gigabitethernet0/0/1 vlan 20   //Configure a remote observing port. VLAN 20 is a common VLAN in which mirrored packets are forwarded.
     [SwitchB] interface gigabitethernet0/0/2
     [SwitchB-GigabitEthernet0/0/2] port-mirroring to observe-port 1 both   //Copy inbound and outbound packets on the mirrored port to the remote observing port.
     [SwitchB-GigabitEthernet0/0/2] quit

  2. Add ports on SwitchC to a VLAN.

     [SwitchC] interface gigabitethernet0/0/1
     [SwitchC-GigabitEthernet0/0/1] port link-type trunk
     [SwitchC-GigabitEthernet0/0/1] port trunk allow-pass vlan 20   //Add GE0/0/1 to VLAN 20.
     [SwitchC-GigabitEthernet0/0/1] quit
     [SwitchC] interface gigabitethernet0/0/2
     [SwitchC-GigabitEthernet0/0/2] port link-type access
     [SwitchC-GigabitEthernet0/0/2] port default-vlan 20   //Add GE0/0/2 to VLAN 20.
     [SwitchC-GigabitEthernet0/0/2] quit
     [SwitchC] interface gigabitethernet0/0/3
     [SwitchC-GigabitEthernet0/0/3] port link-type access
     [SwitchC-GigabitEthernet0/0/3] port default-vlan 20   //Add GE0/0/3 to VLAN 20.
     [SwitchC-GigabitEthernet0/0/3] quit
     [SwitchC] interface gigabitethernet0/0/4
     [SwitchC-GigabitEthernet0/0/4] port link-type access
     [SwitchC-GigabitEthernet0/0/4] port default-vlan 20   //Add GE0/0/4 to VLAN 20.
     [SwitchC-GigabitEthernet0/0/4] quit
