Example for Configuring IGP Shortcut to Direct Traffic to an MPLS TE Tunnel

Networking Requirements

An MPLS TE tunnel does not automatically direct traffic. To direct traffic to an MPLS TE tunnel, configure Interior Gateway Protocol (IGP) shortcut. IGP shortcut enables a device to use a TE tunnel as a logical link for IGP route calculation. You can set a proper metric for an MPLS TE tunnel to ensure that the route passing through the MPLS TE tunnel is preferred, allowing traffic to be directed to the MPLS TE tunnel.

As shown in Figure 1, devices use OSPF to communicate with each other. An MPLS TE tunnel is established from LSRA and LSRC. The MPLS TE tunnel passes through LSRB. The number marked on each link indicates the link cost. If LSRA has traffic destined for LSRE and LSRC, LSRA sends the traffic to GE0/0/2 based on the OSPF route selection result. If the link between LSRA and LSRD has 100 Mbit/s of bandwidth and LSRA requires 50 Mbit/s bandwidth to send traffic to LSRC and 60 Mbit/s bandwidth to send traffic to LSRE, the link between LSRA and LSRB is congested. Congestion on the link causes traffic transmission delay or packet loss.

To resolve this problem, configure IGP shortcut on the tunnel interface of LSRA to direct traffic destined for LSRC to the MPLS TE tunnel. By doing this, traffic is forwarded by GE0/0/1 and network congestion is prevented.

After IGP shortcut is configured on the tunnel interface of LSRA, LSRA does not advertise the MPLS TE tunnel to its peers as a route. The MPLS TE tunnel is used only for local route calculation.

In this scenario, to avoid loops, ensure that all connected interfaces have STP disabled and connected interfaces are removed from VLAN 1. If STP is enabled and VLANIF interfaces of switches are used to construct a Layer 3 ring network, an interface on the network will be blocked. As a result, Layer 3 services on the network cannot run normally.

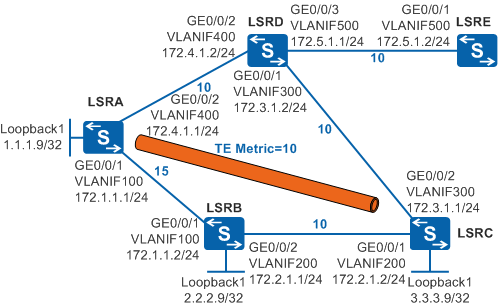

Figure 1 Networking of IGP shortcut

Configuration Roadmap

The configuration roadmap is as follows:

Assign an IP address to each interface, configure OSPF to ensure that there are reachable routes between LSRs, and configure the OSPF cost.
On LSRA, create an MPLS TE tunnel over the path LSRA -> LSRB -> LSRC. This example uses RSVP-TE to establish a dynamic MPLS TE tunnel. Configure an ID for each LSR, enable MPLS TE, RSVP-TE, and CSPF on each node and interface, and enable OSPF TE. On the ingress node of the primary tunnel, create a tunnel interface, and specify the IP address, tunneling protocol, destination IP address, tunnel ID, and dynamic signaling protocol RSVP-TE for the tunnel interface.
Enable IGP shortcut on the TE tunnel interface of LSRA and configure an IGP metric for the TE tunnel.

Procedure

Assign an IP address to each interface, configure OSPF, and set the OSPF cost.

# Configure LSRA. Configure IP addresses for interfaces of LSRB, LSRC, LSRD, and LSRE according to Figure 1. The configurations on LSRB, LSRC, LSRD, and LSRE are similar to the configuration of LSRA, and are not mentioned here.

<HUAWEI> system-view
[HUAWEI] sysname LSRA
[LSRA] vlan batch 100 400
[LSRA] interface vlanif 100
[LSRA-Vlanif100] ip address 172.1.1.1 255.255.255.0
[LSRA-Vlanif100] ospf cost 15
[LSRA-Vlanif100] quit
[LSRA] interface vlanif 400
[LSRA-Vlanif400] ip address 172.4.1.1 255.255.255.0
[LSRA-Vlanif400] ospf cost 10
[LSRA-Vlanif400] quit
[LSRA] interface gigabitethernet 0/0/1
[LSRA-GigabitEthernet0/0/1] port link-type trunk
[LSRA-GigabitEthernet0/0/1] port trunk allow-pass vlan 100
[LSRA-GigabitEthernet0/0/1] quit
[LSRA] interface gigabitethernet 0/0/2
[LSRA-GigabitEthernet0/0/2] port link-type trunk
[LSRA-GigabitEthernet0/0/2] port trunk allow-pass vlan 400
[LSRA-GigabitEthernet0/0/2] quit
[LSRA] interface loopback 1
[LSRA-LoopBack1] ip address 1.1.1.9 255.255.255.255
[LSRA-LoopBack1] quit
[LSRA] ospf 1
[LSRA-ospf-1] area 0
[LSRA-ospf-1-area-0.0.0.0] network 1.1.1.9 0.0.0.0
[LSRA-ospf-1-area-0.0.0.0] network 172.1.1.0 0.0.0.255
[LSRA-ospf-1-area-0.0.0.0] network 172.4.1.0 0.0.0.255
[LSRA-ospf-1-area-0.0.0.0] quit
[LSRA-ospf-1] quit

After the configurations are complete, run the display ip routing-table command on LSRA, LSRB, and LSRC. You can see that PE1 and PE2 have learned the routes to Loopback1 of each other.

Configure basic MPLS functions and enable MPLS TE, RSVP-TE, and CSPF.
To set up a TE tunnel from LSRA to LSRC, perform the following configurations on LSRA, LSRB, and LSRC.

# Configure LSRA. The configurations on LSRB and LSRC are similar to the configuration of LSRA, and are not mentioned here. CSPF only needs to be configured on the ingress node of the primary tunnel.
```
[LSRA] mpls lsr-id 1.1.1.9
[LSRA] mpls
[LSRA-mpls] mpls te
[LSRA-mpls] mpls rsvp-te
[LSRA-mpls] mpls te cspf
[LSRA-mpls] quit
[LSRA] interface vlanif 100
[LSRA-Vlanif100] mpls
[LSRA-Vlanif100] mpls te
[LSRA-Vlanif100] mpls rsvp-te
[LSRA-Vlanif100] quit
```
Configure OSPF TE.
To set up a TE tunnel from LSRA to LSRC, perform the following configurations on LSRA, LSRB, and LSRC.

# Configure LSRA. The configurations on LSRB and LSRC are similar to the configuration of LSRA, and are not mentioned here.
```
[LSRA] ospf
[LSRA-ospf-1] opaque-capability enable
[LSRA-ospf-1] area 0
[LSRA-ospf-1-area-0.0.0.0] mpls-te enable
[LSRA-ospf-1-area-0.0.0.0] quit
[LSRA-ospf-1] quit
```

Create an MPLS TE tunnel.

# Specify an explicit path for a TE tunnel.

[LSRA] explicit-path pri-path
[LSRA-explicit-path-pri-path] next hop 172.1.1.2
[LSRA-explicit-path-pri-path] next hop 172.2.1.2
[LSRA-explicit-path-pri-path] next hop 3.3.3.9
[LSRA-explicit-path-pri-path] quit

# Create a tunnel interface on LSRA.

[LSRA] interface tunnel 1
[LSRA-Tunnel1] ip address unnumbered interface loopback 1
[LSRA-Tunnel1] tunnel-protocol mpls te
[LSRA-Tunnel1] destination 3.3.3.9
[LSRA-Tunnel1] mpls te tunnel-id 100
[LSRA-Tunnel1] mpls te path explicit-path pri-path
[LSRA-Tunnel1] mpls te commit
[LSRA-Tunnel1] quit

Configure IGP shortcut.

Enable IGP shortcut on the TE tunnel interface of LSRA and set the IGP metric to 10 for the TE tunnel.

# Configure LSRA.

[LSRA] interface tunnel 1
[LSRA-Tunnel1] mpls te igp shortcut ospf
[LSRA-Tunnel1] mpls te igp metric absolute 10
[LSRA-Tunnel1] mpls te commit
[LSRA-Tunnel1] quit
[LSRA] ospf 1
[LSRA-ospf-1] enable traffic-adjustment
[LSRA-ospf-1] quit

Verify the configuration.

After the configurations are complete, run the display ip routing-table 3.3.3.9 command on LSRA. You can see that the next hop address of the route destined for LSRC (3.3.3.9) is 1.1.1.9 and the outbound interface of this route is Tunnel1. The traffic destined for LSRC has been directed to the MPLS TE tunnel.
