Example for Connecting QinQ Termination Sub-interfaces to a VLL Network

Networking Requirements

In the network example shown in Figure 1, CE1 and CE2 are connected to PE1 and PE2, respectively, through VLANs.

A Martini VLL is set up between CE1 and CE2.

Switch1 is connected to CE1 and PE1.

Switch2 is connected to CE2 and PE2.

Selective QinQ needs to be configured on the interfaces connected to CEs so that the Switch adds the VLAN tags specified by the carrier to the packets sent from CEs.

A Switch connected to multiple CEs can add the same VLAN tag to the packets from those CEs, thereby saving VLAN IDs on the public network.

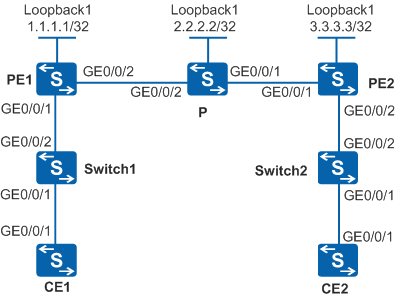

Figure 1 Networking diagram for connecting QinQ termination sub-interfaces to a VLL network

Switch

Interface

VLANIF Interface

IP Address

PE1

GigabitEthernet0/0/1

GigabitEthernet0/0/1.1

-

-

GigabitEthernet0/0/2

VLANIF 20

10.1.1.1/24

-

Loopback1

-

1.1.1.1/32

PE2

GigabitEthernet0/0/1

VLANIF 30

10.2.2.1/24

-

GigabitEthernet0/0/2

GigabitEthernet0/0/2.1

-

-

Loopback1

-

3.3.3.3/32

P

GigabitEthernet0/0/1

VLANIF 30

10.2.2.2/24

-

GigabitEthernet0/0/2

VLANIF 20

10.1.1.2/24

-

Loopback1

-

2.2.2.2/32

CE1

GigabitEthernet0/0/1

VLANIF 10

10.10.10.1/24

CE2

GigabitEthernet0/0/1

VLANIF 10

10.10.10.2/24

Configuration Roadmap

  1. Configure a routing protocol on PE and P of the backbone network to implement interworking, and enable MPLS.

  2. Use the default tunnel policy to create an LSP and configure the LSP to transmit data.

  3. Enable MPLS L2VPN and create VC connections on PEs.

  4. Configure QinQ sub-interfaces on PE interfaces connected to the switches to implement VLL access.

  5. Configure selective QinQ on the switch interfaces connected to CEs.

VLAN termination sub-interfaces cannot be created on a VCMP client.

Procedure

  1. Configure the VLANs to which interfaces of CEs, PEs, and P belong and assign IP addresses to VLANIF interfaces according to Figure 1.

    # Configure CE1 to ensure that each packet sent from CE1 to Switch1 carries a single VLAN tag.

    <HUAWEI> system-view
[HUAWEI] sysname CE1
[CE1] vlan batch 10
[CE1] interface gigabitethernet 0/0/1
[CE1-GigabitEthernet0/0/1] port link-type trunk
[CE1-GigabitEthernet0/0/1] port trunk allow-pass vlan 10
[CE1-GigabitEthernet0/0/1] quit
[CE1] interface vlanif 10
[CE1-Vlanif10] ip address 10.10.10.1 24
[CE1-Vlanif10] quit

    # Configure CE2 to ensure that each packet sent from CE2 to Switch2 carries a single VLAN tag.

    <HUAWEI> system-view
[HUAWEI] sysname CE2
[CE2] vlan batch 10
[CE2] interface gigabitethernet 0/0/1
[CE2-GigabitEthernet0/0/1] port link-type trunk
[CE2-GigabitEthernet0/0/1] port trunk allow-pass vlan 10
[CE2-GigabitEthernet0/0/1] quit
[CE2] interface vlanif 10
[CE2-Vlanif10] ip address 10.10.10.2 24
[CE2-Vlanif10] quit

    # Configure PE1.

    <HUAWEI> system-view
[HUAWEI] sysname PE1
[PE1] vlan batch 20
[PE1] interface gigabitethernet 0/0/2
[PE1-GigabitEthernet0/0/2] port link-type hybrid
[PE1-GigabitEthernet0/0/2] port hybrid pvid vlan 20
[PE1-GigabitEthernet0/0/2] port hybrid tagged vlan 20
[PE1-GigabitEthernet0/0/2] quit
[PE1] interface vlanif 20
[PE1-Vlanif20] ip address 10.1.1.1 24
[PE1-Vlanif20] quit

    # Configure P.

    <HUAWEI> system-view
[HUAWEI] sysname P
[P] vlan batch 20 30
[P] interface gigabitethernet 0/0/1
[P-GigabitEthernet0/0/1] port link-type hybrid
[P-GigabitEthernet0/0/1] port hybrid pvid vlan 30
[P-GigabitEthernet0/0/1] port hybrid tagged vlan 30
[P-GigabitEthernet0/0/1] quit
[P] interface gigabitethernet 0/0/2
[P-GigabitEthernet0/0/2] port link-type hybrid
[P-GigabitEthernet0/0/2] port hybrid pvid vlan 20
[P-GigabitEthernet0/0/2] port hybrid tagged vlan 20
[P-GigabitEthernet0/0/2] quit
[P] interface vlanif 20
[P-Vlanif20] ip address 10.1.1.2 24
[P-Vlanif20] quit
[P] interface vlanif 30
[P-Vlanif30] ip address 10.2.2.2 24
[P-Vlanif30] quit

    # Configure PE2.

    <HUAWEI> system-view
[HUAWEI] sysname PE2
[PE2] vlan batch 30
[PE2] interface gigabitethernet 0/0/1
[PE2-GigabitEthernet0/0/1] port link-type hybrid
[PE2-GigabitEthernet0/0/1] port hybrid pvid vlan 30
[PE2-GigabitEthernet0/0/1] port hybrid tagged vlan 30
[PE2-GigabitEthernet0/0/1] quit
[PE2] interface vlanif 30
[PE2-Vlanif30] ip address 10.2.2.1 24
[PE2-Vlanif30] quit

  2. Configure selective QinQ on interfaces of each Switch and specify the VLANs allowed by the interfaces.

    # Configure Switch1.

    <HUAWEI> system-view
[HUAWEI] sysname Switch1
[Switch1] vlan 100
[Switch1-vlan100] quit
[Switch1] interface gigabitethernet0/0/2
[Switch1-GigabitEthernet0/0/2] port link-type hybrid
[Switch1-GigabitEthernet0/0/2] port hybrid tagged vlan 100
[Switch1-GigabitEthernet0/0/2] quit
[Switch1] interface gigabitethernet0/0/1
[Switch1-GigabitEthernet0/0/1] port link-type hybrid
[Switch1-GigabitEthernet0/0/1] port hybrid untagged vlan 100
[Switch1-GigabitEthernet0/0/1] qinq vlan-translation enable
[Switch1-GigabitEthernet0/0/1] port vlan-stacking vlan 10 stack-vlan 100
[Switch1-GigabitEthernet0/0/1] quit

    # Configure Switch2.

    <HUAWEI> system-view
[HUAWEI] sysname Switch2
[Switch2] vlan 100
[Switch2-vlan100] quit
[Switch2] interface gigabitethernet0/0/2
[Switch2-GigabitEthernet0/0/2] port link-type hybrid
[Switch2-GigabitEthernet0/0/2] port hybrid tagged vlan 100
[Switch2-GigabitEthernet0/0/2] quit
[Switch2] interface gigabitethernet0/0/1
[Switch2-GigabitEthernet0/0/1] port link-type hybrid
[Switch2-GigabitEthernet0/0/1] port hybrid untagged vlan 100
[Switch2-GigabitEthernet0/0/1] qinq vlan-translation enable
[Switch2-GigabitEthernet0/0/1] port vlan-stacking vlan 10 stack-vlan 100
[Switch2-GigabitEthernet0/0/1] quit

  3. Configure an IGP, for example, OSPF, on the MPLS backbone network.

    Configure PE1, P, and PE2 to advertise 32-bit loopback interface addresses as the LSR IDs.

    # Configure PE1.

    [PE1] router id 1.1.1.1
[PE1] interface loopback 1
[PE1-LoopBack1] ip address 1.1.1.1 32
[PE1-LoopBack1] quit
[PE1] ospf 1
[PE1-ospf-1] area 0
[PE1-ospf-1-area-0.0.0.0] network 1.1.1.1 0.0.0.0
[PE1-ospf-1-area-0.0.0.0] network 10.1.1.1 0.0.0.255
[PE1-ospf-1-area-0.0.0.0] quit
[PE1-ospf-1] quit

    # Configure P.

    [P] router id 2.2.2.2
[P] interface loopback 1
[P-LoopBack1] ip address 2.2.2.2 32
[P-LoopBack1] quit
[P] ospf 1
[P-ospf-1] area 0
[P-ospf-1-area-0.0.0.0] network 2.2.2.2 0.0.0.0
[P-ospf-1-area-0.0.0.0] network 10.1.1.2 0.0.0.255
[P-ospf-1-area-0.0.0.0] network 10.2.2.2 0.0.0.255
[P-ospf-1-area-0.0.0.0] quit
[P-ospf-1] quit

    # Configure PE2.

    [PE2] router id 3.3.3.3
[PE2] interface loopback 1
[PE2-LoopBack1] ip address 3.3.3.3 32
[PE2-LoopBack1] quit
[PE2] ospf 1
[PE2-ospf-1] area 0
[PE2-ospf-1-area-0.0.0.0] network 3.3.3.3 0.0.0.0
[PE2-ospf-1-area-0.0.0.0] network 10.2.2.1 0.0.0.255
[PE2-ospf-1-area-0.0.0.0] quit
[PE2-ospf-1] quit

    # After the configuration is complete, PE1, P, and PE2 can establish OSPF neighbor relationships. Run the display ospf peer command to verify that the OSPF neighbor relationship status is Full. Run the display ip routing-table command to verify that the PEs learn the route to the Loopback1 interface of each other. The following is the display on PE1:

    [PE1] display ospf peer

         OSPF Process 1 with Router ID 1.1.1.1
                 Neighbors

 Area 0.0.0.0 interface 10.1.1.1(Vlanif20)'s neighbors
 Router ID: 2.2.2.2      Address: 10.1.1.2
   State: Full  Mode:Nbr is  Master  Priority: 1
   DR: 10.1.1.2  BDR: 10.1.1.1  MTU: 0
   Dead timer due in 34  sec
   Retrans timer interval: 5
   Neighbor is up for 00:01:16
   Authentication Sequence: [ 0 ]
    [PE1] display ip routing-table
Route Flags: R - relay, D - download to fib, T - to vpn-instance
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 8       Routes : 8

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

        1.1.1.1/32  Direct  0    0           D   127.0.0.1       LoopBack1
        2.2.2.2/32  OSPF    10   1           D   10.1.1.2        Vlanif20
        3.3.3.3/32  OSPF    10   2           D   10.1.1.2        Vlanif20
       10.1.1.0/24  Direct  0    0           D   10.1.1.1        Vlanif20
       10.1.1.1/32  Direct  0    0           D   127.0.0.1       Vlanif20
       10.2.2.0/24  OSPF    10   2           D   10.1.1.2        Vlanif20
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0

  4. Enable basic MPLS functions and MPLS LDP on the MPLS backbone network.

    # Configure PE1.

    [PE1] mpls lsr-id 1.1.1.1
[PE1] mpls
[PE1-mpls] quit
[PE1] mpls ldp
[PE1-mpls-ldp] quit
[PE1] interface vlanif 20
[PE1-Vlanif20] mpls
[PE1-Vlanif20] mpls ldp
[PE1-Vlanif20] quit

    # Configure P.

    [P] mpls lsr-id 2.2.2.2
[P] mpls
[P-mpls] quit
[P] mpls ldp
[P-mpls-ldp] quit
[P] interface vlanif 20
[P-Vlanif20] mpls
[P-Vlanif20] mpls ldp
[P-Vlanif20] quit
[P] interface vlanif 30
[P-Vlanif30] mpls
[P-Vlanif30] mpls ldp
[P-Vlanif30] quit

    # Configure PE2.

    [PE2] mpls lsr-id 3.3.3.3
[PE2] mpls
[PE2-mpls] quit
[PE2] mpls ldp
[PE2-mpls-ldp] quit
[PE2] interface vlanif 30
[PE2-Vlanif30] mpls
[PE2-Vlanif30] mpls ldp
[PE2-Vlanif30] quit

  5. Set up a remote LDP session between PEs.

    # Configure PE1.

    [PE1] mpls ldp remote-peer 3.3.3.3
[PE1-mpls-ldp-remote-3.3.3.3] remote-ip 3.3.3.3
[PE1-mpls-ldp-remote-3.3.3.3] quit

    # Configure PE2.

    [PE2] mpls ldp remote-peer 1.1.1.1
[PE2-mpls-ldp-remote-1.1.1.1] remote-ip 1.1.1.1
[PE2-mpls-ldp-remote-1.1.1.1] quit

    After the configuration is complete, run the display mpls ldp session command on PE1 to view the LDP session setup. You can see an LDP session has been set up between PE1 and PE2.

    The following is the display on PE1:

    [PE1] display mpls ldp session
 LDP Session(s) in Public Network
 Codes: LAM(Label Advertisement Mode), SsnAge Unit(DDDD:HH:MM)
 A '*' before a session means the session is being deleted.
 ------------------------------------------------------------------------------
 PeerID            Status      LAM  SsnRole  SsnAge      KASent/Rcv
 ------------------------------------------------------------------------------
 2.2.2.2:0          Operational DU Passive  0000:15:29   3717/3717
 3.3.3.3:0          Operational DU Passive  0000:00:00   2/2
 ------------------------------------------------------------------------------
 TOTAL: 2 session(s) Found.

  6. Enable MPLS L2VPN on PEs and set up VC connections.

    # On PE1, create a VC connection on GigabitEthernet0/0/1.1 connected to Switch1.

    [PE1] mpls l2vpn
[PE1-l2vpn] quit
[PE1] vcmp role silent
[PE1] interface gigabitethernet0/0/1
[PE1-GigabitEthernet0/0/1] port link-type hybrid
[PE1-GigabitEthernet0/0/1] quit
[PE1] interface gigabitethernet0/0/1.1
[PE1-GigabitEthernet0/0/1.1] qinq termination pe-vid 100 ce-vid 10
[PE1-GigabitEthernet0/0/1.1] mpls l2vc 3.3.3.3 101
[PE1-GigabitEthernet0/0/1.1] quit

    # On PE2, create a VC connection on GigabitEthernet0/0/2.1 connected to Switch2.

    [PE2] mpls l2vpn
[PE2-l2vpn] quit
[PE2] vcmp role silent
[PE2] interface gigabitethernet0/0/2
[PE2-GigabitEthernet0/0/2] port link-type hybrid
[PE2-GigabitEthernet0/0/2] quit
[PE2] interface gigabitethernet0/0/2.1
[PE2-GigabitEthernet0/0/2.1] qinq termination pe-vid 100 ce-vid 10
[PE2-GigabitEthernet0/0/2.1] mpls l2vc 1.1.1.1 101
[PE2-GigabitEthernet0/0/2.1] quit

  7. Verify the configuration.

    Check the L2VPN connections on PEs. You can see that an L2VC connection has been set up and is in Up state.

    The following is the display on PE1:

    [PE1] display mpls l2vc interface gigabitethernet0/0/1.1
 *client interface       : GigabitEthernet0/0/1.1 is up
  Administrator PW       : no
  session state          : up
  AC status              : up
  Ignore AC state        : disable
  VC state               : up
  Label state            : 0
  Token state            : 0
  VC ID                  : 101
  VC type                : VLAN
  destination            : 3.3.3.3
  local group ID         : 0            remote group ID      : 0
  local VC label         : 23552        remote VC label      : 23552
  local AC OAM State     : up
  local PSN OAM State    : up
  local forwarding state : forwarding
  local status code      : 0x0
  remote AC OAM state    : up
  remote PSN OAM state   : up
  remote forwarding state: forwarding
  remote status code     : 0x0
  ignore standby state   : no
  BFD for PW             : unavailable
  VCCV State             : up
  manual fault           : not set
  active state           : active
  forwarding entry       : exist
  link state             : up
  local VC MTU           : 1500         remote VC MTU        : 1500
  local VCCV             : alert ttl lsp-ping bfd
  remote VCCV            : alert ttl lsp-ping bfd
  local control word     : disable      remote control word  : disable
  tunnel policy name     : --
  PW template name       : --
  primary or secondary   : primary
  load balance type      : flow
  Access-port            : false
  Switchover Flag        : false
  VC tunnel/token info   : 1 tunnels/tokens
    NO.0  TNL type       : lsp   , TNL ID : 0x10031
    Backup TNL type      : lsp   , TNL ID : 0x0
  create time            : 1 days, 22 hours, 15 minutes, 9 seconds
  up time                : 0 days, 22 hours, 54 minutes, 57 seconds
  last change time       : 0 days, 22 hours, 54 minutes, 57 seconds
  VC last up time        : 2010/10/09 19:26:37
  VC total up time       : 1 days, 20 hours, 42 minutes, 30 seconds
  CKey                   : 8
  NKey                   : 3
  PW redundancy mode     : --
  AdminPw interface      : --
  AdminPw link state     : --
  Diffserv Mode          : uniform
  Service Class          : --
  Color                  : --
  DomainId               : --
  Domain Name            : --

    CE1 and CE2 can ping each other.

    The following is the display on CE1:

    [CE1] ping 10.10.10.2
  PING 10.10.10.2: 56  data bytes, press CTRL_C to break
    Reply from 10.10.10.2: bytes=56 Sequence=1 ttl=255 time=31 ms
    Reply from 10.10.10.2: bytes=56 Sequence=2 ttl=255 time=10 ms
    Reply from 10.10.10.2: bytes=56 Sequence=3 ttl=255 time=5 ms
    Reply from 10.10.10.2: bytes=56 Sequence=4 ttl=255 time=2 ms
    Reply from 10.10.10.2: bytes=56 Sequence=5 ttl=255 time=28 ms

  --- 10.10.10.2 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 2/15/31 ms

Configuration Files

  • CE1 configuration file

    #
sysname CE1
#
vlan batch 10
#
interface Vlanif10
 ip address 10.10.10.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 10
#
return

  • Switch1 configuration file

    #
sysname Switch1
#
vlan batch 100
#
interface GigabitEthernet0/0/1
 port link-type hybrid
 qinq vlan-translation enable
 port hybrid untagged vlan 100
 port vlan-stacking vlan 10 stack-vlan 100
#
interface GigabitEthernet0/0/2
 port link-type hybrid
 port hybrid tagged vlan 100
#
return

  • PE1 configuration file

    #
sysname PE1
#
router id 1.1.1.1
#
vcmp role silent
#
vlan batch 20
#
mpls lsr-id 1.1.1.1
mpls
#
mpls l2vpn
#
mpls ldp
#
mpls ldp remote-peer 3.3.3.3
 remote-ip 3.3.3.3
#
interface Vlanif20
 ip address 10.1.1.1 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/0/1  port link-type hybrid
#
interface GigabitEthernet0/0/1.1
 qinq termination pe-vid 100 ce-vid 10
 mpls l2vc 3.3.3.3 101
#
interface GigabitEthernet0/0/2
 port link-type hybrid
 port hybrid pvid vlan 20
 port hybrid tagged vlan 20
#
interface LoopBack1
 ip address 1.1.1.1 255.255.255.255
#
ospf 1
 area 0.0.0.0
  network 1.1.1.1 0.0.0.0
  network 10.1.1.0 0.0.0.255
#
return

  • P configuration file

    #
sysname P
#
router id 2.2.2.2
#
vlan batch 20 30
#
mpls lsr-id 2.2.2.2
mpls
#
mpls ldp
#
interface Vlanif20
 ip address 10.1.1.2 255.255.255.0
 mpls
 mpls ldp
#
interface Vlanif30
 ip address 10.2.2.2 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/0/1
 port link-type hybrid
 port hybrid pvid vlan 30
 port hybrid tagged vlan 30
#
interface GigabitEthernet0/0/2
 port link-type hybrid
 port hybrid pvid vlan 20
 port hybrid tagged vlan 20
#
interface LoopBack1
 ip address 2.2.2.2 255.255.255.255
#
ospf 1
 area 0.0.0.0
  network 2.2.2.2 0.0.0.0
  network 10.1.1.0 0.0.0.255
  network 10.2.2.0 0.0.0.255
#
return

  • PE2 configuration file

    #
sysname PE2
#
router id 3.3.3.3
#
vcmp role silent
#
vlan batch 30
#
mpls lsr-id 3.3.3.3
mpls
#
mpls l2vpn
#
mpls ldp
#
mpls ldp remote-peer 1.1.1.1
 remote-ip 1.1.1.1
#
interface Vlanif30
 ip address 10.2.2.1 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/0/1
 port link-type hybrid
 port hybrid pvid vlan 30
 port hybrid tagged vlan 30
#
interface GigabitEthernet0/0/2  port link-type hybrid
#
interface GigabitEthernet0/0/2.1
 qinq termination pe-vid 100 ce-vid 10
 mpls l2vc 1.1.1.1 101
#
interface LoopBack1
 ip address 3.3.3.3 255.255.255.255
#
ospf 1
 area 0.0.0.0
  network 3.3.3.3 0.0.0.0
  network 10.2.2.0 0.0.0.255
#
return

  • Switch2 configuration file

    #
sysname Switch2
#
vlan batch 100
#
interface GigabitEthernet0/0/1
 port link-type hybrid
 qinq vlan-translation enable
 port hybrid untagged vlan 100
 port vlan-stacking vlan 10 stack-vlan 100
#
interface GigabitEthernet0/0/2
 port link-type hybrid
 port hybrid tagged vlan 100
#
return

  • CE2 configuration file

    #
sysname CE2
#
vlan batch 10
#
interface Vlanif10
 ip address 10.10.10.2 255.255.255.0
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 10
#
return
Parent Topic: Configuration Examples for VLAN Termination
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
