Example for Configuring MAC Address Authentication on the Wireless Side

MAC Address Authentication on the Wireless Side Overview

MAC address authentication controls a user's network access rights based on their interface and MAC address. The user does not need to install any client software. The device starts authenticating a user when it first detects the user's MAC address on the interface where MAC address authentication has been enabled. During the authentication process, the user does not need to enter a user name or password.

Configuration Notes

  • In tunnel forwarding mode, the management VLAN and service VLAN cannot be the same. If you set the forwarding mode to direct forwarding, you are not advised to configure the management VLAN and service VLAN to be the same.

  • In direct forwarding mode, configure port isolation on the interface directly connected to APs. If port isolation is not configured, many broadcast packets will be transmitted in the VLANs or WLAN users on different APs can directly communicate at Layer 2.

  • Configure the management VLAN and service VLAN:
    • In tunnel forwarding mode, service packets are encapsulated in a CAPWAP tunnel and forwarded to the AC. The AC then forwards the packets to the upper-layer network or APs. Service packets and management packets can be forwarded normally only if the network between the AC and APs is added to the management VLAN and the network between the AC and upper-layer network is added to the service VLAN.
    • In direct forwarding mode, service packets are not encapsulated into a CAPWAP tunnel, but are directly forwarded to the upper-layer network or APs. Service packets and management packets can be forwarded normally only if the network between the AC and APs is added to the management VLAN and the network between APs and upper-layer network is added to the service VLAN.
  • How to configure the source interface:
    • In V200R006, run the wlan ac source interface { loopback loopback-number | vlanif vlan-id } command in the WLAN view.
    • In V200R007 and V200R008, run the capwap source interface { loopback loopback-number | vlanif vlan-id } command in the system view.
  • The following table lists applicable products and versions.
    Table 1 Applicable products and versions

    Software Version

    Product Model

    AP Model and Version

    V200R005C00

    S7700, S9700

    V200R005C00:

    AP2010DN, AP3010DN-AGN, AP5010DN-AGN, AP5010SN-GN, AP5030DN, AP5130DN, AP6010SN-GN, AP6010DN-AGN, AP6310SN-GN, AP6510DN-AGN, AP6610DN-AGN, AP7110DN-AGN, AP7110SN-GN

    V200R006C00

    S5720-HI, S7700, S9700

    V200R005C00:

    AP2010DN, AP3010DN-AGN, AP5010DN-AGN, AP5010SN-GN, AP5030DN, AP5130DN, AP6010SN-GN, AP6010DN-AGN, AP6310SN-GN, AP6510DN-AGN, AP6610DN-AGN, AP7110DN-AGN, AP7110SN-GN

    V200R007C00

    S5720-HI, S7700, S9700

    V200R005C10:

    AP2010DN, AP3010DN-AGN, AP5010DN-AGN, AP5010SN-GN, AP5030DN, AP5130DN, AP6010SN-GN, AP6010DN-AGN, AP6310SN-GN, AP6510DN-AGN, AP6610DN-AGN, AP7110DN-AGN, AP7110SN-GN, AP8030DN, AP8130DN

    V200R005C20:

    AP7030DE, AP9330DN

    V200R008C00

    S5720-HI, S7700, S9700

    V200R005C10:

    AP2010DN, AP3010DN-AGN, AP5010DN-AGN, AP5010SN-GN, AP5030DN, AP5130DN, AP6010SN-GN, AP6010DN-AGN, AP6310SN-GN, AP6510DN-AGN, AP6610DN-AGN, AP7110DN-AGN, AP7110SN-GN, AP8030DN, AP8130DN

    V200R005C20:

    AP7030DE, AP9330DN

    V200R005C30:

    AP2030DN, AP4030DN, AP4130DN

    For S7700, you are advised to deploy S7712 or S7706 switches for WLAN services. S7703 switches are not recommended.

    For S9700, you are advised to deploy S9712 or S9706 switches for WLAN services. S9703 switches are not recommended.

Networking Requirements

As shown in Figure 1, the enterprise's AC connects to the egress gateway (Router) and RADIUS server, and connects to the AP through SwitchA. The WLAN with the SSID of test is available for wireless users and terminals to access network resources. The gateway also functions as a DHCP server to provide IP addresses on the 10.10.10.0/24 network segment for STAs, which are managed by the AC.

The WLAN authentication client cannot be installed on wireless devices providing public services, such as wireless printers and phones. For these devices, use MAC address authentication. The RADIUS server authenticates wireless devices using their MAC addresses. No authentication is required when STAs access the WLAN, facilitating the use of WLAN services.

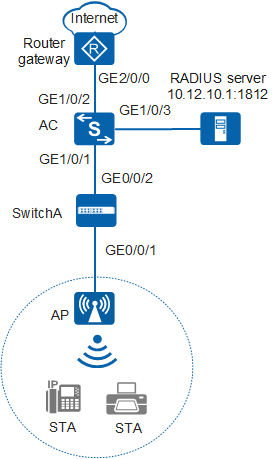

Figure 1 Networking diagram for configuring MAC address authentication on the wireless side

Data Planning

Table 2 Data planning

Configuration Item

Data

WLAN service

Open system authentication+non-encryption

Management VLAN

VLAN 100

Service VLAN

VLAN 101

Source interface on the AC

VLANIF 100: 192.168.10.1/24

AC carrier ID/AC ID

Other/1

AP region ID

10

Service set

  • SSID: test
  • Data forwarding mode: tunnel forwarding

SwitchA VLAN

VLAN 100

DHCP server

  • IP addresses that the AC assigns to APs: 192.168.10.2 to 192.168.10.254/24
  • IP addresses that Router assigns to STAs: 10.10.10.2 to 10.10.10.254/24

Gateway for the AP

VLANIF 100: 192.168.10.1/24

Gateway for STAs

VLANIF 101: 10.10.10.1/24

RADIUS authentication parameters

  • IP address: 10.12.10.1
  • Port number: 1812
  • Shared key: 123456
  • AAA domain: huawei.com

MAC address of a STA

0011-2233-4455

Configuration Roadmap

The configuration roadmap is as follows:

  1. Configure WLAN basic services so that STAs can access the WLAN. This example uses default configurations.
  2. Configure a RADIUS server template and apply it to an AAA domain
  3. Configure MAC address authentication on the WLAN-ESS interface to authenticate STAs.

Procedure

  1. Set the NAC mode to unified mode on the AC (default setting). Configure SwitchA and the AC to allow the AP and AC to transmit CAPWAP packets.

    # Add GE0/0/1 that connects SwitchA to the AP and GE0/0/2 that connects SwitchA to the AC to the management VLAN 100.

    <HUAWEI> system-view
    [HUAWEI] sysname SwitchA
    [SwitchA] vlan batch 100
    [SwitchA] interface gigabitethernet 0/0/1
    [SwitchA-GigabitEthernet0/0/1] port link-type trunk
    [SwitchA-GigabitEthernet0/0/1] port trunk pvid vlan 100
    [SwitchA-GigabitEthernet0/0/1] port trunk allow-pass vlan 100
    [SwitchA-GigabitEthernet0/0/1] quit
    [SwitchA] interface gigabitethernet 0/0/2
    [SwitchA-GigabitEthernet0/0/2] port link-type trunk
    [SwitchA-GigabitEthernet0/0/2] port trunk allow-pass vlan 100
    [SwitchA-GigabitEthernet0/0/2] quit

    # Add GE1/0/1 that connects the AC to SwitchA to VLAN 100.

    <HUAWEI> system-view
    [HUAWEI] sysname AC
    [AC] vlan batch 100 101
    [AC] interface gigabitethernet 1/0/1
    [AC-GigabitEthernet1/0/1] port link-type trunk
    [AC-GigabitEthernet1/0/1] port trunk allow-pass vlan 100
    [AC-GigabitEthernet1/0/1] quit

  2. Configure the AC to communicate with the upstream device.

    # Configure VLANIF 101 (service VLAN), VLANIF 102, and VLANIF 103.

    [AC] vlan batch 101 102 103
    [AC] interface vlanif 101
    [AC-Vlanif101] ip address 10.10.10.1 24
    [AC-Vlanif101] quit
    [AC] interface vlanif 102
    [AC-Vlanif102] ip address 10.11.10.2 24
    [AC-Vlanif102] quit
    [AC] interface vlanif 103
    [AC-Vlanif103] ip address 10.12.10.2 24
    [AC-Vlanif103] quit


    # Add GE1/0/2 that connects the AC to the Router to VLAN 102.

    [AC] interface gigabitethernet 1/0/2
    [AC-GigabitEthernet1/0/2] port link-type trunk
    [AC-GigabitEthernet1/0/2] port trunk allow-pass vlan 102
    [AC-GigabitEthernet1/0/2] quit

    # Add GE1/0/2 that connects the AC to the RADIUS server to VLAN 103.

    [AC] interface gigabitethernet 1/0/3
    [AC-GigabitEthernet1/0/3] port link-type trunk
    [AC-GigabitEthernet1/0/3] port trunk allow-pass vlan 103
    [AC-GigabitEthernet1/0/3] quit

    # On the AC, configure a static route.

    [AC] ip route-static 0.0.0.0 0.0.0.0 10.11.10.1

  3. Configure the AC to assign an IP address to the AP and configure the Router to assign IP addresses to STAs.

    # Configure the AC to assign an IP address to the AP from an interface IP address pool.

    [AC] dhcp enable
    [AC] interface vlanif 100
    [AC-Vlanif100] ip address 192.168.10.1 24
    [AC-Vlanif100] dhcp select interface  //Configure an interface-based address pool.
    [AC-Vlanif100] quit

    # Configure the AC as the DHCP relay agent and enable user entry detection on the AC.

    [AC] interface vlanif 101
    [AC-Vlanif101] dhcp select relay  //Configure the DHCP relay function.
    [AC-Vlanif101] dhcp relay server-ip 10.11.10.1  //Set the DHCP server address for DHCP relay to 10.11.10.1, which resides on Router.
    [AC-Vlanif101] quit

    # Configure the Router as a DHCP server to assign IP addresses to STAs.

    <Huawei> system-view
    [Huawei] sysname Router
    [Router] dhcp enable
    [Router] ip pool sta  //Configure the address pool to assign IP addresses to STAs.
    [Router-ip-pool-sta] gateway-list 10.10.10.1
    [Router-ip-pool-sta] network 10.10.10.0 mask 24
    [Router-ip-pool-sta] quit
    [Router] vlan batch 102
    [Router] interface vlanif 102
    [Router-Vlanif102] ip address 10.11.10.1 24
    [Router-Vlanif102] dhcp select global  //Configure a global address pool.
    [Router-Vlanif102] quit
    [Router] interface gigabitethernet 2/0/0
    [Router-GigabitEthernet2/0/0] port link-type trunk
    [Router-GigabitEthernet2/0/0] port trunk allow-pass vlan 102
    [Router-GigabitEthernet2/0/0] quit
    [Router] ip route-static 10.10.10.0 24 10.11.10.2  //Configure a route on the Router destined for the network segment 10.10.10.0/24.


  4. Configure RADIUS authentication.
    1. Configure a RADIUS server template, an AAA authentication scheme, and domain information.

      The STA sends its MAC address as the user name to the RADIUS server for authentication, so the AC needs to be disabled from adding a domain name to the user name (default setting).
      [AC] radius-server template radius_huawei
      [AC-radius-radius_huawei] radius-server authentication 10.12.10.1 1812
      [AC-radius-radius_huawei] radius-server shared-key cipher 123456    //The default key is huawei.
      [AC-radius-radius_huawei] quit
      [AC] aaa
      [AC-aaa] authentication-scheme radius_huawei
      [AC-aaa-authen-radius_huawei] authentication-mode radius
      [AC-aaa-authen-radius_huawei] quit
      [AC-aaa] domain huawei.com
      [AC-aaa-domain-huawei.com] authentication-scheme radius_huawei
      [AC-aaa-domain-huawei.com] radius-server radius_huawei
      [AC-aaa-domain-huawei.com] quit
      [AC-aaa] quit


    2. Globally configure user names in MAC address authentication without the delimiter "-" (default setting).
    3. Test whether a STA can be authenticated using RADIUS authentication. In MAC address authentication, a STA's MAC address is used as the user name and password.

      [AC] test-aaa 001122334455 001122334455 radius-template radius_huawei
      Info: Account test succeed.


  5. Configure AC system parameters.

    # Configure the country code.

    [AC] wlan ac-global country-code cn
    Warning: Modify the country code may delete configuration on those AP which use
    the global country code and reset them, continue?[Y/N]:y

    # Configure the AC ID and carrier ID.

    [AC] wlan ac-global ac id 1 carrier id other  //The default AC ID is 0. Set the AC ID to 1.

    # Configure the source interface.

    [AC] wlan
    [AC-wlan-view] wlan ac source interface vlanif 100

  6. Manage the AP on the AC.

    # Check the AP type ID after obtaining the MAC address of the AP.

    [AC-wlan-view] display ap-type all
      All AP types information:
      ------------------------------------------------------------------------------
      ID     Type
      ------------------------------------------------------------------------------
      17     AP6010SN-GN
      19     AP6010DN-AGN
      21     AP6310SN-GN
      23     AP6510DN-AGN
      25     AP6610DN-AGN
      27     AP7110SN-GN
      28     AP7110DN-AGN
      29     AP5010SN-GN
      30     AP5010DN-AGN
      31     AP3010DN-AGN
      33     AP6510DN-AGN-US
      34     AP6610DN-AGN-US
      35     AP5030DN
      36     AP5130DN
      37     AP7030DE
      38     AP2010DN
      39     AP8130DN
      40     AP8030DN
      42     AP9330DN
      43     AP4030DN
      44     AP4130DN
      45     AP3030DN
      46     AP2030DN
      ------------------------------------------------------------------------------
      Total number: 23

    # Set the AP authentication mode to MAC address authentication (default setting). Add the AP offline based on the AP type ID. Assume that the AP type is AP6010DN-AGN, and the MAC address of the AP is 60de-4476-e360.

    [AC-wlan-view] ap id 0 type-id 19 mac 60de-4476-e360
    [AC-wlan-ap-0] quit

    # Configure an AP region and add the AP to the AP region.

    [AC-wlan-view] ap-region id 10  //Create AP region 10.
    [AC-wlan-ap-region-10] quit
    [AC-wlan-view] ap id 0
    [AC-wlan-ap-0] region-id 10  //Add AP to region 10.
    [AC-wlan-ap-0] quit

    # Power on the APs and run the display ap all command on the AC to check the AP running status. The command output shows that the AP status is normal.

    [AC-wlan-view] display ap all
      All AP information:
      Normal[1],Fault[0],Commit-failed[0],Committing[0],Config[0],Download[0]
      Config-failed[0],Standby[0],Type-not-match[0],Ver-mismatch[0]
      ------------------------------------------------------------------------------
      AP    AP               AP              Profile   AP              AP
                                             /Region
      ID    Type             MAC             ID        State           Sysname
      ------------------------------------------------------------------------------
      0     AP6010DN-AGN     60de-4476-e360  0/10      normal          ap-0
      ------------------------------------------------------------------------------
      Total number: 1,printed: 1


  7. Configure WLAN service parameters.

    # Create a WMM profile named wmm.

    [AC-wlan-view] wmm-profile name wmm id 1
    [AC-wlan-wmm-prof-wmm] quit


    # Create a radio profile named radio and bind the WMM profile wmm to the radio profile.

    [AC-wlan-view] radio-profile name radio id 1
    [AC-wlan-radio-prof-radio] wmm-profile name wmm
    [AC-wlan-radio-prof-radio] quit
    [AC-wlan-view] quit


    # Create WLAN-ESS interface 1.

    [AC] interface wlan-ess 1
    [AC-Wlan-Ess1] port trunk allow-pass vlan 101
    [AC-Wlan-Ess1] quit


    # Create a security profile named security.

    [AC] wlan
    [AC-wlan-view] security-profile name security id 1
    [AC-wlan-sec-prof-security] quit


    # Create a traffic profile named traffic.

    [AC-wlan-view] traffic-profile name traffic id 1
    [AC-wlan-traffic-prof-traffic] quit


    # Create a service set named test and bind the WLAN-ESS interface, security profile, and traffic profile to the service set.

    [AC-wlan-view] service-set name test id 1
    [AC-wlan-service-set-test] ssid test    //Set the SSID name to test.
    [AC-wlan-service-set-test] wlan-ess 1
    [AC-wlan-service-set-test] security-profile name security
    [AC-wlan-service-set-test] traffic-profile name traffic
    [AC-wlan-service-set-test] service-vlan 101    //Set the VLAN ID of the service set to 101. The default value is 1.
    [AC-wlan-service-set-test] forward-mode tunnel    //Set the forwarding mode to tunnel forwarding.
    [AC-wlan-service-set-test] quit


  8. Configure MAC address authentication on the WLAN-ESS interface.

    [AC-wlan-view] quit
    [AC] interface wlan-ess 1
    [AC-Wlan-Ess1] authentication mac-authen
    [AC-Wlan-Ess1] domain name huawei.com force
    [AC-Wlan-Ess1] permit-domain name huawei.com
    [AC-Wlan-Ess1] quit
    [AC] wlan


  9. Configure a VAP and deliver VAP parameters to the AP.

    # Configure a VAP.

    [AC-wlan-view] ap 0 radio 0
    [AC-wlan-radio-0/0] radio-profile name radio  //Bind the radio template to a radio.
    [AC-wlan-radio-0/0] service-set name test  //Bind the service set to the radio.
    [AC-wlan-radio-0/0] quit

    # Commit the configuration.

    [AC-wlan-view] commit ap 0
    Warning: Committing configuration may cause service interruption, continue?[Y/N]y

  10. Verify the configuration.

    • The WLAN with SSID test is available for STAs connected to the AP.
    • After the WLAN function is enabled on wireless devices, they can access the WLAN and provide public services.
    • After the STA connects to the WLAN, authentication is performed automatically. You can then directly access the WLAN.

Configuration Files

  • SwitchA configuration file

    #
    sysname SwitchA
    #
    vlan batch 100
    #
    interface GigabitEthernet0/0/1
     port link-type trunk
     port trunk pvid vlan 100
     port trunk allow-pass vlan 100
    #
    interface GigabitEthernet0/0/2
     port link-type trunk
     port trunk allow-pass vlan 100
    #
    return
  • Router configuration file

    #
    sysname Router
    #
    vlan batch 102
    #
    dhcp enable
    #
    ip pool sta
     gateway-list 10.10.10.1
     network 10.10.10.0 mask 255.255.255.0
    #
    interface Vlanif102
     ip address 10.11.10.1 255.255.255.0
     dhcp select global
    #
    interface GigabitEthernet2/0/0
     port link-type trunk
     port trunk allow-pass vlan 102
    #
    ip route-static 10.10.10.0 255.255.255.0 10.11.10.2
    #
    return

  • AC configuration file

    #
     sysname AC
    #
     vlan batch 100 to 103
    #
    wlan ac-global carrier id other ac id 1
    #
    dhcp enable
    #
    radius-server template radius_huawei
     radius-server authentication 10.12.10.1 1812 weight 80
     radius-server shared-key cipher %@%@hH67%f}f8X"AE&Pw`wS~{:;0%@%@
     undo radius-server user-name domain-included
    #
    aaa
     authentication-scheme radius_huawei
      authentication-mode radius
     domain huawei.com
      authentication-scheme radius_huawei
      radius-server radius_huawei
    #
    interface Vlanif100
     ip address 192.168.10.1 255.255.255.0
     dhcp select interface
    #
    interface Vlanif101
     ip address 10.10.10.1 255.255.255.0
     dhcp select relay
     dhcp relay server-ip 10.11.10.1
    #
    interface Vlanif102
     ip address 10.11.10.2 255.255.255.0
    #
    interface Vlanif103
     ip address 10.12.10.2 255.255.255.0
    #
    interface GigabitEthernet1/0/1
     port link-type trunk
     port trunk allow-pass vlan 100
    #
    interface GigabitEthernet1/0/2
     port link-type trunk
     port trunk allow-pass vlan 102
    #
    interface GigabitEthernet1/0/3
     port link-type trunk
     port trunk allow-pass vlan 103
    #
    interface WLAN-ESS1
     port trunk allow-pass vlan 101
     authentication mac-authen
     permit-domain name huawei.com
     domain name huawei.com force
    #
    wlan
     wlan ac source interface vlanif100
     ap-region id 10
     ap id 0 type-id 19 mac 60de-4476-e360 sn 210235419610CB002287
      region-id 10
     wmm-profile name wmm id 1
     traffic-profile name traffic id 1
     security-profile name security id 1
     service-set name test id 1
      forward-mode tunnel
      wlan-ess 1
      ssid test
      traffic-profile id 1
      security-profile id 1
      service-vlan 101
     radio-profile name radio id 1
      wmm-profile id 1
     ap 0 radio 0
      radio-profile id 1
      service-set id 1 wlan 1
    #
    return
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
