OSPF

Procedure

• Create OSPF.
  1. Choose Configuration > Advanced Services > IP Route > OSPF in the navigation tree to open the OSPF page. Click Create, as shown in Figure 1.
     Figure 1 OSPF configuration page



     Table 1 describes parameters on the page.

     Table 1 OSPF parameters

     Parameter	Description
     Process ID	Specifies an OSPF process ID.
     Router ID	Specifies a router ID.
     Always advertise the default route	Indicates whether the function of advertising default routes into common OSPF areas: ON OFF
     Import external routes	Imports the routes learned by other routing protocols: Direct route Static route

  2. Set the parameters. Click OK to complete the configuration.
  3. Click More Configurations at the right side of the OSPF List data to open the configuration page. Click Create, as shown in Figure 2.

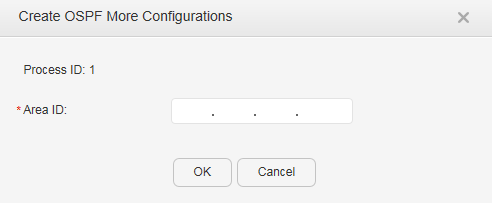

     Figure 2 More Configurations



  4. In the Area ID text box, enter an area ID in dotted decimal notation. Click OK.
• Modify OSPF.
  1. Choose Configuration > Advanced Services > IP Route > OSPF in the navigation tree to open the OSPF page.
  2. In OSPF List, click Modify at the right side of the appropriate data to open the Modify OSPF page, as shown in Figure 3.
     Figure 3 Modify OSPF



  3. Table 1 describes parameters on the page. Modify the parameters as required and then click OK.
• Delete OSPF.
  1. Choose Configuration > Advanced Services > IP Route > OSPF in the navigation tree to open the OSPF page.
  2. Select a data entry and click Delete. In the dialog box that is displayed, click OK.
• Update OSPF.
  1. Choose Configuration > Advanced Services > IP Route > OSPF in the navigation tree to open the OSPF page.
  2. Click Refresh to update the OSPF list.
