Roaming STA Quantity

Procedure

• View information about roaming STAs.

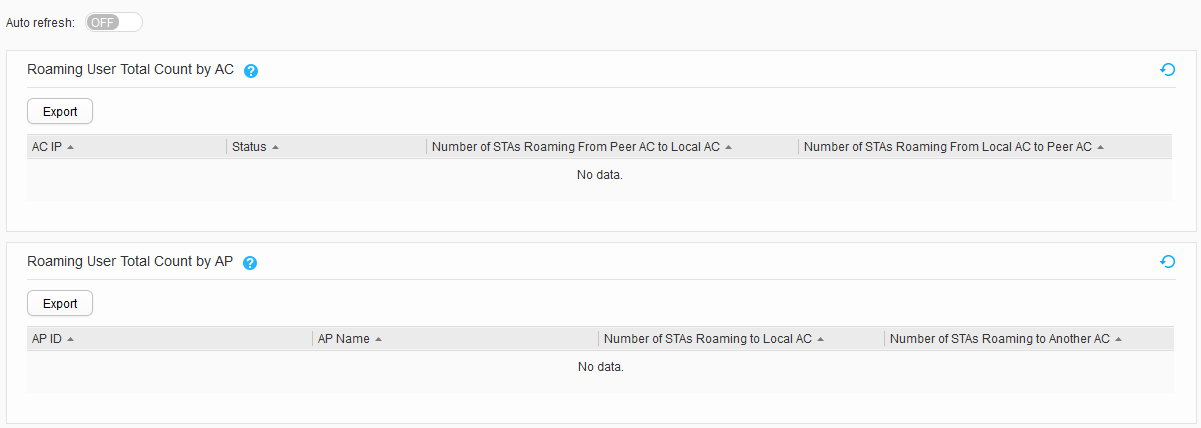

  1. Choose Monitoring > Wireless Service > AC > Roaming STA Quantity. The Roaming STA Quantity page is displayed.





  2. View information in the Roaming User Total Count by AC and Roaming User Total Count by AP areas.

     Table 1 Parameters in the roaming STA quantity statistics collected by the AC

     Item	Description
     AC IP	IP address of the peer AC.
     Status	Link status of a mobility group member.
     Number of STAs Roaming From Peer AC to Local AC	Number of STAs roaming from the peer AC to the local AC.
     Number of STAs Roaming From Local AC to Peer AC	Number of STAs roaming from the local AC to the peer AC.

     Table 2 Parameters in the roaming STA quantity statistics collected by the AP

     Item	Description
     AP ID	AP ID.
     AP Name	AP name.
     Number of STAs Roaming to Local AC	Number of STAs roaming from the peer AP to the local AP.
     Number of STAs Roaming to Another AC	Number of STAs roaming from the local AP to the peer AP.

• Export information about the roaming STAs.

  On the Roaming STA Quantity page, click Export to export information about the roaming STAs.
