Example for Configuring Static Multicast for IPoE Access Users

This section provides an example for configuring static multicast for IPoE access users. The example provides the networking requirements, configuration roadmap, configuration procedure, and configuration files.

Networking Requirements

On the network shown in Figure 1, PC 1 and PC 2 belong to the domain named ipv4, and they support the IPoE access mode. Configure static multicast to meet the following requirements:

PC 1 and PC 2 can access the network through GE 0/1/0 on the BRAS in IPoE mode.
The BRAS does not authenticate or perform accounting for PC 1 and PC 2.
- Authentication scheme: RADIUS or none
- Accounting scheme: RADIUS or none
PC 1 and PC 2 can receive traffic of the multicast groups 225.1.1.1 and 227.1.1.1.
The BRAS uses GE 0/1/0 to communicate with the access network device and uses GE 0/1/1 and GE 0/1/2 to communicate with the PIM-SM devices.

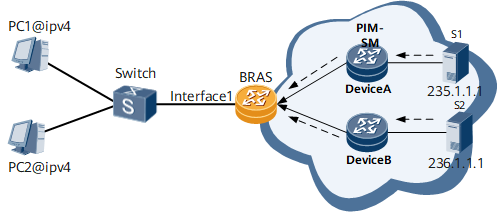

Figure 1 Configuring static multicast for IPoE access users

Interface 1 in this example is GE 0/1/0.

Configuration Roadmap

The configuration roadmap is as follows:

Configure an IPv4 address pool.
Configure AAA schemes.
Configure an AAA domain.
Configure the IPoE user access service:
1. Configure an authentication scheme.
2. Configure a BAS interface and specify a user access type for the interface.
Enable multicast traffic replication by session on the BAS interface.
Configure basic multicast functions:
1. Enable multicast routing.
2. Enable PIM-SM on all interfaces of the BRAS.
3. Enable IGMP on the BRAS interface connected to users.
Configure static multicast:
1. Configure multicast program lists in the AAA view.
2. Configure a multicast profile in the AAA view.
3. Bind the multicast profile to the AAA domain.

Data Preparation

IPv4 address pool name, address range, and gateway address
Authentication and accounting schemes
Name of the domain to which users belong
BAS interface parameters

Procedure

Configure an IPv4 address pool.

<HUAWEI> system-view
[~HUAWEI] sysname BRAS
[*HUAWEI] commit
[~BRAS] ip pool huawei bas local
[~BRAS-ip-pool-ipv4] gateway 10.0.0.1 255.255.0.0
[~BRAS-ip-pool-ipv4] section 1 10.0.0.1 10.0.255.255
[~BRAS-ip-pool-ipv4] quit

Configure AAA schemes.

# Configure an authentication scheme.

[~BRAS] aaa
[~BRAS-aaa] authentication-scheme none
[*BRAS-aaa-authen-none] authentication-mode none
[*BRAS-aaa-authen-none] commit
[~BRAS-aaa-authen-none] quit

# Configure an accounting scheme.

[~BRAS-aaa] accounting-scheme none
[*BRAS-aaa-accounting-none] accounting-mode none
[*BRAS-aaa-accounting-none] commit
[~BRAS-aaa-accounting-none] quit
[~BRAS-aaa] quit

Configure an AAA domain.

[~BRAS] aaa
[~BRAS-aaa] domain ipv4
[*BRAS-aaa-domain-ipv4] commit
[~BRAS-aaa-domain-ipv4] authentication-scheme none
[*BRAS-aaa-domain-ipv4] accounting-scheme none
[*BRAS-aaa-domain-ipv4] commit
[~BRAS-aaa-domain-ipv4] ip-pool ipv4
[~BRAS-aaa-domain-ipv4] quit
[~BRAS-aaa] quit

Configure a BAS interface, specify a user access type for the interface, and configure an authentication scheme.

[~BRAS-GigabitEthernet0/1/0] bas
[~BRAS-GigabitEthernet0/1/0-bas] access-type layer2-subscriber default-domain authentication ipv4
[~BRAS-GigabitEthernet0/1/0-bas] authentication-method bind
[~BRAS-GigabitEthernet0/1/0-bas] quit

Enable multicast traffic replication by session on the BAS interface.

[~BRAS-GigabitEthernet0/1/0] bas
[*BRAS-GigabitEthernet0/1/0-bas] multicast copy by-session
[*BRAS-GigabitEthernet0/1/0-bas] commit
[~BRAS-GigabitEthernet0/1/0-bas] quit
[~BRAS-GigabitEthernet0/1/0] quit

Configure basic multicast functions.

[~BRAS] multicast routing-enable
[*BRAS] interface gigabitethernet 0/1/1
[*BRAS-GigabitEthernet0/1/1] ip address 10.1.1.1 255.255.255.0
[*BRAS-GigabitEthernet0/1/1] pim sm
[*BRAS-GigabitEthernet0/1/1] quit
[*BRAS] interface GigabitEthernet 0/1/2
[*BRAS-GigabitEthernet0/1/2] ip address 10.1.2.1 255.255.255.0
[*BRAS-GigabitEthernet0/1/2] pim sm
[*BRAS-GigabitEthernet0/1/2] quit
[*BRAS] commit
[~BRAS] interface gigabitethernet 0/1/0
[~BRAS-GigabitEthernet0/1/0] pim sm
[*BRAS-GigabitEthernet0/1/0] igmp enable
[*BRAS-GigabitEthernet0/1/0] quit
[*BRAS] commit

Configure multicast.

# Configure multicast program lists.

[~BRAS] aaa
[~BRAS-aaa] multicast-list  list1 group-address 225.1.1.1
[~BRAS-aaa] multicast-list  list2 group-address 227.1.1.1

# Configure a multicast profile.

[~BRAS-aaa] multicast-profile profile1
[~BRAS-aaa-mprofile-profile1] multicast-list name list1 static
[~BRAS-aaa-mprofile-profile1] multicast-list name list2 static
[~BRAS-aaa-mprofile-profile1] quit

# Bind the multicast profile to the AAA domain.

[~BRAS-aaa] domain ipv4
[~BRAS-aaa-domain-ipv4] multicast-profile profile1
[~BRAS-aaa-domain-ipv4] quit
[~BRAS-aaa] quit

Verify the configuration.

# Run the display multicast-profile command to check information about a specified or all multicast profiles.

# Check information about all multicast profiles.

[~BRAS] display multicast-profile
---------------------------------------------------------------------
Index      Multicast-profile-name                 IfAuthentic
---------------------------------------------------------------------
    0      profile1                               Yes
---------------------------------------------------------------------
Total: 1

# Check multicast program lists bound to a specified multicast profile.

[~BRAS] display multicast-profile profile1
 Profile-name                   : profile1
 If-authentic                   : Yes
 Static multicast-list-name     : list1
 Static multicast-list-name     : list2

# Run the display multicast-list command to check information about a specified or all multicast program lists.

# Check information about all multicast program lists.

[~BRAS] display multicast-list
Total: 2
---------------------------------------------------------------------
Multicast-list  name  : list1
Index                 : 0
Source IP/mask        : 255.255.255.255/32
Group IP/mask         : 225.1.1.1/32
Group vpn-instance    : --
Multicast-list name   : list2
Index                 : 1
Source IP/mask        : 255.255.255.255/32
Group IP/mask         : 227.1.1.1/32
Group vpn-instance    : --
---------------------------------------------------------------------

# Check information about a specified program list.

[~BRAS] display multicast-list list1
Total: 1
---------------------------------------------------------------------
Multicast-list  name  : list1
Index                 : 0
Source IP/mask        : 255.255.255.255/32
Group IP/mask         : 225.1.1.1/32
Group vpn-instance    : --
---------------------------------------------------------------------

# Have users go online, and then run the display access-user command to check whether user information.

[~BRAS] display access-user username PC1@ipv4
--------------------------------------------------------------------------

 UserID     Username               Interface      IP address       MAC
            Vlan                   IPv6 address   Access type
--------------------------------------------------------------------------
 1          PC1@ipv4               GE0/1/0           10.0.0.1     00-e0-fc-12-34-56
               -/-                  -               IPOE
 --------------------------------------------------------------------------
 Normal users                       : 1
 RUI Local users                    : 0
 RUI Remote users                   : 0
 Total users                        : 1
[~BRAS] display access-user username PC2@ipv4
--------------------------------------------------------------------------

 UserID    Username               Interface      IP address       MAC
           Vlan                  IPv6 address   Access type
--------------------------------------------------------------------------
 2         PC2@ipv4               GE0/1/0           10.0.0.2        00-e0-fc-22-34-56
               -/-                 -               IPOE
--------------------------------------------------------------------------
 Normal users                       : 1
 RUI Local users                    : 0
 RUI Remote users                   : 0
 Total users                        : 1

# Run the display multicast user-id command to check the multicast group that a specified user has joined.

[~BRAS] display multicast user-id 1
User information:
User ID             :1
User IPv4 address   :10.0.0.1
Gateway IPv4 address:10.0.0.1
BRAS interface      :GigabitEthernet0/1/0
User MAC-address    :00-e0-fc-12-34-56
MAX program list    :4

User static program:
Group IP           Source IP          Flag
225.1.1.1          0.0.0.0            Active
227.1.1.1          0.0.0.0            Active

Total:2
[~BRAS] display multicast user-id 2
User information:
User ID             :2
User IPv4 address   :10.0.0.2
Gateway IPv4 address:10.0.0.1
BRAS interface      :GigabitEthernet0/1/0
User MAC-address    :00-e0-fc-22-34-56
MAX program list    :4

User static program:
Group IP           Source IP          Flag
225.1.1.1          0.0.0.0            Active
227.1.1.1          0.0.0.0            Active

Total:2

Configuration Files

#
sysname BRAS
#
multicast routing-enable
#
ip pool huawei bas local
 gateway 10.0.0.1 255.255.0.0
 section 1 10.0.0.1 10.0.255.255
#
aaa
 multicast-list  list1 index 0 group-address 225.1.1.1
 multicast-list list1 index 1 group-address 227.1.1.1
 multicast-profile profile1
 multicast-list list-index 0 1 static
#
 authentication-scheme none
  authentication-mode none
#
 accounting-scheme none
  accounting-mode none
#
 domain ipv4
  authentication-scheme none
  accounting-scheme none
  ip-pool ipv4
  multicast-profile profile1
#
interface GigabitEthernet0/1/1
 ip address 10.1.1.1 255.255.255.0
 pim sm
#
interface GigabitEthernet0/1/2
 ip address 10.1.2.1 255.255.255.0
 pim sm
#
interface GigabitEthernet0/1/0
 pim sm
 igmp enable
 bas
 #
  access-type layer2-subscriber default-domain authentication ipv4
  authentication-method bind
  multicast copy by-session
 #
#
return
