Example for Assigning IPv4 Addresses from a Local Address Pool
This section provides an example for assigning IPv4 addresses from a local IP address pool.
Networking Requirements

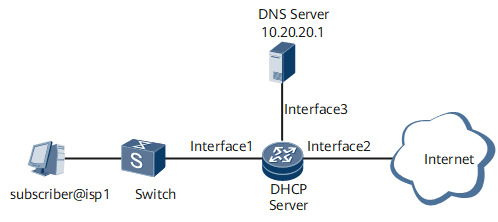

As shown in Figure 1, a local address pool needs to be configured to assign IP addresses to access users. The requirements are as follows:
The local address pool is used to assign IP addresses to users in the domain isp1.
The IP addresses in the address pool range from 10.10.10.3 to 10.10.10.100, and the gateway address is 10.10.10.2.
The IP address of the DNS server is 10.20.20.1.
The IP address of the interface GE0/1/16 which is connected to the DNS server is 10.20.20.2.
Non-authentication and non-accounting are adopted by the user.
Configuration Roadmap
Access users include IPoE users and PPPoE users. The address assignment for the two types of users differs in the access mode. This section describes only the IPv4 address pool configurations. For details about the IPoE access configuration, see Example for Configuring the Common IPoE Access Service.
The configuration roadmap is as follows:
Configure a local address pool, including its gateway address, address range, and the IP address of the DNS server.
Configure a domain named isp1 to which the users belong, including the authentication mode and the accounting mode.
Configure a BAS interface, including the user access mode.
Data Preparation
To complete the configuration, you need the following data:
Name of the address pool, range of the addresses in the pool, and IP addresses of the gateway and DNS server
Name of the user domain
Authentication mode and accounting mode
Procedure
- Configure the DHCPv4 server.
# Configure an address pool.
<HUAWEI> system-view [~HUAWEI] ip pool pool1 bas local [*HUAWEI-ip-pool-pool1] gateway 10.10.10.2 255.255.255.0 [*HUAWEI-ip-pool-pool1] section 0 10.10.10.3 10.10.10.100 [*HUAWEI-ip-pool-pool1] dns-server 10.20.20.1 [*HUAWEI-ip-pool-pool1] commit [~HUAWEI-ip-pool-pool1] quit
# Configure an authentication mode in the authentication template view.
[~HUAWEI] aaa [~HUAWEI-aaa] authentication-scheme clcl [*HUAWEI-aaa-authen-clcl] authentication-mode none [*HUAWEI-aaa-authen-clcl] commit [~HUAWEI-aaa-authen-clcl] quit
# Configure an accounting mode in the accounting template view.
[~HUAWEI-aaa] accounting-scheme ccll [*HUAWEI-aaa-accounting-ccll] accounting-mode none [*HUAWEI-aaa-accounting-ccll] commit [~HUAWEI-aaa-accounting-ccll] quit
# Configure a domain named isp1.
[~HUAWEI-aaa] domain isp1 [*HUAWEI-aaa-domain-isp1] authentication-scheme clcl [*HUAWEI-aaa-domain-isp1] accounting-scheme ccll [*HUAWEI-aaa-domain-isp1] commit [~HUAWEI-aaa-domain-isp1] ip-pool pool1 [~HUAWEI-aaa-domain-isp1] quit [~HUAWEI-aaa] quit
# Configure a BAS interface.
[~HUAWEI] interface GigabitEthernet 0/1/0.1 [*HUAWEI-GigabitEthernet0/1/0.1] commit [~HUAWEI-GigabitEthernet0/1/0.1] user-vlan 1 [~HUAWEI-GigabitEthernet0/1/0.1-vlan-1-1] bas [~HUAWEI-GigabitEthernet0/1/0.1-bas] access-type layer2-subscriber [~HUAWEI-GigabitEthernet0/1/0.1-bas] authentication-method bind [~HUAWEI-GigabitEthernet0/1/0.1-bas] default-domain authentication isp1 [*HUAWEI-GigabitEthernet0/1/0.1-bas] commit [~HUAWEI-GigabitEthernet0/1/0.1-bas] quit [~HUAWEI-GigabitEthernet0/1/0.1] quit
# Configure the IP address of GE 0/1/16, which is connected to the DNS server.[~HUAWEI] interface GigabitEthernet 0/1/16 [~HUAWEI-GigabitEthernet0/1/16] ip address 10.20.20.2 255.255.255.0 [*HUAWEI-GigabitEthernet0/1/16] commit [~HUAWEI-GigabitEthernet0/1/16] quit
- Verify the configuration.
# Check the configurations of the local address pool pool1.
[~HUAWEI] display ip pool name pool1 Pool-Name : pool1 Pool-No : 19 Pool-constant-index :- Lease : 3 Days 0 Hours 0 Minutes NetBois Type : N-Node DNS-Suffix : -, DNS1 :10.20.20.1 Position : Local Status : Unlocked Gateway : 10.10.10.2 Mask : 255.255.255.0 Vpn instance : -- Profile-Name : - Server-Name : - Codes: CFLCT (conflicted) --------------------------------------------------------------------------------------- ID start end total used idle CFLCT disable reserved static-bind --------------------------------------------------------------------------------------- 0 10.10.10.3 10.10.10.100 98 0 98 0 0 0 0 ---------------------------------------------------------------------------------------
# Check the configurations of the domain isp1.
[~HUAWEI] display domain isp1 ------------------------------------------------------------------------------ Domain-name : isp1 Domain-state : Active Authentication-scheme-name : default0 Accounting-scheme-name : default0 Authorization-scheme-name : Primary-DNS-IP-address : - Second-DNS-IP-address : - Web-server-URL-parameter : No Portal-server-URL-parameter : No Primary-NBNS-IP-address : - Second-NBNS-IP-address : - User-group-name : - Idle-data-attribute (time, flow) : 0,60 Install-BOD-Count : 0 Report-VSM-User-Count : 0 Value-added-service : default User-access-limit : 279552 Online-number : 0 Web-IP-address : - Web-URL : - Portal-server-IP : - Portal-URL : - Portal-force-times : 2 PPPoE-user-URL : Disable IPUser-ReAuth-Time (second) : 300 mscg-name-portal-key : - Portal-user-first-url-key : - Ancp auto qos adapt : Disable Service-type : STB RADIUS-server-template : - Two-acct-template : - HWTACACS-server-template : - Bill Flow : Disable Tunnel-acct-2867 : Disabled Flow Statistic: Flow-Statistic-Up : Yes Flow-Statistic-Down : Yes Source-IP-route : Disable IP-warning-threshold : - Multicast Forwarding : Yes Multicast Virtual : No Max-multilist num : 4 Multicast-profile : - IP-address-pool-name : pool1 Quota-out : Offline ------------------------------------------------------------------------------
Configuration Files
- Configuration file
# sysname HUAWEI # ip pool pool1 bas local gateway 10.10.10.2 255.255.255.0 section 0 10.10.10.3 10.10.10.100 dns-server 10.20.20.1 # aaa authentication-scheme clcl authentication-mode none authorization-scheme default # accounting-scheme ccll accounting-mode none # domain isp1 authentication-scheme clcl accounting-scheme ccll ip-pool pool1 # interface GigabitEthernet0/1/0.1 statistic enable user-vlan 1 bas # access-type layer2-subscriber default-domain authentication isp1 authentication-method bind # interface GigabitEthernet0/1/16 undo shutdown ip address 10.20.20.2 255.255.255.0 # return
