Example for Assigning Addresses from a Remote Address Pool
This section provides an example for assigning IPv4 addresses from a remote IP address pool.
Networking Requirements

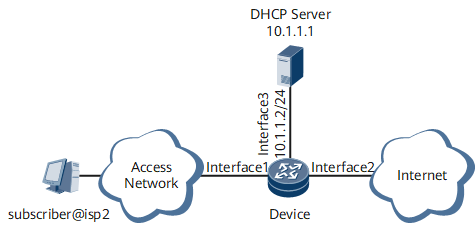

As shown in Figure 1, a remote address pool needs to be configured to assign IP addresses to access users. The requirements are as follows:
The remote address pool is used to assign IP addresses to users in the domain isp2.
The router functioning as a relay agent connects to the DHCPv4 server through GE 0/1/16 whose IP address is 10.1.1.2/24.
The IP address of the DHCPv4 server bound to the remote address pool is 10.1.1.1, and no backup DHCPv4 server is deployed.
Non-authentication and non-accounting are adopted by the user.
Configuration Roadmap
The configuration roadmap is as follows:
Create a DHCPv4 server group and a remote address pool, and bind the address pool to the DHCPv4 server group.
Configure the domain isp2 to which the user belongs, including the authentication mode and the accounting mode.
Configure the BAS interface, including the user access mode.
Data Preparation
To complete the configuration, you need the following data:
Name of the address pool
IP address of the gateway
Name of the user domain
IP address of the interface that connects the router to the DHCPv4 server
User access mode
Procedure
- Configure the router.
# Create a DHCPv4 server group.
<HUAWEI> system-view [~HUAWEI] dhcp-server group group1 [*HUAWEI-dhcp-server-group-group1] dhcp-server 10.1.1.1 [*HUAWEI-dhcp-server-group-group1] commit [~HUAWEI-dhcp-server-group-group1] quit
# Create a remote address pool, and bind the pool to the DHCPv4 server group.
[~HUAWEI] ip pool pool2 bas remote [~HUAWEI-ip-pool-pool2] gateway 10.10.10.1 24 [~HUAWEI-ip-pool-pool2] dhcp-server group group1 [*HUAWEI-ip-pool-pool2] commit [~HUAWEI] quit
# Configure a domain named isp2.
[~HUAWEI] aaa [~HUAWEI-aaa] domain isp2 [*HUAWEI-aaa-domain-isp2] authentication-scheme default0 [*HUAWEI-aaa-domain-isp2] accounting-scheme default0 [*HUAWEI-aaa-domain-isp2] commit [~HUAWEI-aaa-domain-isp2] ip-pool pool2 [*HUAWEI-aaa-domain-isp2] commit [~HUAWEI-aaa-domain-isp2] quit [~HUAWEI-aaa] quit
# Configure the router interface for user access.
[~HUAWEI] interface GigabitEthernet 0/1/0.1 [*HUAWEI-GigabitEthernet0/1/0.1] commit [~HUAWEI-GigabitEthernet0/1/0.1] user-vlan 1 [~HUAWEI-GigabitEthernet0/1/0.1-vlan-1-1] bas [~HUAWEI-GigabitEthernet0/1/0.1-bas] access-type layer2-subscriber [~HUAWEI-GigabitEthernet0/1/0.1-bas] authentication-method bind [~HUAWEI-GigabitEthernet0/1/0.1-bas] default-domain authentication isp2 [*HUAWEI-GigabitEthernet0/1/0.1-bas] commit [~HUAWEI-GigabitEthernet0/1/0.1-bas] quit [~HUAWEI-GigabitEthernet0/1/0.1] quit
# Configure the router interface used to connect to the DHCPv4 server.
[~HUAWEI] interface GigabitEthernet 0/1/16 [~HUAWEI-GigabitEthernet0/1/16] ip address 10.1.1.2 255.255.255.0 [*HUAWEI-GigabitEthernet0/1/16] commit [~HUAWEI-GigabitEthernet0/1/16] quit
- Verify the configuration.
# Check the configurations of the DHCPv4 server group group1.
[~HUAWEI] display dhcp-server group group1 Group-Name : group1 Release-Agent : Support Primary-Server : 10.1.1.1 Vpn instance : -- Weight : 0 Status : up Secondary-Server : -- Vpn instance : -- Weight : 0 Status : - Algorithm : master-backup Source : -- Giaddr : --
# Check the configurations of the remote address pool pool2.
[~HUAWEI] display ip pool name pool2 Pool-Name : pool2 Pool-No : 0 Pool-constant-index :- DHCP-Group : group1 Position : Remote Status : Unlocked Gateway : 10.10.10.1 Mask : 255.255.255.0 Vpn instance : -- Profile-Name : - Server-Name : - Codes: CFLCT (conflicted) --------------------------------------------------------------------------------------- ID start end total used idle CFLCT disable reserved static-bind --------------------------------------------------------------------------------------- 0 10.10.10.0 10.10.10.255 256 0 256 0 0 0 0 ---------------------------------------------------------------------------------------
# Check the configurations of the domain isp2.
[~HUAWEI] display domain isp2 ------------------------------------------------------------------------------ Domain-name : isp2 Domain-state : Active Authentication-scheme-name : default0 Accounting-scheme-name : default0 Authorization-scheme-name : Primary-DNS-IP-address : - Second-DNS-IP-address : - Primary-NBNS-IP-address : - Second-NBNS-IP-address : - User-group-name : - Idle-data-attribute (time,flow) : 0, 60 Install-BOD-Count : 0 Report-VSM-User-Count : 0 Value-added-service : default User-access-limit : 279552 Online-number : 0 Web-IP-address : - Web-URL : - Portal-server-IP : - Portal-URL : - Portal-force-times : 2 PPPoE-user-URL : Disable IPUser-ReAuth-Time(second) : 300 Ancp auto qos adapt : Disable RADIUS-server-template : - Two-acct-template : - HWTACACS-server-template : - Bill Flow : Disable Tunnel-acct-2867 : Disabled Flow Statistic: Flow-Statistic-Up : Yes Flow-Statistic-Down : Yes Source-IP-route : Disable IP-warning-threshold : - Multicast Forwarding : Yes Multicast Virtual : No Max-multilist num : 4 Multicast-profile : - IP-address-pool-name : pool2 Quota-out : Offline ------------------------------------------------------------------------------
Configuration Files
- Configuration file
# sysname HUAWEI # ip pool pool2 bas remote gateway 10.10.10.1 255.255.255.0 dhcp-server group group1 # dhcp-server group group1 dhcp-server 10.1.1.1 # aaa authentication-scheme default0 authorization-scheme default # accounting-scheme default0 # domain isp2 authentication-scheme default0 accounting-scheme default0 ip-pool pool2 # interface GigabitEthernet0/1/0.1 statistic enable user-vlan 1 bas # access-type layer2-subscriber default-domain authentication isp2 authentication-method bind # interface GigabitEthernet0/1/16 undo shutdown ip address 10.1.1.2 255.255.255.0 # return
