Example for Configuring an Inter-AS Seamless MPLS NG MVPN Option B

This example describes how to configure inter-AS seamless MPLS NG MVPN in Option B mode to implement E2E service connectivity, when the devices are in different ASs.

Networking Requirements

As shown in the Figure 1, the PEs, ABR and ASBRs are in different ASs. To implement the connectivity between PEs and provides multicast service with MVPN, you can implement the inter-AS seamless MPLS NG MVPN.

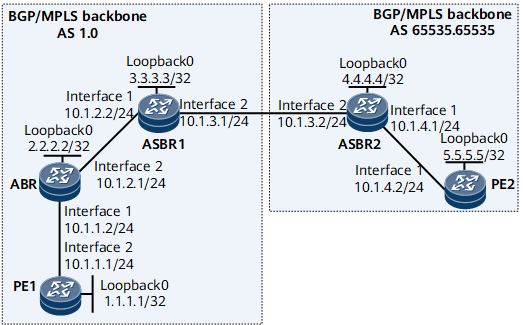

Figure 1 Inter-AS Seamless MPLS NG MVPN Option B

In this example, interface 1 and interface 2 represent GE 0/1/1 and GE 0/1/2, respectively.


Configuration Roadmap

The configuration roadmap is as follows:

  1. Configure IGP protocols at each network to implement network connectivity at each network.

  2. Set up an MPLS LDP LSP in each network.

  3. Establish IBGP peer relationships at each AS and enable devices to exchange labeled routes.

  4. Configure an EBGP peer relationship between ASBRs and enable these devices to exchange labeled routes across ASs.

  5. Configure ABR as an RR.

  6. Configure a routing policy to control label distribution for a BGP LSP to be established on each device. The egress of the BGP LSP to be established needs to assign an MPLS label to the route advertised to an upstream node. If a transit node receives a labeled IPv4 route from downstream, the downstream node must re-assign an MPLS label to the transit node.

  7. Configure BGP peers.

  8. Configure a P2MP LSP to carry multicast traffic.

Data Preparation

To complete the configuration, you need the following data:

  • MPLS LSR IDs of the devices (1.1.1.1, 2.2.2.2, 3.3.3.3, 4.4.4.4, and 5.5.5.5)

  • Route policy configured on each device (policy1)

Procedure

  1. Configure an IP address for each interface.

    Assign an IP address and its mask to every physical interface; configure a loopback interface address as an LSR ID on every device shown in Figure 1; configure OSPF and IS-IS to advertise the route to the network segment of each interface and a host route to each loopback interface address (LSR ID). For configuration details, see Configuration Files in this section.

  2. Enable MPLS and LDP globally on each device.

    # Configure PE1.

    [~PE1] mpls lsr-id 1.1.1.1
[*PE1] mpls
[*PE1-mpls] quit
[*PE1] mpls ldp
[*PE1-mpls-ldp] quit
[*PE1] interface GigabitEthernet0/1/2
[*PE1-GigabitEthernet0/1/2] mpls
[*PE1-GigabitEthernet0/1/2] mpls ldp
[*PE1-GigabitEthernet0/1/2] quit
[*PE1] commit

    # Configure ABR.

    <ABR> system-view
[~ABR] mpls lsr-id 2.2.2.2
[*ABR] mpls
[*ABR-mpls] quit
[*ABR] mpls ldp
[*ABR-mpls-ldp] quit
[*ABR] interface GigabitEthernet0/1/2
[*ABR-GigabitEthernet0/1/2] mpls
[*ABR-GigabitEthernet0/1/2] mpls ldp
[*ABR-GigabitEthernet0/1/2] quit
[*ABR] interface GigabitEthernet0/1/1
[*ABR-GigabitEthernet0/1/1] mpls
[*ABR-GigabitEthernet0/1/1] mpls ldp
[*ABR-GigabitEthernet0/1/1] quit
[*ABR] commit

    # Configure ASBR1.

    [~ASBR1] mpls lsr-id 3.3.3.3
[*ASBR1] mpls
[*ASBR1-mpls] quit
[*ASBR1] mpls ldp
[*ASBR1-mpls-ldp] quit
[*ASBR1] interface GigabitEthernet0/1/1
[*ASBR1-GigabitEthernet0/1/1] mpls
[*ASBR1-GigabitEthernet0/1/1] mpls ldp
[*ASBR1-GigabitEthernet0/1/1] quit
[*ASBR1] interface GigabitEthernet0/1/2
[*ASBR1-GigabitEthernet0/1/2] mpls
[*ASBR1-GigabitEthernet0/1/2] mpls ldp
[*ASBR1-GigabitEthernet0/1/2] quit
[*ASBR1] commit

    # Configure ASBR2.

    [~ASBR2] mpls lsr-id 4.4.4.4
[*ASBR2] mpls
[*ASBR2-mpls] quit
[*ASBR2] mpls ldp
[*ASBR2-mpls-ldp] quit
[*ASBR2] interface GigabitEthernet0/1/1
[*ASBR2-GigabitEthernet0/1/1] mpls
[*ASBR2-GigabitEthernet0/1/1] mpls ldp
[*ASBR2-GigabitEthernet0/1/1] quit
[*ABR] interface GigabitEthernet0/1/2
[*ABR-GigabitEthernet0/1/2] mpls
[*ABR-GigabitEthernet0/1/2] mpls ldp
[*ABR-GigabitEthernet0/1/2] quit
[*ASBR2] commit

    # Configure PE2.

    [~PE2] mpls lsr-id 5.5.5.5
[*PE2] mpls
[*PE2-mpls] quit
[*PE2] mpls ldp
[*PE2-mpls-ldp] quit
[*PE2] interface GigabitEthernet0/1/1
[*PE2-GigabitEthernet0/1/1] mpls
[*PE2-GigabitEthernet0/1/1] mpls ldp
[*PE2-GigabitEthernet0/1/1] quit
[*PE2] commit

  3. Configure automatic mLDP P2MP tunnel.

    # Configure PE1.

    [~PE1] mpls ldp
[~PE1-mpls-ldp] mldp p2mp
[*PE1-mpls-ldp] mldp recursive-fec
[*PE1-mpls-ldp] commit
[~PE1-mpls-ldp] quit

    The configuration of PE2 is similar to the configuration of PE1. For configuration details, see Configuration Files in this section.

    # Configure ABR.

    [~ABR] mpls ldp
[~ABR-mpls-ldp] mldp p2mp
[*ABR-mpls-ldp] mldp recursive-fec
[*ABR-mpls-ldp] commit
[~ABR-mpls-ldp] quit

    # Configure ASBR1.

    [~ASBR1] mpls ldp
[~ASBR1-mpls-ldp] mldp p2mp
[*ASBR1-mpls-ldp] mldp recursive-fec
[*ASBR1-mpls-ldp] commit
[~ASBR1-mpls-ldp] quit

    The configuration of ASBR2 is similar to the configuration of ASBR1. For configuration details, see Configuration Files in this section.

  4. Establish IBGP peer relationships at each AS, establish EBGP peer relationships between ASBRs in different ASs, and enable these devices to exchange labeled routes.

    # Configure PE1.

    [~PE1] bgp 1.0
[*PE1-bgp] peer 2.2.2.2 as-number 1.0
[*PE1-bgp] peer 2.2.2.2 connect-interface LoopBack 0
[*PE1-bgp] ipv4-family unicast
[*PE1-bgp-af-ipv4] undo synchronization
[*PE1-bgp-af-ipv4] peer 2.2.2.2 label-route-capability
[*PE1-bgp-af-ipv4] peer 2.2.2.2 enable
[*PE1-bgp-af-ipv4] network 1.1.1.1 32
[*PE1-bgp-af-ipv4] quit
[*PE1-bgp] ipv4-family mvpn
[*PE1-bgp-af-mvpn] policy vpn-target
[*PE1-bgp-af-mvpn] peer 2.2.2.2 enable
[*PE1-bgp-af-mvpn] quit
[*PE1-bgp] ipv4-family vpnv4
[*PE1-bgp-af-vpnv4] policy vpn-target
[*PE1-bgp-af-vpnv4] peer 2.2.2.2 enable
[*PE1-bgp-af-vpnv4] quit
[*PE1-bgp] quit
[*PE1] commit

    # Configure ABR.

    [~ABR] bgp 1.0
[*ABR-bgp] peer 1.1.1.1 as-number 1.0
[*ABR-bgp] peer 1.1.1.1 connect-interface LoopBack 1
[*ABR-bgp] peer 3.3.3.3 as-number 1.0
[*ABR-bgp] peer 3.3.3.3 connect-interface LoopBack 1
[*ABR-bgp] ipv4-family unicast
[*ABR-bgp-af-ipv4] undo synchronization
[*ABR-bgp-af-ipv4] peer 1.1.1.1 enable
[*ABR-bgp-af-ipv4] peer 1.1.1.1 label-route-capability
[*ABR-bgp-af-ipv4] peer 3.3.3.3 enable
[*ABR-bgp-af-ipv4] peer 3.3.3.3 label-route-capability
[*ABR-bgp-af-ipv4] quit
[*ABR-bgp] ipv4-family mvpn
[*ABR-bgp-af-mvpn] undo policy vpn-target
[*ABR-bgp-af-mvpn] peer 1.1.1.1 enable
[*ABR-bgp-af-mvpn] peer 3.3.3.3 enable
[*ABR-bgp-af-mvpn] quit
[*ABR-bgp] ipv4-family vpnv4
[*ABR-bgp-af-vpnv4] undo policy vpn-target
[*ABR-bgp-af-vpnv4] peer 1.1.1.1 enable
[*ABR-bgp-af-vpnv4] peer 3.3.3.3 enable
[*ABR-bgp-af-vpnv4] quit
[*ABR-bgp] quit
[*ABR] commit

    # Configure ASBR1.

    <ASBR1> system-view
[~ASBR1] bgp 1.0
[*ASBR1-bgp] peer 2.2.2.2 as-number 1.0
[~ASBR1-bgp] peer 10.1.3.2 as-number 65535.65535
[*ASBR1-bgp] peer 2.2.2.2 connect-interface LoopBack 0
[*ASBR1-bgp] ipv4-family unicast
[*ASBR1-bgp-af-ipv4] undo synchronization
[*ASBR1-bgp-af-ipv4] peer 2.2.2.2 enable
[*ASBR1-bgp-af-ipv4] network 3.3.3.3 32
[*ASBR1-bgp-af-ipv4] peer 2.2.2.2 label-route-capability
[*ASBR1-bgp-af-ipv4] quit
[*ASBR1-bgp] ipv4-family mvpn
[*ASBR1-bgp-af-mvpn] undo policy vpn-target
[*ASBR1-bgp-af-mvpn] peer 10.1.3.2 enable
[*ASBR1-bgp-af-mvpn] peer 2.2.2.2 enable
[*ASBR1-bgp-af-mvpn] quit
[*ASBR1-bgp] ipv4-family vpnv4
[*ASBR1-bgp-af-vpnv4] undo policy vpn-target
[*ASBR1-bgp-af-vpnv4] peer 10.1.3.2 enable
[*ASBR1-bgp-af-vpnv4] peer 2.2.2.2 enable
[*ASBR1-bgp-af-vpnv4] quit
[*ASBR1-bgp] quit
[*ASBR1] commit

    # Configure ASBR2.

    <ASBR2> system-view
[~ASBR2] bgp 65535.65535
[*ASBR2-bgp] peer 5.5.5.5 as-number 65535.65535
[*ASBR2-bgp] peer 10.1.3.1 as-number 1.0
[*ASBR2-bgp] peer 5.5.5.5 connect-interface LoopBack 0
[*ASBR2-bgp] ipv4-family unicast
[*ASBR2-bgp-af-ipv4] undo synchronization
[*ASBR2-bgp-af-ipv4] peer 10.1.3.1 enable
[*ASBR2-bgp-af-ipv4] peer 5.5.5.5 enable
[*ASBR2-bgp-af-ipv4] quit
[*ASBR2-bgp] ipv4-family mvpn
[*ASBR2-bgp-af-mvpn] undo policy vpn-target
[*ASBR2-bgp-af-mvpn] peer 10.1.3.1 enable
[*ASBR2-bgp-af-mvpn] peer 5.5.5.5 enable
[*ASBR2-bgp-af-mvpn] quit
[*ASBR2-bgp] ipv4-family vpnv4
[*ASBR2-bgp-af-vpnv4] undo policy vpn-target
[*ASBR2-bgp-af-vpnv4] peer 10.1.3.1 enable
[*ASBR2-bgp-af-vpnv4] peer 5.5.5.5 enable
[*ASBR2-bgp-af-vpnv4] quit
[*ASBR2-bgp] quit
[*ASBR2] commit

    # Configure PE2.

    [~PE2] bgp 65535.65535
[*PE2-bgp] peer 4.4.4.4 as-number 65535.65535
[*PE2-bgp] peer 4.4.4.4 connect-interface LoopBack 0
[*PE2-bgp] ipv4-family unicast
[*PE2-bgp-af-ipv4] undo synchronization
[*PE2-bgp-af-ipv4] peer 4.4.4.4 enable
[*PE2-bgp-af-ipv4] quit
[*PE2-bgp] ipv4-family mvpn
[*PE2-bgp-af-mvpn] policy vpn-target
[*PE2-bgp-af-mvpn] peer 4.4.4.4 enable
[*PE2-bgp-af-mvpn] quit
[*PE2-bgp] ipv4-family vpnv4
[*PE2-bgp-af-vpnv4] policy vpn-target
[*PE2-bgp-af-vpnv4] peer 4.4.4.4 enable
[*PE2-bgp-af-vpnv4] quit
[*PE2-bgp] quit
[*PE2] commit

  5. Configure ABR as an RR to reflect the loopback routes of PE1 and PE2 to each other.

    # Configure ABR.

    [~ABR] bgp 1.0
[*ABR-bgp] ipv4-family unicast
[*ABR-bgp-af-ipv4] peer 1.1.1.1 reflect-client
[*ABR-bgp-af-ipv4] peer 1.1.1.1 next-hop-local
[*ABR-bgp-af-ipv4] peer 3.3.3.3 reflect-client
[*ABR-bgp-af-ipv4] peer 3.3.3.3 next-hop-local
[*ABR-bgp-af-ipv4] quit
[*ABR-bgp] ipv4-family mvpn
[*ABR-bgp-af-mvpn] peer 1.1.1.1 reflect-client
[*ABR-bgp-af-mvpn] peer 3.3.3.3 reflect-client
[*ABR-bgp-af-mvpn] quit
[*ABR-bgp] ipv4-family vpnv4
[*ABR-bgp-af-vpnv4] peer 1.1.1.1 reflect-client
[*ABR-bgp-af-vpnv4] peer 1.1.1.1 next-hop-local
[*ABR-bgp-af-vpnv4] peer 3.3.3.3 reflect-client
[*ABR-bgp-af-vpnv4] peer 3.3.3.3 next-hop-local
[*ABR-bgp-af-vpnv4] quit
[*ABR-bgp] quit
[*ABR] commit

  6. Configure a route-policy on each device to establish a BGP LSP.

    # Configure a route-policy on PE1, and apply it to the routes to be advertised to peers.

    [~PE1] route-policy policy1 permit node 1
[*PE1-route-policy] apply mpls-label
[*PE1-route-policy] quit
[*PE1] bgp 1.0
[*PE1-bgp] ipv4-family unicast
[*PE1-bgp-af-ipv4] peer 2.2.2.2 route-policy policy1 export
[*PE1-bgp-af-ipv4] quit
[*PE1-bgp] quit
[*PE1] commit

    The configuration of PE2 is similar to the configuration of PE1. For configuration details, see Configuration Files in this section.

    # Configure a route-policy on ABR, and apply it to the routes to be advertised to peers.

    [~ABR] route-policy policy1 permit node 1
[*ABR-route-policy] if-match mpls-label
[*ABR-route-policy] apply mpls-label
[*ABR-route-policy] quit
[*ABR] bgp 1.0
[*ABR-bgp] ipv4-family unicast
[*ABR-bgp-af-ipv4] peer 1.1.1.1 route-policy policy1 export
[*ABR-bgp-af-ipv4] peer 3.3.3.3 route-policy policy1 export
[*ABR-bgp-af-ipv4] quit
[*ABR-bgp] quit
[*ABR] commit

    The configuration of ASBR1 is similar to the configuration of ABR. For configuration details, see Configuration Files in this section.

  7. Configure unicast peers and BGP MVPN neighbors.

    # Configure PE1.

    [~PE1] ip vpn-instance ng
[*PE1-vpn-instance-ng] ipv4-family
[*PE1-vpn-instance-ng-af-ipv4] route-distinguisher 1.2.3.4:1
[*PE1-vpn-instance-ng-af-ipv4] vpn-target 1:1 both
[*PE1-vpn-instance-ng-af-ipv4] quit
[*PE1-vpn-instance-ng] quit
[*PE1] interface GigabitEthernet0/1/1
[*PE1-GigabitEthernet0/1/1] ip binding vpn-instance ng
[*PE1-GigabitEthernet0/1/1] ip address 192.168.1.1 255.255.255.0
[*PE1-GigabitEthernet0/1/1] quit
[*PE1] bgp 1.0
[*PE1-bgp] ipv4-family vpn-instance ng
[*PE1-bgp-af-vpn-ng] import-route direct
[*PE1-bgp-af-vpn-ng] quit
[*PE1-bgp] quit
[*PE1] commit

    The configuration of PE2 is similar to the configuration of PE1. For configuration details, see Configuration Files in this section.

  8. Configure P2MP LSPs to carry multicast traffic on PEs.

    # On PE1, configure PE1 as a sender PE.

    [~PE1] multicast mvpn 1.1.1.1
[~PE1] ip vpn-instance ng
[~PE1-vpn-instance-ng] ipv4-family
[~PE1-vpn-instance-ng-af-ipv4] multicast routing-enable
[*PE1-vpn-instance-ng-af-ipv4] mvpn
[*PE1-vpn-instance-ng-af-ipv4-mvpn] sender-enable
[*PE1-vpn-instance-ng-af-ipv4-mvpn] c-multicast signaling bgp
[*PE1-vpn-instance-ng-af-ipv4-mvpn] auto-discovery inter-as
[*PE1-vpn-instance-ng-af-ipv4-mvpn] ipmsi-tunnel
[*PE1-vpn-instance-ng-af-ipv4-mvpn-ipmsi] mldp
[*PE1-vpn-instance-ng-af-ipv4-mvpn-ipmsi] quit
[*PE1-vpn-instance-ng-af-ipv4-mvpn] quit
[*PE1-vpn-instance-ng-af-ipv4] quit
[*PE1-vpn-instance-ng] commit
[~PE1-vpn-instance-ng] quit

    # On PE2, configure PE2 as a receiver PE.

    [~PE2] multicast mvpn 5.5.5.5
[~PE2] ip vpn-instance ng
[~PE2-vpn-instance-ng] ipv4-family
[~PE2-vpn-instance-ng-af-ipv4] multicast routing-enable
[~PE2-vpn-instance-ng-af-ipv4] mvpn
[*PE2-vpn-instance-ng-af-ipv4-mvpn] c-multicast signaling bgp
[*PE2-vpn-instance-ng-af-ipv4-mvpn] auto-discovery inter-as
[*PE2-vpn-instance-ng-af-ipv4-mvpn] quit
[*PE2-vpn-instance-ng-af-ipv4] quit
[*PE2-vpn-instance-ng] commit
[~PE2-vpn-instance-ng] quit

  9. Verify the configuration.

    After the configurations are complete, run the display ip routing-table command on PE1 or PE2 to display the routes to each other's loopback address.

    The following example uses the command output on PE1:

    <PE1> display ip routing-table
Route Flags: R - relay, D - download to fib, T - to vpn-instance, B - black hole route
------------------------------------------------------------------------------
Routing Table : _public_
         Destinations : 10       Routes : 10
Destination/Mask    Proto   Pre  Cost        Flags NextHop        Interface
      1.1.1.1/32  Direct  0    0             D  127.0.0.1         LoopBack1
       2.2.2.2/32  OSPF    10   1             D  10.1.1.2         GigabitEthernet0/1/2
       5.5.5.5/32  IBGP    255  0             RD 2.2.2.2          GigabitEthernet0/1/2
       10.1.1.0/24  Direct  0    0             D  10.1.1.1        GigabitEthernet0/1/2
       10.1.1.1/32  Direct  0    0             D  127.0.0.1       GigabitEthernet0/1/2
     10.1.1.255/32  Direct  0    0             D  127.0.0.1       GigabitEthernet0/1/2
      127.0.0.0/8   Direct  0    0             D  127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0             D  127.0.0.1       InLoopBack0
127.255.255.255/32  Direct  0    0             D  127.0.0.1       InLoopBack0
255.255.255.255/32  Direct  0    0             D  127.0.0.1       InLoopBack0

    Run the display mpls lsp command on PE1 or PE2 to display the LSP information.

    The following example uses the command output on PE1:

    <PE1> display mpls lsp
Flag after Out IF: (I) - RLFA Iterated LSP, (I*) - Normal and RLFA Iterated LSP
Flag after LDP FRR: (L) - Logic FRR LSP
-------------------------------------------------------------------------------
                 LSP Information: LDP LSP
-------------------------------------------------------------------------------
FEC                In/Out Label    In/Out IF                      Vrf Name
1.1.1.1/32         3/NULL          -/-
2.2.2.2/32         NULL/3          -/GigabitEthernet0/1/2
2.2.2.2/32         32828/3         -/GigabitEthernet0/1/2
-------------------------------------------------------------------------------
                 LSP Information: BGP LSP
-------------------------------------------------------------------------------
FEC                In/Out Label    In/Out IF                      Vrf Name
1.1.1.1/32         32830/NULL      -/-
5.5.5.5/32         NULL/32835      -/-

    Run the ping lsp command on PE1 or PE2 to check the connectivity of BGP LSP.

    The following example uses the command output on PE1:

    <PE1> ping lsp bgp 5.5.5.5 32
  LSP PING FEC: IPV4 PREFIX 5.5.5.5/32/ : 100  data bytes, press CTRL_C to break
    Reply from 5.5.5.5: bytes=100 Sequence=1 time=94 ms
    Reply from 5.5.5.5: bytes=100 Sequence=2 time=4 ms
    Reply from 5.5.5.5: bytes=100 Sequence=3 time=4 ms
    Reply from 5.5.5.5: bytes=100 Sequence=4 time=4 ms
    Reply from 5.5.5.5: bytes=100 Sequence=5 time=4 ms

  --- FEC: BGP LABLED IPV4 PREFIX 5.5.5.5/32 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 4/22/94 ms

Configuration Files

  • PE1 configuration file

    #
sysname PE1
#
multicast mvpn 1.1.1.1
#
ip vpn-instance ng
 ipv4-family
 route-distinguisher 1.2.3.4:1
 apply-label per-instance
 vpn-target 1:1 export-extcommunity
 vpn-target 1:1 import-extcommunity
 multicast routing-enable
 mvpn
  sender-enable
  c-multicast signaling bgp
  auto-discovery inter-as
  ipmsi-tunnel
   mldp
#
mpls lsr-id 1.1.1.1
#
mpls
#
mpls ldp
 mldp p2mp
#
 mldp recursive-fec
 ipv4-family
#
route-policy policy1 permit node 1
 apply mpls-label
#
interface GigabitEthernet0/1/1
 undo shutdown
 ip binding vpn-instance ng
 ip address 192.168.1.1 255.255.255.0
#
interface GigabitEthernet0/1/2
 undo shutdown
 ip address 10.1.1.1 255.255.255.0
 mpls
 mpls ldp
#
interface Virtual-Template0
 ppp authentication-mode auto
#
interface LoopBack0
 ip address 1.1.1.1 255.255.255.255
#
interface NULL0
#
bgp 1.0
 peer 2.2.2.2 as-number 1.0
 peer 2.2.2.2 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  network 1.1.1.1 255.255.255.255
  peer 2.2.2.2 enable
  peer 2.2.2.2 route-policy policy1 export
  peer 2.2.2.2 label-route-capability
 #
 ipv4-family mvpn
  policy vpn-target
  peer 2.2.2.2 enable
 #
 ipv4-family vpnv4
  policy vpn-target
  peer 2.2.2.2 enable
 #
 ipv4-family vpn-instance ng
  import-route direct
#
ospf 1
 area 0.0.0.0
 network 10.1.1.0 0.0.0.255
 network 1.1.1.1 0.0.0.0
#
return

  • ABR configuration file

    #
sysname ABR
#
mpls lsr-id 2.2.2.2
#
mpls
#
mpls ldp
 mldp p2mp
#
 mldp recursive-fec
 ipv4-family
#
isis 1
 is-level level-2
 cost-style wide
 network-entity 10.0000.0000.000c.00
#
interface GigabitEthernet0/1/1
 undo shutdown
 ip address 10.1.1.2 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/2
 undo shutdown
 ip address 10.1.2.1 255.255.255.0
 isis enable 1
 mpls
 mpls ldp
#
interface Virtual-Template0
 ppp authentication-mode auto
#
interface LoopBack0
 ip address 2.2.2.2 255.255.255.255
 isis enable 1
#
interface NULL0
#
route-policy policy1 permit node 1
 apply mpls-label
#
bgp 1.0
 peer 1.1.1.1 as-number 1.0
 peer 1.1.1.1 connect-interface LoopBack0
 peer 3.3.3.3 as-number 1.0
 peer 3.3.3.3 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  peer 1.1.1.1 enable
  peer 1.1.1.1 route-policy policy1 export
  peer 1.1.1.1 reflect-client
  peer 1.1.1.1 next-hop-local
  peer 1.1.1.1 label-route-capability
  peer 3.3.3.3 enable
  peer 3.3.3.3 route-policy policy1 export
  peer 3.3.3.3 reflect-client
  peer 3.3.3.3 next-hop-local
  peer 3.3.3.3 label-route-capability
 #
 ipv4-family mvpn
  undo policy vpn-target
  peer 1.1.1.1 enable
  peer 1.1.1.1 reflect-client
  peer 3.3.3.3 enable
  peer 3.3.3.3 reflect-client
 #
 ipv4-family vpnv4
  undo policy vpn-target
  peer 1.1.1.1 enable
  peer 1.1.1.1 reflect-client
  peer 1.1.1.1 next-hop-local
  peer 3.3.3.3 enable
  peer 3.3.3.3 reflect-client
  peer 3.3.3.3 next-hop-local
#
ospf 1
 area 0.0.0.0
 network 10.1.1.0 0.0.0.255
 network 2.2.2.2 0.0.0.0
#
return

  • ASBR1 configuration file

    #
sysname ABR1
#
mpls lsr-id 3.3.3.3
#
mpls
#
mpls ldp
 mldp p2mp
 mldp recursive-fec
 ipv4-family
#
isis 1
 is-level level-2
 cost-style wide
 network-entity 10.0000.0000.000a.00
#
interface GigabitEthernet0/1/1
 undo shutdown
 ip address 10.1.2.2 255.255.255.0
 isis enable 1
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/2
 undo shutdown
 ip address 10.1.3.1 255.255.255.0
 mpls
 mpls ldp
#
interface Virtual-Template0
 ppp authentication-mode auto
#
interface LoopBack0
 ip address 3.3.3.3 255.255.255.255
 isis enable 1
#
interface NULL0
#
route-policy policy1 permit node 1
 apply mpls-label
#
bgp 1.0
 peer 10.1.3.2 as-number 65535.65535
 peer 2.2.2.2 as-number 1.0
 peer 2.2.2.2 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  network 3.3.3.3 255.255.255.255
  peer 10.1.3.2 enable
  peer 2.2.2.2 enable
  peer 2.2.2.2 route-policy policy1 export
  peer 2.2.2.2 label-route-capability
 #
 ipv4-family mvpn
  undo policy vpn-target
  peer 10.1.3.2 enable
  peer 2.2.2.2 enable
 #
 ipv4-family vpnv4
  undo policy vpn-target
  peer 10.1.3.2 enable
  peer 2.2.2.2 enable
#
return

  • ASBR2 configuration file

    #
sysname ASBR2
#
mpls lsr-id 4.4.4.4
#
mpls
#
mpls ldp
 mldp p2mp
#
 mldp recursive-fec
#
 ipv4-family
#
isis 1
 is-level level-2
 cost-style wide
 network-entity 10.0000.0000.000b.00
#
interface GigabitEthernet0/1/1
 undo shutdown
 ip address 10.1.4.1 255.255.255.0
 isis enable 1
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/2
 undo shutdown
 ip address 10.1.3.2 255.255.255.0
 mpls
 mpls ldp
#
interface Virtual-Template0
 ppp authentication-mode auto
#
interface LoopBack0
 ip address 4.4.4.4 255.255.255.255
 isis enable 1
#
interface NULL0
#
bgp 65535.65535
 peer 10.1.3.1 as-number 1.0
 peer 5.5.5.5 as-number 65535.65535
 peer 5.5.5.5 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  peer 10.1.3.1 enable
  peer 5.5.5.5 enable
 #
 ipv4-family mvpn
  undo policy vpn-target
  peer 10.1.3.1 enable
  peer 5.5.5.5 enable
 #
 ipv4-family vpnv4
  undo policy vpn-target
  peer 10.1.3.1 enable
  peer 5.5.5.5 enable
#
return

  • PE2 configuration file

    #
sysname PE2
#
multicast mvpn 5.5.5.5
#
ip vpn-instance ng
 ipv4-family
 route-distinguisher 2.3:1
 apply-label per-instance
 vpn-target 1:1 export-extcommunity
 vpn-target 1:1 import-extcommunity
 multicast routing-enable
 mvpn
  sender-enable
  c-multicast signaling bgp
  auto-discovery inter-as
  ipmsi-tunnel
   mldp
#
mpls lsr-id 5.5.5.5
#
mpls
#
mpls ldp
 mldp p2mp
#
 mldp recursive-fec
 #
 ipv4-family
#
isis 1
 is-level level-2
 cost-style wide
 network-entity 10.0000.0000.000d.00
#
interface GigabitEthernet0/1/1
 undo shutdown
 ip address 10.1.4.2 255.255.255.0
 isis enable 1
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/2
 undo shutdown
 ip binding vpn-instance ng
 ip address 192.168.2.1 255.255.255.0
#
interface LoopBack0
 ip address 5.5.5.5 255.255.255.255
 isis enable 1
#
bgp 65535.65535
 peer 4.4.4.4 as-number 65535.65535
 peer 4.4.4.4 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  peer 4.4.4.4 enable
 #
 ipv4-family mvpn
  policy vpn-target
  peer 4.4.4.4 enable
 #
 ipv4-family vpnv4
  policy vpn-target
  peer 4.4.4.4 enable
 #
 ipv4-family vpn-instance ng
  import-route direct
#
return
Parent Topic: Configuration Examples for NG MVPN
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
