Example for Configuring an Inter-Area Seamless MPLS NG MVPN

The backbone network is in an AS. PE and ABR advertise routes through MP-IBGP.

Networking Requirements

As shown in the Figure 1, CE1 is in AS 65003 and CE2 is in AS 65004. CEs communicate with each other spanning AS 65535.65535. An MP-IBGP peer relationship is established between PE and ABR. ABR is configured as an RR.

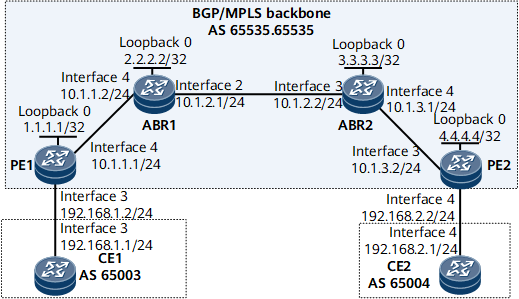

Figure 1 Configuring inter-area seamless NG MVPN

Interfaces 1, 2, 3, and 4 in this example represent GE 0/1/1, GE 0/1/2, GE 0/1/3, and GE 0/1/4, respectively.


Device Name

Interface

IP Address

CE1

GigabitEthernet0/1/1

192.168.3.1/24

GigabitEthernet0/1/3

192.168.1.1/24

PE1

LoopBack0

1.1.1.1/32

GigabitEthernet0/1/3

192.168.1.2/24

GigabitEthernet0/1/4

10.1.1.1/24

ABR1

LoopBack0

2.2.2.2/32

GigabitEthernet0/1/2

10.1.2.1/24

GigabitEthernet0/1/4

10.1.1.2/24

ABR2

LoopBack0

3.3.3.3/32

GigabitEthernet0/1/3

10.1.2.2/24

GigabitEthernet0/1/4

10.1.3.1/24

PE2

Loopback0

4.4.4.4/32

GigabitEthernet0/1/3

10.1.3.2/24

GigabitEthernet0/1/4

192.168.2.2/24

CE2

GigabitEthernet0/1/1

192.168.4.1/24

GigabitEthernet0/1/4

192.168.2.1/24

Precautions

When configuring inter-Area seamless MPLS NG MVPN, note the following:

  • Set up MP-IBGP peer relationship between PE and ABR and between ABRs.

Configuration Roadmap

The configuration roadmap is as follows:

  1. Configure IGP protocols at the AS to implement network connectivity, and set up an MPLS LDP LSP in the AS.

  2. Configure automatic mLDP P2MP tunnel.

  3. Establish IBGP peer relationships between PE and ABR in the same AS.

  4. Configure VPN instances on PEs.

  5. Configure a routing policy to control label distribution for a BGP LSP to be established on PEs and ABRs.

  6. Configure ABR as an RR to reflect the loopback routes of PE1 and PE2 to each other.

  7. Configure BGP peers.

  8. Configure a P2MP LSP to carry multicast traffic.

  9. Configure PIM.

Data Preparation

To complete the configuration, you need the following data:

  • MPLS LSR IDs of each device (1.1.1.1, 2.2.2.2, 3.3.3.3, and 4.4.4.4)

Procedure

  1. Configure an IGP on the MPLS backbone network, so that the PEs and ABRs can communicate.

    This example uses OSPF as the IGP. For configuration details, see Configuration Files in this section.

    After the configurations are complete, OSPF neighbor relationship is established for each node in the AS.

  2. Configure basic MPLS functions and MPLS LDP, and set up LDP LSPs on the MPLS backbone network of the AS.

    # Configure PE1.

    [~PE1] mpls lsr-id 1.1.1.1
[*PE1] mpls
[*PE1-mpls] quit
[*PE1] mpls ldp
[*PE1-mpls-ldp] quit
[*PE1] interface GigabitEthernet 0/1/4
[*PE1-GigabitEthernet0/1/4] mpls
[*PE1-GigabitEthernet0/1/4] mpls ldp
[*PE1-GigabitEthernet0/1/4] commit
[~PE1-GigabitEthernet0/1/4] quit

    The configuration of PE2 is similar to the configuration of PE1. For configuration details, see Configuration Files in this section.

    # Configure ABR1.

    [~ABR1] mpls lsr-id 2.2.2.2
[*ABR1] mpls
[*ABR1-mpls] quit
[*ABR1] mpls ldp
[*ABR1-mpls-ldp] quit
[*ABR1] interface GigabitEthernet 0/1/2
[*ABR1-GigabitEthernet0/1/2] mpls
[*ABR1-GigabitEthernet0/1/2] mpls ldp
[*ABR1-GigabitEthernet0/1/2] commit
[~ABR1-GigabitEthernet0/1/2] quit
[*ABR1] interface GigabitEthernet 0/1/4
[*ABR1-GigabitEthernet0/1/4] mpls
[*ABR1-Ethernet0/1/4] mpls ldp
[*ABR1-Ethernet0/1/4] commit
[~ABR1-Ethernet0/1/4] quit

    The configuration of ABR2 is similar to the configuration of ABR1. For configuration details, see Configuration Files in this section.

    After the configurations are complete, the LDP sessions can be established between the PE and ABR and between the ABRs. Run the display mpls ldp session command on each router. The command output shows that the Status field is Operational. The following example uses the command output on PE1.

    <PE1> display mpls ldp session
 LDP Session(s) in Public Network
 Codes: LAM(Label Advertisement Mode), SsnAge Unit(DDDD:HH:MM)
 An asterisk (*) before a session means the session is being deleted.
 -------------------------------------------------------------------------
 PeerID             Status      LAM  SsnRole  SsnAge      KASent/Rcv
 -------------------------------------------------------------------------
 2.2.2.2          Operational DU   Passive  0000:00:01  5/5
 -------------------------------------------------------------------------
 TOTAL: 1 session(s) Found.

  3. Configure automatic mLDP P2MP tunnel.

    # Configure PE1.

    [~PE1] mpls ldp
[~PE1-mpls-ldp] mldp p2mp
[*PE1-mpls-ldp] commit
[~PE1-mpls-ldp] quit

    # Configure PE2.

    [~PE2] mpls ldp
[~PE2-mpls-ldp] mldp p2mp
[*PE2-mpls-ldp] mldp recursive-fec
[*PE2-mpls-ldp] commit
[~PE2-mpls-ldp] quit

    # Configure ABR1.

    [~ABR1] mpls ldp
[~ABR1-mpls-ldp] mldp p2mp
[*ABR1-mpls-ldp] mldp recursive-fec
[*ABR1-mpls-ldp] commit
[~ABR1-mpls-ldp] quit

    The configuration of ABR2 is similar to the configuration of ABR1. For configuration details, see Configuration Files in this section.

  4. Establish IBGP peer relationships between PEs and ABRs.

    # On CE1, configure BGP.

    [~CE1] bgp 65003
[*CE1-bgp] peer 192.168.1.2 as-number 65535.65535

    The configuration of CE2 is similar to the configuration of CE1. For configuration details, see Configuration Files in this section.

    # On PE1, establish IBGP peer relationship with ABR1.

    [~PE1] bgp 65535.65535
[*PE1-bgp] peer 2.2.2.2 as-number 65535.65535
[*PE1-bgp] peer 2.2.2.2 connect-interface loopback 0
[*PE1-bgp] ipv4-family unicast
[*PE1-bgp-af-ipv4] undo synchronization
[*PE1-bgp-af-ipv4] network 1.1.1.1 32
[*PE1-bgp-af-ipv4] peer 2.2.2.2 enable
[*PE1-bgp-af-ipv4] peer 2.2.2.2 label-route-capability
[*PE1-bgp-af-ipv4] commit
[~PE1-bgp-af-ipv4] quit
[~PE1-bgp] ipv4-family vpnv4
[*PE1-bgp-af-vpnv4] policy vpn-target
[*PE1-bgp-af-vpnv4] peer 2.2.2.2 enable
[*PE1-bgp-af-vpnv4] commit
[~PE1-bgp-af-vpnv4] quit
[~PE1-bgp] quit

    The configuration of PE2 is similar to the configuration of PE1. For configuration details, see Configuration Files in this section.

    # On ABR1, establish IBGP peer relationship with PE1.

    [~ABR1] bgp 65535.65535
[*ABR1-bgp] peer 1.1.1.1 as-number 65535.65535
[*ABR1-bgp] peer 1.1.1.1 connect-interface loopback 0
[*ABR1-bgp] peer 3.3.3.3 as-number 65535.65535
[*ABR1-bgp] peer 3.3.3.3 connect-interface loopback 0
[*ABR1-bgp] ipv4-family unicast
[*ABR1-bgp-af-mvpn] undo synchronization
[*ABR1-bgp-af-mvpn] peer 1.1.1.1 enable
[*ABR1-bgp-af-mvpn] peer 1.1.1.1 label-route-capability
[*ABR1-bgp-af-mvpn] peer 3.3.3.3 enable
[*ABR1-bgp-af-mvpn] peer 3.3.3.3 label-route-capability
[*ABR1-bgp-af-mvpn] quit
[*ABR1-bgp] ipv4-family vpnv4
[*ABR1-bgp-af-vpnv4] undo policy vpn-target
[*ABR1-bgp-af-vpnv4] peer 1.1.1.1 enable
[*ABR1-bgp-af-vpnv4] peer 3.3.3.3 enable
[*ABR1-bgp-af-vpnv4] quit
[*ABR1-bgp] commit
[~ABR1-bgp] quit

    The configuration of ABR2 is similar to the configuration of ABR1. For configuration details, see Configuration Files in this section.

    After completing the configurations, run the display bgp vpnv4 all peer command on the PE or ABR. The command output shows that an MP-IBGP peer relationship has been established between the PE and ABR and between the ABRs. The following example uses the command output on PE1.

    <PE1> display bgp vpnv4 all peer

 BGP local router ID : 1.1.1.9
 Local AS number : 100
 Total number of peers : 1         Peers in established state : 1

  Peer            V          AS  MsgRcvd  MsgSent  OutQ  Up/Down       State  PrefRcv

  2.2.2.2        4         100    18970    19008     0 91:51:24   Established    0

  5. Configure VPN instances.

    # Configure PE1.

    [~PE1] ip vpn-instance ng
[*PE1-vpn-instance-ng] ipv4-family
[*PE1-vpn-instance-ng-af-ipv4] route-distinguisher 1.2.3.4:1
[*PE1-vpn-instance-ng-af-ipv4] vpn-target 1:1 both
[*PE1-vpn-instance-ng-af-ipv4] quit
[*PE1-vpn-instance-ng] quit
[*PE1] interface GigabitEthernet 0/1/3
[*PE1-GigabitEthernet0/1/3] ip binding vpn-instance ng
[*PE1-GigabitEthernet0/1/3] ip address 192.168.1.2 24
[*PE1-GigabitEthernet0/1/3] quit
[*PE1] bgp 65535.65535
[*PE1-bgp] ipv4-family vpn-instance ng
[*PE1-bgp-af-vpn-ng] import-route direct
[*PE1-bgp-af-vpn-ng] peer 192.168.1.1 as-number 65003
[*PE1-bgp-af-vpn-ng] quit
[*PE1] commit

    # Configure PE2.

    [~PE2] ip vpn-instance ng
[*PE2-vpn-instance-ng] ipv4-family
[*PE2-vpn-instance-ng-af-ipv4] route-distinguisher 2:3
[*PE2-vpn-instance-ng-af-ipv4] vpn-target 1:1 both
[*PE2-vpn-instance-ng-af-ipv4] quit
[*PE2-vpn-instance-ng] quit
[*PE2] interface GigabitEthernet 0/1/4
[*PE2-GigabitEthernet0/1/4] ip binding vpn-instance ng
[*PE2-GigabitEthernet0/1/4] ip address 192.168.2.2 24
[*PE2-GigabitEthernet0/1/4] quit
[*PE1] bgp 65535.65535
[*PE1-bgp] ipv4-family vpn-instance ng
[*PE1-bgp-af-vpn-ng] import-route direct
[*PE1-bgp-af-vpn-ng] peer 192.168.2.1 as-number 65004
[*PE1-bgp-af-vpn-ng] quit
[*PE2] commit

    After completing the configurations, run the display ip vpn-instance verbose command on PEs. The command output shows VPN instance configurations. The following example uses the command output on PE1.

    <PE1> display ip vpn-instance verbose
 Total VPN-Instances configured : 1
 Total IPv4 VPN-Instances configured : 1
 Total IPv6 VPN-Instances configured : 0

 VPN-Instance Name and ID : ng, 1
  Interfaces : GigabitEthernet0/1/3
 Address family ipv4
  Create date : 2017/03/18 11:30:35
  Up time : 0 days, 00 hours, 05 minutes and 19 seconds
  Route Distinguisher : 1.2.3.4:1
  Export VPN Targets :  1:1
  Import VPN Targets :  1:1
  Label policy: label per route
  The diffserv-mode Information is : uniform
  The ttl-mode Information is : pipe

  6. Configure a unicast peer and a BGP MVPN peer relationship.

    # Configure CE1.

    [~CE1] bgp 65003
[~CE1-bgp] ipv4-family unicast
[~CE1-bgp-af-ipv4] undo synchronization
[*CE1-bgp-af-ipv4] import-route direct
[*CE1-bgp-af-ipv4] peer 192.168.1.2 enable
[*CE1-bgp-af-ipv4] commit
[~CE1-bgp-af-ipv4] quit
[~CE1-bgp] quit

    The configuration of CE2 is similar to the configuration of CE1. For configuration details, see Configuration Files in this section.

    # Configure PE1.

    [~PE1] bgp 100
[~PE1-bgp] ipv4-family vpn-instance ng
[~PE1-bgp-af-vpn-ng] import-route direct
[*PE1-bgp-af-vpn-ng] peer 192.168.1.1 as-number 65003
[*PE1-bgp-af-vpn-ng] commit
[~PE1-bgp-af-vpn-ng] quit
[~PE1-bgp] ipv4-family mvpn
[~PE1-bgp-af-mvpn] policy vpn-target
[*PE1-bgp-af-mvpn] peer 2.2.2.2 enable
[*PE1-bgp-af-mvpn] commit
[~PE1-bgp-af-mvpn] quit
[~PE1-bgp] quit

    The configuration of PE2 is similar to the configuration of PE1. For configuration details, see Configuration Files in this section.

    # Configure ABR1.

    [~ABR1] bgp 100
[~ABR1-bgp] ipv4-family mvpn
[~ABR1-bgp-af-mvpn] undo policy vpn-target
[*ABR1-bgp-af-mvpn] peer 1.1.1.1 enable
[*ABR1-bgp-af-mvpn] peer 3.3.3.3 enable
[*ABR1-bgp-af-mvpn] commit
[~ABR1-bgp-af-mvpn] quit
[~ABR1-bgp] quit

    The configuration of ABR2 is similar to the configuration of ABR1. For configuration details, see Configuration Files in this section.

  7. Configure ABR as an RR to reflect the VPNv4 routes of PE1 and PE2 to each other.

    # Configure ABR1.

    [~ABR1] bgp 1.0
[*ABR1-bgp] ipv4-family unicast
[*ABR1-bgp-af-ipv4] peer 1.1.1.1 reflect-client
[*ABR1-bgp-af-ipv4] peer 1.1.1.1 next-hop-local
[*ABR1-bgp-af-ipv4] peer 3.3.3.3 reflect-client
[*ABR1-bgp-af-ipv4] peer 3.3.3.3 next-hop-local
[*ABR1-bgp-af-ipv4] quit
[*ABR1-bgp] ipv4-family mvpn
[*ABR1-bgp-af-mvpn] peer 1.1.1.1 reflect-client
[*ABR1-bgp-af-mvpn] peer 3.3.3.3 reflect-client
[*ABR1-bgp-af-mvpn] quit
[*ABR1-bgp] ipv4-family vpnv4
[*ABR1-bgp-af-vpnv4] peer 1.1.1.1 reflect-client
[*ABR1-bgp-af-vpnv4] peer 3.3.3.3 reflect-client
[*ABR1-bgp-af-vpnv4] quit
[*ABR1-bgp] quit
[*ABR1] commit

    The configuration of ABR2 is similar to the configuration of ABR1. For configuration details, see Configuration Files in this section.

  8. Configure a route-policy on PEs and ABRs to establish a BGP LSP.

    # Configure a route-policy on PE1, and apply it to the routes to be advertised to peers.

    [~PE1] route-policy policy1 permit node 1
[*PE1-route-policy] apply mpls-label
[*PE1-route-policy] quit
[*PE1] bgp 65535.65535
[*PE1-bgp] ipv4-family unicast
[*PE1-bgp-af-ipv4] peer 2.2.2.2 route-policy policy1 export
[*PE1-bgp-af-ipv4] quit
[*PE1-bgp] quit
[*PE1] commit

    The configuration of PE2 is similar to the configuration of PE1. For configuration details, see Configuration Files in this section.

    # Configure a route-policy on ABR, and apply it to the routes to be advertised to peers.

    [~ABR1] route-policy policy1 permit node 1
[*ABR1-route-policy] apply mpls-label
[*ABR1-route-policy] quit
[*ABR1] bgp 1.0
[*ABR1-bgp] ipv4-family unicast
[*ABR1-bgp-af-ipv4] peer 1.1.1.1 route-policy policy1 export
[*ABR1-bgp-af-ipv4] peer 3.3.3.3 route-policy policy1 export
[*ABR1-bgp-af-ipv4] quit
[*ABR1-bgp] quit
[*ABR1] commit

    The configuration of ABR2 is similar to the configuration of ABR1. For configuration details, see Configuration Files in this section.

  9. Configure MSDP peer relationship between CEs and PEs.

    # Configure CE1.

    [~CE1] msdp
[~CE1-msdp] peer 192.168.1.2 connect-interface GigabitEthernet0/1/3
[*CE1-msdp] commit
[~CE1-msdp] quit

    The configuration of CE2 is similar to the configuration of CE1. For configuration details, see Configuration Files in this section.

    # Configure PE1.

    [~PE1] msdp vpn-instance ng
[~PE1-msdp-ng] peer 192.168.1.1 connect-interface GigabitEthernet0/1/3
[*PE1-msdp-ng] commit
[~PE1-msdp-ng] quit

    The configuration of PE2 is similar to the configuration of PE1. For configuration details, see Configuration Files in this section.

  10. Configure P2MP LSPs to carry multicast traffic on PEs.

    # On PE1, configure PE1 as a sender PE.

    [~PE1] multicast mvpn 1.1.1.1
[~PE1] ip vpn-instance ng
[~PE1-vpn-instance-ng] ipv4-family
[~PE1-vpn-instance-ng-af-ipv4] multicast routing-enable
[*PE1-vpn-instance-ng-af-ipv4] mvpn
[*PE1-vpn-instance-ng-af-ipv4-mvpn] sender-enable
[*PE1-vpn-instance-ng-af-ipv4-mvpn] c-multicast signaling bgp
[*PE1-vpn-instance-ng-af-ipv4-mvpn] import msdp
[*PE1-vpn-instance-ng-af-ipv4-mvpn] spt-only mode
[*PE1-vpn-instance-ng-af-ipv4-mvpn] ipmsi-tunnel
[*PE1-vpn-instance-ng-af-ipv4-mvpn-ipmsi] mldp
[*PE1-vpn-instance-ng-af-ipv4-mvpn-ipmsi] quit
[*PE1-vpn-instance-ng-af-ipv4-mvpn] quit
[*PE1-vpn-instance-ng-af-ipv4] quit
[*PE1-vpn-instance-ng] commit
[~PE1-vpn-instance-ng] quit

    # On PE2, configure PE2 as a receiver PE.

    [~PE2] multicast mvpn 4.4.4.4
[~PE2] ip vpn-instance ng
[~PE2-vpn-instance-ng] ipv4-family
[~PE2-vpn-instance-ng-af-ipv4] multicast routing-enable
[~PE2-vpn-instance-ng-af-ipv4] mvpn
[*PE2-vpn-instance-ng-af-ipv4-mvpn] c-multicast signaling bgp
[*PE2-vpn-instance-ng-af-ipv4-mvpn] export msdp
[*PE2-vpn-instance-ng-af-ipv4-mvpn] spt-only mode
[*PE2-vpn-instance-ng-af-ipv4-mvpn] quit
[*PE2-vpn-instance-ng-af-ipv4] quit
[*PE2-vpn-instance-ng] commit
[~PE2-vpn-instance-ng] quit

  11. Configure PIM.

    # Configure CE1.

    [~CE1] pim
[~CE1-pim] static-rp 192.168.1.1
[*CE1-pim] commit
[~CE1-pim] quit
[~CE1] multicast routing-enable
[*CE1] interface GigabitEthernet0/1/1
[*CE1-GigabitEthernet0/1/0] pim sm
[*CE1-GigabitEthernet0/1/0] commit
[~CE1-GigabitEthernet0/1/0] quit
[~CE1] interface GigabitEthernet 0/1/3
[~CE1-GigabitEthernet0/1/3] pim sm
[*CE1-GigabitEthernet0/1/3] commit
[~CE1-GigabitEthernet0/1/3] quit

    # Configure CE2.

    [~CE2] pim
[~CE2-pim] static-rp 192.168.2.1
[*CE2-pim] commit
[~CE2-pim] quit
[~CE2] multicast routing-enable
[*CE2] interface GigabitEthernet0/1/1
[*CE2-GigabitEthernet0/1/0] pim sm
[*CE2-GigabitEthernet0/1/0] igmp enable
[*CE2-GigabitEthernet0/1/0] commit
[~CE2-GigabitEthernet0/1/0] quit
[~CE2] interface GigabitEthernet 0/1/4
[~CE1-GigabitEthernet0/1/4] pim sm
[*CE1-Ethernet0/1/4] commit
[~CE1-GigabitEthernet0/1/4] quit

    # Configure PE1.

    [~PE1] pim vpn-instance ng
[*PE1-pim-ng] static-rp 192.168.1.2
[*PE1-pim-ng] source-lifetime 60
[*PE1-msdp-ng] commit
[~PE1-msdp-ng] quit
[~PE1] interface GigabitEthernet 0/1/3
[~PE1-GigabitEthernet0/1/3] pim sm
[*PE1-GigabitEthernet0/1/3] commit
[~PE1-GigabitEthernet0/1/3] quit

    The configuration of PE2 is similar to the configuration of PE1. For configuration details, see Configuration Files in this section.

  12. Verify the configuration.

    After completing the configurations, CE1 and CE2 can ping each other.

    The following example uses the command output on CE1.

    <CE1> display ip routing-table
Route Flags: R - relay, D - download to fib, T - to vpn-instance, B - black hole route
------------------------------------------------------------------------------
Routing Tables _public_
         Destinations : 9        Routes : 9
Destination/Mask    Proto  Pre  Cost     Flags NextHop         Interface
       192.168.1.0/24  Direct 0    0             D  192.168.1.1        GigabitEthernet0/1/1
       192.168.1.1/32  Direct 0    0             D  127.0.0.1       GigabitEthernet0/1/1
     192.168.1.255/32  Direct 0    0             D  127.0.0.1       GigabitEthernet0/1/1
       192.168.1.1/24  Direct 0    0             D  127.0.0.1       LoopBack1
     192.168.2.0/24  IBGP   255  0             D  192.168.1.2       GigabitEthernet0/1/1
      127.0.0.0/8   Direct 0    0             D  127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct 0    0             D  127.0.0.1       InLoopBack0
127.255.255.255/32  Direct 0    0             D  127.0.0.1       InLoopBack0
255.255.255.255/32  Direct 0    0             D  127.0.0.1       InLoopBack0
<CE1> ping -a 192.168.1.1 192.168.2.1
  PING 192.168.2.1: 56  data bytes, press CTRL_C to break
    Reply from 192.168.2.1: bytes=56 Sequence=1 ttl=252 time=109 ms
    Reply from 192.168.2.1: bytes=56 Sequence=2 ttl=252 time=89 ms
    Reply from 192.168.2.1: bytes=56 Sequence=3 ttl=252 time=71 ms
    Reply from 192.168.2.1: bytes=56 Sequence=4 ttl=252 time=116 ms
    Reply from 192.168.2.1: bytes=56 Sequence=5 ttl=252 time=70 ms
  --- 192.168.2.1 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 70/91/116 ms

    Run the display bgp vpnv4 all routing-table command on ABR to display the VPNv4 routes information.

    The following example uses the command output on ABR1.

    <ABR1> display bgp vpnv4 all routing-table
 BGP Local router ID is 2.2.2.2
 Status codes: * - valid, > - best, d - damped, x - best external, a - add path,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete
 RPKI validation codes: V - valid, I - invalid, N - not-found


 Total number of routes from all PE: 2
 Route Distinguisher: 1.2.3.4:1


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>i  192.168.1.1/32       1.1.1.1         0          100        0      ?
 Route Distinguisher: 2:3


      Network            NextHop        MED        LocPrf    PrefVal Path/Ogn

 *>   192.168.2.1/32      4.4.4.4                               0      200?

Configuration Files

  • CE1 configuration file

    #
sysname CE1
#
multicast routing-enable
#
interface GigabitEthernet0/1/1
 undo shutdown
 ip address 192.168.3.1 255.255.255.0
 pim sm
#
interface GigabitEthernet0/1/3
 undo shutdown
 ip address 192.168.1.1 255.255.255.0
 pim sm
#
interface Virtual-Template0
 ppp authentication-mode auto
#
bgp 65003
 peer 192.168.1.2 as-number 65535.65535
 #
 ipv4-family unicast
  undo synchronization
  import-route direct
  peer 192.168.1.2 enable
#
pim
 static-rp 192.168.1.1
#
msdp
 peer 192.168.1.2 connect-interface GigabitEthernet0/1/3
#
return

  • PE1 configuration file

    #
 sysname PE1
#
multicast mvpn 1.1.1.1
#
ip vpn-instance ng
 ipv4-family
  route-distinguisher 1.2.3.4:1
  apply-label per-instance
  vpn-target 1:1 export-extcommunity
  vpn-target 1:1 import-extcommunity
  multicast routing-enable
  mvpn
   sender-enable
   c-multicast signaling bgp
   import msdp
   spt-only mode
   ipmsi-tunnel
    mldp
#
mpls lsr-id 1.1.1.1
#
mpls
#
mpls ldp
 mldp p2mp
#
interface GigabitEthernet0/1/3
 undo shutdown
 ip binding vpn-instance ng
 ip address 192.168.1.2 255.255.255.0
 pim sm
#
interface GigabitEthernet 0/1/4
 undo shutdown
 ip address 10.1.1.1 255.255.255.0
 mpls
 mpls ldp
#
interface LoopBack0
 ip address 1.1.1.1 255.255.255.255
#
bgp 65535.65535
 peer 2.2.2.2 as-number 65535.65535
 peer 2.2.2.2 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  network 1.1.1.1 255.255.255.255
  peer 2.2.2.2 enable
  peer 2.2.2.2 route-policy policy1 export
  peer 2.2.2.2 label-route-capability
 #
 ipv4-family mvpn
  policy vpn-target
  peer 2.2.2.2 enable
 #
 ipv4-family vpnv4
  policy vpn-target
  peer 2.2.2.2 enable
 #
 ipv4-family vpn-instance ng
  import-route direct
  peer 192.168.1.1 as-number 65003
#
ospf 1
 area 0.0.0.0
  network 10.1.1.0 0.0.0.255
  network 1.1.1.1 0.0.0.0
#
route-policy policy1 permit node 1
 apply mpls-label
#
pim vpn-instance ng
 static-rp 192.168.1.2
 source-lifetime 60
#
msdp vpn-instance ng
 peer 192.168.1.1 connect-interface GigabitEthernet0/1/3
#
return

  • ABR1 configuration file

    #
sysname ABR1
#
mpls lsr-id 2.2.2.2
#
mpls
#
mpls ldp
 mldp p2mp
 mldp recursive-fec
#
isis 1
 is-level level-2
 cost-style wide
 network-entity 10.0000.0000.000c.00
#
interface GigabitEthernet 0/1/2
 undo shutdown
 ip address 10.1.2.1 255.255.255.0
 isis enable 1
 mpls
 mpls ldp
#
interface GigabitEthernet 0/1/4
 undo shutdown
 ip address 10.1.1.2 255.255.255.0
 mpls
 mpls ldp
#
interface LoopBack0
 ip address 2.2.2.2 255.255.255.255
#
bgp 65535.65535
 peer 1.1.1.1 as-number 65535.65535
 peer 1.1.1.1 connect-interface LoopBack0
 peer 3.3.3.3 as-number 65535.65535
 peer 3.3.3.3 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  peer 1.1.1.1 enable
  peer 1.1.1.1 route-policy policy1 export
  peer 1.1.1.1 reflect-client
  peer 1.1.1.1 next-hop-local
  peer 1.1.1.1 label-route-capability
  peer 3.3.3.3 enable
  peer 3.3.3.3 route-policy policy1 export
  peer 3.3.3.3 reflect-client
  peer 3.3.3.3 next-hop-local
  peer 3.3.3.3 label-route-capability
 #
 ipv4-family mvpn
  undo policy vpn-target
  peer 1.1.1.1 enable
  peer 1.1.1.1 reflect-client
  peer 3.3.3.3 enable
  peer 3.3.3.3 reflect-client
 #
 ipv4-family vpnv4
  undo policy vpn-target
  peer 1.1.1.1 enable
  peer 1.1.1.1 reflect-client
  peer 3.3.3.3 enable
  peer 3.3.3.3 reflect-client
#
ospf 1
 area 0.0.0.0
  network 10.1.1.0 0.0.0.255
  network 2.2.2.2 0.0.0.0
#
route-policy policy1 permit node 1
 apply mpls-label
#
return

  • ABR2 configuration file

    #
sysname ABR2
#
mpls lsr-id 3.3.3.3
#
mpls
#
mpls ldp
 mldp p2mp
 mldp recursive-fec
#
isis 1
 is-level level-2
 cost-style wide
 network-entity 10.0000.0000.000d.00
#
interface GigabitEthernet0/1/3
 undo shutdown
 ip address 10.1.2.2 255.255.255.0
 isis enable 1
 mpls
 mpls ldp
#
interface GigabitEthernet 0/1/4
 undo shutdown
 ip address 10.1.3.1 255.255.255.0
 mpls
 mpls ldp
#
interface LoopBack0
 ip address 3.3.3.3 255.255.255.255
#
bgp 65535.65535
 peer 2.2.2.2 as-number 65535.65535
 peer 2.2.2.2 connect-interface LoopBack0
 peer 4.4.4.4 as-number 65535.65535
 peer 4.4.4.4 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  peer 2.2.2.2 enable
  peer 2.2.2.2 route-policy policy1 export
  peer 2.2.2.2 reflect-client
  peer 2.2.2.2 next-hop-local
  peer 2.2.2.2 label-route-capability
  peer 4.4.4.4 enable
  peer 4.4.4.4 route-policy policy1 export
  peer 4.4.4.4 reflect-client
  peer 4.4.4.4 next-hop-local
  peer 4.4.4.4 label-route-capability
 #
 ipv4-family mvpn
  undo policy vpn-target
  peer 2.2.2.2 enable
  peer 2.2.2.2 reflect-client
  peer 4.4.4.4 enable
  peer 4.4.4.4 reflect-client
 #
 ipv4-family vpnv4
  undo policy vpn-target
  peer 1.1.1.1 enable
  peer 1.1.1.1 reflect-client
  peer 3.3.3.3 enable
  peer 3.3.3.3 reflect-client
#
ospf 2
 area 0.0.0.0
  network 10.1.3.0 0.0.0.255
  network 3.3.3.3 0.0.0.0
#
route-policy policy1 permit node 1
 apply mpls-label
#
return

  • PE2 configuration file

    #
sysname PE2
#
multicast mvpn 4.4.4.4
#
ip vpn-instance ng
 #
 ipv4-family
  route-distinguisher 2:3
  apply-label per-instance
  vpn-target 1:1 export-extcommunity
  vpn-target 1:1 import-extcommunity
  multicast routing-enable
  mvpn
   c-multicast signaling bgp
   export msdp
   spt-only mode
#
mpls lsr-id 4.4.4.4
#
mpls
#
mpls ldp
 mldp p2mp
 mldp recursive-fec
#
interface GigabitEthernet0/1/3
 undo shutdown
 ip address 10.1.3.2 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet 0/1/4
 undo shutdown
 ip binding vpn-instance ng
 ip address 192.168.2.2 255.255.255.0
 pim sm
#
interface LoopBack0
 ip address 4.4.4.4 255.255.255.255
#
bgp 65535.65535
 peer 3.3.3.3 as-number 65535.65535
 peer 3.3.3.3 connect-interface LoopBack0
 #
 ipv4-family unicast
  undo synchronization
  network 4.4.4.4 255.255.255.255
  peer 3.3.3.3 enable
  peer 3.3.3.3 route-policy policy1 export
  peer 3.3.3.3 label-route-capability
 #
 ipv4-family mvpn
  policy vpn-target
  peer 3.3.3.3 enable
 #
 ipv4-family vpnv4
  policy vpn-target
  peer 3.3.3.3 enable
 #
 ipv4-family vpn-instance ng
  import-route direct
  peer 192.168.2.1 as-number 65004
#
ospf 2
 area 0.0.0.0
  network 10.1.3.0 0.0.0.255
  network 4.4.4.4 0.0.0.0
#
route-policy policy1 permit node 1
 apply mpls-label
#
pim vpn-instance ng
 static-rp 192.168.2.2
 source-lifetime 60
#
msdp vpn-instance ng
 peer 192.168.2.1 connect-interface GigabitEthernet 0/1/4
#
return

  • CE2 configuration file

    #
sysname CE2
#
multicast routing-enable
#
interface GigabitEthernet0/1/1
 undo shutdown
 ip address 192.168.4.1 255.255.255.0
 pim sm
 igmp enable
#
interface GigabitEthernet 0/1/4
 undo shutdown
 ip address 192.168.2.1 255.255.255.0
 pim sm
#
bgp 65004
 peer 192.168.2.2 as number 65535.65535
 #
 ipv4-family unicast
  undo synchronization
  import-route direct
  peer 192.168.2.2 enable
#
pim
 static-rp 192.168.2.1
#
msdp
 peer 192.168.2.2 connect-interface GigabitEthernet 0/1/4
#
return
Parent Topic: Configuration Examples for NG MVPN
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
