Example for Configuring EVPN ORF

This section provides an example for configuring EVPN ORF. This configuration helps reduce the burden on receiving EVPN routes and save network resources.

Networking Requirements

On the network shown in Figure 1, to enable different sites to communicate with each other over the backbone network, EVPN is deployed on the network so that PEs can exchange EVPN routes to transmit service traffic. Two EVPN instances named evrf1 and evrf2 are configured on PE1. The EVPN instance named evrf1 is configured on PE2, and the EVPN instance named evrf2 is configured on PE3. To allow each PE to receive only desired routes and minimize system resource consumption in processing unwanted routes, EVPN ORF can be configured.

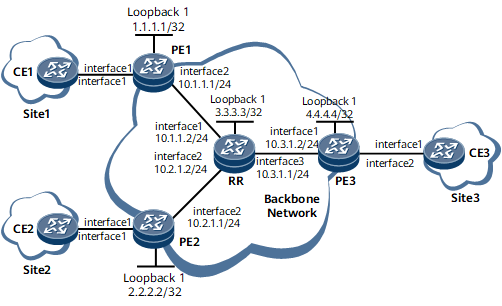

Figure 1 Configuring EVPN ORF

Interfaces 1 through 3 in this example represent GE 0/1/0, GE 0/1/8, and GE 0/1/16, respectively.


Precautions

When you configure EVPN ORF, note the following:

  • For the same EVPN instance, the export VPN target list of a site shares VPN targets with the import VPN target lists of the other sites; the import VPN target list of a site shares VPN targets with the export VPN target lists of the other sites.

  • Using the local loopback interface address of each PE as the source address is recommended.

Configuration Roadmap

The configuration roadmap is as follows:

  1. Assign an IP address to each PE interface, including the loopback interfaces.

  2. Configure a routing protocol on each PE to ensure Layer 3 communication. OSPF is used in this example.

  3. Configure MPLS LDP on each PE.

  4. Configure EVPN instances on the PEs and bind each EVPN instance to a BD.

  5. Configure a source address on each PE.

  6. Configure each PE's sub-interface that connects to a CE.

  7. Configure an ESI for each PE interface that connects to a CE.

  8. Configure the CEs and PEs to communicate.

  9. Configure BGP-EVPN peer relationships between the PEs and RR, and configure the PEs as RR clients.

  10. Configure EVPN ORF on each device.

Data Preparation

To complete the configuration, you need the following data:

  • PE1's EVPN instance names: evrf1 and evrf2; PE2's EVPN instance name: evrf1; PE3's EVPN instance name: evrf2

  • evrf1's RD (100:1) and RT (1:1); evrf2's RD (100:2) and RT (2:2)

Procedure

  1. Assign an IP address to each PE interface, including the loopback interfaces.

    For configuration details, see Configuration Files in this section.

  2. Configure a routing protocol on each PE to ensure Layer 3 communication. OSPF is used in this example.

    For configuration details, see Configuration Files in this section.

  3. Configure MPLS LDP on each PE.

    For configuration details, see Configuration Files in this section.

  4. Configure EVPN instances on the PEs and bind each EVPN instance to a BD.

    # Configure PE1.

    [~PE1] evpn vpn-instance evpn1 bd-mode
[*PE1-evpn-instance-evrf1] route-distinguisher 100:1
[*PE1-evpn-instance-evrf1] vpn-target 1:1
[*PE1-evpn-instance-evrf1] quit
[*PE1] evpn vpn-instance evrf2 bd-mode
[*PE1-evpn-instance-evrf2] route-distinguisher 100:2
[*PE1-evpn-instance-evrf2] vpn-target 2:2
[*PE1-evpn-instance-evrf2] quit
[*PE1] bridge-domain 10
[*PE1-bd10] evpn binding vpn-instance evrf1
[*PE1-bd10] quit
[*PE1] bridge-domain 20
[*PE1-bd20] evpn binding vpn-instance evrf2
[*PE1-bd20] quit
[*PE1] commit

    # Configure PE2.

    [~PE2] evpn vpn-instance evrf1 bd-mode
[*PE2-evpn-instance-evrf1] route-distinguisher 100:1
[*PE2-evpn-instance-evrf1] vpn-target 1:1
[*PE2-evpn-instance-evrf1] quit
[*PE2] bridge-domain 10
[*PE2-bd10] evpn binding vpn-instance evrf1
[*PE2-bd10] quit
[*PE2] commit

    # Configure PE3.

    [~PE3] evpn vpn-instance evrf2 bd-mode
[*PE3-evpn-instance-evrf2] route-distinguisher 100:2
[*PE3-evpn-instance-evrf2] vpn-target 2:2
[*PE3-evpn-instance-evrf2] quit
[*PE3] bridge-domain 20
[*PE3-bd20] evpn binding vpn-instance evrf2
[*PE3-bd20] quit
[*PE3] commit

  5. Configure a source address on each PE.

    # Configure PE1.

    [~PE1] evpn source-address 1.1.1.1
[*PE1] commit

    # Configure PE2.

    [~PE2] evpn source-address 2.2.2.2
[*PE2] commit

    # Configure PE3.

    [~PE3] evpn source-address 4.4.4.4
[*PE3] commit

  6. Configure each PE's sub-interface that connects to a CE.

    # Configure PE1.

    [~PE1] interface gigabitethernet0/1/0.1 mode l2
[*PE1-GigabitEthernet0/1/0.1] encapsulation dot1q vid 10
[*PE1-GigabitEthernet0/1/0.1] rewrite pop single
[*PE1-GigabitEthernet0/1/0.1] bridge-domain 10
[*PE1-GigabitEthernet0/1/0.1] quit
[*PE1] interface gigabitethernet0/1/0.2 mode l2
[*PE1-GigabitEthernet0/1/0.2] encapsulation dot1q vid 20
[*PE1-GigabitEthernet0/1/0.2] rewrite pop single
[*PE1-GigabitEthernet0/1/0.2] bridge-domain 20
[*PE1-GigabitEthernet0/1/0.2] quit
[*PE1] commit

    # Configure PE2.

    [~PE2] interface gigabitethernet0/1/0.1 mode l2
[*PE2-GigabitEthernet0/1/0.1] encapsulation dot1q vid 10
[*PE2-GigabitEthernet0/1/0.1] rewrite pop single
[*PE2-GigabitEthernet0/1/0.1] bridge-domain 10
[*PE2-GigabitEthernet0/1/0.1] quit
[*PE2] commit

    # Configure PE3.

    [~PE3] interface gigabitethernet0/1/8.1 mode l2
[*PE3-GigabitEthernet0/1/8.1] encapsulation dot1q vid 20
[*PE3-GigabitEthernet0/1/8.1] rewrite pop single
[*PE3-GigabitEthernet0/1/8.1] bridge-domain 20
[*PE3-GigabitEthernet0/1/8.1] quit
[*PE3] commit

  7. Configure an ESI for each PE interface that connects to a CE.

    # Configure PE1.

    [~PE1] interface gigabitethernet0/1/0
[*PE1-GigabitEthernet0/1/0] esi 0000.1111.1111.1111.1111
[*PE1-GigabitEthernet0/1/0] quit
[*PE1] commit

    # Configure PE2.

    [~PE2] interface gigabitethernet0/1/0
[*PE2-GigabitEthernet0/1/0] esi 0000.1111.2222.2222.2222
[*PE2-GigabitEthernet0/1/0] quit
[*PE2] commit

    # Configure PE3.

    [~PE3] interface gigabitethernet0/1/8
[*PE3-GigabitEthernet0/1/8] esi 0000.1111.3333.3333.3333
[*PE3-GigabitEthernet0/1/8] quit
[*PE3] commit

  8. Configure the CEs and PEs to communicate.

    # Configure CE1.

    [~CE1] interface gigabitethernet0/1/0.1 mode l2
[*CE1-GigabitEthernet0/1/0.1] encapsulation dot1q vid 10
[*CE1-GigabitEthernet0/1/0.1] rewrite pop single
[*CE1-GigabitEthernet0/1/0.1] bridge-domain 10
[*CE1-GigabitEthernet0/1/0.1] quit
[*CE1] interface gigabitethernet0/1/0.2 mode l2
[*CE1-GigabitEthernet0/1/0.2] encapsulation dot1q vid 20
[*CE1-GigabitEthernet0/1/0.2] rewrite pop single
[*CE1-GigabitEthernet0/1/0.2] bridge-domain 20
[*CE1-GigabitEthernet0/1/0.2] quit
[*CE1] commit

    # Configure CE2.

    [~CE2] interface gigabitethernet0/1/0.1 mode l2
[*CE2-GigabitEthernet0/1/0.1] encapsulation dot1q vid 10
[*CE2-GigabitEthernet0/1/0.1] rewrite pop single
[*CE2-GigabitEthernet0/1/0.1] bridge-domain 10
[*CE2-GigabitEthernet0/1/0.1] quit
[*CE2] commit

    # Configure CE3.

    [~CE3] interface gigabitethernet0/1/0.1 mode l2
[*CE3-GigabitEthernet0/1/0.1] encapsulation dot1q vid 20
[*CE3-GigabitEthernet0/1/0.1] rewrite pop single
[*CE3-GigabitEthernet0/1/0.1] bridge-domain 20
[*CE3-GigabitEthernet0/1/0.1] quit
[*CE3] commit

  9. Configure BGP-EVPN peer relationships between the PEs and RR, and configure the PEs as RR clients.

    # Configure PE1.

    [~PE1] bgp 100
[*PE1-bgp] peer 3.3.3.3 as-number 100
[*PE1-bgp] peer 3.3.3.3 connect-interface loopback 1
[*PE1-bgp] l2vpn-family evpn
[*PE1-bgp-af-evpn] peer 3.3.3.3 enable
[*PE1-bgp-af-evpn] quit
[*PE1-bgp] quit
[*PE1] commit

    # Configure PE2.

    [~PE2] bgp 100
[*PE2-bgp] peer 3.3.3.3 as-number 100
[*PE2-bgp] peer 3.3.3.3 connect-interface loopback 1
[*PE2-bgp] l2vpn-family evpn
[*PE2-bgp-af-evpn] peer 3.3.3.3 enable
[*PE2-bgp-af-evpn] quit
[*PE2-bgp] quit
[*PE2] commit

    # Configure PE3.

    [~PE3] bgp 100
[*PE3-bgp] peer 3.3.3.3 as-number 100
[*PE3-bgp] peer 3.3.3.3 connect-interface loopback 1
[*PE3-bgp] l2vpn-family evpn
[*PE3-bgp-af-evpn] peer 3.3.3.3 enable
[*PE3-bgp-af-evpn] quit
[*PE3-bgp] quit
[*PE3] commit

    # Configure the RR.

    [~RR] bgp 100
[*RR-bgp] peer 1.1.1.1 as-number 100
[*RR-bgp] peer 1.1.1.1 connect-interface loopback 1
[*RR-bgp] peer 2.2.2.2 as-number 100
[*RR-bgp] peer 2.2.2.2 connect-interface loopback 1
[*RR-bgp] peer 4.4.4.4 as-number 100
[*RR-bgp] peer 4.4.4.4 connect-interface loopback 1
[*RR-bgp] l2vpn-family evpn
[*RR-bgp-af-evpn] peer 1.1.1.1 enable
[*RR-bgp-af-evpn] peer 1.1.1.1 reflect-client
[*RR-bgp-af-evpn] peer 2.2.2.2 enable
[*RR-bgp-af-evpn] peer 2.2.2.2 reflect-client
[*RR-bgp-af-evpn] peer 4.4.4.4 enable
[*RR-bgp-af-evpn] peer 4.4.4.4 reflect-client
[*RR-bgp-af-evpn] quit
[*RR-bgp] quit
[*RR] commit

    # Run the display evn bgp peer command on the RR. The command output shows that BGP peer relationships have been established between the PEs and RR and are in the Established state.

    [~RR] display bgp evpn peer

 BGP local router ID : 3.3.3.3
 Local AS number : 100
 Total number of peers : 3                 Peers in established state : 3

  Peer            V          AS  MsgRcvd  MsgSent  OutQ  Up/Down       State  PrefRcv
  1.1.1.1         4         100       10       33     0 00:00:19 Established        6
  2.2.2.2         4         100        8       33     0 00:00:20 Established        4
  4.4.4.4         4         100        8       33     0 00:00:21 Established        4

    # Run the display bgp evpn all routing-table peer 2.2.2.2 advertised-routes and display bgp evpn all routing-table peer 4.4.4.4 advertised-routes commands on the RR to view routes advertised to PE2 and PE3.

    [~RR] display bgp evpn all routing-table peer 2.2.2.2 advertised-routes
 Local AS number : 100

 BGP Local router ID is 3.3.3.3
 Status codes: * - valid, > - best, d - damped, x - best external, a - add path,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete


 EVPN address family:
 Number of A-D Routes: 7
 Route Distinguisher: 100:1
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.1111.1111.1111.1111:0                             1.1.1.1
 *>i   0000.1111.2222.2222.2222:0                             2.2.2.2
 Route Distinguisher: 100:2
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.1111.1111.1111.1111:0                             1.1.1.1
 *>i   0000.1111.3333.3333.3333:0                             4.4.4.4
 Route Distinguisher: 1.1.1.1:0
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.1111.1111.1111.1111:4294967295                    1.1.1.1
 Route Distinguisher: 2.2.2.2:0
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.1111.2222.2222.2222:4294967295                    2.2.2.2
 Route Distinguisher: 4.4.4.4:0
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.1111.3333.3333.3333:4294967295                    4.4.4.4

 EVPN address family:
 Number of Inclusive Multicast Routes: 4
 Route Distinguisher: 100:1
       Network(EthTagId/IpAddrLen/OriginalIp)                 NextHop
 *>i   0:32:1.1.1.1                                           1.1.1.1
 *>i   0:32:2.2.2.2                                           2.2.2.2
 Route Distinguisher: 100:2
       Network(EthTagId/IpAddrLen/OriginalIp)                 NextHop
 *>i   0:32:1.1.1.1                                           1.1.1.1
 *>i   0:32:4.4.4.4                                           4.4.4.4

 EVPN address family:
 Number of ES Routes: 3
 Route Distinguisher: 1.1.1.1:0
       Network(ESI)                                           NextHop
 *>i   0000.1111.1111.1111.1111                               1.1.1.1
 Route Distinguisher: 2.2.2.2:0
       Network(ESI)                                           NextHop
 *>i   0000.1111.2222.2222.2222                               2.2.2.2
 Route Distinguisher: 4.4.4.4:0
       Network(ESI)                                           NextHop
 *>i   0000.1111.3333.3333.3333                               4.4.4.4
[~RR] display bgp evpn all routing-table peer 4.4.4.4 advertised-routes
 Local AS number : 100

 BGP Local router ID is 3.3.3.3
 Status codes: * - valid, > - best, d - damped, x - best external, a - add path,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete


 EVPN address family:
 Number of A-D Routes: 7
 Route Distinguisher: 100:1
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.1111.1111.1111.1111:0                             1.1.1.1
 *>i   0000.1111.2222.2222.2222:0                             2.2.2.2
 Route Distinguisher: 100:2
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.1111.1111.1111.1111:0                             1.1.1.1
 *>i   0000.1111.3333.3333.3333:0                             4.4.4.4
 Route Distinguisher: 1.1.1.1:0
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.1111.1111.1111.1111:4294967295                    1.1.1.1
 Route Distinguisher: 2.2.2.2:0
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.1111.2222.2222.2222:4294967295                    2.2.2.2
 Route Distinguisher: 4.4.4.4:0
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.1111.3333.3333.3333:4294967295                    4.4.4.4

 EVPN address family:
 Number of Inclusive Multicast Routes: 4
 Route Distinguisher: 100:1
       Network(EthTagId/IpAddrLen/OriginalIp)                 NextHop
 *>i   0:32:1.1.1.1                                           1.1.1.1
 *>i   0:32:2.2.2.2                                           2.2.2.2
 Route Distinguisher: 100:2
       Network(EthTagId/IpAddrLen/OriginalIp)                 NextHop
 *>i   0:32:1.1.1.1                                           1.1.1.1
 *>i   0:32:4.4.4.4                                           4.4.4.4

 EVPN address family:
 Number of ES Routes: 3
 Route Distinguisher: 1.1.1.1:0
       Network(ESI)                                           NextHop
 *>i   0000.1111.1111.1111.1111                               1.1.1.1
 Route Distinguisher: 2.2.2.2:0
       Network(ESI)                                           NextHop
 *>i   0000.1111.2222.2222.2222                               2.2.2.2
 Route Distinguisher: 4.4.4.4:0
       Network(ESI)                                           NextHop
 *>i   0000.1111.3333.3333.3333                               4.4.4.4

    The command output shows that the RR reflects all routes to PE2 and PE3. However, PE2 and PE3 do not have to receive all the routes. To resolve this problem, configure EVPN ORF on each device.

  10. Configure EVPN ORF on each device.

    # Configure PE1.

    [~PE1] bgp 100
[*PE1-bgp] ipv4-family vpn-target
[*PE1-bgp-af-vpn-target] peer 3.3.3.3 enable
[*PE1-bgp-af-vpn-target] quit
[*PE1-bgp] l2vpn-family evpn
[*PE1-bgp-af-evpn] vpn-orf enable
[*PE1-bgp-af-evpn] quit
[*PE1-bgp] quit
[*PE1] commit

    # Configure PE2.

    [~PE2] bgp 100
[*PE2-bgp] ipv4-family vpn-target
[*PE2-bgp-af-vpn-target] peer 3.3.3.3 enable
[*PE2-bgp-af-vpn-target] quit
[*PE2-bgp] l2vpn-family evpn
[*PE2-bgp-af-evpn] vpn-orf enable
[*PE2-bgp-af-evpn] quit
[*PE2-bgp] quit
[*PE2] commit

    # Configure PE3.

    [~PE3] bgp 100
[*PE3-bgp] ipv4-family vpn-target
[*PE3-bgp-af-vpn-target] peer 3.3.3.3 enable
[*PE3-bgp-af-vpn-target] quit
[*PE3-bgp] l2vpn-family evpn
[*PE3-bgp-af-evpn] vpn-orf enable
[*PE3-bgp-af-evpn] quit
[*PE3-bgp] quit
[*PE3] commit

    # Configure the RR.

    [~RR] bgp 100
[*RR-bgp] ipv4-family vpn-target
[*RR-bgp-af-vpn-target] peer 1.1.1.1 enable
[*RR-bgp-af-vpn-target] peer 1.1.1.1 reflect-client
[*RR-bgp-af-vpn-target] peer 2.2.2.2 enable
[*RR-bgp-af-vpn-target] peer 2.2.2.2 reflect-client
[*RR-bgp-af-vpn-target] peer 4.4.4.4 enable
[*RR-bgp-af-vpn-target] peer 4.4.4.4 reflect-client
[*RR-bgp-af-vpn-target] quit
[*RR-bgp] l2vpn-family evpn
[*RR-bgp-af-evpn] vpn-orf enable
[*RR-bgp-af-evpn] quit
[*RR-bgp] quit
[*RR] commit

  11. Verify the configuration.

    Run the display bgp vpn-target routing-table command on the RR. The command output shows that the RR has received ORF routes.

    [~RR] display bgp vpn-target routing-table

 Total number of routes from all PE: 7

 BGP Local router ID is 10.1.1.2
 Status codes: * - valid, > - best, d - damped, x - best external, a - add path,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete


 Origin AS: 100

 Total Number of Routes: 7
        Network                  NextHop        MED        LocPrf    PrefVal Path/Ogn
 *>i    RT <1 : 1>               1.1.1.1         0          100        0       ?
 * i                             2.2.2.2         0          100        0       ?
 *>i    RT <2 : 2>               1.1.1.1         0          100        0       ?
 * i                             4.4.4.4         0          100        0       ?
 *>i    RT <0011-1111-1111>      1.1.1.1         0          100        0       ?
 *>i    RT <0011-1122-2222>      2.2.2.2         0          100        0       ?
 *>i    RT <0011-1133-3333>      4.4.4.4         0          100        0       ?

    Run the display bgp evpn all routing-table peer 2.2.2.2 advertised-routes and display bgp evpn all routing-table peer 4.4.4.4 advertised-routes commands on the RR again. The command output shows that the RR has advertised only requested routes to PE2 and PE3.

    [~RR] display bgp evpn all routing-table peer 2.2.2.2 advertised-routes
 Local AS number : 100

 BGP Local router ID is 10.1.1.2
 Status codes: * - valid, > - best, d - damped, x - best external, a - add path,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete


 EVPN address family:
 Number of A-D Routes: 2
 Route Distinguisher: 100:1
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.1111.1111.1111.1111:0                             1.1.1.1
 Route Distinguisher: 1.1.1.1:0
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.1111.1111.1111.1111:4294967295                    1.1.1.1

 EVPN address family:
 Number of Inclusive Multicast Routes: 1
 Route Distinguisher: 100:1
       Network(EthTagId/IpAddrLen/OriginalIp)                 NextHop
 *>i   0:32:1.1.1.1                                           1.1.1.1
[~RR] display bgp evpn all routing-table peer 4.4.4.4 advertised-routes
 Local AS number : 100

 BGP Local router ID is 10.1.1.2
 Status codes: * - valid, > - best, d - damped, x - best external, a - add path,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete


 EVPN address family:
 Number of A-D Routes: 2
 Route Distinguisher: 100:2
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.1111.1111.1111.1111:0                             1.1.1.1
 Route Distinguisher: 1.1.1.1:0
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.1111.1111.1111.1111:4294967295                    1.1.1.1

 EVPN address family:
 Number of Inclusive Multicast Routes: 1
 Route Distinguisher: 100:2
       Network(EthTagId/IpAddrLen/OriginalIp)                 NextHop
 *>i   0:32:1.1.1.1                                           1.1.1.1

Configuration Files

  • PE1 configuration file

    #
sysname PE1
#
evpn vpn-instance evrf1 bd-mode
 route-distinguisher 100:1
 vpn-target 1:1 export-extcommunity
 vpn-target 1:1 import-extcommunity
#
evpn vpn-instance evrf2 bd-mode
 route-distinguisher 100:2
 vpn-target 2:2 export-extcommunity
 vpn-target 2:2 import-extcommunity
#
mpls lsr-id 1.1.1.1
#
mpls
#
bridge-domain 10
 evpn binding vpn-instance evrf1
#
bridge-domain 20
 evpn binding vpn-instance evrf2
#
mpls ldp
#
interface GigabitEthernet0/1/0
 undo shutdown
 esi 0000.1111.1111.1111.1111
#
interface GigabitEthernet0/1/0.1 mode l2
 encapsulation dot1q vid 10
 rewrite pop single
 bridge-domain 10
#
interface GigabitEthernet0/1/0.2 mode l2
 encapsulation dot1q vid 20
 rewrite pop single
 bridge-domain 20
#
interface GigabitEthernet0/1/8
 undo shutdown
 ip address 10.1.1.1 255.255.255.0
 mpls
 mpls ldp
#
interface LoopBack1
 ip address 1.1.1.1 255.255.255.255
#
bgp 100
 peer 3.3.3.3 as-number 100
 peer 3.3.3.3 connect-interface LoopBack1
 #
 ipv4-family unicast
  undo synchronization
  peer 3.3.3.3 enable
 #
 l2vpn-family evpn
  undo policy vpn-target
  vpn-orf enable
  peer 3.3.3.3 enable
 #
 ipv4-family vpn-target
  peer 3.3.3.3 enable
#
ospf 1
 area 0.0.0.0
  network 1.1.1.1 0.0.0.0
  network 10.1.1.0 0.0.0.255
#
evpn source-address 1.1.1.1
#
return

  • PE2 configuration file

    #
sysname PE2
#
evpn vpn-instance evrf1 bd-mode
 route-distinguisher 100:1
 vpn-target 1:1 export-extcommunity
 vpn-target 1:1 import-extcommunity
#
mpls lsr-id 2.2.2.2
#
mpls
#
bridge-domain 10
 evpn binding vpn-instance evrf1
#
mpls ldp
#
interface GigabitEthernet0/1/0
 undo shutdown
 esi 0000.1111.2222.2222.2222
#
interface GigabitEthernet0/1/0.1 mode l2
 encapsulation dot1q vid 10
 rewrite pop single
 bridge-domain 10
#
interface GigabitEthernet0/1/8
 undo shutdown
 ip address 10.2.1.1 255.255.255.0
 mpls
 mpls ldp
#
interface LoopBack1
 ip address 2.2.2.2 255.255.255.255
#
bgp 100
 peer 3.3.3.3 as-number 100
 peer 3.3.3.3 connect-interface LoopBack1
 #
 ipv4-family unicast
  undo synchronization
  peer 3.3.3.3 enable
 #
 l2vpn-family evpn
  undo policy vpn-target
  vpn-orf enable
  peer 3.3.3.3 enable
 #
 ipv4-family vpn-target
  peer 3.3.3.3 enable
#
ospf 1
 area 0.0.0.0
  network 2.2.2.2 0.0.0.0
  network 10.2.1.0 0.0.0.255
#
evpn source-address 2.2.2.2
#
return

  • PE3 configuration file

    #
sysname PE3
#
evpn vpn-instance evrf2 bd-mode
 route-distinguisher 100:2
 vpn-target 2:2 export-extcommunity
 vpn-target 2:2 import-extcommunity
#
mpls lsr-id 4.4.4.4
#
mpls
#
bridge-domain 20
 evpn binding vpn-instance evrf2
#
mpls ldp
#
interface GigabitEthernet0/1/0
 undo shutdown
 ip address 10.3.1.2 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/8
 undo shutdown
 esi 0000.1111.3333.3333.3333
#
interface GigabitEthernet0/1/8.1 mode l2
 encapsulation dot1q vid 20
 rewrite pop single
 bridge-domain 20
#
interface LoopBack1
 ip address 4.4.4.4 255.255.255.255
#
bgp 100
 peer 3.3.3.3 as-number 100
 peer 3.3.3.3 connect-interface LoopBack1
 #
 ipv4-family unicast
  undo synchronization
  peer 3.3.3.3 enable
 #
 l2vpn-family evpn
  undo policy vpn-target
  vpn-orf enable
  peer 3.3.3.3 enable
 #
 ipv4-family vpn-target
  peer 3.3.3.3 enable
#
ospf 1
 area 0.0.0.0
  network 4.4.4.4 0.0.0.0
  network 10.3.1.0 0.0.0.255
#
evpn source-address 4.4.4.4
#
return

  • RR configuration file

    #
sysname RR
#
mpls lsr-id 3.3.3.3
#
mpls
#
mpls ldp
#
interface GigabitEthernet0/1/0
 undo shutdown
 ip address 10.1.1.2 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/8
 undo shutdown
 ip address 10.2.1.2 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/16
 undo shutdown
 ip address 10.3.1.1 255.255.255.0
 mpls
 mpls ldp
#
interface LoopBack1
 ip address 3.3.3.3 255.255.255.255
#
bgp 100
 peer 1.1.1.1 as-number 100
 peer 1.1.1.1 connect-interface LoopBack1
 peer 2.2.2.2 as-number 100
 peer 2.2.2.2 connect-interface LoopBack1
 peer 4.4.4.4 as-number 100
 peer 4.4.4.4 connect-interface LoopBack1
 #
 ipv4-family unicast
  undo synchronization
  peer 1.1.1.1 enable
  peer 2.2.2.2 enable
  peer 4.4.4.4 enable
 #
 l2vpn-family evpn
  undo policy vpn-target
  vpn-orf enable
  peer 1.1.1.1 enable
  peer 1.1.1.1 reflect-client
  peer 2.2.2.2 enable
  peer 2.2.2.2 reflect-client
  peer 4.4.4.4 enable
  peer 4.4.4.4 reflect-client
 #
 ipv4-family vpn-target
  peer 1.1.1.1 enable
  peer 1.1.1.1 reflect-client
  peer 2.2.2.2 enable
  peer 2.2.2.2 reflect-client
  peer 4.4.4.4 enable
  peer 4.4.4.4 reflect-client
#
ospf 1
 area 0.0.0.0
  network 3.3.3.3 0.0.0.0
  network 10.1.1.0 0.0.0.255
  network 10.2.1.0 0.0.0.255
  network 10.3.1.0 0.0.0.255
#
return

  • CE1 configuration file

    #
sysname CE1
#
bridge-domain 10
#
bridge-domain 20
#
interface Vbdif10
 ip address 192.168.1.11 255.255.255.0
#
interface Vbdif20
 ip address 192.168.2.11 255.255.255.0
#
interface GigabitEthernet0/1/0
 undo shutdown
#
interface GigabitEthernet0/1/0.1 mode l2
 encapsulation dot1q vid 10
 rewrite pop single
 bridge-domain 10
#
interface GigabitEthernet0/1/0.2 mode l2
 encapsulation dot1q vid 20
 rewrite pop single
 bridge-domain 20
#
return

  • CE2 configuration file

    #
sysname CE2
#
bridge-domain 10
#
interface Vbdif10
 ip address 192.168.1.12 255.255.255.0
#
interface GigabitEthernet0/1/0
 undo shutdown
#
interface GigabitEthernet0/1/0.1 mode l2
 encapsulation dot1q vid 10
 rewrite pop single
 bridge-domain 10
#
return

  • CE3 configuration file

    #
sysname CE3
#
bridge-domain 20
#
interface Vbdif20
 ip address 192.168.2.12 255.255.255.0
#
interface GigabitEthernet0/1/0
 undo shutdown
#
interface GigabitEthernet0/1/0.1 mode l2
 encapsulation dot1q vid 20
 rewrite pop single
 bridge-domain 20
#
return
Parent Topic: Configuration Examples for EVPN
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
