Example for Configuring EVPN E-Tree

This section provides an example for configuring EVPN E-Tree. This function isolates traffic between different interfaces in the same broadcast domain.

Networking Requirements

A user wants to deploy an EVPN on the network shown in Figure 1 to transmit services. Specifically, an EVPN instance (BD-EVPN instance in this example) is configured on each PE, and a BGP EVPN peer relationship is established between every two PEs. To improve network security, PE2 and PE3 can only interact with PE1, and PE2 and PE3 cannot send traffic to each other. To implement this function, the user can deploy EVPN E-Tree over the network.

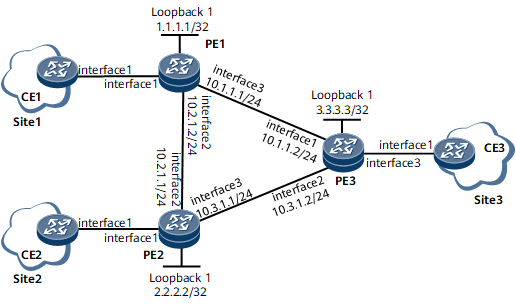

Figure 1 Configuring EVPN E-Tree

Interfaces 1 through 3 in this example represent GE 0/1/0, GE 0/1/8, and GE 0/1/16, respectively.


Precautions

When you configure EVPN E-Tree, note the following:

  • For the same EVPN instance, the export VPN target list of one site shares VPN targets with the import VPN target lists of the other sites. Conversely, the import VPN target list of one site shares VPN targets with the export VPN target lists of the other sites.

  • Using the local loopback interface address of each PE as the source address is recommended.

Configuration Roadmap

The configuration roadmap is as follows:

  1. Assign an IP address to each PE interface, including the loopback interfaces.

  2. Configure a routing protocol on each PE to ensure Layer 3 communication. OSPF is used in this example.

  3. Configure MPLS LDP on each PE.

  4. Create a BD-EVPN instance and a BD on each PE, and bind the BD to the EVPN instance.

  5. Configure each PE interface that connects to a CE.

  6. Configure a source address on each PE.

  7. Configure a BGP EVPN peer relationship between every two PEs.

  8. Configure the AC interfaces on PE2 and PE3 as leaf AC interfaces.

Data Preparation

To complete the configuration, you need the following data:

  • EVPN instance name: evrf1

  • EVPN instance evrf1's RD (10:1) and RT (11:1) on each PE

Procedure

  1. Assign an IP address to each PE interface, including the loopback interfaces.

    For configuration details, see Configuration Files in this section.

  2. Configure a routing protocol on each PE to ensure Layer 3 communication. OSPF is used in this example.

    For configuration details, see Configuration Files in this section.

  3. Configure MPLS LDP on each PE.

    For configuration details, see Configuration Files in this section.

  4. Create a BD-EVPN instance and a BD on each PE, and bind the BD to the EVPN instance.

    # Configure PE1.

    [~PE1] evpn vpn-instance evrf1 bd-mode
[*PE1-evpn-instance-evrf1] route-distinguisher 10:1
[*PE1-evpn-instance-evrf1] vpn-target 11:1
[*PE1-evpn-instance-evrf1] quit
[*PE1] bridge-domain 10
[*PE1-bd10] evpn binding vpn-instance evrf1
[*PE1-bd10] quit
[*PE1] commit

    Repeat this step for PE2 and PE3. For configuration details, see Configuration Files in this section.

  5. Configure each PE interface that connects to a CE.

    # Configure PE1.

    [~PE1] interface gigabitethernet 0/1/0.1 mode l2
[*PE1-GigabitEthernet0/1/0.1] encapsulation dot1q vid 10
[*PE1-GigabitEthernet0/1/0.1] rewrite pop single
[*PE1-GigabitEthernet0/1/0.1] bridge-domain 10
[*PE1-GigabitEthernet0/1/0.1] quit
[*PE1] commit

    Repeat this step for PE2 and PE3. For configuration details, see Configuration Files in this section.

  6. Configure a source address on each PE.

    # Configure PE1.

    [~PE1] evpn source-address 1.1.1.1
[*PE1] commit

    # Configure PE2.

    [~PE2] evpn source-address 2.2.2.2
[*PE2] commit

    # Configure PE3.

    [~PE3] evpn source-address 3.3.3.3
[*PE3] commit

  7. Establish a BGP EVPN peer relationship between every two PEs.

    # Configure PE1.

    [~PE1] bgp 100
[*PE1-bgp] peer 2.2.2.2 as-number 100
[*PE1-bgp] peer 2.2.2.2 connect-interface loopback 1
[*PE1-bgp] peer 3.3.3.3 as-number 100
[*PE1-bgp] peer 3.3.3.3 connect-interface loopback 1
[*PE1-bgp] l2vpn-family evpn
[*PE1-bgp-af-evpn] peer 2.2.2.2 enable
[*PE1-bgp-af-evpn] peer 3.3.3.3 enable
[*PE1-bgp-af-evpn] quit
[*PE1-bgp] quit
[*PE1] commit

    Repeat this step for PE2 and PE3. For configuration details, see Configuration Files in this section.

  8. Configure the AC interfaces on PE2 and PE3 as leaf AC interfaces.

    # Configure PE2.

    [~PE2] evpn vpn-instance evrf1 bd-mode
[*PE2-evpn-instance-evrf1] etree enable
[*PE2-evpn-instance-evrf1] quit
[*PE2] interface gigabitethernet0/1/0.1 mode l2
[*PE2-GigabitEthernet0/1/0.1] evpn e-tree-leaf
[*PE2-GigabitEthernet0/1/0.1] quit
[*PE2] commit

    # Configure PE3.

    [~PE3] evpn vpn-instance evrf1 bd-mode
[*PE3-evpn-instance-evrf1] etree enable
[*PE3-evpn-instance-evrf1] quit
[*PE3] interface gigabitethernet0/1/16.1 mode l2
[*PE3-GigabitEthernet0/1/16.1] evpn e-tree-leaf
[*PE3-GigabitEthernet0/1/16.1] quit
[*PE3] commit

  9. Verify the configuration.

    Run the display bgp evpn all routing-table command on PE1 to view the leaf attribute in Ethernet auto-discovery and MAC routes.

    [~PE1] display bgp evpn all routing-table
 Local AS number : 100

 BGP Local router ID is 10.2.1.2
 Status codes: * - valid, > - best, d - damped, x - best external, a - add path,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete


 EVPN address family:
 Number of A-D Routes: 2
 Route Distinguisher: 2.2.2.2:0
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.0000.0000.0000.0000:4294967295                    2.2.2.2
 Route Distinguisher: 3.3.3.3:0
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.0000.0000.0000.0000:4294967295                    3.3.3.3


 EVPN-Instance evrf1:
 Number of A-D Routes: 2
       Network(ESI/EthTagId)                                  NextHop
 *>i   0000.0000.0000.0000.0000:4294967295                    2.2.2.2
 * i                                                          3.3.3.3

 EVPN address family:
 Number of Mac Routes: 6
 Route Distinguisher: 10:1
       Network(EthTagId/MacAddrLen/MacAddr/IpAddrLen/IpAddr)  NextHop
 *>    0:48:00e0-fc00-0001:0:0.0.0.0                          0.0.0.0
 *>i   0:48:00e0-fc00-0005:0:0.0.0.0                          2.2.2.2
 *>i   0:48:00e0-fc00-0004:0:0.0.0.0                          3.3.3.3
 *>i   0:48:00e0-fc00-0002:0:0.0.0.0                          2.2.2.2
 *>i   0:48:00e0-fc00-0003:0:0.0.0.0                          3.3.3.3
 *>    0:48:00e0-fc00-0006:0:0.0.0.0                          0.0.0.0


 EVPN-Instance evrf1:
 Number of Mac Routes: 6
       Network(EthTagId/MacAddrLen/MacAddr/IpAddrLen/IpAddr)  NextHop
 *>    0:48:00e0-fc00-0001:0:0.0.0.0                          0.0.0.0
 *>i   0:48:00e0-fc00-0005:0:0.0.0.0                          2.2.2.2
 *>i   0:48:00e0-fc00-0004:0:0.0.0.0                          3.3.3.3
 *>i   0:48:00e0-fc00-0002:0:0.0.0.0                          2.2.2.2
 *>i   0:48:00e0-fc00-0003:0:0.0.0.0                          3.3.3.3
 *>    0:48:00e0-fc00-0006:0:0.0.0.0                          0.0.0.0

 EVPN address family:
 Number of Inclusive Multicast Routes: 3
 Route Distinguisher: 10:1
       Network(EthTagId/IpAddrLen/OriginalIp)                 NextHop
 *>    0:32:1.1.1.1                                           127.0.0.1
 *>i   0:32:2.2.2.2                                           2.2.2.2
 *>i   0:32:3.3.3.3                                           3.3.3.3


 EVPN-Instance evrf1:
 Number of Inclusive Multicast Routes: 3
       Network(EthTagId/IpAddrLen/OriginalIp)                 NextHop
 *>    0:32:1.1.1.1                                           127.0.0.1
 *>i   0:32:2.2.2.2                                           2.2.2.2
 *>i   0:32:3.3.3.3                                           3.3.3.3
[~PE1] display bgp evpn all routing-table ad-route 0000.0000.0000.0000.0000:4294967295
 BGP local router ID : 10.2.1.2
 Local AS number : 100
 Total routes of Route Distinguisher(2.2.2.2:0): 1
 BGP routing table entry information of 0000.0000.0000.0000.0000:4294967295:
 From: 2.2.2.2 (2.2.2.2)
 Route Duration: 0d01h27m52s
 Relay IP Nexthop: 10.2.1.1
 Relay Tunnel Out-Interface: GigabitEthernet0/1/8
 Original nexthop: 2.2.2.2
 Qos information : 0x0
 Ext-Community: RT <11 : 1>, E-Tree <0 : 0 : 32915>
 AS-path Nil, origin incomplete, localpref 100, pref-val 0, valid, internal, best, select, pre 255, IGP cost 1
 Route Type: 1 (Ethernet Auto-Discovery (A-D) route)
 ESI: 0000.0000.0000.0000.0000, Ethernet Tag ID: 4294967295
 Not advertised to any peer yet

 Total routes of Route Distinguisher(3.3.3.3:0): 1
 BGP routing table entry information of 0000.0000.0000.0000.0000:4294967295:
 From: 3.3.3.3 (3.3.3.3)
 Route Duration: 0d01h25m59s
 Relay IP Nexthop: 10.1.1.2
 Relay Tunnel Out-Interface: GigabitEthernet0/1/16
 Original nexthop: 3.3.3.3
 Qos information : 0x0
 Ext-Community: RT <11 : 1>, E-Tree <0 : 0 : 32915>
 AS-path Nil, origin incomplete, localpref 100, pref-val 0, valid, internal, best, select, pre 255, IGP cost 1
 Route Type: 1 (Ethernet Auto-Discovery (A-D) route)
 ESI: 0000.0000.0000.0000.0000, Ethernet Tag ID: 4294967295
 Not advertised to any peer yet



 EVPN-Instance evrf1:
 Number of A-D Routes: 2
 BGP routing table entry information of 0000.0000.0000.0000.0000:4294967295:
 Route Distinguisher: 2.2.2.2:0
 Remote-Cross route
 From: 2.2.2.2 (2.2.2.2)
 Route Duration: 0d01h27m52s
 Relay Tunnel Out-Interface: GigabitEthernet0/1/8
 Original nexthop: 2.2.2.2
 Qos information : 0x0
 Ext-Community: RT <11 : 1>, E-Tree <0 : 0 : 32915>
 AS-path Nil, origin incomplete, localpref 100, pref-val 0, valid, internal, best, select, pre 255, IGP cost 1
 Route Type: 1 (Ethernet Auto-Discovery (A-D) route)
 ESI: 0000.0000.0000.0000.0000, Ethernet Tag ID: 4294967295
 Not advertised to any peer yet

 BGP routing table entry information of 0000.0000.0000.0000.0000:4294967295:
 Route Distinguisher: 3.3.3.3:0
 Remote-Cross route
 From: 3.3.3.3 (3.3.3.3)
 Route Duration: 0d01h25m59s
 Relay Tunnel Out-Interface: GigabitEthernet0/1/16
 Original nexthop: 3.3.3.3
 Qos information : 0x0
 Ext-Community: RT <11 : 1>, E-Tree <0 : 0 : 32915>
 AS-path Nil, origin incomplete, localpref 100, pref-val 0, valid, internal, pre 255, IGP cost 1, not preferred for router ID
 Route Type: 1 (Ethernet Auto-Discovery (A-D) route)
 ESI: 0000.0000.0000.0000.0000, Ethernet Tag ID: 4294967295
 Not advertised to any peer yet
[~PE1] display bgp evpn all routing-table mac-route 0:48:00e0-fc00-0005:0:0.0.0.0
 BGP local router ID : 10.2.1.2
 Local AS number : 100
 Total routes of Route Distinguisher(10:1): 1
 BGP routing table entry information of 0:48:00e0-fc00-0005:0:0.0.0.0:
 Label information (Received/Applied): 32912/NULL
 From: 2.2.2.2 (2.2.2.2)
 Route Duration: 0d01h15m31s
 Relay IP Nexthop: 10.2.1.1
 Relay Tunnel Out-Interface: GigabitEthernet0/1/8
 Original nexthop: 2.2.2.2
 Qos information : 0x0
 Ext-Community: RT <11 : 1>, E-Tree <1 : 0 : 0>
 AS-path Nil, origin incomplete, localpref 100, pref-val 0, valid, internal, best, select, pre 255, IGP cost 1
 Route Type: 2 (MAC Advertisement Route)
 Ethernet Tag ID: 0, MAC Address/Len: 00e0-fc00-0005/48, IP Address/Len: 0.0.0.0/0, ESI:0000.0000.0000.0000.0000
 Not advertised to any peer yet



 EVPN-Instance evrf1:
 Number of Mac Routes: 1
 BGP routing table entry information of 0:48:00e0-fc00-0005:0:0.0.0.0:
 Route Distinguisher: 10:1
 Remote-Cross route
 Label information (Received/Applied): 32912/NULL
 From: 2.2.2.2 (2.2.2.2)
 Route Duration: 0d01h15m31s
 Relay Tunnel Out-Interface: GigabitEthernet0/1/8
 Original nexthop: 2.2.2.2
 Qos information : 0x0
 Ext-Community: RT <11 : 1>, E-Tree <1 : 0 : 0>
 AS-path Nil, origin incomplete, localpref 100, pref-val 0, valid, internal, best, select, pre 255, IGP cost 1
 Route Type: 2 (MAC Advertisement Route)
 Ethernet Tag ID: 0, MAC Address/Len: 00e0-fc00-0005/48, IP Address/Len: 0.0.0.0/0, ESI:0000.0000.0000.0000.0000
 Not advertised to any peer yet

Configuration Files

  • PE1 configuration file

    #
sysname PE1
#
evpn vpn-instance evrf1 bd-mode
 route-distinguisher 10:1
 vpn-target 11:1 export-extcommunity
 vpn-target 11:1 import-extcommunity
#
mpls lsr-id 1.1.1.1
#
mpls
#
bridge-domain 10
 evpn binding vpn-instance evrf1
#
mpls ldp
#
interface GigabitEthernet0/1/0.1 mode l2
 encapsulation dot1q vid 10
 rewrite pop single
 bridge-domain 10
#
interface GigabitEthernet0/1/8
 undo shutdown
 ip address 10.2.1.2 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/16
 undo shutdown
 ip address 10.1.1.1 255.255.255.0
 mpls
 mpls ldp
#
interface LoopBack1
 ip address 1.1.1.1 255.255.255.255
#
bgp 100
 peer 2.2.2.2 as-number 100
 peer 2.2.2.2 connect-interface LoopBack1
 peer 3.3.3.3 as-number 100
 peer 3.3.3.3 connect-interface LoopBack1
 #
 ipv4-family unicast
  undo synchronization
  peer 2.2.2.2 enable
  peer 3.3.3.3 enable
 #
 l2vpn-family evpn
  undo policy vpn-target
  peer 2.2.2.2 enable
  peer 3.3.3.3 enable
#
ospf 1
 area 0.0.0.0
  network 1.1.1.1 0.0.0.0
  network 10.1.1.0 0.0.0.255
  network 10.2.1.0 0.0.0.255
#
evpn source-address 1.1.1.1
#
return

  • PE2 configuration file

    #
sysname PE2
#
evpn vpn-instance evrf1 bd-mode
 route-distinguisher 10:1
 etree enable
 vpn-target 11:1 export-extcommunity
 vpn-target 11:1 import-extcommunity
#
mpls lsr-id 2.2.2.2
#
mpls
#
bridge-domain 10
 evpn binding vpn-instance evrf1
#
mpls ldp
#
interface GigabitEthernet0/1/0.1 mode l2
 encapsulation dot1q vid 10
 rewrite pop single
 bridge-domain 10
 evpn e-tree-leaf
#
interface GigabitEthernet0/1/8
 undo shutdown
 ip address 10.2.1.1 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/16
 undo shutdown
 ip address 10.3.1.1 255.255.255.0
 mpls
 mpls ldp
#
interface LoopBack1
 ip address 2.2.2.2 255.255.255.255
#
bgp 100
 peer 1.1.1.1 as-number 100
 peer 1.1.1.1 connect-interface LoopBack1
 peer 3.3.3.3 as-number 100
 peer 3.3.3.3 connect-interface LoopBack1
 #
 ipv4-family unicast
  undo synchronization
  peer 1.1.1.1 enable
  peer 3.3.3.3 enable
 #
 l2vpn-family evpn
  undo policy vpn-target
  peer 1.1.1.1 enable
  peer 3.3.3.3 enable
#
ospf 1
 area 0.0.0.0
  network 2.2.2.2 0.0.0.0
  network 10.2.1.0 0.0.0.255
  network 10.3.1.0 0.0.0.255
#
evpn source-address 2.2.2.2
#
return

  • PE3 configuration file

    #
sysname PE3
#
evpn vpn-instance evrf1 bd-mode
 route-distinguisher 10:1
 etree enable
 vpn-target 11:1 export-extcommunity
 vpn-target 11:1 import-extcommunity
#
mpls lsr-id 3.3.3.3
#
mpls
#
bridge-domain 10
 evpn binding vpn-instance evrf1
#
mpls ldp
#
interface GigabitEthernet0/1/0
 undo shutdown
 ip address 10.1.1.2 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/8
 undo shutdown
 ip address 10.3.1.2 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/16.1 mode l2
 encapsulation dot1q vid 10
 rewrite pop single
 bridge-domain 10
 evpn e-tree-leaf
#
interface LoopBack1
 ip address 3.3.3.3 255.255.255.255
#
bgp 100
 peer 1.1.1.1 as-number 100
 peer 1.1.1.1 connect-interface LoopBack1
 peer 2.2.2.2 as-number 100
 peer 2.2.2.2 connect-interface LoopBack1
 #
 ipv4-family unicast
  undo synchronization
  peer 1.1.1.1 enable
  peer 2.2.2.2 enable
 #
 l2vpn-family evpn
  undo policy vpn-target
  peer 1.1.1.1 enable
  peer 2.2.2.2 enable
#
ospf 1
 area 0.0.0.0
  network 3.3.3.3 0.0.0.0
  network 10.1.1.0 0.0.0.255
  network 10.3.1.0 0.0.0.255
#
evpn source-address 3.3.3.3
#
return
Parent Topic: Configuration Examples for EVPN
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
