Example for Configuring Inter-Board LDP over GRE over IPsec

Context

As shown in Figure1 Configuring LDP over GRE over IPsec, PEs or PE and P node communicate with each other through the GRE over IPsec tunnel over the Multiprotocol Label Switching (MPLS) network. Data transmitted on the public network is protected by IPsec.

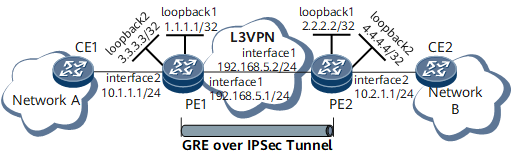

Figure 1 Configuring LDP over GRE over IPsec

Interfaces 1 and 2 in this example represent GE 0/1/0 and GE 0/1/1, respectively.


The networking is described as follows:

  • Interface GE 0/1/0 of PE1 on the public network side is connected to PE2, and interface GE 0/1/1 on the private network side is connected to CE1.

  • Interface GE 0/1/0 of PE2 on the public network side is connected to PE1, and interface GE 0/1/1 on the private network side is connected to CE2.

To improve communication security between PE1 and PE2, configure a GRE over IPsec tunnel between PE1 and PE2.

Configuration Roadmap

This section uses IPsec in IKE mode as an example to describe how to configure LDP over GRE over IPsec. The tunnel mode is used for encapsulation. The configuration roadmap is as follows:

  1. Allocate IP addresses to interfaces.

  2. Configure a loopback interface and configure GRE for the loopback interface.

  3. Create a tunnel interface and configure GRE for the tunnel interface.

  4. Configure IPsec. The following steps are involved:

    • Configure an ACL to define the data flow to be protected.

    • (Recommended) Configure the DPD.

    • Configure an IKE proposal.

    • Configure IKE peers.

    • Configure an IPsec proposal.

    • Configure an IPsec policy.

    • Configure an IPsec service instance group.

    • Create a tunnel interface and configure attributes for the tunnel interface.

    • Apply the IPsec policy to the tunnel interface.

    • Configure a static route to divert IPsec traffic.

  5. Create a loopback interface and configure IS-IS for the loopback interface and GRE-enabled tunnel interface.

  6. Establish an IBGP peer relationship between PE1 and PE2.

  7. Enable MPLS and MPLS LDP.

  8. Configure VPN instances.

Data Preparation

To complete the configuration, you need the following data:

  • IP addresses of interfaces
  • IPsec-related data, mainly including:

    • DPD data

    • ACL number

    • IP address segments

    • Pre-shared key

    • Authentication algorithm used by the IKE proposal

    • Security protocol, encryption algorithm, and authentication algorithm to be used by an IPsec proposal

    • IP addresses of tunnel interfaces

  • L3VPN data, including the IS-IS system-ID, MPLS LSR ID, VPN instance name, RD, and VPN target

Procedure

  • Configure PE1 and PE2 as follows:

    Item

    PE1

    PE2

    1. Configure interface IP addresses.


    interface GigabitEthernet0/1/0
 undo shutdown
 ip address 192.168.5.1 255.255.255.0
#
interface LoopBack1
 ip address 1.1.1.1 255.255.255.255
#
interface LoopBack2
 ip address 3.3.3.3 255.255.255.255

    interface GigabitEthernet0/1/0
 undo shutdown
 ip address 192.168.5.2 255.255.255.0
#
interface LoopBack1
 ip address 2.2.2.2 255.255.255.255
#
interface LoopBack2
 ip address 4.4.4.4 255.255.255.255

    2. Configure the GRE tunnel interfaces.


    interface LoopBack1
 binding tunnel gre
#
interface Tunnel 802
 ip address 172.16.5.1 255.255.255.0   //This address has no actual meaning. It is used to enable the interface to enter the Up state.
 tunnel-protocol gre
 source LoopBack1
 destination 2.2.2.2

    interface LoopBack1
 binding tunnel gre
#
interface Tunnel 502
 ip address 172.16.5.2 255.255.255.0   //This address has no actual meaning. It is used to enable the interface to enter the Up state.
 tunnel-protocol gre
 source LoopBack1
 destination 1.1.1.1

    4. Enable DPD.


    ike dpd interval 10 10   //You are suggested to deploy the DPD function.

    ike dpd interval 10 10   //You are suggested to deploy the DPD function.

    5. Configure an ACL to define the data flow to be protected.


    acl number 3100
 rule 5 permit gre source 1.1.1.1 0 destination 2.2.2.2 0

    acl number 3100
 rule 5 permit gre source 2.2.2.2 0 destination 1.1.1.1 0

    6. Configure the IKE proposal and IKE peer.


    ike proposal 1
 encryption-algorithm aes-cbc 256
 dh group2
 authentication-algorithm sha2-256
 integrity-algorithm hmac-sha2-256
#
ike peer pe
 pre-shared-key %$%$0\WT%.iDi6%K-f)_^mQ6,.2n%$%$  //Configure the PSK as 1234567890 in ciphertext.
 ike-proposal 1
 remote-address 172.17.5.2

    ike proposal 1
 encryption-algorithm aes-cbc 256
 dh group2
 authentication-algorithm sha2-256
 integrity-algorithm hmac-sha2-256
#
ike peer pe
 pre-shared-key %$%$0\WT%.iDi6%K-f)_^mQ6,.2n%$%$  //Configure the PSK as 1234567890 in ciphertext.
 ike-proposal 1
 remote-address 172.17.5.1

    7. Configure Service-instance-group.


    service-location 1
 location slot 1
#
service-instance-group group1
 service-location 1

    service-location 1
 location slot 1
#
service-instance-group group1
 service-location 1

    8. Configure the IPsec tunnel.


    ipsec proposal zh   //Configure the IPsec proposal.
 esp authentication-algorithm sha1
 esp encryption-algorithm aes 256
#
ipsec policy zh 10 isakmp   //Configure the IPsec policy.
 security acl 3100
 ike-peer pe
 proposal zh
#
interface Tunnel 5   //Configure the IPsec tunnel.
 ip address 172.17.5.1 255.255.255.0
 tunnel-protocol ipsec
 ipsec policy zh service-instance-group 1

    ipsec proposal zh   //Configure the IPsec proposal.
 esp authentication-algorithm sha1
 esp encryption-algorithm aes 256
#
ipsec policy zh 10 isakmp   //Configure the IPsec policy.
 security acl 3100
 ike-peer pe
 proposal zh
#
interface Tunnel 5   //Configure the IPsec tunnel.
 ip address 172.17.5.2 255.255.255.0
 tunnel-protocol ipsec
 ipsec policy zh service-instance-group 1

    9. Configure the diversion routes.


     ip route-static 2.2.2.2 255.255.255.255 Tunnel5 172.17.5.2   //Divert traffic to the IPsec tunnel for encryption.
 ip route-static 172.17.5.2 255.255.255.255 GigabitEthernet0/1/0 192.168.5.2   //Divert the traffic encrypted by IPsec to the actual physical outbound interface.

     ip route-static 1.1.1.1 255.255.255.255 Tunnel5 172.17.5.1   //Divert traffic to the IPsec tunnel for encryption.
 ip route-static 172.17.5.1 255.255.255.255 GigabitEthernet0/1/0 192.168.5.1   //Divert the traffic encrypted by IPsec to the actual physical outbound interface.

    10. Configure IS-IS.


    isis 1
 is-level level-2
 network-entity 01.0000.0000.0003.00
#
interface LoopBack2
 isis enable 1
#
interface Tunnel802
 isis enable 1

    isis 1
 is-level level-2
 network-entity 01.0000.0000.0005.00
#
interface LoopBack2
 isis enable 1
#
interface Tunnel502
 isis enable 1

    11. Configure VPNs.


    ip vpn-instance ipsec_vpn
 ipv4-family
  route-distinguisher 100:100
  vpn-target 200:200 export-extcommunity
  vpn-target 200:200 import-extcommunity
#
interface GigabitEthernet0/1/1
 undo shutdown
 ip binding vpn-instance ipsec_vpn
 ip address 10.1.1.1 255.255.255.0

    ip vpn-instance ipsec_vpn
 ipv4-family
  route-distinguisher 100:100
  vpn-target 200:200 export-extcommunity
  vpn-target 200:200 import-extcommunity
#
interface GigabitEthernet0/1/1
 undo shutdown
 ip binding vpn-instance ipsec_vpn
 ip address 10.2.1.1 255.255.255.0

    12. Configure BGP.


    bgp 100
 peer 4.4.4.4 as-number 100
 peer 4.4.4.4 connect-interface LoopBack2
#
 ipv4-family unicast
  undo synchronization
  peer 4.4.4.4 enable
#
 ipv4-family vpnv4
  policy vpn-target
  peer 4.4.4.4 enable
#
 ipv4-family vpn-instance ipsec_vpn
  import-route direct

    bgp 100
 peer 3.3.3.3 as-number 100
 peer 3.3.3.3 connect-interface LoopBack2
#
 ipv4-family unicast
  undo synchronization
  peer 3.3.3.3 enable
#
 ipv4-family vpnv4
  policy vpn-target
  peer 3.3.3.3 enable
#
 ipv4-family vpn-instance ipsec_vpn
  import-route direct

    13. Configure the MPLS tunnel.


     mpls lsr-id 3.3.3.3
 mpls
#
mpls ldp
#
interface Tunnel802   //Enable MPLS LDP for the GRE tunnel interface.
 mpls
 mpls ldp

     mpls lsr-id 4.4.4.4
 mpls
#
mpls ldp
#
interface Tunnel502   //Enable MPLS LDP for the GRE tunnel interface.
 mpls
 mpls ldp

Parent Topic: GRE over IPsec Scenario
