Example for Configuring IPv6 SEND

This section provides examples for configuring IPv6 SEND.

Networking Requirements

As shown in Figure 1, IPv6 SEND is configured on DeviceA. Assume that DeviceB is an attacker. When DeviceB sends messages to DeviceA, DeviceA regards them invalid and discards them.

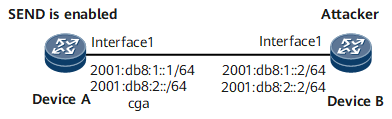

Figure 1 Networking diagram for configuring IPv6 SEND

Interface 1 in this example represents GE 0/1/0.

Precautions

None.

Configuration Roadmap

The configuration roadmap is as follows:

Configure a CGA IPv6 address and a common IPv6 address on DeviceA.
Enable the strict security mode on an interface of DeviceA.
Configure an IPv6 address for an interface on DeviceB.

Data Preparation

To complete the configuration, you need the following data:

RSA key pair name
Modifier value and security level of a CGA address
CGA IPv6 address
IPv6 address of DeviceB

Procedure

Configure a CGA IPv6 address on DeviceA.

<HUAWEIA> system-view
[~HUAWEIA] sysname DeviceA
[*HUAWEIA] commit
[*DeviceA] rsa key-pair label huawei
[*DeviceA] interface gigabitethernet 0/1/0
[*DeviceA-GigabitEthernet0/1/0] undo shutdown
[*DeviceA-GigabitEthernet0/1/0] ipv6 enable
[*DeviceA-GigabitEthernet0/1/0] ipv6 security rsakey-pair huawei
[*DeviceA-GigabitEthernet0/1/0] ipv6 security modifier sec-level 1
[*DeviceA-GigabitEthernet0/1/0] ipv6 address fe80::3 link-local cga
[*DeviceA-GigabitEthernet0/1/0] ipv6 address 2001:db8:2::/64 cga
[*DeviceA-GigabitEthernet0/1/0] ipv6 address 2001:db8:1::1/64

Enable the strict security mode on an interface of DeviceA.

[*DeviceA-GigabitEthernet0/1/0] ipv6 nd security strict
[*DeviceA-GigabitEthernet0/1/0] commit

Configure an IPv6 address of DeviceB.

<HUAWEIB> system-view
[~HUAWEIB] sysname DeviceB
[*HUAWEIB] commit
[*DeviceB] interface gigabitethernet 0/1/0
[*DeviceB-GigabitEthernet0/1/0] undo shutdown
[*DeviceB-GigabitEthernet0/1/0] ipv6 enable
[*DeviceB-GigabitEthernet0/1/0] ipv6 address auto link-local
[*DeviceB-GigabitEthernet0/1/0] ipv6 address 2001:db8:2::2/64
[*DeviceB-GigabitEthernet0/1/0] ipv6 address 2001:db8:1::2/64
[*DeviceB-GigabitEthernet0/1/0] commit

Verify the configuration.

If the configuration is successful, you can view that the IPv6 address and IPv6 SEND have been configured and the interface status and IPv6 protocol status are Up.

# View information about GE 0/1/0 on DeviceA.

[~DeviceA-GigabitEthernet0/1/0] display this ipv6 interface
GigabitEthernet0/1/0 current state : UP
IPv6 protocol current state : UP
IPv6 is enabled, link-local address is FE80::3057:B5D6:6BD6:6CA8
  Global unicast address(es):
   2001:db8:2::2092:84CE:827B:D5A4, subnet is 2001:db8:2::/64
   2001:db8:1::1, subnet is 2001:db8:1::/64
  Joined group address(es):
    FF02::1:FF7B:D5A4
    FF02::2
    FF02::1
    FF02::1:FFD6:6CA8
  MTU is 1500 bytes
  ND DAD is enabled, number of DAD attempts: 1
  ND NUD is enabled, number of NUD attempts: 3
  ND NUD interval is 1000 milliseconds
  ND reachable time is 1200000 milliseconds
  ND stale time is 1200 seconds
  ND retransmit interval is 1000 milliseconds
  ND advertised reachable time is 0 milliseconds
  ND advertised retransmit interval is 0 milliseconds
  ND router advertisement max interval 600 seconds, min interval 200 seconds
  ND router advertisements live for 1800 seconds
  ND router advertisements hop-limit 64
  ND default router preference medium
  Hosts use stateless autoconfig for addresses
  ND Proxy is disabled

# View the IPv6 SEND configuration on GE 0/1/0 of DeviceA.

[~DeviceA-GigabitEthernet0/1/0] display ipv6 security interface gigabitethernet 0/1/0
 (L) : Link local address
 SEND information for the interface : GigabitEthernet0/1/0
----------------------------------------------------------------------------
 IPv6 address                                   PrefixLength Collision Count
----------------------------------------------------------------------------
 FE80::3057:B5D6:6BD6:6CA8 (L)                  10           0
 2001:db8:2::2092:84CE:827B:D5A4                64           0
----------------------------------------------------------------------------
 SEND sec value : 1
 SEND security modifier value : 2001:db8:1::1
 SEND RSA key label bound : huawei
 SEND ND minimum key length value : 512
 SEND ND maximum key length value : 2048
 SEND ND Timestamp delta value : 300
 SEND ND Timestamp fuzz value : 1
 SEND ND Timestamp drift value : 1
 SEND ND fully secured mode : enabled

# View information about GE 0/1/0 on DeviceB.

[~DeviceB-GigabitEthernet0/1/0] display this ipv6 interface
GigabitEthernet0/1/0 current state : UP
IPv6 protocol current state : UP
IPv6 is enabled, link-local address is FE80::2E0:E6FF:FE13:8100
  Global unicast address(es):
    2001:db8:2::2, subnet is 2001:db8:2::/64
    2001:db8:1::2, subnet is 2001:db8:1::/64
  Joined group address(es):
    FF02::1:FF00:2
    FF02::2
    FF02::1
    FF02::1:FF13:8100
  MTU is 1500 bytes
  ND DAD is enabled, number of DAD attempts: 1
  ND NUD is enabled, number of NUD attempts: 3
  ND NUD interval is 1000 milliseconds
  ND reachable time is 1200000 milliseconds
  ND stale time is 1200 seconds
  ND retransmit interval is 1000 milliseconds
  ND advertised reachable time is 0 milliseconds
  ND advertised retransmit interval is 0 milliseconds
  ND router advertisement max interval 600 seconds, min interval 200 seconds
  ND router advertisements live for 1800 seconds
  ND router advertisements hop-limit 64
  ND default router preference medium
  Hosts use stateless autoconfig for addresses
  ND Proxy is disabled

# Ping the CGA link-local address of DeviceA from DeviceB. The ping fails because IPv6 SEND is configured on DeviceA.

[~DeviceB-GigabitEthernet0/1/0] ping ipv6 FE80::3057:B5D6:6BD6:6CA8 -i gigabitethernet 0/1/0
  PING FE80::3057:B5D6:6BD6:6CA8 : 56  data bytes, press CTRL_C to break
    Request time out
    Request time out
    Request time out
    Request time out
    Request time out

  --- FE80::3057:B5D6:6BD6:6CA8 ping statistics ---
    5 packet(s) transmitted
    0 packet(s) received
    100.00% packet loss
    round-trip min/avg/max = 0/0/0 ms

# Ping the CGA global unicast address of DeviceA from DeviceB. The ping fails because IPv6 SEND is configured on DeviceA.

[~DeviceB-GigabitEthernet0/1/0] ping ipv6 2001:db8:2::2092:84CE:827B:D5A4
  PING 2001:db8:2::2092:84CE:827B:D5A4 : 56  data bytes, press CTRL_C to break
    Request time out
    Request time out
    Request time out
    Request time out
    Request time out

  --- 2001:db8:2::2092:84CE:827B:D5A4 ping statistics ---
    5 packet(s) transmitted
    0 packet(s) received
    100.00% packet loss
    round-trip min/avg/max = 0/0/0 ms

# Ping the common global unicast address of DeviceA from DeviceB. The ping fails because IPv6 SEND is configured on DeviceA.

[~DeviceB-GigabitEthernet0/1/0] ping ipv6 2001:db8:1::1
  PING 2001:db8:1::1 : 56  data bytes, press CTRL_C to break
    Request time out
    Request time out
    Request time out
    Request time out
    Request time out

  --- 2001:db8:2::2092:84CE:827B:D5A4 ping statistics ---
    5 packet(s) transmitted
    0 packet(s) received
    100.00% packet loss
    round-trip min/avg/max = 0/0/0 ms

# Disable IPv6 SEND on DeviceA. The ping from DeviceB to DeviceA is successful. The following part provides an example of pinging the CGA global unicast address of DeviceA.

[*DeviceA-GigabitEthernet0/1/0] undo ipv6 nd security strict
[*DeviceA-GigabitEthernet0/1/0] commit
[*DeviceB-GigabitEthernet0/1/0] ping ipv6 2001:db8:2::2092:84CE:827B:D5A4
  PING 2001:db8:2::2092:84CE:827B:D5A4 : 56  data bytes, press CTRL_C to break
    Reply from 2001:db8:2::2092:84CE:827B:D5A4
    bytes=56 Sequence=1 hop limit=64  time = 1 ms
    Reply from 2001:db8:2::2092:84CE:827B:D5A4
    bytes=56 Sequence=2 hop limit=64  time = 20 ms
    Reply from 2001:db8:2::2092:84CE:827B:D5A4
    bytes=56 Sequence=3 hop limit=64  time = 1 ms
    Reply from 2001:db8:2::2092:84CE:827B:D5A4
    bytes=56 Sequence=4 hop limit=64  time = 1 ms
    Reply from 2001:db8:2::2092:84CE:827B:D5A4
    bytes=56 Sequence=5 hop limit=64  time = 1 ms

  --- 2001:db8:2::2092:84CE:827B:D5A4 ping statistics ---
    5 packet(s) transmitted
    5 packet(s) received
    0.00% packet loss
    round-trip min/avg/max = 1/4/20 ms

Configuration Files

Configuration file of DeviceA

#
 sysname DeviceA
#
rsa key-pair label huawei
#
interface GigabitEthernet0/1/0
 undo shutdown
 ipv6 enable
 ipv6 security rsakey-pair huawei
 ipv6 security modifier sec-level 1
 ipv6 address 2001:db8:2::/64 cga
 ipv6 address 2001:db8:1::1/64
 ipv6 address fe80::3 link-local cga
 ipv6 nd security strict
#
return

Configuration file of DeviceB

#
 sysname DeviceB
#
ipv6
#
interface GigabitEthernet0/1/0
 undo shutdown
 ipv6 enable
 ipv6 address 2001:db8:2::2/64
 ipv6 address 2001:db8:1::2/64
 ipv6 address auto link-local
#
return
