Example for Configuring EVPN Route Recursion Based on an SR-MPLS TE Policy

This section provides an example for configuring EVPN route recursion based on an SR-MPLS TE Policy.

Networking Requirements

On the network shown in Figure 1, PE1, P1, P2, and PE2 are in the same AS. IS-IS is required to implement network connectivity. An SR-MPLS TE Policy needs to be configured on PE1 and PE2 to carry EVPN services.

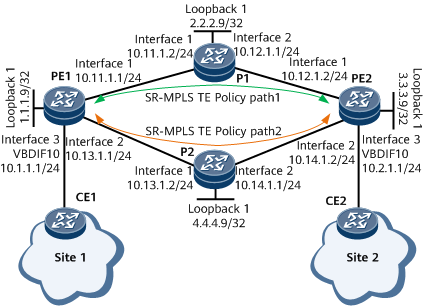

Figure 1 Networking of EVPN route recursion based on an SR-MPLS TE Policy

Interfaces 1 through 3 in this example represent GE 0/1/0, GE 0/1/8, and GE 0/1/16, respectively.


Configuration Precautions

When configuring EVPN route recursion based on an SR-MPLS TE Policy, note the following:

After a VPN instance is bound to a PE interface connected to a CE, Layer 3 configurations on this interface, such as IP address and routing protocol configurations, are automatically deleted. Add these configurations again if necessary.

Configuration Roadmap

The configuration roadmap is as follows:

  1. Assign IP addresses to each device interface.

  2. Configure an IGP on each device so that PEs and Ps on the backbone network can communicate with each other. IS-IS is used as an example.

  3. Enable MPLS and SR for each device on the backbone network, and configure static adjacency SIDs.

  4. Configure an SR-MPLS TE Policy on PEs, and configure path information for the SR-MPLS TE Policy.

  5. Configure SBFD and HSB on the PE to enhance the reliability of the SR-MPLS TE Policy.

  6. Establish BGP EVPN peer relationships between PEs, apply an import route-policy, and add the extended community attribute Color to routes.

  7. Configure MP-IBGP on PEs to exchange VPN routing information.

  8. Configure IPv4 address family VPN instances on PEs and bind each interface that connects a PE to a CE to a VPN instance.

  9. Configure a tunnel policy on each PE.

  10. Configure EBGP between CEs and PEs to exchange VPN routing information.

Data Preparation

To complete the configuration, you need the following data:

  • MPLS LSR IDs of PEs and Ps

  • VPN targets and RDs of the EVPN instance named evrf1 and the L3VPN instance named vpn1

Procedure

  1. Configure interface IP addresses on each device.

    # Configure PE1.

    <HUAWEI> system-view
[~HUAWEI] sysname PE1
[*HUAWEI] commit
[~PE1] interface loopback 1
[*PE1-LoopBack1] ip address 1.1.1.9 32
[*PE1-LoopBack1] quit
[*PE1] interface gigabitethernet0/1/0
[*PE1-GigabitEthernet0/1/0] ip address 10.11.1.1 24
[*PE1-GigabitEthernet0/1/0] quit
[*PE1] interface gigabitethernet0/1/8
[*PE1-GigabitEthernet0/1/8] ip address 10.13.1.1 24
[*PE1-GigabitEthernet0/1/8] quit
[*PE1] commit

    # Configure P1.

    <HUAWEI> system-view
[~HUAWEI] sysname P1
[*HUAWEI] commit
[~P1] interface loopback 1
[*P1-LoopBack1] ip address 2.2.2.9 32
[*P1-LoopBack1] quit
[*P1] interface gigabitethernet0/1/0
[*P1-GigabitEthernet0/1/0] ip address 10.11.1.2 24
[*P1-GigabitEthernet0/1/0] quit
[*P1] interface gigabitethernet0/1/8
[*P1-GigabitEthernet0/1/8] ip address 10.12.1.1 24
[*P1-GigabitEthernet0/1/8] quit
[*P1] commit

    # Configure PE2.

    <HUAWEI> system-view
[~HUAWEI] sysname PE2
[*HUAWEI] commit
[~PE2] interface loopback 1
[*PE2-LoopBack1] ip address 3.3.3.9 32
[*PE2-LoopBack1] quit
[*PE2] interface gigabitethernet0/1/0
[*PE2-GigabitEthernet0/1/0] ip address 10.12.1.2 24
[*PE2-GigabitEthernet0/1/0] quit
[*PE2] interface gigabitethernet0/1/8
[*PE2-GigabitEthernet0/1/8] ip address 10.14.1.2 24
[*PE2-GigabitEthernet0/1/8] quit
[*PE2] commit

    # Configure P2.

    <HUAWEI> system-view
[~HUAWEI] sysname P2
[*HUAWEI] commit
[~P2] interface loopback 1
[*P2-LoopBack1] ip address 4.4.4.9 32
[*P2-LoopBack1] quit
[*P2] interface gigabitethernet0/1/0
[*P2-GigabitEthernet0/1/0] ip address 10.13.1.2 24
[*P2-GigabitEthernet0/1/0] quit
[*P2] interface gigabitethernet0/1/8
[*P2-GigabitEthernet0/1/8] ip address 10.14.1.1 24
[*P2-GigabitEthernet0/1/8] quit
[*P2] commit

  2. Configure an IGP on each device so that PEs and Ps on the backbone network can communicate with each other. IS-IS is used as an example.

    # Configure PE1.

    [~PE1] isis 1
[*PE1-isis-1] is-level level-1
[*PE1-isis-1] network-entity 10.0000.0000.0001.00
[*PE1-isis-1] quit
[*PE1] interface loopback 1
[*PE1-LoopBack1] isis enable 1
[*PE1-LoopBack1] quit
[*PE1] interface gigabitethernet0/1/0
[*PE1-GigabitEthernet0/1/0] isis enable 1
[*PE1-GigabitEthernet0/1/0] quit
[*PE1] interface gigabitethernet0/1/8
[*PE1-GigabitEthernet0/1/8] isis enable 1
[*PE1-GigabitEthernet0/1/8] quit
[*PE1] commit

    # Configure P1.

    [~P1] isis 1
[*P1-isis-1] is-level level-1
[*P1-isis-1] network-entity 10.0000.0000.0002.00
[*P1-isis-1] quit
[*P1] interface loopback 1
[*P1-LoopBack1] isis enable 1
[*P1-LoopBack1] quit
[*P1] interface gigabitethernet0/1/0
[*P1-GigabitEthernet0/1/0] isis enable 1
[*P1-GigabitEthernet0/1/0] quit
[*P1] interface gigabitethernet0/1/8
[*P1-GigabitEthernet0/1/8] isis enable 1
[*P1-GigabitEthernet0/1/8] quit
[*P1] commit

    # Configure PE2.

    [~PE2] isis 1
[*PE2-isis-1] is-level level-1
[*PE2-isis-1] network-entity 10.0000.0000.0003.00
[*PE2-isis-1] quit
[*PE2] interface loopback 1
[*PE2-LoopBack1] isis enable 1
[*PE2-LoopBack1] quit
[*PE2] interface gigabitethernet0/1/0
[*PE2-GigabitEthernet0/1/0] isis enable 1
[*PE2-GigabitEthernet0/1/0] quit
[*PE2] interface gigabitethernet0/1/8
[*PE2-GigabitEthernet0/1/8] isis enable 1
[*PE2-GigabitEthernet0/1/8] quit
[*PE2] commit

    # Configure P2.

    [~P2] isis 1
[*P2-isis-1] is-level level-1
[*P2-isis-1] network-entity 10.0000.0000.0004.00
[*P2-isis-1] quit
[*P2] interface loopback 1
[*P2-LoopBack1] isis enable 1
[*P2-LoopBack1] quit
[*P2] interface gigabitethernet0/1/0
[*P2-GigabitEthernet0/1/0] isis enable 1
[*P2-GigabitEthernet0/1/0] quit
[*P2] interface gigabitethernet0/1/8
[*P2-GigabitEthernet0/1/8] isis enable 1
[*P2-GigabitEthernet0/1/8] quit
[*P2] commit

  3. Configure basic MPLS functions on each device.

    # Configure PE1.

    [~PE1] mpls lsr-id 1.1.1.9
[*PE1] mpls
[*PE1-mpls] commit
[~PE1-mpls] quit

    # Configure P1.

    [~P1] mpls lsr-id 2.2.2.9
[*P1] mpls
[*P1-mpls] commit
[~P1-mpls] quit

    # Configure PE2.

    [~PE2] mpls lsr-id 3.3.3.9
[*PE2] mpls
[*PE2-mpls] commit
[~PE2-mpls] quit

    # Configure P2.

    [~P2] mpls lsr-id 4.4.4.9
[*P2] mpls
[*P2-mpls] commit
[~P2-mpls] quit

  4. Configure SR on each device.

    # Configure PE1.

    [~PE1] segment-routing
[*PE1-segment-routing] ipv4 adjacency local-ip-addr 10.11.1.1 remote-ip-addr 10.11.1.2 sid 330000
[*PE1-segment-routing] ipv4 adjacency local-ip-addr 10.13.1.1 remote-ip-addr 10.13.1.2 sid 330001
[*PE1-segment-routing] quit
[*PE1] isis 1
[*PE1-isis-1] cost-style wide
[*PE1-isis-1] segment-routing mpls
[*PE1-isis-1] quit
[*PE1] commit

    # Configure P1.

    [~P1] segment-routing
[*P1-segment-routing] ipv4 adjacency local-ip-addr 10.11.1.2 remote-ip-addr 10.11.1.1 sid 330003
[*P1-segment-routing] ipv4 adjacency local-ip-addr 10.12.1.1 remote-ip-addr 10.12.1.2 sid 330002
[*P1-segment-routing] quit
[*P1] isis 1
[*P1-isis-1] cost-style wide
[*P1-isis-1] segment-routing mpls
[*P1-isis-1] quit
[*P1] commit

    # Configure PE2.

    [~PE2] segment-routing
[*PE2-segment-routing] ipv4 adjacency local-ip-addr 10.12.1.2 remote-ip-addr 10.12.1.1 sid 330000
[*PE2-segment-routing] ipv4 adjacency local-ip-addr 10.14.1.2 remote-ip-addr 10.14.1.1 sid 330001
[*PE2-segment-routing] quit
[*PE2] isis 1
[*PE2-isis-1] cost-style wide
[*PE2-isis-1] segment-routing mpls
[*PE2-isis-1] quit
[*PE2] commit

    # Configure P2.

    [~P2] segment-routing
[*P2-segment-routing] ipv4 adjacency local-ip-addr 10.13.1.2 remote-ip-addr 10.13.1.1 sid 330002
[*P2-segment-routing] ipv4 adjacency local-ip-addr 10.14.1.1 remote-ip-addr 10.14.1.2 sid 330003
[*P2-segment-routing] quit
[*P2] isis 1
[*P2-isis-1] cost-style wide
[*P2-isis-1] segment-routing mpls
[*P2-isis-1] quit
[*P2] commit

  5. Configure an SR-MPLS TE Policy on each PE.

    # Configure PE1.

    [~PE1] segment-routing
[~PE1-segment-routing] segment-list path1
[*PE1-segment-routing-segment-list-path1] index 10 sid label 330000
[*PE1-segment-routing-segment-list-path1] index 20 sid label 330002
[*PE1-segment-routing-segment-list-path1] quit
[*PE1-segment-routing] segment-list path2
[*PE1-segment-routing-segment-list-path2] index 10 sid label 330001
[*PE1-segment-routing-segment-list-path2] index 20 sid label 330003
[*PE1-segment-routing-segment-list-path2] quit
[*PE1-segment-routing] sr-te policy policy100 endpoint 3.3.3.9 color 100
[*PE1-segment-routing-te-policy-policy100] binding-sid 115
[*PE1-segment-routing-te-policy-policy100] mtu 1000
[*PE1-segment-routing-te-policy-policy100] candidate-path preference 100
[*PE1-segment-routing-te-policy-policy100-path] segment-list path1
[*PE1-segment-routing-te-policy-policy100-path] quit
[*PE1-segment-routing-te-policy-policy100] quit
[*PE1-segment-routing] sr-te policy policy200 endpoint 3.3.3.9 color 200
[*PE1-segment-routing-te-policy-policy200] binding-sid 215
[*PE1-segment-routing-te-policy-policy200] mtu 1000
[*PE1-segment-routing-te-policy-policy200] candidate-path preference 100
[*PE1-segment-routing-te-policy-policy200-path] segment-list path2
[*PE1-segment-routing-te-policy-policy200-path] quit
[*PE1-segment-routing-te-policy-policy200] quit
[*PE1-segment-routing] quit
[*PE1] commit

    # Configure PE2.

    [~PE2] segment-routing
[~PE2-segment-routing] segment-list path1
[*PE2-segment-routing-segment-list-path1] index 10 sid label 330000
[*PE2-segment-routing-segment-list-path1] index 20 sid label 330003
[*PE2-segment-routing-segment-list-path1] quit
[*PE2-segment-routing] segment-list path2
[*PE2-segment-routing-segment-list-path2] index 10 sid label 330001
[*PE2-segment-routing-segment-list-path2] index 20 sid label 330002
[*PE2-segment-routing-segment-list-path2] quit
[*PE2-segment-routing] sr-te policy policy100 endpoint 1.1.1.9 color 100
[*PE2-segment-routing-te-policy-policy100] binding-sid 115
[*PE2-segment-routing-te-policy-policy100] mtu 1000
[*PE2-segment-routing-te-policy-policy100] candidate-path preference 100
[*PE2-segment-routing-te-policy-policy100-path] segment-list path1
[*PE2-segment-routing-te-policy-policy100-path] quit
[*PE2-segment-routing-te-policy-policy100] quit
[*PE2-segment-routing] sr-te policy policy200 endpoint 1.1.1.9 color 200
[*PE2-segment-routing-te-policy-policy200] binding-sid 215
[*PE2-segment-routing-te-policy-policy200] mtu 1000
[*PE2-segment-routing-te-policy-policy200] candidate-path preference 100
[*PE2-segment-routing-te-policy-policy200-path] segment-list path2
[*PE2-segment-routing-te-policy-policy200-path] quit
[*PE2-segment-routing-te-policy-policy200] quit
[*PE2-segment-routing] quit
[*PE2] commit

  6. Configure SBFD and HSB functions

    # Configure PE1.

    [~PE1] bfd
[*PE1-bfd] quit
[*PE1] sbfd
[*PE1-sbfd] reflector discriminator 1.1.1.9
[*PE1-sbfd] quit
[*PE1] segment-routing
[*PE1-segment-routing] sr-te-policy seamless-bfd enable
[*PE1-segment-routing] sr-te-policy backup hot-standby enable
[*PE1-segment-routing] commit
[~PE1-segment-routing] quit

    # Configure PE2.

    [~PE2] bfd
[*PE2-bfd] quit
[*PE2] sbfd
[*PE2-sbfd] reflector discriminator 3.3.3.9
[*PE2-sbfd] quit
[*PE2] segment-routing
[*PE2-segment-routing] sr-te-policy seamless-bfd enable
[*PE2-segment-routing] sr-te-policy backup hot-standby enable
[*PE2-segment-routing] commit
[~PE2-segment-routing] quit

  7. Configure tunnel policies on PEs.

    # Configure PE1.

    [~PE1] route-policy color100 permit node 1
[*PE1-route-policy] if-match route-type evpn mac
[*PE1-route-policy] apply extcommunity color 0:100
[*PE1-route-policy] quit
[*PE1] route-policy color100 permit node 2
[*PE1-route-policy] if-match route-type evpn prefix
[*PE1-route-policy] apply extcommunity color 0:200
[*PE1-route-policy] quit
[*PE1] route-policy color100 permit node 3
[*PE1-route-policy] quit
[*PE1] commit

    # Configure PE2.

    [~PE2] route-policy color100 permit node 1
[*PE2-route-policy] if-match route-type evpn mac
[*PE2-route-policy] apply extcommunity color 0:100
[*PE2-route-policy] quit
[*PE2] route-policy color100 permit node 2
[*PE2-route-policy] if-match route-type evpn prefix
[*PE2-route-policy] apply extcommunity color 0:200
[*PE2-route-policy] quit
[~PE2] route-policy color100 permit node 3
[*PE2-route-policy] quit
[*PE2] commit

  8. Establish BGP EVPN peer relationships between PEs, apply an import route-policy, and add the extended community attribute Color to routes.

    # Configure PE1.

    [~PE1] bgp 100
[*PE1-bgp] peer 3.3.3.9 as-number 100
[*PE1-bgp] peer 3.3.3.9 connect-interface loopback 1
[*PE1-bgp] l2vpn-family evpn
[*PE1-bgp-af-evpn] peer 3.3.3.9 enable
[*PE1-bgp-af-evpn] peer 3.3.3.9 route-policy color100 import
[*PE1-bgp-af-evpn] peer 3.3.3.9 advertise irb
[*PE1-bgp-af-evpn] quit
[*PE1-bgp] quit
[*PE1] commit

    # Configure PE2.

    [~PE2] bgp 100
[*PE2-bgp] peer 1.1.1.9 as-number 100
[*PE2-bgp] peer 1.1.1.9 connect-interface loopback 1
[*PE2-bgp] l2vpn-family evpn
[*PE2-bgp-af-evpn] peer 1.1.1.9 enable
[*PE2-bgp-af-evpn] peer 1.1.1.9 route-policy color100 import
[*PE2-bgp-af-evpn] peer 1.1.1.9 advertise irb
[*PE2-bgp-af-evpn] quit
[*PE2-bgp] quit
[*PE2] commit

    After the configuration is complete, run the display bgp evpn peer command on the PEs to check whether the BGP EVPN peer relationships have been established. If the Established state is displayed in the command output, the BGP EVPN peer relationships have been established successfully. The following example uses the command output on PE1.

    [~PE1] display bgp evpn peer
 BGP local router ID : 1.1.1.9
 Local AS number : 100
 Total number of peers : 1                 Peers in established state : 1

  Peer            V          AS  MsgRcvd  MsgSent  OutQ  Up/Down       State  PrefRcv
  3.3.3.9         4         100        4        4     0 00:00:28 Established        0

  9. Configure EVPN instances and L3VPN instances on PEs and connect sites to the PEs

    # Configure PE1.

    [~PE1] ip vpn-instance vpn1
[*PE1-vpn-instance-vpn1] ipv4-family
[*PE1-vpn-instance-vpn1-af-ipv4] route-distinguisher 100:1
[*PE1-vpn-instance-vpn1-af-ipv4] vpn-target 1:1 evpn
[*PE1-vpn-instance-vpn1-af-ipv4] evpn mpls routing-enable
[*PE1-vpn-instance-vpn1-af-ipv4] quit
[*PE1-vpn-instance-vpn1] quit
[*PE1] evpn vpn-instance evrf1 bd-mode
[*PE1-evpn-instance-evrf1] route-distinguisher 200:1
[*PE1-evpn-instance-evrf1] vpn-target 2:2
[*PE1-evpn-instance-evrf1] quit
[*PE1] evpn source-address 1.1.1.9
[*PE1] bridge-domain 10
[*PE1-bd10] evpn binding vpn-instance evrf1
[*PE1-bd10] quit
[*PE1] interface gigabitethernet0/1/16
[*PE1-GigabitEthernet0/1/16] esi 0011.1001.1001.1001.1001
[*PE1-GigabitEthernet0/1/16] quit
[*PE1] interface gigabitethernet0/1/16.1 mode l2
[*PE1-GigabitEthernet0/1/16.1] encapsulation dot1q vid 10
[*PE1-GigabitEthernet0/1/16.1] rewrite pop single
[*PE1-GigabitEthernet0/1/16.1] bridge-domain 10
[*PE1-GigabitEthernet0/1/16.1] quit
[*PE1] interface Vbdif10
[*PE1-Vbdif10] ip binding vpn-instance vpn1
[*PE1-Vbdif10] ip address 10.1.1.1 255.255.255.0
[*PE1-Vbdif10] arp collect host enable
[*PE1-Vbdif10] quit
[*PE1] bgp 100
[*PE1-bgp] ipv4-family vpn-instance vpn1
[*PE1-bgp-vpn1] import-route direct
[*PE1-bgp-vpn1] advertise l2vpn evpn
[*PE1-bgp-vpn1] quit
[*PE1-bgp] quit
[*PE1] commit

    # Configure PE2.

    [~PE2] ip vpn-instance vpn1
[*PE2-vpn-instance-vpn1] ipv4-family
[*PE2-vpn-instance-vpn1-af-ipv4] route-distinguisher 100:1
[*PE2-vpn-instance-vpn1-af-ipv4] vpn-target 1:1 evpn
[*PE2-vpn-instance-vpn1-af-ipv4] evpn mpls routing-enable
[*PE2-vpn-instance-vpn1-af-ipv4] quit
[*PE2-vpn-instance-vpn1] quit
[*PE2] evpn vpn-instance evrf1 bd-mode
[*PE2-evpn-instance-evrf1] route-distinguisher 200:1
[*PE2-evpn-instance-evrf1] vpn-target 2:2
[*PE2-evpn-instance-evrf1] quit
[*PE2] evpn source-address 3.3.3.9
[*PE2] bridge-domain 10
[*PE2-bd10] evpn binding vpn-instance evrf1
[*PE2-bd10] quit
[*PE2] interface gigabitethernet0/1/16
[*PE2-GigabitEthernet0/1/16] esi 0011.1001.1001.1001.1002
[*PE2-GigabitEthernet0/1/16] quit
[*PE2] interface gigabitethernet0/1/16.1 mode l2
[*PE2-GigabitEthernet0/1/16.1] encapsulation dot1q vid 10
[*PE2-GigabitEthernet0/1/16.1] rewrite pop single
[*PE2-GigabitEthernet0/1/16.1] bridge-domain 10
[*PE2-GigabitEthernet0/1/16.1] quit
[*PE2] interface Vbdif10
[*PE2-Vbdif10] ip binding vpn-instance vpn1
[*PE2-Vbdif10] ip address 10.2.1.1 255.255.255.0
[*PE2-Vbdif10] arp collect host enable
[*PE2-Vbdif10] quit
[*PE2] bgp 100
[*PE2-bgp] ipv4-family vpn-instance vpn1
[*PE2-bgp-vpn1] import-route direct
[*PE2-bgp-vpn1] advertise l2vpn evpn
[*PE2-bgp-vpn1] quit
[*PE2-bgp] quit
[*PE2] commit

  10. Configure a tunnel policy on each PE to preferentially select an SR-MPLS TE Policy.

    # Configure PE1.

    [~PE1] tunnel-policy p1
[*PE1-tunnel-policy-p1] tunnel select-seq sr-te-policy load-balance-number 1 unmix
[*PE1-tunnel-policy-p1] quit
[*PE1] ip vpn-instance vpn1
[*PE1-vpn-instance-vpn1] ipv4-family
[*PE1-vpn-instance-vpn1-af-ipv4] tnl-policy p1 evpn
[*PE1-vpn-instance-vpn1-af-ipv4] quit
[*PE1-vpn-instance-vpn1] quit
[*PE1] evpn vpn-instance evrf1 bd-mode
[*PE1-evpn-instance-evrf1] tnl-policy p1
[*PE1-evpn-instance-evrf1] quit
[*PE1] commit

    # Configure PE2.

    [~PE2] tunnel-policy p1
[*PE2-tunnel-policy-p1] tunnel select-seq sr-te-policy load-balance-number 1 unmix
[*PE2-tunnel-policy-p1] quit
[*PE2] ip vpn-instance vpn1
[*PE2-vpn-instance-vpn1] ipv4-family
[*PE2-vpn-instance-vpn1-af-ipv4] tnl-policy p1 evpn
[*PE2-vpn-instance-vpn1-af-ipv4] quit
[*PE2-vpn-instance-vpn1] quit
[*PE2] evpn vpn-instance evrf1 bd-mode
[*PE2-evpn-instance-evrf1] tnl-policy p1
[*PE2-evpn-instance-evrf1] quit
[*PE2] commit

  11. Verify the configuration.

    After completing the configurations, run the display bgp evpn all routing-table prefix-route command on PE1 to view information about the IP prefix routes sent from PE2.

    [~PE1] display bgp evpn all routing-table prefix-route
 Local AS number : 100

 BGP Local router ID is 1.1.1.9
 Status codes: * - valid, > - best, d - damped, x - best external, a - add path,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete


 EVPN address family:
 Number of Ip Prefix Routes: 2
 Route Distinguisher: 100:1
       Network(EthTagId/IpPrefix/IpPrefixLen)                 NextHop
 *>    0:10.1.1.0:24                                          0.0.0.0
 *>i   0:10.2.1.0:24                                          3.3.3.9

    Run the display bgp evpn all routing-table prefix-route 0:10.2.1.0:24 command on PE1 to view information about the IP prefix routes sent from PE2.

    [~PE1] display bgp evpn all routing-table prefix-route 0:10.2.1.0:24
 BGP local router ID : 1.1.1.9
 Local AS number : 100
 Total routes of Route Distinguisher(100:1): 1
 BGP routing table entry information of 0:10.2.1.0:24:
 Label information (Received/Applied): 330000/NULL
 From: 3.3.3.9 (3.3.3.9)
 Route Duration: 0d00h09m04s
 Relay IP Nexthop: 10.11.1.2
 Relay IP Out-Interface:GigabitEthernet0/1/0
 Relay Tunnel Out-Interface:
 Original nexthop: 3.3.3.9
 Qos information : 0x0
 Ext-Community: RT <1 : 1>, Color <0 : 200>
 AS-path Nil, origin incomplete, MED 0, localpref 100, pref-val 0, valid, internal, best, select, pre 255, IGP cost 20
 Route Type: 5 (Ip Prefix Route)
 Ethernet Tag ID: 0, IP Prefix/Len: 10.2.1.0/24, ESI: 0000.0000.0000.0000.0000, GW IP Address: 0.0.0.0
 Not advertised to any peer yet

    Run the display ip routing-table vpn-instance vpn1 command on PE1 to view information about the VPN routes sent from PE2.

    [~PE1] display ip routing-table vpn-instance vpn1
Route Flags: R - relay, D - download to fib, T - to vpn-instance, B - black hole route
------------------------------------------------------------------------------
Routing Table : vpn1
         Destinations : 7        Routes : 7

Destination/Mask    Proto   Pre  Cost        Flags NextHop         Interface

       10.1.1.0/24  Direct  0    0             D   10.1.1.1        Vbdif10
       10.1.1.1/32  Direct  0    0             D   127.0.0.1       Vbdif10
     10.1.1.255/32  Direct  0    0             D   127.0.0.1       Vbdif10
       10.2.1.0/24  IBGP    255  0             RD  3.3.3.9         policy100
       10.2.1.1/32  IBGP    255  0             RD  3.3.3.9         policy100
      127.0.0.0/8   Direct  0    0             D   127.0.0.1       InLoopBack0
255.255.255.255/32  Direct  0    0             D   127.0.0.1       InLoopBack0

    Run the display bgp evpn all routing-table mac-route command on PE1 to view information about the MAC routes sent from PE2.

    [~PE1] display bgp evpn all routing-table mac-route
 Local AS number : 100

 BGP Local router ID is 1.1.1.9
 Status codes: * - valid, > - best, d - damped, x - best external, a - add path,
               h - history,  i - internal, s - suppressed, S - Stale
               Origin : i - IGP, e - EGP, ? - incomplete


 EVPN address family:
 Number of Mac Routes: 4
 Route Distinguisher: 200:1
       Network(EthTagId/MacAddrLen/MacAddr/IpAddrLen/IpAddr)  NextHop
 *>i   0:48:00e0-fc49-fa04:0:0.0.0.0                          3.3.3.9
 *>i   0:48:00e0-fc49-fa04:32:10.2.1.1                        3.3.3.9
 *>    0:48:00e0-fc0d-3801:0:0.0.0.0                          0.0.0.0
 *>    0:48:00e0-fc0d-3801:32:10.1.1.1                        0.0.0.0


 EVPN-Instance evrf1:
 Number of Mac Routes: 4
       Network(EthTagId/MacAddrLen/MacAddr/IpAddrLen/IpAddr)  NextHop
 *>i   0:48:00e0-fc49-fa04:0:0.0.0.0                          3.3.3.9
 *>i   0:48:00e0-fc49-fa04:32:10.2.1.1                        3.3.3.9
 *>    0:48:00e0-fc0d-3801:0:0.0.0.0                          0.0.0.0
 *>    0:48:00e0-fc0d-3801:32:10.1.1.1                        0.0.0.0

    Run the display bgp evpn all routing-table mac-route 0:48:00e0-fc49-fa04:0:0.0.0.0 command on PE1 to check details about the MAC route sent from PE2.

    [~PE1] display bgp evpn all routing-table mac-route 0:48:00e0-fc49-fa04:0:0.0.0.0
 BGP local router ID : 1.1.1.9
 Local AS number : 100
 Total routes of Route Distinguisher(200:1): 1
 BGP routing table entry information of 0:48:00e0-fc49-fa04:0:0.0.0.0:
 Label information (Received/Applied): 330000/NULL
 From: 3.3.3.9 (3.3.3.9)
 Route Duration: 0d00h01m49s
 Relay IP Nexthop: 10.11.1.2
 Relay IP Out-Interface:GigabitEthernet0/1/0
 Relay Tunnel Out-Interface:
 Original nexthop: 3.3.3.9
 Qos information : 0x0
 Ext-Community: RT <1 : 1>, RT <2 : 2>, Color <0 : 100>, Mac Mobility <flag:1 seq:0 res:0>
 AS-path Nil, origin incomplete, localpref 100, pref-val 0, valid, internal, best, select, pre 255, IGP cost 20
 Route Type: 2 (MAC Advertisement Route)
 Ethernet Tag ID: 0, MAC Address/Len: 00e0-fc49-fa04/48, IP Address/Len: 0.0.0.0/0, ESI:0000.0000.0000.0000.0000
 Not advertised to any peer yet



 EVPN-Instance evrf1:
 Number of Mac Routes: 1
 BGP routing table entry information of 0:48:00e0-fc49-fa04:0:0.0.0.0:
 Route Distinguisher: 200:1
 Remote-Cross route
 Label information (Received/Applied): 330000/NULL
 From: 3.3.3.9 (3.3.3.9)
 Route Duration: 2d02h23m40s
 Relay Tunnel Out-Interface: policy100(srtepolicy)
 Original nexthop: 3.3.3.9
 Qos information : 0x0
 Ext-Community: RT <1 : 1>, RT <2 : 2>, Color <0 : 100>, Mac Mobility <flag:1 seq:0 res:0>
 AS-path Nil, origin incomplete, localpref 100, pref-val 0, valid, internal, best, select, pre 255
 Route Type: 2 (MAC Advertisement Route)
 Ethernet Tag ID: 0, MAC Address/Len: 00e0-fc49-fa04/48, IP Address/Len: 0.0.0.0/0, ESI:0000.0000.0000.0000.0000
 Not advertised to any peer yet

Configuration Files

  • PE1 configuration file

    #
sysname PE1
#
evpn vpn-instance evrf1 bd-mode
 route-distinguisher 200:1
 tnl-policy p1
 vpn-target 2:2 export-extcommunity
 vpn-target 2:2 import-extcommunity
#
ip vpn-instance vpn1
 ipv4-family
  route-distinguisher 100:1
  vpn-target 1:1 export-extcommunity evpn
  vpn-target 1:1 import-extcommunity evpn
  tnl-policy p1 evpn
  evpn mpls routing-enable
#
bfd
#
sbfd
 reflector discriminator 1.1.1.9
#
mpls lsr-id 1.1.1.9
#
mpls
#
bridge-domain 10
 evpn binding vpn-instance evrf1
#
segment-routing
 ipv4 adjacency local-ip-addr 10.11.1.1 remote-ip-addr 10.11.1.2 sid 330000
 ipv4 adjacency local-ip-addr 10.13.1.1 remote-ip-addr 10.13.1.2 sid 330001
 sr-te-policy backup hot-standby enable
 sr-te-policy seamless-bfd enable
 segment-list path1
  index 10 sid label 330000
  index 20 sid label 330002
 segment-list path2
  index 10 sid label 330001
  index 20 sid label 330003
 sr-te policy policy100 endpoint 3.3.3.9 color 100
  binding-sid 115
  mtu 1000
  candidate-path preference 100
   segment-list path1
 sr-te policy policy200 endpoint 3.3.3.9 color 200
  binding-sid 215
  mtu 1000
  candidate-path preference 100
   segment-list path2
#
isis 1
 is-level level-1
 cost-style wide
 network-entity 10.0000.0000.0001.00
 segment-routing mpls
#
interface Vbdif10
 ip binding vpn-instance vpn1
 ip address 10.1.1.1 255.255.255.0
 arp collect host enable
#
interface GigabitEthernet0/1/0
 undo shutdown
 ip address 10.11.1.1 255.255.255.0
 isis enable 1
#
interface GigabitEthernet0/1/8
 undo shutdown
 ip address 10.13.1.1 255.255.255.0
 isis enable 1
#
interface GigabitEthernet0/1/16
 undo shutdown
 esi 0011.1001.1001.1001.1001
#
interface GigabitEthernet0/1/16.1 mode l2
 encapsulation dot1q vid 10
 rewrite pop single
 bridge-domain 10
#
interface LoopBack1
 ip address 1.1.1.9 255.255.255.255
 isis enable 1
#
bgp 100
 peer 3.3.3.9 as-number 100
 peer 3.3.3.9 connect-interface LoopBack1
 #
 ipv4-family unicast
  undo synchronization
  peer 3.3.3.9 enable
 #
 ipv4-family vpn-instance vpn1
  import-route direct
  advertise l2vpn evpn
 #
 l2vpn-family evpn
  peer 3.3.3.9 enable
  peer 3.3.3.9 route-policy color100 import
  peer 3.3.3.9 advertise irb
#
route-policy color100 permit node 1
 if-match route-type evpn mac
 apply extcommunity color 0:100
#
route-policy color100 permit node 2
 if-match route-type evpn prefix
 apply extcommunity color 0:200
#
route-policy color100 permit node 3
#
tunnel-policy p1
 tunnel select-seq sr-te-policy load-balance-number 1 unmix
#
evpn source-address 1.1.1.9
#
return

  • P1 configuration file

    #
sysname P1
#
mpls lsr-id 2.2.2.9
#
mpls
#
segment-routing
 ipv4 adjacency local-ip-addr 10.12.1.1 remote-ip-addr 10.12.1.2 sid 330002
 ipv4 adjacency local-ip-addr 10.11.1.2 remote-ip-addr 10.11.1.1 sid 330003
#
isis 1
 is-level level-1
 cost-style wide
 network-entity 10.0000.0000.0002.00
 segment-routing mpls
#
interface GigabitEthernet0/1/0
 undo shutdown
 ip address 10.11.1.2 255.255.255.0
 isis enable 1
#
interface GigabitEthernet0/1/8
 undo shutdown
 ip address 10.12.1.1 255.255.255.0
 isis enable 1
#
interface LoopBack1
 ip address 2.2.2.9 255.255.255.255
 isis enable 1
#
return

  • P2 configuration file

    #
sysname P2
#
mpls lsr-id 4.4.4.9
#
mpls
#
segment-routing
 ipv4 adjacency local-ip-addr 10.13.1.2 remote-ip-addr 10.13.1.1 sid 330002
 ipv4 adjacency local-ip-addr 10.14.1.1 remote-ip-addr 10.14.1.2 sid 330003
#
isis 1
 is-level level-1
 cost-style wide
 network-entity 10.0000.0000.0004.00
 segment-routing mpls
#
interface GigabitEthernet0/1/0
 undo shutdown
 ip address 10.13.1.2 255.255.255.0
 isis enable 1
#
interface GigabitEthernet0/1/8
 undo shutdown
 ip address 10.14.1.1 255.255.255.0
 isis enable 1
#
interface LoopBack1
 ip address 4.4.4.9 255.255.255.255
 isis enable 1
#
return

  • PE2 configuration file

    #
sysname PE2
#
evpn vpn-instance evrf1 bd-mode
 route-distinguisher 200:1
 tnl-policy p1
 vpn-target 2:2 export-extcommunity
 vpn-target 2:2 import-extcommunity
#
ip vpn-instance vpn1
 ipv4-family
  route-distinguisher 100:1
  vpn-target 1:1 export-extcommunity evpn
  vpn-target 1:1 import-extcommunity evpn
  tnl-policy p1 evpn
  evpn mpls routing-enable
#
bfd
#
sbfd
 reflector discriminator 3.3.3.9
#
mpls lsr-id 3.3.3.9
#
mpls
#
bridge-domain 10
 evpn binding vpn-instance evrf1
#
segment-routing
 ipv4 adjacency local-ip-addr 10.12.1.2 remote-ip-addr 10.12.1.1 sid 330000
 ipv4 adjacency local-ip-addr 10.14.1.2 remote-ip-addr 10.14.1.1 sid 330001
 sr-te-policy backup hot-standby enable
 sr-te-policy seamless-bfd enable
 segment-list path1
  index 10 sid label 330000
  index 20 sid label 330003
 segment-list path2
  index 10 sid label 330001
  index 20 sid label 330002
 sr-te policy policy100 endpoint 1.1.1.9 color 100
  binding-sid 115
  mtu 1000
  candidate-path preference 100
   segment-list path1
 sr-te policy policy200 endpoint 1.1.1.9 color 200
  binding-sid 215
  mtu 1000
  candidate-path preference 100
   segment-list path2
#
isis 1
 is-level level-1
 cost-style wide
 network-entity 10.0000.0000.0003.00
 segment-routing mpls
#
interface Vbdif10
 ip binding vpn-instance vpn1
 ip address 10.2.1.1 255.255.255.0
 arp collect host enable
#
interface GigabitEthernet0/1/0
 undo shutdown
 ip address 10.12.1.2 255.255.255.0
 isis enable 1
#
interface GigabitEthernet0/1/8
 undo shutdown
 ip address 10.14.1.2 255.255.255.0
 isis enable 1
#
interface GigabitEthernet0/1/16
 undo shutdown
 esi 0011.1001.1001.1001.1002
#
interface GigabitEthernet0/1/16.1 mode l2
 encapsulation dot1q vid 10
 rewrite pop single
 bridge-domain 10
#
interface LoopBack1
 ip address 3.3.3.9 255.255.255.255
 isis enable 1
#
bgp 100
 peer 1.1.1.9 as-number 100
 peer 1.1.1.9 connect-interface LoopBack1
 #
 ipv4-family unicast
  undo synchronization
  peer 1.1.1.9 enable
 #
 ipv4-family vpn-instance vpn1
  import-route direct
  advertise l2vpn evpn
 #
 l2vpn-family evpn
  peer 1.1.1.9 enable
  peer 1.1.1.9 route-policy color100 import
  peer 1.1.1.9 advertise irb
#
route-policy color100 permit node 1
 if-match route-type evpn mac
 apply extcommunity color 0:100
#
route-policy color100 permit node 2
 if-match route-type evpn prefix
 apply extcommunity color 0:200
#
route-policy color100 permit node 3
#
tunnel-policy p1
 tunnel select-seq sr-te-policy load-balance-number 1 unmix
#
evpn source-address 3.3.3.9
#
return
Parent Topic: Configuration Examples for SR-MPLS TE Policy
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
