Example for Configuring L3VPNv4 over SRv6 BE
This section provides an example for configuring SRv6 BE to carry L3VPNv4 services.
Networking Requirements
PE1, the P, and PE2 are in the same AS and run IS-IS to implement IPv6 network connectivity.
PE1, the P, and PE2 are Level-1 devices that belong to IS-IS process 1.
It is required that a bidirectional SRv6 BE path be deployed between PE1 and PE2 to carry L3VPNv4 services.
Configuration Roadmap
The configuration roadmap is as follows:
Enable IPv6 forwarding and configure an IPv6 address for each interface on PE1, the P, and PE2.
Enable IS-IS, configure an IS-IS level, and specify a network entity title (NET) on PE1, the P, and PE2.
Configure VPN instances on PE1 and PE2.
Establish an EBGP peer relationship between each PE and its connected CE.
Establish an MP-IBGP peer relationship between PEs.
Configure SRv6 on PE1 and PE2, and enable IS-IS SRv6.
Data Preparation
To complete the configuration, you need the following data:
IPv6 address of each interface on PE1, the P, and PE2
IS-IS process ID of PE1, the P, and PE2
IS-IS level of PE1, the P, and PE2
VPN instance name, RD, and RT on PE1 and PE2
Procedure
- Enable IPv6 forwarding and configure an IPv6 address for each interface. The following example uses the configuration of PE1. The configurations of other devices are similar to the configuration of PE1. For configuration details, see Configuration Files in this section.
<HUAWEI> system-view [~HUAWEI] sysname PE1 [*HUAWEI] commit [~PE1] interface gigabitethernet 0/1/0 [~PE1-GigabitEthernet0/1/0] ipv6 enable [*PE1-GigabitEthernet0/1/0] ipv6 address 2001:DB8:10::1 96 [*PE1-GigabitEthernet0/1/0] quit [*PE1] interface LoopBack 1 [*PE1-LoopBack1] ipv6 enable [*PE1-LoopBack1] ipv6 address 2001:DB8:1::1 128 [*PE1-LoopBack1] quit [*PE1] commit
- Configure IS-IS.
# Configure PE1.
[~PE1] isis 1 [*PE1-isis-1] is-level level-1 [*PE1-isis-1] cost-style wide [*PE1-isis-1] network-entity 10.0000.0000.0001.00 [*PE1-isis-1] ipv6 enable topology ipv6 [*PE1-isis-1] quit [*PE1] interface gigabitethernet 0/1/0 [*PE1-GigabitEthernet0/1/0] isis ipv6 enable 1 [*PE1-GigabitEthernet0/1/0] quit [*PE1] interface loopback1 [*PE1-LoopBack1] isis ipv6 enable 1 [*PE1-LoopBack1] commit [~PE1-LoopBack1] quit
# Configure the P.
[~P] isis 1 [*P-isis-1] is-level level-1 [*P-isis-1] cost-style wide [*P-isis-1] network-entity 10.0000.0000.0002.00 [*P-isis-1] ipv6 enable topology ipv6 [*P-isis-1] quit [*P] interface gigabitethernet 0/1/0 [*P-GigabitEthernet0/1/0] isis ipv6 enable 1 [*P-GigabitEthernet0/1/0] quit [*P] interface gigabitethernet 0/1/8 [*P-GigabitEthernet0/1/8] isis ipv6 enable 1 [*P-GigabitEthernet0/1/8] quit [*P] interface loopback1 [*P-LoopBack1] isis ipv6 enable 1 [*P-LoopBack1] commit [~P-LoopBack1] quit
# Configure PE2.
[~PE2] isis 1 [*PE2-isis-1] is-level level-1 [*PE2-isis-1] cost-style wide [*PE2-isis-1] network-entity 10.0000.0000.0003.00 [*PE2-isis-1] ipv6 enable topology ipv6 [*PE2-isis-1] quit [*PE2] interface gigabitethernet 0/1/0 [*PE2-GigabitEthernet0/1/0] isis ipv6 enable 1 [*PE2-GigabitEthernet0/1/0] quit [*PE2] interface loopback1 [*PE2-LoopBack1] isis ipv6 enable 1 [*PE2-LoopBack1] commit [~PE2-LoopBack1] quit
After the configuration is complete, perform the following operations to check whether IS-IS is successfully configured:
# Display IS-IS neighbor information. The following example uses the command output on PE1.
[~PE1] display isis peer Peer information for ISIS(1) System Id Interface Circuit Id State HoldTime Type PRI -------------------------------------------------------------------------------- 0000.0000.0002* GE0/1/0 0000.0000.0002.01 Up 8s L1 64 Total Peer(s): 1
# Display IS-IS routing table information. The following example uses the command output on PE1.
[~PE1] display isis route Route information for ISIS(1) ----------------------------- ISIS(1) Level-1 Forwarding Table -------------------------------- IPV6 Dest. ExitInterface NextHop Cost Flags -------------------------------------------------------------------------------- 2001:DB8:1::1/128 Loop1 Direct 0 D/-/L/- 2001:DB8:2::2/128 GE0/1/0 FE80::3A92:6CFF:FE21:10 10 A/-/-/- 2001:DB8:3::3/128 GE0/1/0 FE80::3A92:6CFF:FE21:10 20 A/-/-/- 2001:DB8:10::/96 GE0/1/0 Direct 10 D/-/L/- 2001:DB8:20::/96 GE0/1/0 FE80::3A92:6CFF:FE21:10 20 A/-/-/- Flags: D-Direct, A-Added to URT, L-Advertised in LSPs, S-IGP Shortcut, U-Up/Down Bit Set, LP-Local Prefix-Sid Protect Type: L-Link Protect, N-Node Protect
- Configure a VPN instance on each PE, enable the IPv4 address family for the instance, and bind the interface that connects a PE to a CE to the VPN instance on that PE.
# Configure PE1.
[~PE1] ip vpn-instance vpna [*PE1-vpn-instance-vpna] ipv4-family [*PE1-vpn-instance-vpna-af-ipv4] route-distinguisher 100:1 [*PE1-vpn-instance-vpna-af-ipv4] vpn-target 111:1 both [*PE1-vpn-instance-vpna-af-ipv4] quit [*PE1-vpn-instance-vpna] quit [*PE1] interface gigabitethernet 0/1/8 [*PE1-GigabitEthernet0/1/8] ip binding vpn-instance vpna [*PE1-GigabitEthernet0/1/8] ip address 10.1.1.1 24 [*PE1-GigabitEthernet0/1/8] quit [*PE1] commit
# Configure PE2.
[~PE2] ip vpn-instance vpna [*PE2-vpn-instance-vpna] ipv4-family [*PE2-vpn-instance-vpna-af-ipv4] route-distinguisher 200:1 [*PE2-vpn-instance-vpna-af-ipv4] vpn-target 111:1 both [*PE2-vpn-instance-vpna-af-ipv4] quit [*PE2-vpn-instance-vpna] quit [*PE2] interface gigabitethernet 0/1/8 [*PE2-GigabitEthernet0/1/8] ip binding vpn-instance vpna [*PE2-GigabitEthernet0/1/8] ip address 10.2.1.1 24 [*PE2-GigabitEthernet0/1/8] quit [*PE2] commit

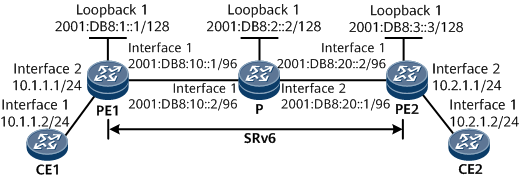

# Assign an IP address to each interface on CEs, as shown in Figure 1. For configuration details, see Configuration Files in this section.
After the configuration is complete, run the display ip vpn-instance verbose command on the PEs to check VPN instance configurations. The command output shows that each PE can successfully ping its connected CE.
If a PE has multiple interfaces bound to the same VPN instance, use the -a source-ip-address parameter to specify a source IP address when running the ping -vpn-instance vpn-instance-name -a source-ip-address dest-ip-address command to ping the CE that is connected to the remote PE. If the source IP address is not specified, the ping operation may fail.
- Establish an EBGP peer relationship between each PE and its connected CE.
# Configure CE1.
[~CE1] interface loopback 1 [*CE1-LoopBack1] ip address 11.11.11.11 32 [*CE1-LoopBack1] quit [*CE1] bgp 65410 [*CE1-bgp] peer 10.1.1.1 as-number 100 [*CE1-bgp] network 11.11.11.11 32 [*CE1-bgp] quit [*CE1] commit
# Configure PE1.
[~PE1] bgp 100 [*PE1-bgp] router-id 1.1.1.1 [*PE1-bgp] ipv4-family vpn-instance vpna [*PE1-bgp-vpna] peer 10.1.1.2 as-number 65410 [*PE1-bgp-vpna] import-route direct [*PE1-bgp-vpna] commit [~PE1-bgp-vpna] quit [~PE1-bgp] quit
# Configure CE2.
[~CE2] interface loopback 1 [*CE2-LoopBack1] ip address 22.22.22.22 32 [*CE2-LoopBack1] quit [*CE2] bgp 65420 [*CE2-bgp] peer 10.2.1.1 as-number 100 [*CE2-bgp] network 22.22.22.22 32 [*CE2-bgp] quit [*CE2] commit
# Configure PE2.
[~PE2] bgp 100 [*PE2-bgp] router-id 2.2.2.2 [*PE2-bgp] ipv4-family vpn-instance vpna [*PE2-bgp-vpna] peer 10.2.1.2 as-number 65420 [*PE2-bgp-vpna] import-route direct [*PE2-bgp-vpna] commit [~PE2-bgp-vpna] quit [~PE2-bgp] quit
After the configuration is complete, run the display bgp vpnv4 vpn-instance peer command on the PEs and check whether BGP peer relationships have been established between the PEs and CEs. If the Established state is displayed in the command output, the BGP peer relationships have been established successfully.
The following example uses the command output on PE1 to show that a BGP peer relationship has been established between PE1 and CE1.
[~PE1] display bgp vpnv4 vpn-instance vpna peer BGP local router ID : 1.1.1.1 Local AS number : 100 VPN-Instance vpna, Router ID 1.1.1.1: Total number of peers : 1 Peers in established state : 1 Peer V AS MsgRcvd MsgSent OutQ Up/Down State PrefRcv 10.1.1.2 4 65410 11 9 0 00:06:37 Established 1 - Establish an MP-IBGP peer relationship between PEs.
# Configure PE1.
[~PE1] bgp 100 [~PE1-bgp] peer 2001:DB8:3::3 as-number 100 [*PE1-bgp] peer 2001:DB8:3::3 connect-interface loopback 1 [*PE1-bgp] ipv4-family vpnv4 [*PE1-bgp-af-vpnv4] peer 2001:DB8:3::3 enable [*PE1-bgp-af-vpnv4] commit [~PE1-bgp-af-vpnv4] quit [~PE1-bgp] quit
# Configure PE2.
[~PE2] bgp 100 [~PE2-bgp] peer 2001:DB8:1::1 as-number 100 [*PE2-bgp] peer 2001:DB8:1::1 connect-interface loopback 1 [*PE2-bgp] ipv4-family vpnv4 [*PE2-bgp-af-vpnv4] peer 2001:DB8:1::1 enable [*PE2-bgp-af-vpnv4] commit [~PE2-bgp-af-vpnv4] quit [~PE2-bgp] quit
After the configuration is complete, run the display bgp vpnv4 all peer command on the PEs and check whether BGP peer relationships have been established between the PEs. If the Established state is displayed in the command output, the BGP peer relationships have been established successfully. The following example uses the command output on PE1.
[~PE1] display bgp vpnv4 all peer BGP local router ID : 1.1.1.1 Local AS number : 100 Total number of peers : 2 Peers in established state : 2 Peer V AS MsgRcvd MsgSent OutQ Up/Down State PrefRcv 2001:DB8:3::3 4 100 10 11 0 00:05:15 Established 2 Peer of IPv4-family for vpn instance : VPN-Instance vpna, Router ID 1.1.1.1: Peer V AS MsgRcvd MsgSent OutQ Up/Down State PrefRcv 10.1.1.2 4 65410 10 13 0 00:06:18 Established 1
- Establish an SRv6 BE path between PEs.
An End.DT4 SID can be either dynamically allocated through BGP or manually configured. If a dynamically allocated SID and a manually configured SID both exist, the latter takes effect. If dynamic End.DT4 SID allocation through BGP has been enabled using the segment-routing ipv6 locator locator-name command, you do not need to run the opcode func-opcode end-dt4 vpn-instance vpn-instance-name command to configure a static SID opcode.
In this example, SIDs are dynamically allocated through BGP.
# Configure PE1.
[~PE1] segment-routing ipv6 [*PE1-segment-routing-ipv6] encapsulation source-address 2001:DB8:1::1 [*PE1-segment-routing-ipv6] locator as1 ipv6-prefix 2001:DB8:100:: 64 static 32 [*PE1-segment-routing-ipv6-locator] quit [*PE1-segment-routing-ipv6] quit [*PE1] bgp 100 [*PE1-bgp] ipv4-family vpnv4 [*PE1-bgp-af-vpnv4] peer 2001:DB8:3::3 prefix-sid [*PE1-bgp-af-vpnv4] quit [*PE1-bgp] ipv4-family vpn-instance vpna [*PE1-bgp-vpna] segment-routing ipv6 best-effort [*PE1-bgp-vpna] segment-routing ipv6 locator as1 [*PE1-bgp-vpna] commit [~PE1-bgp-vpna] quit [~PE1-bgp] quit [~PE1] isis 1 [~PE1-isis-1] segment-routing ipv6 locator as1 [*PE1-isis-1] commit [~PE1-isis-1] quit
# Configure PE2.
[~PE2] segment-routing ipv6 [*PE2-segment-routing-ipv6] encapsulation source-address 2001:DB8:3::3 [*PE2-segment-routing-ipv6] locator as1 ipv6-prefix 2001:DB8:300:: 64 static 32 [*PE2-segment-routing-ipv6-locator] quit [*PE2-segment-routing-ipv6] quit [*PE2] bgp 100 [*PE2-bgp] ipv4-family vpnv4 [*PE2-bgp-af-vpnv4] peer 2001:DB8:1::1 prefix-sid [*PE2-bgp-af-vpnv4] quit [*PE2-bgp] ipv4-family vpn-instance vpna [*PE2-bgp-vpna] segment-routing ipv6 best-effort [*PE2-bgp-vpna] segment-routing ipv6 locator as1 [*PE2-bgp-vpna] commit [~PE2-bgp-vpna] quit [~PE2-bgp] quit [~PE2] isis 1 [~PE2-isis-1] segment-routing ipv6 locator as1 [*PE2-isis-1] commit [~PE2-isis-1] quit
- Verify the configuration.
Run the display segment-routing ipv6 locator [ locator-name ] verbose command to check SRv6 locator information. The following example uses the command output on PE1.
[~PE1] display segment-routing ipv6 locator verbose Locator Configuration Table --------------------------- LocatorName : as1 LocatorID : 1 IPv6Prefix : 2001:DB8:100:: PrefixLength : 64 Block : -- BlockLength : 0 NodeID : -- NodeIdLength : 0 ComprStaticLen: 0 StaticLength : 32 ArgsLength : 0 Reference : 0 AutoCSIDPoolID: 0 ComprDynLength: 0 AutoCSIDBegin : -- AutoCSIDEnd : -- StaticCSIDBegin: -- StaticCSIDEnd : -- AutoSIDPoolID : 8193 DynLength : 32 AutoSIDBegin : 2001:DB8:100::1:0:0 AutoSIDEnd : 2001:DB8:100:0:FFFF:FFFF:FFFF:FFFF StaticSIDBegin: 2001:DB8:100::1 StaticSIDEnd : 2001:DB8:100::FFFF:FFFF Total Locator(s): 1Run the display segment-routing ipv6 local-sid end-dt4 forwarding command to check information about the SRv6 local SID table. The following example uses the command output on PE1.
[~PE1] display segment-routing ipv6 local-sid end-dt4 forwarding My Local-SID End.DT4 Forwarding Table ------------------------------------- SID : 2001:DB8:100::1:0:0/128 FuncType : End.DT4 VPN Name : vpna VPN ID : 3 LocatorName: as1 LocatorID: 1 Total SID(s): 1Run the display bgp vpnv4 all routing-table command on each PE to check BGP VPNv4 routing information. The following example uses the command output on PE1.
[~PE1] display bgp vpnv4 all routing-table BGP Local router ID is 1.1.1.1 Status codes: * - valid, > - best, d - damped, x - best external, a - add path, h - history, i - internal, s - suppressed, S - Stale Origin : i - IGP, e - EGP, ? - incomplete RPKI validation codes: V - valid, I - invalid, N - not-found Total number of routes from all PE: 6 Route Distinguisher: 100:1 Network NextHop MED LocPrf PrefVal Path/Ogn *> 10.1.1.0/24 0.0.0.0 0 0 ? *> 10.1.1.1/32 0.0.0.0 0 0 ? *> 11.11.11.11/32 10.1.1.2 0 0 65410i *> 127.0.0.0/8 0.0.0.0 0 0 ? Route Distinguisher: 200:1 Network NextHop MED LocPrf PrefVal Path/Ogn *>i 10.2.1.0/24 2001:DB8:3::3 0 100 0 ? *>i 22.22.22.22/32 2001:DB8:3::3 0 100 0 65420i VPN-Instance vpna, Router ID 1.1.1.1: Total Number of Routes: 6 Network NextHop MED LocPrf PrefVal Path/Ogn *> 10.1.1.0/24 0.0.0.0 0 0 ? *> 10.1.1.1/32 0.0.0.0 0 0 ? *>i 10.2.1.0/24 2001:DB8:3::3 0 100 0 ? *> 11.11.11.11/32 10.1.1.2 0 0 65410i *>i 22.22.22.22/32 2001:DB8:3::3 0 100 0 65420i *> 127.0.0.0/8 0.0.0.0 0 0 ?Run the display ip routing-table vpn-instance vpna command on PEs to check VPN routing table information. The following example uses the command output on PE1.
[~PE1] display ip routing-table vpn-instance vpna Route Flags: R - relay, D - download to fib, T - to vpn-instance, B - black hole route ------------------------------------------------------------------------------ Routing Table : vpna Destinations : 8 Routes : 8 Destination/Mask Proto Pre Cost Flags NextHop Interface 10.1.1.0/24 Direct 0 0 D 10.1.1.1 GigabitEthernet0/1/8 10.1.1.1/32 Direct 0 0 D 127.0.0.1 GigabitEthernet0/1/8 10.1.1.255/32 Direct 0 0 D 127.0.0.1 GigabitEthernet0/1/8 10.2.1.0/24 IBGP 255 0 RD 2001:DB8:300::1:0:3C SRv6 BE 11.11.11.11/32 EBGP 255 0 RD 10.1.1.2 GigabitEthernet0/1/8 22.22.22.22/32 IBGP 255 0 RD 2001:DB8:300::1:0:3C SRv6 BE 127.0.0.0/8 Direct 0 0 D 127.0.0.1 InLoopBack0 255.255.255.255/32 Direct 0 0 D 127.0.0.1 InLoopBack0Run the display ip routing-table vpn-instance vpna ip-address verbose command on PEs to check detailed VPN routing table information. The following example uses the command output on PE1.
[~PE1] display ip routing-table vpn-instance vpna 22.22.22.22 verbose Route Flags: R - relay, D - download to fib, T - to vpn-instance, B - black hole route ------------------------------------------------------------------------------ Routing Table : vpna Summary Count : 1 Destination: 22.22.22.22/32 Protocol: IBGP Process ID: 0 Preference: 255 Cost: 0 NextHop: 2001:DB8:300::1:0:3C Neighbour: 2001:DB8:3::3 State: Active Adv Relied Age: 00h08m50s Tag: 0 Priority: low Label: 3 QoSInfo: 0x0 IndirectID: 0x1000133 Instance: RelayNextHop: 2001:DB8:300::1:0:3C Interface: SRv6 BE TunnelID: 0x0 Flags: RDCheck that CEs belonging to the same VPN instance can ping each other. The following example uses the command output on CE1.
[~CE1] ping -a 11.11.11.11 22.22.22.22 PING 22.22.22.22: 56 data bytes, press CTRL_C to break Reply from 22.22.22.22: bytes=56 Sequence=1 ttl=253 time=7 ms Reply from 22.22.22.22: bytes=56 Sequence=2 ttl=253 time=5 ms Reply from 22.22.22.22: bytes=56 Sequence=3 ttl=253 time=4 ms Reply from 22.22.22.22: bytes=56 Sequence=4 ttl=253 time=5 ms Reply from 22.22.22.22: bytes=56 Sequence=5 ttl=253 time=5 ms --- 22.22.22.22 ping statistics --- 5 packet(s) transmitted 5 packet(s) received 0.00% packet loss round-trip min/avg/max = 4/5/7 ms
Configuration Files
PE1 configuration file
# sysname PE1 # ip vpn-instance vpna ipv4-family route-distinguisher 100:1 vpn-target 111:1 export-extcommunity vpn-target 111:1 import-extcommunity # segment-routing ipv6 encapsulation source-address 2001:DB8:1::1 locator as1 ipv6-prefix 2001:DB8:100:: 64 static 32 # isis 1 is-level level-1 cost-style wide network-entity 10.0000.0000.0001.00 # ipv6 enable topology ipv6 segment-routing ipv6 locator as1 # # interface GigabitEthernet0/1/0 undo shutdown ipv6 enable ipv6 address 2001:DB8:10::1/96 isis ipv6 enable 1 # interface GigabitEthernet0/1/8 undo shutdown ip binding vpn-instance vpna ip address 10.1.1.1 255.255.255.0 # interface LoopBack1 ipv6 enable ipv6 address 2001:DB8:1::1/128 isis ipv6 enable 1 # bgp 100 router-id 1.1.1.1 peer 2001:DB8:3::3 as-number 100 peer 2001:DB8:3::3 connect-interface LoopBack1 # ipv4-family unicast undo synchronization # ipv6-family unicast undo synchronization # ipv4-family vpnv4 policy vpn-target peer 2001:DB8:3::3 enable peer 2001:DB8:3::3 prefix-sid # ipv4-family vpn-instance vpna import-route direct segment-routing ipv6 locator as1 segment-routing ipv6 best-effort peer 10.1.1.2 as-number 65410 # return
P configuration file
# sysname P # isis 1 is-level level-1 cost-style wide network-entity 10.0000.0000.0002.00 # ipv6 enable topology ipv6 # # interface GigabitEthernet0/1/0 undo shutdown ipv6 enable ipv6 address 2001:DB8:10::2/96 isis ipv6 enable 1 # interface GigabitEthernet0/1/8 undo shutdown ipv6 enable ipv6 address 2001:DB8:20::1/96 isis ipv6 enable 1 # interface LoopBack1 ipv6 enable ipv6 address 2001:DB8:2::2/128 isis ipv6 enable 1 # return
PE2 configuration file
# sysname PE2 # ip vpn-instance vpna ipv4-family route-distinguisher 200:1 vpn-target 111:1 export-extcommunity vpn-target 111:1 import-extcommunity # segment-routing ipv6 encapsulation source-address 2001:DB8:3::3 locator as1 ipv6-prefix 2001:DB8:300:: 64 static 32 # isis 1 is-level level-1 cost-style wide network-entity 10.0000.0000.0003.00 # ipv6 enable topology ipv6 segment-routing ipv6 locator as1 # # interface GigabitEthernet0/1/0 undo shutdown ipv6 enable ipv6 address 2001:DB8:20::2/96 isis ipv6 enable 1 # interface GigabitEthernet0/1/8 undo shutdown ip binding vpn-instance vpna ip address 10.2.1.1 255.255.255.0 # interface LoopBack1 ipv6 enable ipv6 address 2001:DB8:3::3/128 isis ipv6 enable 1 # bgp 100 router-id 2.2.2.2 peer 2001:DB8:1::1 as-number 100 peer 2001:DB8:1::1 connect-interface LoopBack1 # ipv4-family unicast undo synchronization # ipv6-family unicast undo synchronization # ipv4-family vpnv4 policy vpn-target peer 2001:DB8:1::1 enable peer 2001:DB8:1::1 prefix-sid # ipv4-family vpn-instance vpna import-route direct segment-routing ipv6 locator as1 segment-routing ipv6 best-effort peer 10.2.1.2 as-number 65420 # return
CE1 configuration file
# sysname CE1 # interface GigabitEthernet0/1/0 undo shutdown ip address 10.1.1.2 255.255.255.0 # interface LoopBack1 ip address 11.11.11.11 255.255.255.255 # bgp 65410 peer 10.1.1.1 as-number 100 # ipv4-family unicast undo synchronization network 11.11.11.11 255.255.255.255 peer 10.1.1.1 enable # returnCE2 configuration file
# sysname CE2 # interface GigabitEthernet0/1/0 undo shutdown ip address 10.2.1.2 255.255.255.0 # interface LoopBack1 ip address 22.22.22.22 255.255.255.255 # bgp 65420 peer 10.2.1.1 as-number 100 # ipv4-family unicast undo synchronization network 22.22.22.22 255.255.255.255 peer 10.2.1.1 enable # return
