Example for Configuring TWAMP Light on an EVPN L3VPN
This section provides an example for configuring TWAMP Light functions on an EVPN L3VPN.
Networking Requirements

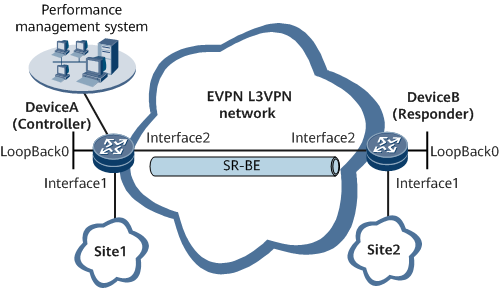

On the EVPN L3VPN shown in Figure 1, DeviceB functions as the Responder and DeviceA functions as the Controller.
- DeviceA: sends and receives packets over a test session, collects and calculates performance statistics, and reports the statistics to the performance management system.
- DeviceB: responds to the packets received over a test session.
Configuration Roadmap
The configuration roadmap is as follows:
- Configure an EVPN L3VPN.
- Configure the TWAMP Light Controller.
- Configure the TWAMP Light Responder.
- Configure the Controller to send statistics to the performance management system through telemetry.
Data Preparation
To complete the configuration, you need the following data:
- IP addresses of the interfaces connecting devices
- IP address and UDP port number of DeviceA (Controller)
- IP Addresses: 192.168.2.2
- UDP port number: 2000
- IP address and UDP port number of DeviceB (Responder)
- IP address: 192.168.1.1
- UDP port number: 3000
- IP address and gRPC port number of the performance management system
- IP address: 192.168.100.100
- gRPC port number: 10001
Procedure
- Assign IP addresses to node interfaces, including loopback interfaces.
For configuration details, see Configuration Files.
- Configure an IGP (IS-IS in this example) on the backbone network.
For configuration details, see Configuration Files.
- Configure an IS-IS SR-MPLS BE tunnel between DeviceA and DeviceB.
For the configuration roadmap, see Configuring an IS-IS SR-MPLS BE Tunnel. For configuration details, see Configuration Files.
- Configure an EVPN L3VPN between DeviceA and DeviceB.
For details about the configuration roadmap, see Configuring an EVPN to Carry Layer 3 Services. For configuration details, see Configuration Files.
- Create a TWAMP Light test session on DeviceB (Responder).
<DeviceB> system-view [~DeviceB] nqa twamp-light [*DeviceB-twamp-light] responder [*DeviceB-twamp-light-responder] test-session 1 local-ip 192.168.1.1 remote-ip 192.168.2.2 local-port 3000 remote-port 2000 vpn-instance vpna [*DeviceB-twamp-light-responder] commit [~DeviceB-twamp-light-responder] quit [~DeviceB-twamp-light] quit
- Create a TWAMP Light test session on DeviceA (Controller).
<DeviceA> system-view[~DeviceA] nqa twamp-light [*DeviceA-twamp-light] client [*DeviceA-twamp-light-client] test-session 1 sender-ip 192.168.2.2 reflector-ip 192.168.1.1 sender-port 2000 reflector-port 3000 vpn-instance vpna padding 1454 [*DeviceA-twamp-light-client] commit [~DeviceA-twamp-light-client] quit [~DeviceA-twamp-light] sender [*DeviceA-twamp-light-sender] commit [~DeviceA-twamp-light-sender] test start test-session 1 packet-count 100 [*DeviceA-twamp-light-sender] commit [~DeviceA-twamp-light-sender] quit [~DeviceA-twamp-light] quit
- Verify the configuration.
# Check the brief information about all test sessions.
[~DeviceA] display twamp-light test-session Total number : 1 Active number : 1 -------------------------------------------------------------------------------- ID Sender-IP Sender-Port Reflector-IP Reflector-Port State -------------------------------------------------------------------------------- 1 192.168.2.2 2000 192.168.1.1 3000 active
# Check two-way delay statistics of a specified session.
[~DeviceA] display twamp-light statistic-type twoway-delay test-session 1 Latest two-way delay statistics(usec): -------------------------------------------------------------------------------- Index Delay(Avg) Jitter(Avg) Tx-Jitter(Avg) Rx-Jitter(Avg) -------------------------------------------------------------------------------- 11027 345 5 3 4 11028 345 5 3 4 11029 345 5 4 4 11030 347 5 3 4 11031 347 4 3 4 11032 347 4 3 4 11033 347 4 3 4 11034 346 4 3 4 11035 346 5 3 4 11036 346 5 3 4 11037 346 5 3 4 11038 346 4 4 3 11039 347 4 4 3 11040 347 4 4 3 11041 347 4 4 3 11042 347 4 4 3 11043 347 5 3 4 11044 346 5 3 4 11045 346 5 3 4 11046 346 5 3 4 11047 346 5 3 4 11048 346 5 3 4 11049 346 4 3 4 11050 346 4 3 4 11051 345 4 3 3 11052 345 4 3 3 11053 345 5 4 3 11054 345 5 4 3 11055 345 4 4 3 11056 345 4 3 3 -------------------------------------------------------------------------------- Average Delay : 346 Average Jitter : 5 Maximum Delay : 370 Maximum Jitter : 32 Minimum Delay : 328 Minimum Jitter : 0 Average TxJitter : 3 Average RxJitter : 4 Maximum TxJitter : 29 Maximum RxJitter : 23 Minimum TxJitter : 0 Minimum RxJitter : 0
# Check two-way packet loss statistics of a specified test session.
[~DeviceA] display twamp-light statistic-type twoway-loss test-session 1 Latest two-way loss statistics: -------------------------------------------------------------------------------- Index Loss count Loss ratio Error count Error ratio -------------------------------------------------------------------------------- 108196 0 0.0000% 0 0.0000% 108197 0 0.0000% 0 0.0000% 108198 0 0.0000% 0 0.0000% 108199 0 0.0000% 0 0.0000% 108200 0 0.0000% 0 0.0000% 108201 0 0.0000% 0 0.0000% 108202 0 0.0000% 0 0.0000% 108203 0 0.0000% 0 0.0000% 108204 0 0.0000% 0 0.0000% 108205 0 0.0000% 0 0.0000% 108206 0 0.0000% 0 0.0000% 108207 0 0.0000% 0 0.0000% 108208 0 0.0000% 0 0.0000% 108209 0 0.0000% 0 0.0000% 108210 0 0.0000% 0 0.0000% 108211 0 0.0000% 0 0.0000% 108212 0 0.0000% 0 0.0000% 108213 0 0.0000% 0 0.0000% 108214 0 0.0000% 0 0.0000% 108215 0 0.0000% 0 0.0000% 108216 0 0.0000% 0 0.0000% 108217 0 0.0000% 0 0.0000% 108218 0 0.0000% 0 0.0000% 108219 0 0.0000% 0 0.0000% 108220 0 0.0000% 0 0.0000% 108221 0 0.0000% 0 0.0000% 108222 0 0.0000% 0 0.0000% 108223 0 0.0000% 0 0.0000% 108224 0 0.0000% 0 0.0000% 108225 0 0.0000% 0 0.0000% -------------------------------------------------------------------------------- Average Loss Count : 0 Average Loss Ratio : 0.0000% Maximum Loss Count : 0 Maximum Loss Ratio : 0.0000% Minimum Loss Count : 0 Minimum Loss Ratio : 0.0000% Average RxError Count: 0 Average RxError Ratio: 0.0000% Maximum RxError Count: 0 Maximum RxError Ratio: 0.0000% Minimum RxError Count: 0 Minimum RxError Ratio: 0.0000%
- Configure DeviceA to send statistics to the performance management system through telemetry.
[~DeviceA] telemetry [~DeviceA-telemetry] destination-group twamp [*DeviceA-telemetry-destination-group-twamp] ipv4-address 192.168.100.100 port 10001 protocol grpc no-tls [*DeviceA-telemetry-destination-group-twamp] quit [*DeviceA-telemetry] sensor-group twamp [*DeviceA-telemetry-sensor-group-twamp] sensor-path huawei-twamp-controller:twamp-controller/client/sessions/session/huawei-twamp-statistics:statistics [*DeviceA-telemetry-sensor-group-twamp] quit [*DeviceA-telemetry] subscription twamp [*DeviceA-telemetry-subscription-twamp] sensor-group twamp sample-interval 5000 [*DeviceA-telemetry-subscription-twamp] destination-group twamp [*DeviceA-telemetry-subscription-twamp] commit
Configuration Files
-
# sysname DeviceA # ip vpn-instance vpna ipv4-family route-distinguisher 200:1 tnl-policy SR-MPLS-BE evpn vpn-target 111:1 export-extcommunity evpn vpn-target 111:1 import-extcommunity evpn # mpls lsr-id 1.1.1.3 # mpls # segment-routing tunnel-prefer segment-routing # isis 1 is-level level-2 cost-style wide network-entity 00.0005.0000.0000.0012.00 traffic-eng level-2 segment-routing mpls segment-routing global-block 200000 201000 # interface GigabitEthernet0/1/0 undo shutdown ip binding vpn-instance vpna ip address 192.168.2.2 255.255.255.0 # interface GigabitEthernet0/1/8 undo shutdown ip address 172.16.1.1 255.255.255.0 isis enable 1 mpls # interface LoopBack0 ip address 1.1.1.3 255.255.255.255 isis enable 1 isis prefix-sid index 20 # bgp 100 peer 1.1.1.2 as-number 100 peer 1.1.1.2 connect-interface LoopBack0 # ipv4-family unicast undo synchronization import-route direct peer 1.1.1.2 enable # ipv4-family vpnv4 policy vpn-target peer 1.1.1.2 enable # ipv4-family vpn-instance vpna import-route direct peer 1.1.1.2 as-number 100 advertise l2vpn evpn # l2vpn-family evpn undo policy vpn-target peer 1.1.1.2 enable # nqa twamp-light client test-session 1 sender-ip 192.168.2.2 reflector-ip 192.168.1.1 sender-port 2000 reflector-port 3000 vpn-instance vpna padding 1454 sender test start test-session 1 packet-count 100 # telemetry # sensor-group twamp sensor-path huawei-twamp-controller:twamp-controller/client/sessions/session/huawei-twamp-statistics:statistics # destination-group twamp ipv4-address 192.168.100.100 port 10001 protocol grpc no-tls # subscription twamp sensor-group twamp sample-interval 5000 destination-group twamp # tunnel-policy SR-MPLS-BE tunnel select-seq sr-lsp load-balance-number 1 # return
-
# sysname DeviceB # ip vpn-instance vpna ipv4-family route-distinguisher 100:1 tnl-policy SR-MPLS-BE evpn vpn-target 111:1 export-extcommunity evpn vpn-target 111:1 import-extcommunity evpn # mpls lsr-id 1.1.1.2 # mpls # segment-routing tunnel-prefer segment-routing # isis 1 is-level level-2 cost-style wide network-entity 00.0005.0000.0000.0010.00 traffic-eng level-2 segment-routing mpls segment-routing global-block 200000 201000 # interface GigabitEthernet0/1/0 undo shutdown ip binding vpn-instance vpna ip address 192.168.1.1 255.255.255.0 # interface GigabitEthernet0/1/8 undo shutdown ip address 172.17.1.1 255.255.255.0 isis enable 1 mpls # interface LoopBack0 ip address 1.1.1.2 255.255.255.255 isis enable 1 isis prefix-sid index 10 # bgp 100 peer 1.1.1.3 as-number 100 peer 1.1.1.3 connect-interface LoopBack0 # ipv4-family unicast undo synchronization import-route direct peer 1.1.1.3 enable # ipv4-family vpnv4 policy vpn-target peer 1.1.1.3 enable # ipv4-family vpn-instance vpna import-route direct peer 1.1.1.3 as-number 100 advertise l2vpn evpn # l2vpn-family evpn undo policy vpn-target peer 1.1.1.3 enable # nqa twamp-light responder test-session 1 local-ip 192.168.1.1 remote-ip 192.168.2.2 local-port 3000 remote-port 2000 vpn-instance vpna # tunnel-policy SR-MPLS-BE tunnel select-seq sr-lsp load-balance-number 1 # return
