Example for Configuring an MCE IPv6 Device

Networking Requirements

The headquarters and branch of a company need to communicate through MPLS VPN, and two IPv6 services of the company must be isolated. To reduce hardware costs, the company wants the branch to connect to the PE device through one CE device with high capability.

As shown in Figure 1, the networking requirements are as follows:

  • CE1 and CE2 connect to the headquarters. CE1 belongs to vpna, and CE2 belongs to vpnb.
  • The MCE device connects to vpna and vpnb of the branch through SwitchA and SwitchB.

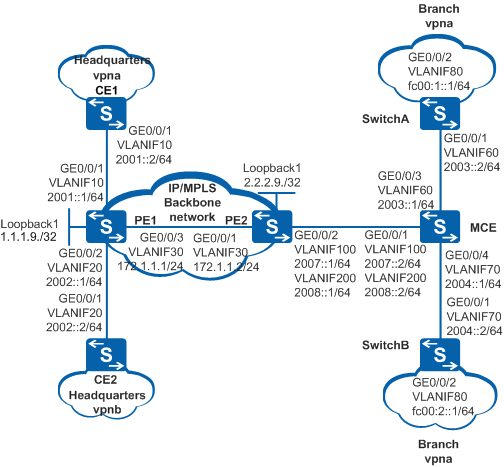

Figure 1 MCE IPv6 networking

Configuration Roadmap

The configuration roadmap is as follows:

  1. Configure OSPF between PE devices to implement interworking between them and configure MP-IBGP to exchange VPN routing information.
  2. Enable basic MPLS capabilities and MPLS LDP on the PE devices to set up LDP LSPs.
  3. Create VPN instances vpna and vpnb on the MCE and PE devices to isolate services.
  4. Set up EBGP peer relationships between PE1 and local CE devices to exchange VPN routes.
  5. Configure routing between MCE and sites and between MCE and PE2 to exchange VPN routes.

Procedure

  1. Configure OSPF on PE1 and PE2 to implement interworking between them.

    # Configure PE1.

    <HUAWEI> system-view
[HUAWEI] sysname PE1
[PE1] interface loopback 1
[PE1-LoopBack1] ip address 1.1.1.9 32
[PE1-LoopBack1] quit
[PE1] vlan batch 30
[PE1] interface gigabitethernet 0/0/3
[PE1-GigabitEthernet0/0/3] port link-type trunk
[PE1-GigabitEthernet0/0/3] port trunk allow-pass vlan 30
[PE1-GigabitEthernet0/0/3] quit
[PE1] interface vlanif 30
[PE1-Vlanif30] ip address 172.1.1.1 24
[PE1-Vlanif30] quit
[PE1] ospf
[PE1-ospf-1] area 0
[PE1-ospf-1-area-0.0.0.0] network 1.1.1.9 0.0.0.0
[PE1-ospf-1-area-0.0.0.0] network 172.1.1.0 0.0.0.255
[PE1-ospf-1-area-0.0.0.0] quit
[PE1-ospf-1] quit

    The configuration of PE2 is the same as the configuration of PE1.

    After the configuration is complete, PE1 and PE2 can learn the route to Loopback1 of each other.

    Take the display on PE2 as an example:

    [PE2] display ip routing-table
Route Flags: R - relay, D - download to fib, T - to vpn-instance
------------------------------------------------------------------------------
Routing Tables: Public
         Destinations : 6        Routes : 6

Destination/Mask    Proto   Pre  Cost      Flags NextHop         Interface

        1.1.1.9/32  OSPF    10   1           D   172.1.1.1       Vlanif30
        2.2.2.9/32  Direct  0    0           D   127.0.0.1       LoopBack1
      127.0.0.0/8   Direct  0    0           D   127.0.0.1       InLoopBack0
      127.0.0.1/32  Direct  0    0           D   127.0.0.1       InLoopBack0
      172.1.1.0/24  Direct  0    0           D   172.1.1.2       Vlanif30
      172.1.1.2/32  Direct  0    0           D   127.0.0.1       Vlanif30

  2. Enable basic MPLS capabilities and MPLS LDP on the PE devices to set up LDP LSPs between them.

    # Configure PE1.
    [PE1] mpls lsr-id 1.1.1.9
[PE1] mpls
[PE1-mpls] quit
[PE1] mpls ldp
[PE1-mpls-ldp] quit
[PE1] interface vlanif 30
[PE1-Vlanif30] mpls
[PE1-Vlanif30] mpls ldp
[PE1-Vlanif30] quit

    The configuration of PE2 is the same as the configuration of PE1.

    After the configuration is complete, run the display mpls ldp session command on the PE devices. You can see that the MPLS LDP session between the PE devices is in Operational state.

    Take the display on PE2 as an example:

    [PE2] display mpls ldp session

 LDP Session(s) in Public Network
 Codes: LAM(Label Advertisement Mode), SsnAge Unit(DDDD:HH:MM)
 A '*' before a session means the session is being deleted.
------------------------------------------------------------------------------
PeerID             Status      LAM  SsnRole  SsnAge      KASent/Rcv
------------------------------------------------------------------------------
1.1.1.9:0         Operational DU   Active   0000:00:04  2/2
------------------------------------------------------------------------------
 TOTAL: 1 session(s) Found.

  3. Enable IPv6. Configure VPN instances on the PE devices. On PE1, bind the VPN instances to the interfaces connected to CE1 and CE2 respectively. On PE2, bind the VPN instances to the interfaces connected to the MCE device.

    # Configure PE1.

    [PE1] ipv6
[PE1] vlan batch 10 20
[PE1] interface gigabitethernet 0/0/1
[PE1-GigabitEthernet0/0/1] port link-type trunk
[PE1-GigabitEthernet0/0/1] port trunk allow-pass vlan 10
[PE1-GigabitEthernet0/0/1] quit
[PE1] interface gigabitethernet 0/0/2
[PE1-GigabitEthernet0/0/2] port link-type trunk
[PE1-GigabitEthernet0/0/2] port trunk allow-pass vlan 20
[PE1-GigabitEthernet0/0/2] quit
[PE1] ip vpn-instance vpna
[PE1-vpn-instance-vpna] ipv6-family
[PE1-vpn-instance-vpna-af-ipv6] route-distinguisher 100:1
[PE1-vpn-instance-vpna-af-ipv6] vpn-target 111:1 both
[PE1-vpn-instance-vpna-af-ipv6] quit
[PE1-vpn-instance-vpna] quit
[PE1] ip vpn-instance vpnb
[PE1-vpn-instance-vpnb] ipv6-family
[PE1-vpn-instance-vpnb-af-ipv6] route-distinguisher 100:2
[PE1-vpn-instance-vpnb-af-ipv6] vpn-target 222:2 both
[PE1-vpn-instance-vpnb-af-ipv6] quit
[PE1-vpn-instance-vpnb] quit
[PE1] interface vlanif 10
[PE1-Vlanif10] ip binding vpn-instance vpna
[PE1-Vlanif10] ipv6 enable
[PE1-Vlanif10] ipv6 address 2001::1/64
[PE1-Vlanif10] quit
[PE1] interface vlanif 20
[PE1-Vlanif20] ip binding vpn-instance vpnb
[PE1-Vlanif20] ipv6 enable
[PE1-Vlanif20] ipv6 address 2002::1/64
[PE1-Vlanif20] quit

    # Configure PE2.

    [PE2] ipv6
[PE2] vlan batch 100 200
[PE2] interface gigabitethernet 0/0/2
[PE2-GigabitEthernet0/0/2] port link-type trunk
[PE2-GigabitEthernet0/0/2] port trunk allow-pass vlan 100 200
[PE2-GigabitEthernet0/0/2] quit
[PE2] ip vpn-instance vpna
[PE2-vpn-instance-vpna] ipv6-family
[PE2-vpn-instance-vpna-af-ipv6] route-distinguisher 200:1
[PE2-vpn-instance-vpna-af-ipv6] vpn-target 111:1 both
[PE2-vpn-instance-vpna-af-ipv6] quit
[PE2-vpn-instance-vpna] quit
[PE2] ip vpn-instance vpnb
[PE2-vpn-instance-vpnb] ipv6-family
[PE2-vpn-instance-vpnb-af-ipv6] route-distinguisher 200:2
[PE2-vpn-instance-vpnb-af-ipv6] vpn-target 222:2 both
[PE2-vpn-instance-vpnb-af-ipv6] quit
[PE2-vpn-instance-vpnb] quit
[PE2] interface vlanif 100
[PE2-Vlanif100] ip binding vpn-instance vpna
[PE2-Vlanif100] ipv6 enable
[PE2-Vlanif100] ipv6 address 2007::1/64
[PE2-Vlanif100] quit
[PE2] interface vlanif 200
[PE2-Vlanif200] ip binding vpn-instance vpnb
[PE2-Vlanif200] ipv6 enable
[PE2-Vlanif200] ipv6 address 2008::1/64
[PE2-Vlanif200] quit

  4. Enable IPv6 and configure VPN instances on the MCE device. Bind the vpn instances to the interfaces connected to SwitchA and SwitchB respectively.

    <HUAWEI> system-view
[HUAWEI] sysname MCE
[MCE] ipv6
[MCE] vlan batch 60 70 100 200
[MCE] interface gigabitethernet 0/0/1
[MCE-GigabitEthernet0/0/1] port link-type trunk
[MCE-GigabitEthernet0/0/1] port trunk allow-pass vlan 100 200
[MCE-GigabitEthernet0/0/1] quit
[MCE] interface gigabitethernet 0/0/3
[MCE-GigabitEthernet0/0/3] port link-type trunk
[MCE-GigabitEthernet0/0/3] port trunk allow-pass vlan 60
[MCE-GigabitEthernet0/0/3] quit
[MCE] interface gigabitethernet 0/0/4
[MCE-GigabitEthernet0/0/4] port link-type trunk
[MCE-GigabitEthernet0/0/4] port trunk allow-pass vlan 70
[MCE-GigabitEthernet0/0/4] quit
[MCE] ip vpn-instance vpna
[MCE-vpn-instance-vpna] ipv6-family
[MCE-vpn-instance-vpna-af-ipv6] route-distinguisher 100:1
[MCE-vpn-instance-vpna-af-ipv6] quit
[MCE-vpn-instance-vpna] quit
[MCE] ip vpn-instance vpnb
[MCE-vpn-instance-vpnb] ipv6-family
[MCE-vpn-instance-vpnb-af-ipv6] route-distinguisher 100:2
[MCE-vpn-instance-vpnb-af-ipv6] quit
[MCE-vpn-instance-vpnb] quit
[MCE] interface vlanif 60
[MCE-Vlanif60] ip binding vpn-instance vpna
[MCE-Vlanif60] ipv6 enable
[MCE-Vlanif60] ipv6 address 2003::1/64
[MCE-Vlanif60] quit
[MCE] interface vlanif 70
[MCE-Vlanif70] ip binding vpn-instance vpnb
[MCE-Vlanif70] ipv6 enable
[MCE-Vlanif70] ipv6 address 2004::1/64
[MCE-Vlanif70] quit
[MCE] interface vlanif 100
[MCE-Vlanif100] ip binding vpn-instance vpna
[MCE-Vlanif100] ipv6 enable
[MCE-Vlanif100] ipv6 address 2007::2/64
[MCE-Vlanif100] quit
[MCE] interface vlanif 200
[MCE-Vlanif200] ip binding vpn-instance vpnb
[MCE-Vlanif200] ipv6 enable
[MCE-Vlanif200] ipv6 address 2008::2/64
[MCE-Vlanif200] quit

  5. Set up an MP-IBGP peer relationship between PE1 and PE2. Set up an EBGP peer relationship between PE1 and CE1, and between PE1 and CE2.

    # Configure PE1 to set up an MP-IBGP peer relationship between PE1 and PE2.

    [PE1] bgp 100
[PE1-bgp] router-id 1.1.1.9
[PE1-bgp] peer 2.2.2.9 as-number 100
[PE1-bgp] peer 2.2.2.9 connect-interface loopback 1
[PE1-bgp] ipv6-family vpnv6
[PE1-bgp-af-vpnv6] peer 2.2.2.9 enable
[PE1-bgp-af-vpnv6] quit
[PE1-bgp] quit

    The configuration of PE2 is the same as the configuration of PE1.

    # Configure PE1 to set up an EBGP peer relationship between PE1 and CE1, and between PE1 and CE2.

    [PE1] bgp 100
[PE1-bgp] ipv6-family vpn-instance vpna
[PE1-bgp6-vpna] peer 2001::2 as-number 65410
[PE1-bgp6-vpna] quit
[PE1-bgp] ipv6-family vpn-instance vpnb
[PE1-bgp6-vpnb] peer 2002::2 as-number 65420
[PE1-bgp6-vpnb] quit
[PE1-bgp] quit

    # Configure CE1.

    [CE1] bgp 65410
[CE1-bgp] peer 2001::1 as-number 100
[CE1-bgp] ipv6-family unicast
[CE1-bgp-af-ipv6] peer 2001::1 enable
[CE1-bgp-af-ipv6] import-route direct
[CE1-bgp-af-ipv6] quit
[CE1-bgp] quit

    The configuration of CE2 is the same as the configuration of CE1.

    After the configuration is complete, run the display bgp vpnv6 all peer command on PE1. The command output shows that the PE1 has set up an IBGP peer relationship with PE2 and EBGP peer relationships with CE1 and CE2. All the peer relationships are in Established state.

    [PE1] display bgp vpnv6 all peer

 BGP local router ID : 1.1.1.9
 Local AS number : 100
 Total number of peers : 3                Peers in established state : 3

  Peer            V          AS  MsgRcvd  MsgSent  OutQ  Up/Down       State PrefRcv

  2.2.2.9         4         100       11       14     0 00:10:00 Established       0

  Peer of IPv6-family for vpn instance :

 VPN-Instance vpna :
  2001::2         4       65410        9       10     0 00:06:51 Established       1

 VPN-Instance vpnb :
  2002::2         4       65420        0        0     0 00:10:31 Established       0

  6. Configure routing between the MCE device and VPN sites.

    # The MCE device directly connects to vpna, and no routing protocol is used in vpna. Configure IPv6 static routes to implement communication between the MCE device and vpna.

    • Configure SwitchA.

      Assign IPv6 address fc00:1::1/64 to the interface connected to vpna.

      <HUAWEI> system-view
[HUAWEI] sysname SwitchA
[SwitchA] ipv6
[SwitchA] vlan batch 60 80
[SwitchA] interface gigabitethernet 0/0/1
[SwitchA-GigabitEthernet0/0/1] port link-type trunk
[SwitchA-GigabitEthernet0/0/1] port trunk allow-pass vlan 60
[SwitchA-GigabitEthernet0/0/1] quit
[SwitchA] interface vlanif 60
[SwitchA-Vlanif60] ipv6 enable
[SwitchA-Vlanif60] ipv6 address 2003::2/64
[SwitchA-Vlanif60] quit
[SwitchA] interface gigabitethernet 0/0/2
[SwitchA-GigabitEthernet0/0/2] port link-type trunk
[SwitchA-GigabitEthernet0/0/2] port trunk allow-pass vlan 80
[SwitchA-GigabitEthernet0/0/2] quit
[SwitchA] interface vlanif 80
[SwitchA-Vlanif80] ipv6 enable
[SwitchA-Vlanif80] ipv6 address fc00:1::1 64
[SwitchA-Vlanif80] quit
[SwitchA] ipv6 route-static :: 0 2003::1

    • Configure the MCE device.

      [MCE] ipv6 route-static vpn-instance vpna fc00:1:: 64 2003::2
    • Check the IPv6 routes of vpna on the MCE device.
      [MCE] display ipv6 routing-table vpn-instance vpna
Routing Table : vpna
        Destinations : 6        Routes : 6

 Destination  : 2003::                          PrefixLength : 64
 NextHop      : 2003::1                         Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : VLANIF60                        Flags        : D

 Destination  : 2003::2                         PrefixLength : 128
 NextHop      : ::1                             Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : VLANIF60                        Flags        : D

 Destination  : fc00:1::                       PrefixLength : 64
 NextHop      : 2003::2                         Preference   : 60
 Cost         : 0                               Protocol     : Static
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : VLANIF60                        Flags        : RD

 Destination  : 2007::                          PrefixLength : 64
 NextHop      : 2007::2                         Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : VLANIF100                       Flags        : D

 Destination  : 2007::2                         PrefixLength : 128
 NextHop      : ::1                             Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : VLANIF100                       Flags        : D

 Destination  : FE80::                          PrefixLength : 10
 NextHop      : ::                              Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : NULL0                           Flags        : D
      The preceding information shows that the MCE device has a static route to vpna.

    # The RIPng protocol runs in vpnb. Configure RIPng process 200 on the MCE device and bind it to vpnb so that routes learned by RIPng are added to the IPv6 routing table of vpnb.

    • Configure the MCE device.
      [MCE] ripng 200 vpn-instance vpnb
[MCE-ripng-200] import-route ospfv3 200
[MCE-ripng-200] quit
[MCE] interface vlanif 70
[MCE-Vlanif70] ripng 200 enable
[MCE-Vlanif70] quit

    • Configure SwitchB.

      Assign IP address fc00:2::1/64 to the interface connected to vpnb.

      <HUAWEI> system-view
[HUAWEI] sysname SwitchB
[SwitchB] ipv6
[SwitchB] vlan batch 70 80
[SwitchB] interface gigabitethernet 0/0/1
[SwitchB-GigabitEthernet0/0/1] port link-type trunk
[SwitchB-GigabitEthernet0/0/1] port trunk allow-pass vlan 70
[SwitchB-GigabitEthernet0/0/1] quit
[SwitchB] interface vlanif 70
[SwitchB-Vlanif70] ipv6 enable
[SwitchB-Vlanif70] ipv6 address 2004::2 64
[SwitchB-Vlanif70] quit
[SwitchB] interface gigabitethernet 0/0/2
[SwitchB-GigabitEthernet0/0/2] port link-type trunk
[SwitchB-GigabitEthernet0/0/2] port trunk allow-pass vlan 80
[SwitchB-GigabitEthernet0/0/2] quit
[SwitchB] interface vlanif 80
[SwitchB-Vlanif80] ipv6 enable
[SwitchB-Vlanif80] ipv6 address fc00:2::1 64
[SwitchB-Vlanif80] quit
[SwitchB] ripng 200
[SwitchB-ripng-200] quit
[SwitchB] interface vlanif 70
[SwitchB-Vlanif70] ripng 200 enable
[SwitchB-Vlanif70] quit
[SwitchB] interface vlanif 80
[SwitchB-Vlanif80] ripng 200 enable
[SwitchB-Vlanif80] quit
    • Check the routes of vpnb on the MCE device.
      [MCE] display ipv6 routing-table vpn-instance vpnb
Routing Table : vpnb
        Destinations : 6        Routes : 6

 Destination  : 2004::                          PrefixLength : 64
 NextHop      : 2004::1                         Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : VLANIF70                        Flags        : D

 Destination  : 2004::1                         PrefixLength : 128
 NextHop      : ::1                             Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : VLANIF70                        Flags        : D

 Destination  : fc00:2::                       PrefixLength : 64
 NextHop      : FE80::225:9EFF:FEFB:A95E        Preference   : 100
 Cost         : 1                               Protocol     : RIPng
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : VLANIF70                        Flags        : D

 Destination  : 2008::                          PrefixLength : 64
 NextHop      : 2008::2                         Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : VLANIF200                       Flags        : D

 Destination  : 2008::2                         PrefixLength : 128
 NextHop      : ::1                             Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : VLANIF200                       Flags        : D

 Destination  : FE80::                          PrefixLength : 10
 NextHop      : ::                              Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : NULL0                           Flags        : D
      The preceding information shows that the MCE device has learned the route to vpnb through RIPng. The route to vpnb and the route to vpna (fc00:2::/64) are maintained in different VPN routing tables so that users in the two VPNs are isolated from each other.

  7. Configure OSPFv3 multi-instance between the MCE device and PE2.

    # Configure PE2.
    To configure OSPFv3 multi-instance between the MCE device and PE2, complete the following tasks on PE2:
    • In the OSPFv3 view, import BGP routes and advertise VPN routes of PE1 to the MCE device.
    • In the BGP view, import routes of the OSPFv3 processes and advertise the VPN routes of the MCE device to PE1.
    [PE2] ospfv3 100 vpn-instance vpna
[PE2-ospfv3-100] router-id 3.3.3.3
[PE2-ospfv3-100] import-route bgp
[PE2-ospfv3-100] quit
[PE2] ospfv3 200 vpn-instance vpnb
[PE2-ospfv3-200] router-id 4.4.4.4
[PE2-ospfv3-200] import-route bgp
[PE2-ospfv3-200] quit
[PE2] interface vlanif 100
[PE2-Vlanif100] ospfv3 100 area 0
[PE2-Vlanif100] quit
[PE2] interface vlanif 200
[PE2-Vlanif200] ospfv3 200 area 0
[PE2-Vlanif200] quit
[PE2] bgp 100
[PE2-bgp] ipv6-family vpn-instance vpna
[PE2-bgp-vpna] import-route ospfv3 100
[PE2-bgp-vpna] quit
[PE2-bgp] ipv6-family vpn-instance vpnb
[PE2-bgp-vpnb] import-route ospfv3 200
[PE2-bgp-vpnb] quit
    # Configure the MCE device.

    Import VPN routes to the OSPFv3 processes.

    [MCE] ospfv3 100 vpn-instance vpna
[MCE-ospfv3-100] router-id 1.1.1.1
[MCE-ospfv3-100] import-route static
[MCE-ospfv3-100] vpn-instance-capability simple
[MCE-ospfv3-100] quit
[MCE] ospfv3 200 vpn-instance vpnb
[MCE-ospfv3-200] router-id 2.2.2.2
[MCE-ospfv3-200] import-route ripng 200
[MCE-ospfv3-200] vpn-instance-capability simple
[MCE-ospfv3-200] quit
[MCE] interface vlanif 100
[MCE-Vlanif100] ospfv3 100 area 0
[MCE-Vlanif100] quit
[MCE] interface vlanif 200
[MCE-Vlanif200] ospfv3 200 area 0
[MCE-Vlanif200] quit

  8. Verify the configuration.

    After the configuration is complete, run the display ipv6 routing-table vpn-instance command on the MCE device to view the routes to the remote CE devices.

    Take the routing table of vpna as an example:

    [MCE] display ipv6 routing-table vpn-instance vpna
Routing Table : vpna
        Destinations : 7        Routes : 7

 Destination  : 2001::                         PrefixLength : 64
 NextHop      : FE80::5689:98FF:FE28:8472       Preference   : 150
 Cost         : 0                               Protocol     : OSPFv3ASE
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : Vlanif100                       Flags        : D

 Destination  : 2003::                          PrefixLength : 64
 NextHop      : 2003::1                         Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : Vlanif60                        Flags        : D

 Destination  : 2003::1                         PrefixLength : 128
 NextHop      : ::1                             Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : Vlanif60                        Flags        : D

 Destination  : fc00:1::                        PrefixLength : 64
 NextHop      : 2003::2                         Preference   : 60
 Cost         : 0                               Protocol     : Static
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : Vlanif60                        Flags        : RD

 Destination  : 2007::                          PrefixLength : 64
 NextHop      : 2007::2                         Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : Vlanif100                       Flags        : D

 Destination  : 2007::2                         PrefixLength : 128
 NextHop      : ::1                             Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : Vlanif100                       Flags        : D

 Destination  : FE80::                          PrefixLength : 10
 NextHop      : ::                              Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : NULL0                           Flags        : D

    Run the display ipv6 routing-table vpn-instance command on the PE devices to view the routes to the remote Switch.

    Take the VPN routing table of vpna on PE as an example:

    [PE1] display ipv6 routing-table vpn-instance vpna
Routing Table : vpna
        Destinations : 6        Routes : 6

 Destination  : 2001::                          PrefixLength : 64
 NextHop      : 2001::1                         Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : Vlanif30                        Flags        : D

 Destination  : 2001::1                         PrefixLength : 128
 NextHop      : ::1                             Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : Vlanif30                        Flags        : D

 Destination  : 2003::                          PrefixLength : 64
 NextHop      : ::FFFF:2.2.2.9                  Preference   : 255
 Cost         : 0                               Protocol     : BGP
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : Vlanif30                        Flags        : RD

 Destination  : fc00:1::                       PrefixLength : 64
 NextHop      : ::FFFF:2.2.2.9                  Preference   : 255
 Cost         : 0                               Protocol     : BGP
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : Vlanif30                        Flags        : RD

 Destination  : 2007::                          PrefixLength : 64
 NextHop      : ::FFFF:2.2.2.9                  Preference   : 255
 Cost         : 0                               Protocol     : BGP
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : Vlanif30                        Flags        : RD

 Destination  : FE80::                          PrefixLength : 10
 NextHop      : ::                              Preference   : 0
 Cost         : 0                               Protocol     : Direct
 RelayNextHop : ::                              TunnelID     : 0x0
 Interface    : NULL0                           Flags        : D

    CE1 and SwitchA can communicate with each other. CE2 and SwitchB can communicate with each other.

    CE1 cannot ping CE2 or SwitchB. SwitchA cannot ping CE2 or SwitchB.

Configuration Files

  • CE1 configuration file

    #
sysname CE1
#
ipv6
#
vlan batch 10
#
interface Vlanif10
 ipv6 enable
 ipv6 address 2001::2/64
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 10
#
bgp 65410
 peer 2001::1 as-number 100
 #
 ipv6-family unicast
  undo synchronization
  import-route direct
  peer 2001::1 enable
#
return

  • CE2 configuration file

    #
sysname CE2
#
ipv6
#
vlan batch 20
#
interface Vlanif20
 ipv6 enable
 ipv6 address 2002::2/64
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 20
#
bgp 65420
 peer 2002::1 as-number 100
 #
 ipv6-family unicast
  undo synchronization
  import-route direct
  peer 2002::1 enable
#
return

  • PE1 configuration file

    #
sysname PE1
#
ipv6
#
vlan batch 10 20 30
#
ip vpn-instance vpna
 ipv6-family
  route-distinguisher 100:1
  vpn-target 111:1 export-extcommunity
  vpn-target 111:1 import-extcommunity
#
ip vpn-instance vpnb
 ipv6-family
  route-distinguisher 100:2
  vpn-target 222:2 export-extcommunity
  vpn-target 222:2 import-extcommunity
#
mpls lsr-id 1.1.1.9
mpls
#
mpls ldp
#
interface Vlanif10
 ip binding vpn-instance vpna
 ipv6 enable
 ipv6 address 2001::1/64
#
interface Vlanif20
 ip binding vpn-instance vpnb
 ipv6 enable
 ipv6 address 2002::1/64
#
interface Vlanif30
 ip address 172.1.1.1 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 10
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 20
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 30
#
interface LoopBack1
 ip address 1.1.1.9 255.255.255.255
#
bgp 100
 router-id 1.1.1.9
 peer 2.2.2.9 as-number 100
 peer 2.2.2.9 connect-interface LoopBack1
 #
 ipv4-family unicast
  undo synchronization
  peer 2.2.2.9 enable
 #
 ipv6-family vpnv6
  policy vpn-target
  peer 2.2.2.9 enable
 #
 ipv6-family vpn-instance vpna
  import-route direct
  peer 2001::2 as-number 65410
 #
 ipv6-family vpn-instance vpnb
  import-route direct
  peer 2002::2 as-number 65420
#
ospf 1
 area 0.0.0.0
  network 1.1.1.9 0.0.0.0
  network 172.1.1.0 0.0.0.255
#
return

  • PE2 configuration file

    #
sysname PE2
#
ipv6
#
vlan batch 30 100 200
#
ip vpn-instance vpna
 ipv6-family
  route-distinguisher 200:1
  vpn-target 111:1 export-extcommunity
  vpn-target 111:1 import-extcommunity
#
ip vpn-instance vpnb
 ipv6-family
  route-distinguisher 200:2
  vpn-target 222:2 export-extcommunity
  vpn-target 222:2 import-extcommunity
#
mpls lsr-id 2.2.2.9
mpls
#
mpls ldp
#
ospfv3 100 vpn-instance vpna
 router-id 3.3.3.3
 import-route bgp
#
ospfv3 200 vpn-instance vpnb
 router-id 4.4.4.4
 import-route bgp
#
interface Vlanif30
 ip address 172.1.1.2 255.255.255.0
 mpls
 mpls ldp
#
interface Vlanif100
 ip binding vpn-instance vpna
 ipv6 enable
 ipv6 address 2007::1/64
 ospfv3 100 area 0.0.0.0
#
interface Vlanif200
 ip binding vpn-instance vpnb
 ipv6 enable
 ipv6 address 2008::1/64
 ospfv3 200 area 0.0.0.0
#
interface LoopBack1
 ip address 2.2.2.9 255.255.255.255
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 30
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 100 200
#
bgp 100
 router-id 2.2.2.9
 peer 1.1.1.9 as-number 100
 peer 1.1.1.9 connect-interface LoopBack1
 #
 ipv4-family unicast
  undo synchronization
  peer 1.1.1.9 enable
 #
 ipv6-family vpnv6
  policy vpn-target
  peer 1.1.1.9 enable
 #
 ipv6-family vpn-instance vpna
  import-route ospfv3 100
 #
 ipv6-family vpn-instance vpnb
  import-route ospfv3 200
#
ospf 1
 area 0.0.0.0
  network 2.2.2.9 0.0.0.0
  network 172.1.1.0 0.0.0.255
#
return

  • MCE configuration file

    #
sysname MCE
#
ipv6
#
vlan batch 60 70 100 200
#
ip vpn-instance vpna
 ipv6-family
  route-distinguisher 100:1
#
ip vpn-instance vpnb
 ipv6-family
  route-distinguisher 100:2
#
ospfv3 100 vpn-instance vpna
 router-id 1.1.1.1
 import-route static
 vpn-instance-capability simple
#
ospfv3 200 vpn-instance vpnb
 router-id 2.2.2.2
 import-route ripng 200
 vpn-instance-capability simple
#
ripng 200 vpn-instance vpnb
 import-route ospfv3 200
#
interface Vlanif60
 ip binding vpn-instance vpna
 ipv6 enable
 ipv6 address 2003::1/64
#
interface Vlanif70
 ip binding vpn-instance vpnb
 ipv6 enable
 ipv6 address 2004::1/64
 ripng 200 enable
#
interface Vlanif100
 ip binding vpn-instance vpna
 ipv6 enable
 ipv6 address 2007::2/64
 ospfv3 100 area 0.0.0.0
#
interface Vlanif200
 ip binding vpn-instance vpnb
 ipv6 enable
 ipv6 address 2008::2/64
 ospfv3 200 area 0.0.0.0
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 100 200
#
interface GigabitEthernet0/0/3
 port link-type trunk
 port trunk allow-pass vlan 60
#
interface GigabitEthernet0/0/4
 port link-type trunk
 port trunk allow-pass vlan 70
#
ipv6 route-static vpn-instance vpna FC00:1:: 64 2003::2
#
return

  • SwitchA configuration file

    #
sysname SwitchA
#
ipv6
#
vlan batch 60 80
#
interface Vlanif60
 ipv6 enable
 ipv6 address 2003::2/64
#
interface Vlanif80
 ipv6 enable
 ipv6 address FC00:1::1/64
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 60
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 80
#
ipv6 route-static :: 0 2003::1
#
return

  • SwitchB configuration file

    #
sysname SwitchB
#
ipv6
#
vlan batch 70 80
#
ripng 200
#
interface Vlanif70
 ipv6 enable
 ipv6 address 2004::2/64
 ripng 200 enable
#
interface Vlanif80
 ipv6 enable
 ipv6 address FC00:2::1/64
 ripng 200 enable
#
interface GigabitEthernet0/0/1
 port link-type trunk
 port trunk allow-pass vlan 70
#
interface GigabitEthernet0/0/2
 port link-type trunk
 port trunk allow-pass vlan 80
#
return
Parent Topic: Configuration Examples for BGP/MPLS IPv6 VPN
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
