Example for Configuring Interworking Between a VXLAN EVPN and a VPLS

To implement interconnection between a DC and an enterprise network, interworking between VXLAN EVPN and VPLS must be configured.

Networking Requirements

On the network shown in Figure 1, PE3 and the TOR are each dual-homed to PE1 and PE2. An MPLS L2VPN is deployed between the PEs, with PW connections configured. An EVPN VXLAN is deployed in the DC, and PE1 and PE2 are the DC's egress devices.

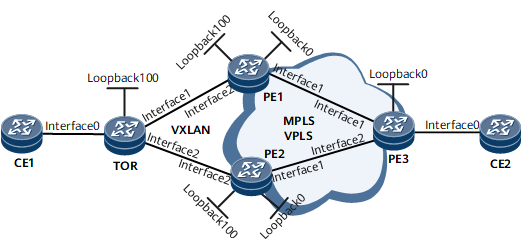

Figure 1 Interworking between a VXLAN EVPN and a VPLS

Interfaces 0 through 2 in this example represent GE 0/1/0, GE 0/1/1, and GE 0/1/2, respectively.



Table 1 Mapping between interfaces and IP addresses

Device

Interface Name

IP Address and Mask

PE1

GigabitEthernet 0/1/1

10.1.1.1/24

GigabitEthernet 0/1/2

192.168.14.1/24

Loopback 0

1.1.1.1/32

Loopback 100

1.1.1.100/32

PE2

GigabitEthernet 0/1/1

10.2.1.2/24

GigabitEthernet 0/1/2

192.168.24.1/24

Loopback 0

2.2.2.2/32

Loopback 100

2.2.2.100/32

PE3

GigabitEthernet 0/1/0

-

GigabitEthernet 0/1/1

10.1.1.3/24

GigabitEthernet 0/1/2

10.2.1.3/24

Loopback 0

3.3.3.3/32

TOR

GigabitEthernet 0/1/0

-

GigabitEthernet 0/1/1

192.168.14.4/24

GigabitEthernet 0/1/2

192.168.24.4/24

Loopback 100

4.4.4.100/32

Configuration Roadmap

The configuration roadmap is as follows:

  1. Configure an IGP on each device to ensure Layer 3 connectivity.

  2. Configure basic MPLS functions and MPLS LDP on PE1, PE2, and PE3. Establish LDP LSPs between PE3 and PE1 and between PE3 and PE2.

  3. Configure an EVPN instance on each of PE1, PE2, and the TOR.

  4. Configure MPLS VPLS between PE3 and PE1 and between PE3 and PE2 for interconnection.

  5. Configure VXLAN between the TOR and PE1 and between the TOR and PE2 for interconnection.

  6. Create an EVPN instance and a VSI and bind them to the same BD on each of PE1 and PE2 to implement VXLAN and VPLS interworking.

Data Preparation

To complete the configuration, you need the following data:

  • Interfaces and their IP addresses

  • MPLS LSR IDs of PEs

  • Names, RDs, and VPN targets of the EVPN instances of PE1, PE2, and the TOR

  • Names and IDs of the VSIs on the PEs

  • IP addresses of peers and tunnel policies used for setting up peer relationships

Procedure

  1. Configure IP addresses for interfaces on the PEs and TOR and configure an IGP. OSPF is used in this example.

    For configuration details, see Configuration Files in this section.

  2. Configure basic MPLS functions and MPLS LDP on PE1, PE2, and PE3. Establish LDP LSPs between PE3 and PE1 and between PE3 and PE2.

    For configuration details, see Configuration Files in this section.

  3. Configure EVPN instances on PE1 and PE2.

    # Configure PE1.

    [~PE1] evpn vpn-instance tor bd-mode
[*PE1-evpn-instance-tor] route-distinguisher 1.1.1.100:10
[*PE1-evpn-instance-tor] vpn-target 10:10 export-extcommunity
[*PE1-evpn-instance-tor] vpn-target 10:10 import-extcommunity
[*PE1-evpn-instance-tor] quit
[*PE1] commit

    Repeat this step for the TOR and PE2. For configuration details, see Configuration Files in this section.

  4. Configure a BGP-EVPN peer relationship between the TOR and each of PE1 and PE2.

    # Configure PE1.

    [~PE1] bgp 100
[*PE1-bgp] peer 4.4.4.100 as-number 65001
[*PE1-bgp] peer 4.4.4.100 ebgp-max-hop 255
[*PE1-bgp] peer 4.4.4.100 connect-interface LoopBack100
[*PE1-bgp] l2vpn-family evpn
[*PE1-bgp-af-evpn] policy vpn-target
[*PE1-bgp-af-evpn] peer 4.4.4.100 enable
[*PE1-bgp-af-evpn] peer 4.4.4.100 advertise encap-type vxlan
[*PE1-bgp-af-evpn] quit
[*PE1-bgp] quit
[*PE1] commit

    Repeat this step for the TOR and PE2. For configuration details, see Configuration Files in this section.

  5. Configure a VSI on each of PE1, PE2, and PE3.

    # Configure PE1.

    [~PE1] vsi cpe bd-mode
[*PE1-vsi-cpe] pwsignal ldp
[*PE1-vsi-cpe-ldp] vsi-id 10
[*PE1-vsi-cpe-ldp] peer 3.3.3.3
[*PE1-vsi-cpe-ldp] quit
[*PE1-vsi-cpe] quit
[*PE1] commit

    # Configure PE2.

    [~PE2] vsi cpe bd-mode
[*PE2-vsi-cpe] pwsignal ldp
[*PE2-vsi-cpe-ldp] vsi-id 10
[*PE2-vsi-cpe-ldp] peer 3.3.3.3
[*PE2-vsi-cpe-ldp] quit
[*PE2-vsi-cpe] quit
[*PE2] commit

    # Configure PE3.

    [~PE3] vsi cpe bd-mode
[*PE3-vsi-cpe] pw-redundancy mac-withdraw rfc-compatible
[*PE3-vsi-cpe] pwsignal ldp
[*PE3-vsi-cpe-ldp] vsi-id 10
[*PE3-vsi-cpe-ldp] peer 1.1.1.1
[*PE3-vsi-cpe-ldp] peer 2.2.2.2
[*PE3-vsi-cpe-ldp] protect-group 10
[*PE3-vsi-cpe-ldp-protect-group-10] protect-mode pw-redundancy master
[*PE3-vsi-cpe-ldp-protect-group-10] reroute delay 60
[*PE3-vsi-cpe-ldp-protect-group-10] peer 1.1.1.1 preference 1
[*PE3-vsi-cpe-ldp-protect-group-10] peer 2.2.2.2 preference 2
[*PE3-vsi-cpe-ldp-protect-group-10] quit
[*PE3-vsi-cpe-ldp] quit
[*PE3-vsi-cpe] quit
[*PE3] commit

  6. Bind the VSI and EVPN instance to the same BD on each of PE1 and PE2.

    # Configure PE1.

    [~PE1] bridge-domain 10
[*PE1-bd10] vxlan vni 10 split-horizon-mode
[*PE1-bd10] evpn binding vpn-instance tor
[*PE1-bd10] l2 binding vsi cpe
[*PE1-bd10] quit
[*PE1] commit

    Repeat this step for PE2. For configuration details, see Configuration Files in this section.

  7. Verify the configuration.

    Run the display vsi name cpe verbose command on each PE to view the PW and VSI status. The following example uses the command output on PE1.

    [~PE1] display vsi name cpe verbose
 ***VSI Name               : cpe
    Work Mode              : bd-mode
    Administrator VSI      : no
    Isolate Spoken         : disable
    VSI Index              : 1
    PW Signaling           : ldp
    Member Discovery Style : --
    Bridge-domain Mode     : enable
    PW MAC Learn Style     : qualify
    Encapsulation Type     : vlan
    MTU                    : 1500
    Diffserv Mode          : uniform
    Service Class          : --
    Color                  : --
    DomainId               : 255
    Domain Name            :
    Ignore AcState         : disable
    P2P VSI                : disable
    Multicast Fast Switch  : disable
    Create Time            : 0 days, 3 hours, 24 minutes, 44 seconds
    VSI State              : up
    Resource Status        : --

    VSI ID                 : 10
   *Peer Router ID         : 3.3.3.3
    Negotiation-vc-id      : 10
    Encapsulation Type     : vlan
    primary or secondary   : primary
    ignore-standby-state   : no
    VC Label               : 48123
    Peer Type              : dynamic
    Session                : up
    Tunnel ID              : 0x0000000001004c4b44
    Broadcast Tunnel ID    : --
    Broad BackupTunnel ID  : --
    CKey                   : 1
    NKey                   : 16777348
    Stp Enable             : 0
    PwIndex                : 1
    Control Word           : disable
    BFD for PW             : unavailable

    Access Bridge-domain   : Bridge-domain 10
    Vac State              : down
    Last Up Time           : 0000/00/00 00:00:00
    Total Up Time          : 0 days, 0 hours, 0 minutes, 0 seconds

  **PW Information:

   *Peer Ip Address        : 3.3.3.3
    PW State               : up
    Local VC Label         : 48123
    Remote VC Label        : 48124
    Remote Control Word    : disable
    PW Type                : label
    Local  VCCV            : alert lsp-ping bfd
    Remote VCCV            : alert lsp-ping bfd
    Tunnel ID              : 0x0000000001004c4b44
    Broadcast Tunnel ID    : --
    Broad BackupTunnel ID  : --
    Ckey                   : 1
    Nkey                   : 16777348
    Main PW Token          : 0x0
    Slave PW Token         : 0x0
    Tnl Type               : ldp
    OutInterface           : --
    Backup OutInterface    : --
    Stp Enable             : 0
    Mac Flapping           : 0
    PW Last Up Time        : 2018/08/29 08:11:47
    PW Total Up Time       : 0 days, 1 hours, 46 minutes, 33 seconds

    Run the display vxlan tunnel command on each PE. The command output shows that the VXLAN tunnel is Up. The following example uses the command output on PE1.

    [~PE1] display vxlan tunnel
Number of vxlan tunnel : 1
Tunnel ID   Source                Destination           State  Type     Uptime
-----------------------------------------------------------------------------------
4026531841  1.1.1.100             4.4.4.100             up    dynamic  00:18:05

Configuration Files

  • PE1 configuration file
    #
sysname PE1
#
evpn vpn-instance tor bd-mode
 route-distinguisher 2.2.2.100:10
 vpn-target 10:10 export-extcommunity
 vpn-target 10:10 import-extcommunity
#
mpls lsr-id 1.1.1.1
#
mpls
#
mpls l2vpn
#
vsi cpe bd-mode
 pwsignal ldp
  vsi-id 10
  peer 3.3.3.3
#
bridge-domain 10
 vxlan vni 10 split-horizon-mode
 evpn binding vpn-instance tor
 l2 binding vsi cpe
#
mpls ldp
#
interface GigabitEthernet0/1/1
 undo shutdown
 ip address 10.1.1.1 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/2
 undo shutdown
 ip address 192.168.14.1 255.255.255.0
#
interface LoopBack0
 ip address 1.1.1.1 255.255.255.255
#
interface LoopBack100
 ip address 1.1.1.100 255.255.255.255
#
interface Nve1
 source 1.1.1.100
 vni 10 head-end peer-list protocol bgp
#
bgp 100
 peer 4.4.4.100 as-number 65001
 peer 4.4.4.100 ebgp-max-hop 255
 peer 4.4.4.100 connect-interface LoopBack100
 #
 ipv4-family unicast
  undo synchronization
  peer 4.4.4.100 enable
 #
 l2vpn-family evpn
  policy vpn-target
  peer 4.4.4.100 enable
  peer 4.4.4.100 advertise encap-type vxlan
#
ospf 1
 area 0.0.0.0
  network 1.1.1.1 0.0.0.0
  network 10.1.1.0 0.0.0.255
#
ospf 100
 area 0.0.0.1
  network 1.1.1.100 0.0.0.0
  network 192.168.14.0 0.0.0.255
#
evpn source-address 1.1.1.1
#
return

  • PE2 configuration file

    #
sysname PE2
#
evpn vpn-instance tor bd-mode
 route-distinguisher 2.2.2.100:10
 vpn-target 10:10 export-extcommunity
 vpn-target 10:10 import-extcommunity
#
mpls lsr-id 2.2.2.2
#
mpls
#
mpls l2vpn
#
vsi cpe bd-mode
 pwsignal ldp
  vsi-id 10
  peer 3.3.3.3
#
bridge-domain 10
 vxlan vni 10 split-horizon-mode
 evpn binding vpn-instance tor
 l2 binding vsi cpe
#
mpls ldp
#
interface GigabitEthernet0/1/1
 undo shutdown
 ip address 10.2.1.2 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/2
 undo shutdown
 ip address 192.168.24.1 255.255.255.0
#
interface LoopBack0
 ip address 2.2.2.2 255.255.255.255
#
interface LoopBack100
 ip address 2.2.2.100 255.255.255.255
#
interface Nve1
 source 2.2.2.100
 vni 10 head-end peer-list protocol bgp
#
bgp 100
 peer 4.4.4.100 as-number 65001
 peer 4.4.4.100 ebgp-max-hop 255
 peer 4.4.4.100 connect-interface LoopBack100
 #
 ipv4-family unicast
  undo synchronization
  peer 4.4.4.100 enable
 #
 l2vpn-family evpn
  policy vpn-target
  peer 4.4.4.100 enable
  peer 4.4.4.100 advertise encap-type vxlan
#
ospf 1
 area 0.0.0.0
  network 2.2.2.2 0.0.0.0
  network 10.2.1.0 0.0.0.255
#
ospf 100
 area 0.0.0.1
  network 2.2.2.100 0.0.0.0
  network 192.168.24.0 0.0.0.255
#
evpn source-address 2.2.2.2
#
return

  • PE3 configuration file

    #
sysname PE3
#
mpls lsr-id 3.3.3.3
#
mpls
#
mpls l2vpn
#
vsi cpe bd-mode
 pw-redundancy mac-withdraw rfc-compatible
 pwsignal ldp
  vsi-id 10
  peer 1.1.1.1
  peer 2.2.2.2
  protect-group 10
   protect-mode pw-redundancy master
   reroute delay 60
   peer 1.1.1.1 preference 1
   peer 2.2.2.2 preference 2
#
bridge-domain 10
 l2 binding vsi cpe
#
mpls ldp
#
interface GigabitEthernet0/1/0
 undo shutdown
#
interface GigabitEthernet0/1/0.1 mode l2
 encapsulation dot1q vid 10
 rewrite pop single
 bridge-domain 10
#
interface GigabitEthernet0/1/1
 undo shutdown
 ip address 10.1.1.3 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/1/2
 undo shutdown
 ip address 10.2.1.3 255.255.255.0
 mpls
 mpls ldp
#
interface LoopBack0
 ip address 3.3.3.3 255.255.255.255
#
ospf 1
 area 0.0.0.0
  network 3.3.3.3 0.0.0.0
  network 10.1.1.0 0.0.0.255
  network 10.2.1.0 0.0.0.255
#
return

  • TOR configuration file

    #
sysname TOR
#
evpn vpn-instance tor bd-mode
 route-distinguisher 4.4.4.100:10
 vpn-target 10:10 export-extcommunity
 vpn-target 10:10 import-extcommunity
#
bridge-domain 10
 vxlan vni 10 split-horizon-mode
 evpn binding vpn-instance tor
#
interface GigabitEthernet0/1/0
 undo shutdown
#
interface GigabitEthernet0/1/0.1 mode l2
 encapsulation dot1q vid 10
 rewrite pop single
 bridge-domain 10
#
interface GigabitEthernet0/1/1
 undo shutdown
 ip address 192.168.14.4 255.255.255.0
#
interface GigabitEthernet0/1/2
 undo shutdown
 ip address 192.168.24.4 255.255.255.0
#
interface LoopBack0
 ip address 4.4.4.4 255.255.255.255
#
interface LoopBack100
 ip address 4.4.4.100 255.255.255.255
#
interface Nve1
 source 4.4.4.100
 vni 10 head-end peer-list protocol bgp
#
interface NULL0
#
bgp 65001
 peer 1.1.1.100 as-number 100
 peer 1.1.1.100 ebgp-max-hop 255
 peer 1.1.1.100 connect-interface LoopBack100
 peer 2.2.2.100 as-number 100
 peer 2.2.2.100 ebgp-max-hop 255
 peer 2.2.2.100 connect-interface LoopBack100
 #
 ipv4-family unicast
  undo synchronization
  peer 1.1.1.100 enable
  peer 2.2.2.100 enable
 #
 l2vpn-family evpn
  policy vpn-target
  peer 1.1.1.100 enable
  peer 1.1.1.100 advertise encap-type vxlan
  peer 2.2.2.100 enable
  peer 2.2.2.100 advertise encap-type vxlan
#
ospf 100
 area 0.0.0.1
  network 4.4.4.100 0.0.0.0
  network 192.168.14.0 0.0.0.255
  network 192.168.24.0 0.0.0.255
#
evpn source-address 4.4.4.4
#
return
Parent Topic: Configuration Examples for EVPN
Copyright © Huawei Technologies Co., Ltd.
Copyright © Huawei Technologies Co., Ltd.
< Previous topic Next topic >
