Example for Configuring a Generalflow Test in a Native Ethernet Scenario (RFC 2544)

This section describes how to configure a generalflow test in a native Ethernet scenario. A generalflow test is used to monitor the native Ethernet network performance.

Networking Requirements

A generalflow test needs to be configured to monitor the performance of an Ethernet virtual connection (EVC) between Device A and Device B on the network shown in Figure 1.

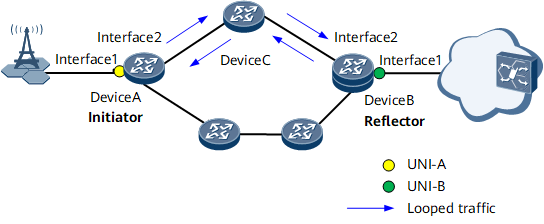

Figure 1 General flow test in a native Ethernet scenario

Interfaces 1 and 2 in this example are GE0/1/1, and GE0/1/2, respectively.

Configuration Roadmap

The configuration roadmap is as follows:

Configure reflector Device B to loop traffic with a specified destination MAC address through reflector interface GE 0/1/1 to the initiator.
Configure initiator Device A and test the throughput, latency, and packet loss rate.
Configure Device C's interface to join the specified VLAN.

Data Preparation

To complete the configuration, you need the following data:

On reflector Device B: MAC address (00-e0-fc-12-34-56) of the interface directly connected to UNI-B
On initiator Device A:
- Destination MAC address (00-e0-fc-12-34-56) of the interface directly connected to UNI-B
- Throughput test parameters: upper rate threshold (100000 Kbit/s), lower rate threshold (10000 Kbit/s), throughput precision (1000 Kbit/s), packet loss rate (81), interval (5s) at which test packets are transmitted at a specified rate, data size (70 bytes) of each test packet, and test duration (100s)
- Delay test parameters: packet rate (99000 Kbit/s), test duration (100s), and interval (5s) at which the initiator sends test packets
- Packet loss rate test parameters: packet rate (99000 Kbit/s), and test duration (100s)

Procedure

Configure reachable Layer 2 links between the initiator and reflector and add Layer 2 interfaces to VLAN 10. For configuration details, see "Configuration Files" in this section.

Configure the reflector.

<DeviceB> system-view
[~DeviceB] nqa reflector 1 interface gigabitethernet 0/1/1 mac 00-e0-fc-12-34-56 vlan 10

Configure the initiator to conduct a throughput test and check the test results.

<DeviceA> system-view
[~DeviceA] nqa test-instance admin throughput
[*DeviceA-nqa-admin-throughput] test-type generalflow
[*DeviceA-nqa-admin-throughput] measure throughput
[*DeviceA-nqa-admin-throughput] destination-address mac 00-e0-fc-12-34-56
[*DeviceA-nqa-admin-throughput] forwarding-simulation inbound-interface gigabitethernet 0/1/1
[*DeviceA-nqa-admin-throughput] rate 10000 100000
[*DeviceA-nqa-admin-throughput] interval seconds 5
[*DeviceA-nqa-admin-throughput] precision 1000
[*DeviceA-nqa-admin-throughput] fail-ratio 81
[*DeviceA-nqa-admin-throughput] datasize 70
[*DeviceA-nqa-admin-throughput] duration 100
[*DeviceA-nqa-admin-throughput] vlan 10
[*DeviceA-nqa-admin-throughput] start now
[*DeviceA-nqa-admin-throughput] commit
[~DeviceA-nqa-admin-throughput] display nqa results test-instance admin throughput
NQA entry(admin, throughput) :testflag is inactive ,testtype is generalflow
  1 . Test 1 result: The test is finished, test mode is throughput
   ID Size Throughput(Kbps) Precision(Kbps) LossRatio Completion
   1  70   100000            1000            0.00%     success

Configure the initiator to conduct a latency test and check the test results.

[*DeviceA] nqa test-instance admin delay
[*DeviceA-nqa-admin-delay] test-type generalflow
[*DeviceA-nqa-admin-delay] measure delay
[*DeviceA-nqa-admin-delay] destination-address mac 00-e0-fc-12-34-56
[*DeviceA-nqa-admin-delay] forwarding-simulation inbound-interface gigabitethernet 0/1/1
[*DeviceA-nqa-admin-delay] datasize 64
[*DeviceA-nqa-admin-delay] rate 99000
[*DeviceA-nqa-admin-delay] interval seconds 5
[*DeviceA-nqa-admin-delay] duration 100
[*DeviceA-nqa-admin-delay] vlan 10
[*DeviceA-nqa-admin-delay] start now
[*DeviceA-nqa-admin-delay] commit
[~DeviceA-nqa-admin-delay] display nqa results test-instance admin delay
NQA entry(admin, delay) :testflag is inactive ,testtype is generalflow
  1 . Test 1 result: The test is finished, test mode is delay
   ID Size Min/Max/Avg RTT(us)     Min/Max/Avg Jitter(us)  Completion
   1  64   1/12/5                  2/15/8                   finished

Configure the initiator to conduct a packet loss rate test and check the test results.

[*DeviceA] nqa test-instance admin loss
[*DeviceA-nqa-admin-loss] test-type generalflow
[*DeviceA-nqa-admin-loss] measure loss
[*DeviceA-nqa-admin-loss] destination-address mac 00-e0-fc-12-34-56
[*DeviceA-nqa-admin-loss] forwarding-simulation inbound-interface gigabitethernet 0/1/1
[*DeviceA-nqa-admin-loss] datasize 64
[*DeviceA-nqa-admin-loss] rate 99000
[*DeviceA-nqa-admin-loss] duration 100
[*DeviceA-nqa-admin-loss] vlan 10
[*DeviceA-nqa-admin-loss] start now
[*DeviceA-nqa-admin-loss] commit
[~DeviceA-nqa-admin-loss] display nqa results test-instance admin loss
NQA entry(admin, loss) :testflag is inactive ,testtype is generalflow
  1 . Test 1 result: The test is finished, test mode is loss
   ID Size TxRate/RxRate(Kbps) TxCount/RxCount             LossRatio Completion
   1  64   99000/99000         653265345/653265345         0.00%     finished

Configuration Files

Configuration file of Device A

#
sysname DeviceA
#
vlan 10
#
interface GigabitEthernet 0/1/1
 portswitch
 undo shutdown
 port link-type trunk
 port trunk allow-pass vlan 10
#
interface GigabitEthernet 0/1/2
 portswitch
 undo shutdown
 port link-type trunk
 port trunk allow-pass vlan 10
#
nqa test-instance admin throughput
 test-type generalflow
 duration 100
 measure throughput
 fail-ratio 81
 destination-address mac 00e0-fc12-3456
 datasize 70
 rate 10000 100000
 precision 1000
 forwarding-simulation inbound-interface GigabitEthernet0/1/1
 vlan 10
nqa test-instance admin loss
 test-type generalflow
 duration 100
 measure loss
 destination-address mac 00e0-fc12-3456
 datasize 64
 rate 99000
 forwarding-simulation inbound-interface GigabitEthernet0/1/1
 vlan 10
nqa test-instance admin delay
 test-type generalflow
 duration 100
 measure delay
 interval seconds 5
 destination-address mac 00e0-fc12-3456
 datasize 64
 rate 99000
 forwarding-simulation inbound-interface GigabitEthernet0/1/1
 vlan 10
#
return

Configuration file of Device B

#
sysname DeviceB
#
vlan 10
nqa reflector 1 interface gigabitethernet 0/1/1 mac 00e0-fc12-3456 vlan 10
#
interface GigabitEthernet 0/1/1
 portswitch
 undo shutdown
 port link-type trunk
 port trunk allow-pass vlan 10
#
interface GigabitEthernet 0/1/2
 portswitch
 undo shutdown
 port link-type trunk
 port trunk allow-pass vlan 10
#
return
