S5720-28X-PWH-LI-AC
Version Mapping
Table 1 lists the mapping between the S5720-28X-PWH-LI-AC chassis and software versions.

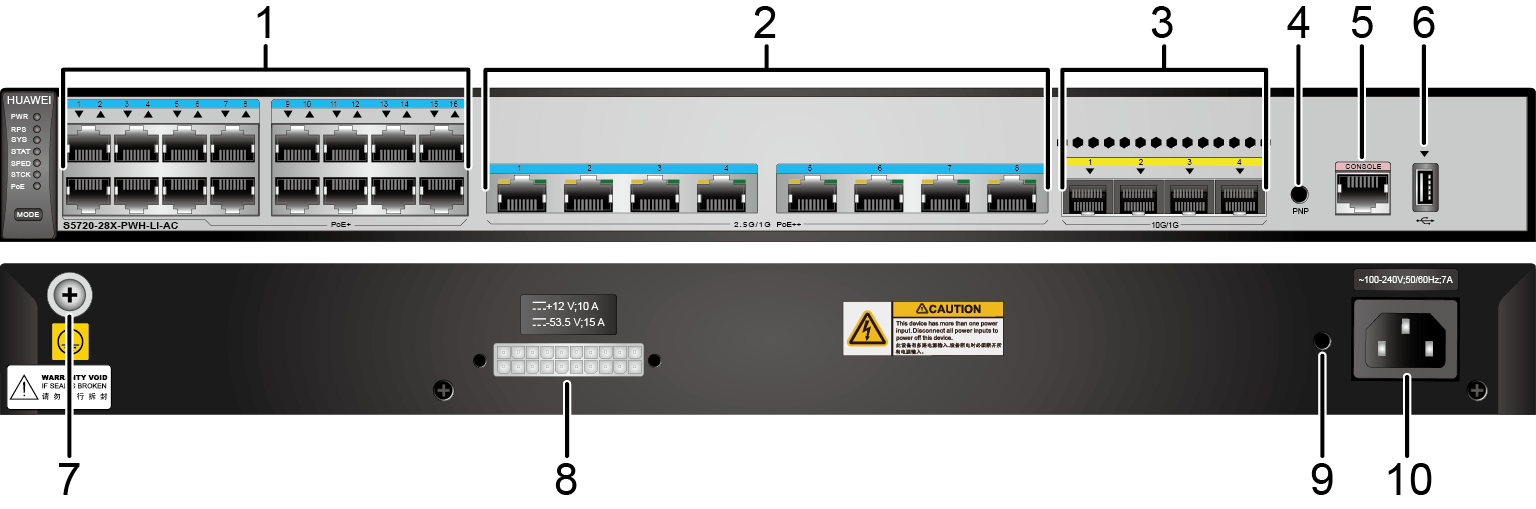

Appearance and Structure
| 1 | Sixteen PoE+ 10/100/1000BASE-T ports | 2 | Eight PoE++ 100M/1000M/2.5G BASE-T ports (MultiGE port) |
| 3 | Four 10GE SFP+ ports Applicable modules and cables:
NOTE:
If a port uses a GPON optical module, other 10GE SFP+ optical ports cannot be used. |
4 | One PNP button NOTICE:
Applicable in V200R012C00 and later versions: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button. |
| 5 | One console port | 6 | One USB port |
| 7 | Ground screw NOTE:
It is used with a ground cable. |
8 | RPS socket NOTE:
It is used with an RPS cable, which is not hot swappable. |
| 9 | Jack for AC power cable locking strap NOTE:
The AC power cable locking strap is not delivered
with the switch. |
10 | AC socket NOTE:
It is used with an AC power cable. |
Port Description
10/100/1000BASE-T portA 100M/1000M/2.5G BASE-T port (MultiGE port) sends and receives service data at 100 Mbit/s, 1 Gbit/s, or 2.5 Gbit/s, and must use an Ethernet cable. If the 2.5 Gbit/s speed is required, the port must use an Ethernet cable of Cat5e or higher category. Table 3 describes the attributes of a 100M/1000M/2.5G BASE-T port.
Attribute |
Description |
|---|---|
Connector type |
RJ45 |
Standards compliance |
IEEE802.3u, IEEE802.3ab, IEEE802.3bz, mgbase-t |
Working Mode |
100/1000/2500 Mbit/s auto-sensing |
- All switches providing FE electrical interfaces or GE electrical interfaces
- All devices providing MultiGE interfaces defined by the NBASE-T Alliance
- All devices providing MultiGE interfaces that comply with the 802.3bz standard
| Cable Type (6-a-1 Bundle) | MultiGE Port (Different Rates) | |
|---|---|---|
| 100M/1000M | 2.5GE | |
| Category 5e unshielded twisted pair (Cat5e UTP) | 100 m | 100 m |
| Category 5e shielded twisted pair (Cat5e STP) | 100 m | 200 m Only the APs listed below are supported if
the transmission distance is longer than 100 m:
|
| Category 6 unshielded twisted pair (Cat6 UTP) | 100 m | 100 m |
| Category 6 shielded twisted pair (Cat6 STP) | 100 m | 200 m Only the APs listed below are supported if
the transmission distance is longer than 100 m:
|
| Category 6A unshielded twisted pair (Cat6A U/UTP) | 100 m | 100 m |
| Category 6A foiled/unshielded twisted pair (Cat6A F/UTP) | 100 m | 200 m Only the APs listed below are supported if
the transmission distance is longer than 100 m:
|
| Category 6A shielded twisted pair (Cat6A STP) | 100 m | 200 m Only the APs listed below are supported if
the transmission distance is longer than 100 m:
|
| Category 7 shielded twisted pair (Cat7) | 100 m | 200 m Only the APs listed below are supported if
the transmission distance is longer than 100 m:
|
USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives.
Indicator Description
The S5720-28X-PWH-LI-AC has the same types of indicators as the S5720-28X-PWR-LI-AC. For details, see Indicator Description.Power Supply Configuration
The S5720-28X-PWH-LI-AC has a built-in power module and does not support pluggable power modules. It is a PoE switch. In addition to the built-in PoE power module, the switch can also connect to an RPS1800 for power redundancy.
| Available PoE Power | Maximum Number of Ports (Fully Loaded) |
|---|---|
| 360 W |
|
Heat dissipation
The S5720-28X-PWH-LI-AC has two built-in fans for forced air cooling. Air flows in from the left side and front panel, and exhausts from the right side.
Technical Specifications
Table 8 lists technical specifications of the S5720-28X-PWH-LI-AC.
Item |
Description |
|---|---|
Memory (RAM) |
512 MB |
Flash |
512 MB in total. To view the available flash memory size, run the display version command. |
Mean time between failures (MTBF) |
50.6 years |
| Mean time to repair (MTTR) | 2 hours |
Availability |
> 0.99999 |
Service port surge protection |
Common mode: ±7 kV |
Power supply surge protection |
±6 kV in differential mode, ±6 kV in common mode |
Dimensions (H x W x D) |
43.6 mm x 442.0 mm x 310.0 mm (1.72 in. x 17.4 in. x 12.2 in.) |
Weight (with packaging) |
5.9 kg (13.01 lb) |
Stack ports |
Sixteen 10/100/1000BASE-T ports and four 10GE SFP+ ports |
RTC |
Not supported |
RPS |
Supported |
PoE |
Supported |
Rated voltage range |
100 V AC to 240 V AC, 50/60 Hz |
Maximum voltage range |
90 V AC to 264 V AC, 47 Hz to 63 Hz |
Maximum power consumption (100% throughput) |
|
Typical power consumption (30% of traffic load)
|
51.6 W |
Operating temperature |
0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906
ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
Short-term operating temperature |
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating
temperature range for a short-term period, but the following conditions
must be met:
The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km. |
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
Noise under normal temperature (27°C, sound power) |
< 55.2 dB(A) |
Relative humidity |
5% to 95%, noncondensing |
Operating altitude |
0-5000 m (0-16404 ft.) |
Certification |
|
Part number |
98010659 |
