S6720-26Q-LI-24S-AC

Version Mapping

Table 1 lists the mapping between the S6720-26Q-LI-24S-AC chassis and software versions.

**Table 1** Version mapping
Series	Model	Software Version
S6720-LI	S6720-26Q-LI-24S-AC	V200R011C00 and later versions

Appearance and Structure

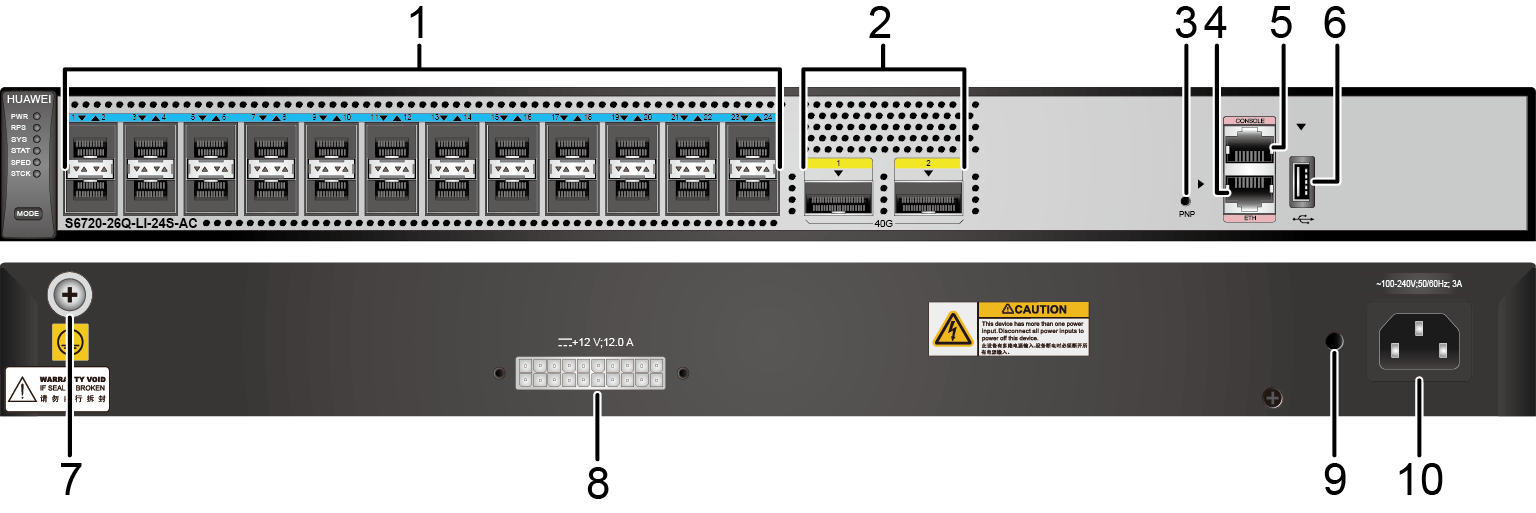

Figure 1 S6720-26Q-LI-24S-AC appearance

1	Twenty-four 10GE SFP+ ports Applicable modules and cables: GE optical module GE-CWDM optical module GE-DWDM optical module GE copper module (100M/1000M auto-sensing) 10GE SFP+ optical module (OSXD22N00 not supported) 10GE-CWDM optical module 10GE-DWDM optical module 1 m, 3 m, 5 m, and 10 m SFP+ high-speed copper cables 3 m and 10 m SFP+ AOC cables 0.5 m and 1.5 m SFP+ dedicated stack copper cables (the last 16 ports are supported, used for zero-configuration stacking, supported in V200R011C10 and later versions)	2	Two 40GE QSFP+ ports Applicable modules and cables: QSFP+ optical module 1 m, 3 m, and 5 m QSFP+ to QSFP+ high-speed copper cables 1 m, 3 m, and 5 m QSFP+ to 4SFP+ high-speed copper cables 10 m QSFP+ to QSFP+ AOC cable 10 m QSFP+ to 4SFP+ AOC cable NOTE: A 40GE QSFP+ optical port can be split into four 10GE ports.
3	One PNP button NOTICE: Applicable in V200R012C00 and later versions: To restore the factory settings and reset the switch, hold down the button for at least 6 seconds. To reset the switch, press the button. Resetting the switch will cause service interruption. Exercise caution when you press the PNP button.	4	One ETH management port
5	One console port	6	One USB port
7	Ground screw NOTE: It is used with a ground cable.	8	RPS socket NOTE: It is used with an RPS cable, which is not hot swappable.
9	Jack for AC power cable locking strap NOTE: The AC power cable locking strap is not delivered with the switch.	10	AC socket NOTE: It is used with an AC power cable.

Port Description

10GE SFP+ port

A 10GE SFP+ Ethernet optical port supports auto-sensing to 1000 Mbit/s. It sends and receives service data at 1000 Mbit/s or 10 Gbit/s. Table 2 describes the attributes of a 10GE SFP+ Ethernet optical port.

**Table 2** Attributes of a 10GE SFP+ port
Attribute	Description
Connector type	LC/PC
Optical port attributes	Depend on the optical module used
Standards compliance	IEEE802.3ae
Working mode	GE/10GE auto-sensing

40GE QSFP+ port

A 40GE QSFP+ optical port sends and receives service traffic at 40 Gbit/s and can be split into four 10GE ports. After a split, the 40GE QSFP+ optical port needs to be connected to a remote device using a 1-to-4 QSFP+ fiber (with matching optical modules), a 1-to-4 QSFP+ AOC cable, or a 1-to-4 QSFP+ copper cable. Table 3 describes the attributes of a 40GE QSFP+ optical port.

**Table 3** Attributes of a 40GE QSFP+ optical port
Attribute	Description
Connector type	MPO/LC
Optical port attributes	Depend on the optical module used
Standards compliance	IEEE802.3ba

Console port

The console port is connected to a console for on-site configuration. The port must use a console cable. The console port is used when a switch is powered on for the first time. For details about the attributes of a console port, see Table 4.

**Table 4** Attributes of a console port
Attribute	Description
Connector type	RJ45
Standards compliance	RS-232
Working mode	Duplex Universal Asynchronous Receiver/Transmitter (UART)
Baud rate	9600 bit/s, 19200 bit/s, 38400 bit/s, 57600 bit/s, or 115200 bit/s Default value: 9600 bit/s

ETH management port

You can connect a switch to a configuration terminal or network management workstation through the ETH management port to configure the switch locally or remotely. The port must use an Ethernet cable. You can choose to download the software package through the ETH management port in the BootLoad menu. File transfer through the ETH management port is faster than transfer through the console port. Table 5 describes the attributes of an ETH management port.

**Table 5** Attributes of an ETH management port
Attribute	Description
Connector type	RJ45
Standards compliance	IEEE802.3
Working mode	10/100 Mbit/s auto-sensing
Maximum transmission distance	100 m

In V200R012C00 and later versions, you can log in to the switch that contains the ETH management port for the first time through the ETH port. For details, see "First Login to a Switch" in the Configuration Guide - Basic Configuration. If you have logged in to the device for the first time by pressing and holding the MODE button for 6 seconds or longer and saved the configuration, the default configuration on the ETH port will be cleared. In this case, you cannot log in to the switch for the first time through the ETH port. You are advised to log in to the switch for the first time through the ETH port.

USB port

The USB port can have a USB flash drive connected to upgrade the switch, or transfer configuration files or other files. The USB port can only connect to a USB flash drive that complies with USB 2.0.

USB flash drives from different vendors differ in model compatibility and drivers. If a USB flash drive cannot be used, try to replace it with another one from a mainstream vendor. Switches support a maximum of 128 GB USB flash drives.

Indicator Description

Hold down the mode switch button for 6s and release it to start the web initial login mode. Either of the following situations will occur:

If the switch has no configuration file, the system attempts to enter the web initial login mode. In this mode, the status of mode indicators is as follows:
- If the system enters the web initial login mode successfully, all mode indicators turn green and stay on for a maximum of 10 minutes.
- If the system fails to enter the initial login mode, all mode indicators fast blink for 10 seconds and then restore the default status.
If the switch has a configuration file, the system cannot enter the web initial login mode. In this case, all mode indicators fast blink for 10s, and then return to the default states.

Figure 2 Indicators on the S6720-26Q-LI-24S-AC

The S6720-LI series switches provide a command for setting fault indicators, which help field maintenance personnel find a faulty switch quickly.

The SYS indicator and mode indicators (STAT, SPED, and STCK) are used as fault indicators of a switch. If the switch fails, its SYS indicator and mode indicators can be configured to blink red fast so that field maintenance personnel can find this faulty switch.

**Table 6** Description of indicators on the switch
No.	Indicator	Name	Color	Status	Description
1	PWR	Power module indicator	-	Off	The switch is powered off.
			Green	Steady on	The system power supply is normal.
			Yellow	Steady on	The built-in power module has failed, and the switch is receiving power from a redundant power supply (RPS).
2	RPS	RPS indicator	-	Off	The switch is not connected to an RPS.
			Green	Steady on	The RPS is in cold standby state.
			Green	Blinking	The RPS is supplying power to another switch.
			Yellow	Blinking	The RPS is supplying power to the local switch, and the built-in power module of the switch has failed.
3	SYS	System status indicator	-	Off	The system is not running.
			Green	Fast blinking	The system is starting.
			Green	Slow blinking	The system is running normally.
			Red	Steady on	The system does not work normally after registration, or a fan alarm or temperature alarm has been generated.
4	STAT	Status indicator	-	Off	The status mode is not selected.
4	STAT	Status indicator	Green	Steady on	The status mode (default mode) is selected. If the status mode is selected, the service port indicator shows the port link or activity state.
5	SPED	Speed indicator	-	Off	The speed mode is not selected.
5	SPED	Speed indicator	Green	Steady on	The service port indicators show the port speeds. After 45 seconds, the service port indicators automatically restore to the status mode.
6	STCK	Stack indicator	-	Off	If you are not changing the indicator mode (default): The switch is in stack standby or slave state or the stacking function is not enabled on the switch. If you are changing the indicator mode: The stack mode is not selected.
			Green	Steady on	The switch is a standby or slave switch in a stack, and the service port indicators show the stack ID of the switch.
			Green	Blinking	If you are not changing the indicator mode (default): The switch is a stack master switch or a standalone switch with the stacking function enabled. If you are changing the indicator mode: The switch is the master switch in a stack or a standalone switch, and the service port indicators show the stack ID of the master switch. After 45 seconds, the service port indicators automatically restore to the status mode.
7	MODE	Mode switch button	-	-	When you press this button once, the service port indicators change to the speed mode and show the speed of each service port When you press this button a second time, the service port indicators change to the stack mode and show the stack ID of the local switch. When you press this button a third time, the service port indicators restore to the default mode, and the STAT indicator turns green. If you do not press the MODE button within 45 seconds, the service port indicators restore to the default mode. In this case, the STAT indicator is steady green, the SPED indicator is off, and the STCK indicator is off or blinking green.
8	-	10GE service port indicator (two indicators for each port)	Meanings of service port indicators vary in different modes. For details, see Table 7.
9	-	40GE service port indicator (one indicator for each port)	Meanings of service port indicators vary in different modes. For details, see Table 8.
10	-	ETH port indicator	-	Off	The ETH port is not connected.
			Green	Steady on	The ETH port is connected.
			Green	Blinking	The ETH port is sending or receiving data.
11	-	USB-based deployment indicator	-	Off	No USB flash drive is connected to the switch. The USB port is damaged. The indicator is damaged. The USB flash drive does not have any configuration file and cannot be used for deployment. The switch has been upgraded using the USB flash drive and is restarting.
			Green	Steady on	A USB-based deployment has been completed.
			Green	Blinking	The system is reading data from the USB flash drive.
			Yellow	Steady on	The switch has copied all the required files and completed the file check. The USB flash drive can be removed from the switch.
			Red	Blinking	An error has occurred when the system is executing the configuration file or reading data from the USB flash drive.

**Table 7** Description of 10GE service port indicators in different modes (two indicators for each port)
Display Mode	Color	Status	Description
Status	-	Off	The port is not connected or has been shut down.
	Green	Steady on	A link has been established on the port.
	Yellow	Blinking	The port is sending or receiving data.
Speed	-	Off	The port is not connected or has been shut down.
	Green and yellow	Steady on	1000M/10GE port: The port is operating at 1000 Mbit/s.
	Green and yellow	Blinking	1000M/10GE port: The port is operating at 10 Gbit/s.
Stack	-	Off	Port indicators do not show the stack ID of the switch.
	Green and yellow	Steady on	The switch is not the master switch in a stack. If the indicator of a port is steady on, the number of this port is the stack ID of the switch. If the indicators of ports 1 to 9 are steady on, the stack ID of the switch is 0.
	Green and yellow	Blinking	The switch is the master switch in a stack. If the indicator of a port is blinking, the number of this port is the stack ID of the switch. If the indicators of ports 1 to 9 are blinking, the stack ID of the switch is 0.

**Table 8** Description of 40GE service port indicators in different modes (one indicator for each port)
Display Mode	Color	Status	Description
Status	-	Off	The port is not connected or has been shut down.
	Green	Steady on	A link has been established on the port.
	Green	Blinking	The port is sending or receiving data.
Speed	-	Off	The port is not connected or has been shut down.
	Green	Steady on	The port is operating at 10 Gbit/s.
	Green	Blinking	The port is operating at 40 Gbit/s.

Power Supply Configuration

The S6720-26Q-LI-24S-AC has a built-in power module and does not support pluggable power modules. It can connect to an RPS1800 power supply for power redundancy.

Figure 3 shows the power supply mode of a built-in AC power module. The built-in AC power module (PWR) receives power from an external power source and provides a 12 V output to the chassis.

Figure 3 Power supply mode of a built-in AC power module

L: live wire

N: neutral wire

PGND: protection ground wire

GND: 12 V reference ground

Heat Dissipation

The S6720-26Q-LI-24S-AC has three built-in fans for forced air cooling. Air flows in from the left side and front panel, and exhausts from the right side.

This figure only shows the airflow direction and does not depict the actual device.

Technical Specifications

Table 9 lists technical specifications of the S6720-26Q-LI-24S-AC.

**Table 9** Technical specifications
Item	Description
Memory (RAM)	1 GB
Flash	512 MB in total. To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	39.2 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	NA
Power supply surge protection	±6 kV in differential mode, ± 6 kV in common mode
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
Weight (including package)	4.2 kg (9.26 lb)
Stack ports	Any 10GE SFP+ ports (a maximum of 16 physical ports) Any 40GE QSFP+ ports (a maximum of 2 physical ports)
RTC	Supported
RPS	Supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz
Maximum power consumption (100% throughput, full speed of fans)	100.2 W
Typical power consumption (30% of traffic load, tested according to ATIS standard)	67.1 W
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Short-term operating temperature	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: The equipment operates at a temperature of over 45°C (113°F) consecutively for at most 96 hours in one year. The equipment operates at a temperature of over 45°C (113°F) for a total of no more than 360 hours in one year. The equipment operates at a temperature of over 45°C (113°F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 46.5 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	EMC certification Safety certification Manufacturing certification
Part number	98010684
